Model GE NP14A48S02 – Common Parts & Diagrams
CONTROL PARTS
BODY PARTS

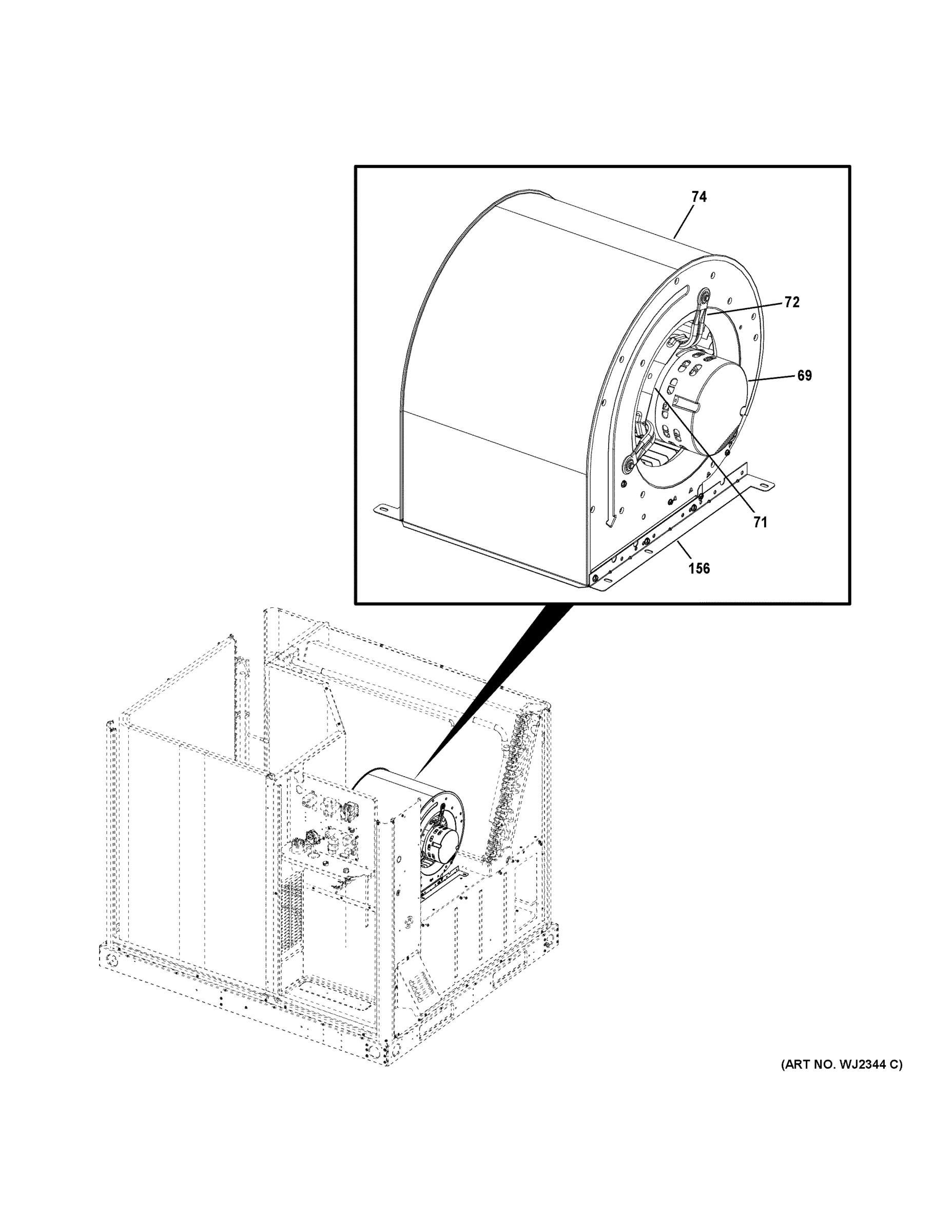

BLOWER & MOTOR
Common parts from model GE NP14A48S02
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R10432602 Contact Us For Availability
25
ASSY-COIL EVAP 24 x 40.5, 3ROW-(CTO) GEN 18Y08 Contact Us For Availability
69
621175-06 MTR-BLWR PROGR 3/4HP 208/230V GEN 18Y38 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R10230101 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability
130
LABEL - WIRING DIAGRAM-(CTO) GEN 53766301 Contact Us For Availability
153
DIST ASSY 9TUBE W/PISTON .072-(CTO) GEN 18Y28 Contact Us For Availability
156
RAIL - BLOWER-(CTO) GEN 61296102 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
ASSY-COIL COND 1 ROW 40 X 70.3-(CTO) GEN 18Y09 Contact Us For Availability
262
104161-07 ABG039KAC Comp 230V-1 R410A GEN 13H95 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P AC GE-(CTO) GEN 21V38 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R62228501E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R62189101E Contact Us For Availability
962
PNL-UTILITY HP-AC LG-(CTO) GEN R62189301E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R62189402E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R62188801E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R62189201E Contact Us For Availability
982
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R62188901E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R62263502 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R62189001E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R61180202E Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721304 Contact Us For Availability
9998
TOP GEA BADGE GEN 10721301 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
