Model GE NP14A36S02 HVAC – Packaged – Common Parts & Diagrams

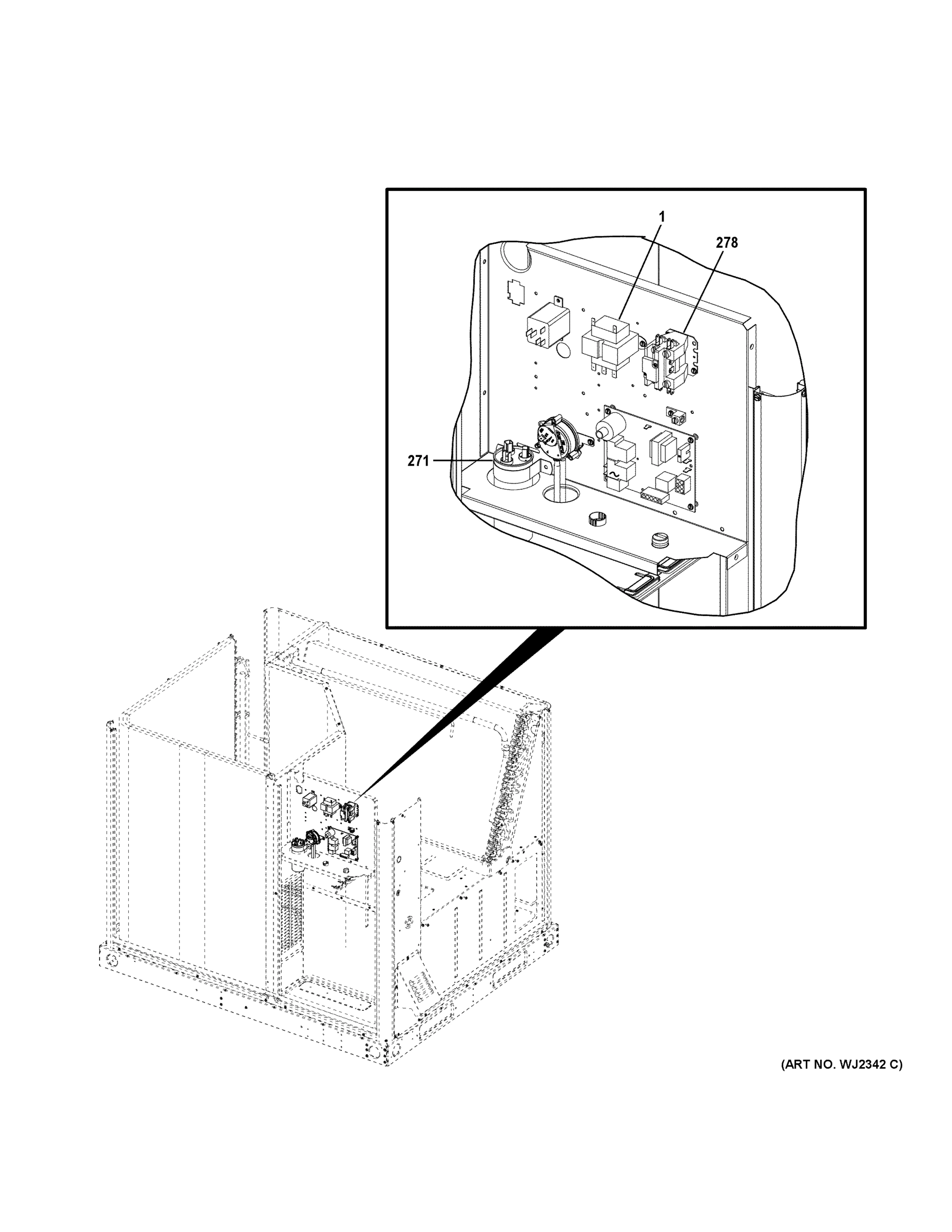

CONTROL PARTS

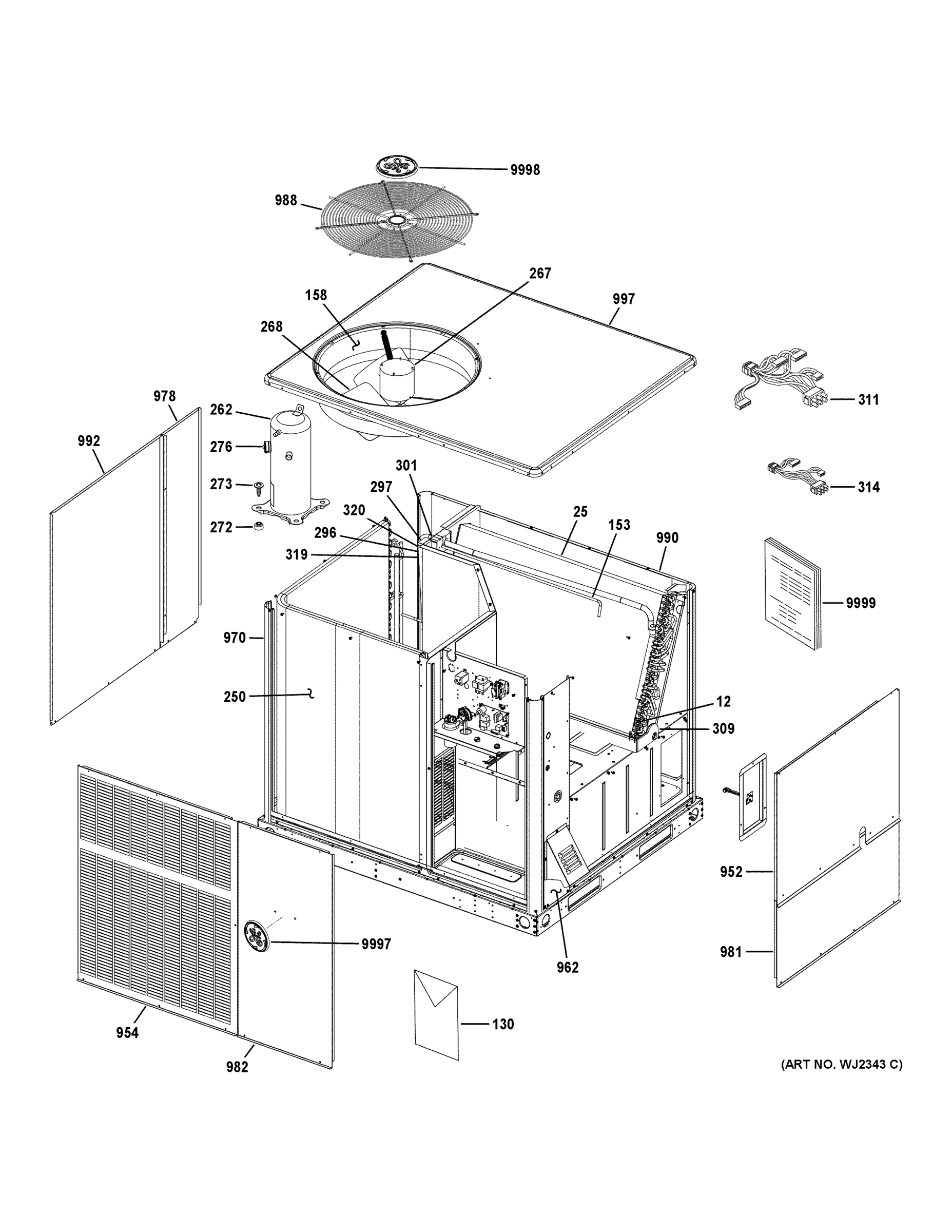

BODY PARTS
BLOWER & MOTOR
Common parts from model GE NP14A36S02 HVAC – Packaged
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R10432602 Contact Us For Availability
25
ASSY-COIL EVAP 20 x 32, 3R-(CTO) GEN 18Y06 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R10230101 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 8 -(CTO) GEN 12L16 Contact Us For Availability
130
LABEL - WIRING DIAGRAM-(CTO) GEN 53766301 Contact Us For Availability
153
DIST ASSY 6TUBE W/PISTON .064-(CTO) GEN 18Y26 Contact Us For Availability
156
RAIL - BLOWER-(CTO) GEN 61296102 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
262
104112-07 ZP29K6E-PFV-830 R410 A230V-1 GEN 11K69 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-43 CAPACITOR 45+5 @ 370V ROUND GEN 41W15 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 15M35 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
311
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P AC GE-(CTO) GEN 21V38 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R62228502E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R62199601E Contact Us For Availability
962
PANEL -UTILITY HP-AC SM-(CTO) GEN R62189302E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R62189401E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R62188802E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R62189201E Contact Us For Availability
982
PANEL -CONTROL ACCESS SM-(CTO) GEN R62188902E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R62263503 Contact Us For Availability
992
R621890-02E, GEN R62189002E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R61126702E Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721304 Contact Us For Availability
9998
TOP GEA BADGE GEN 10721301 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
