Model GE NP14A30S03 HVAC – Packaged – Common Parts & Diagrams

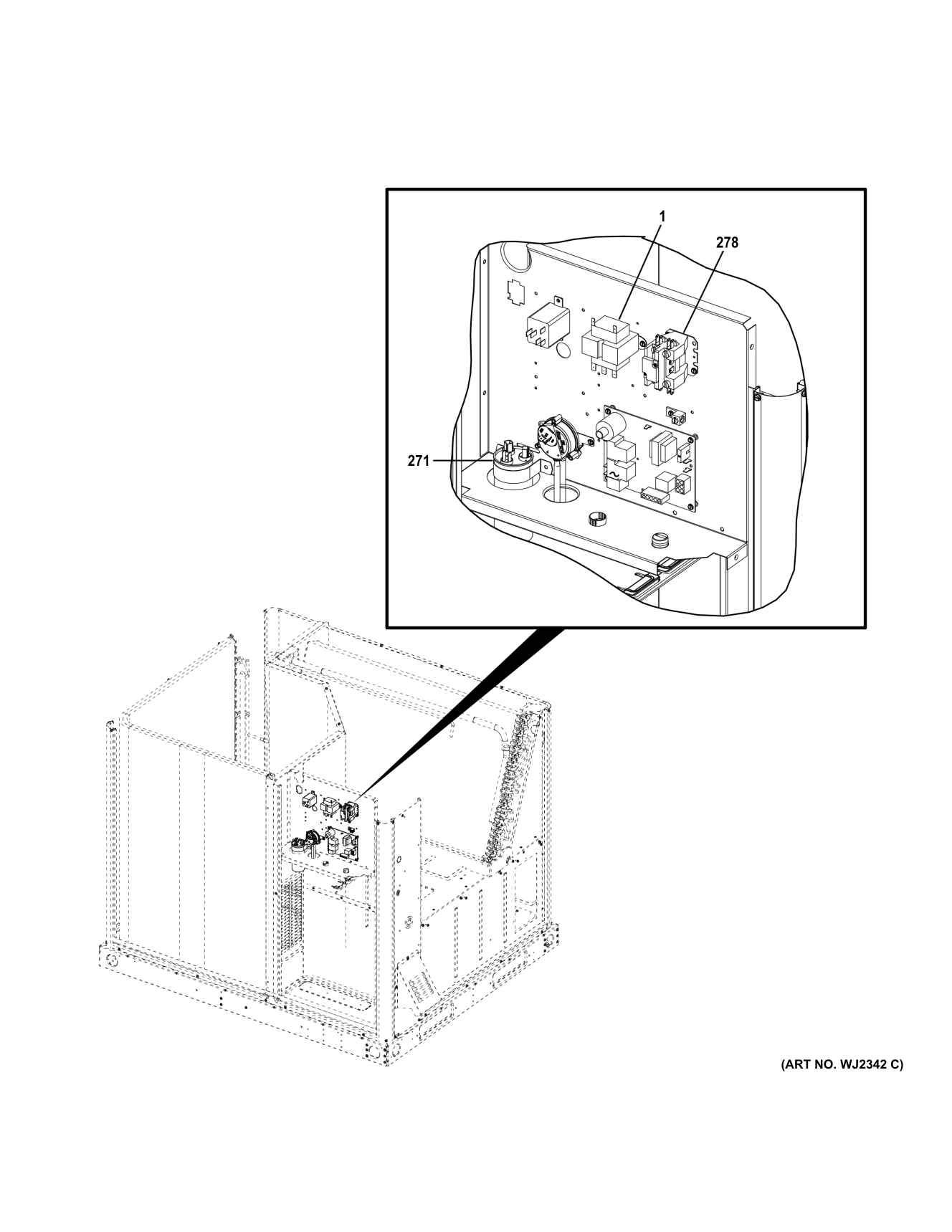

CONTROL PARTS

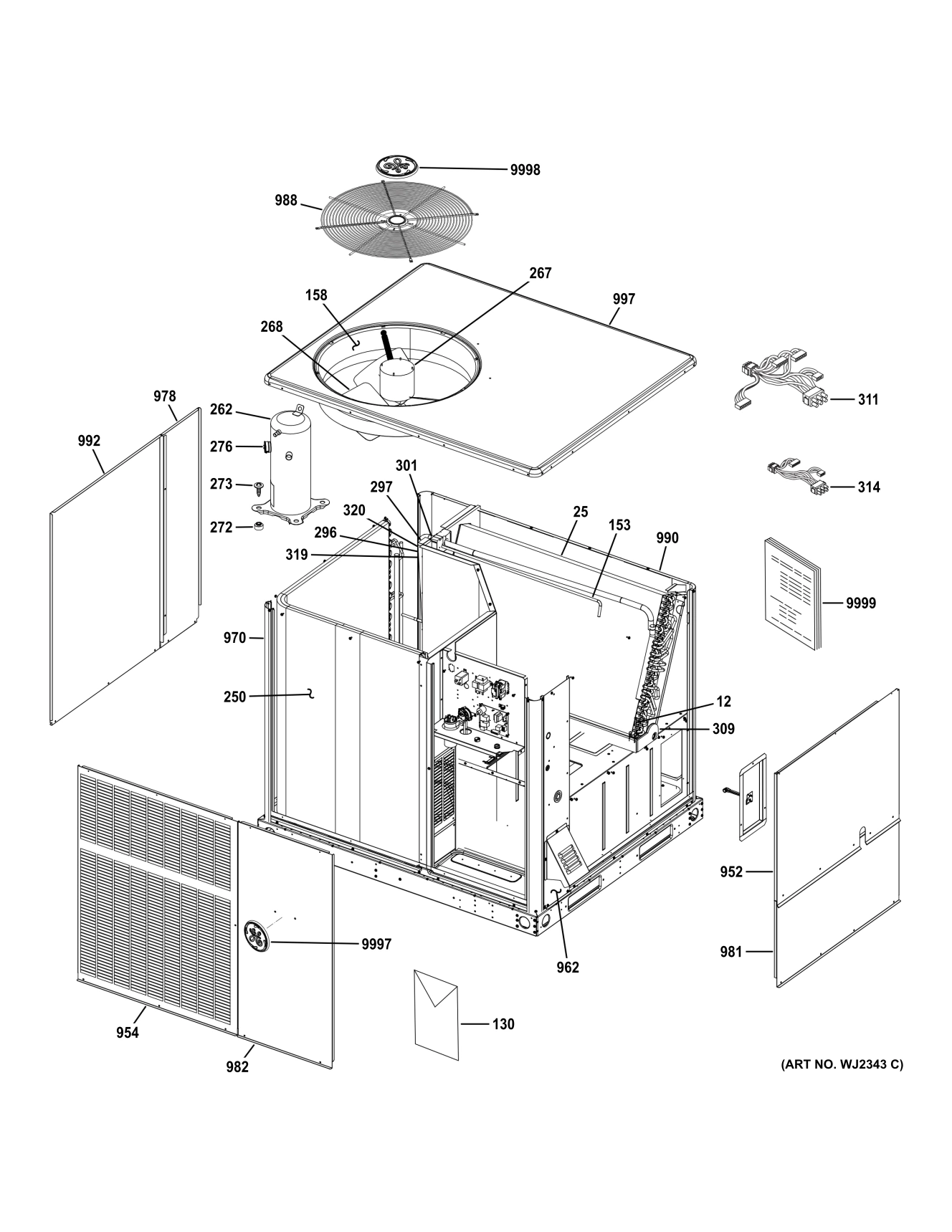

BODY PARTS

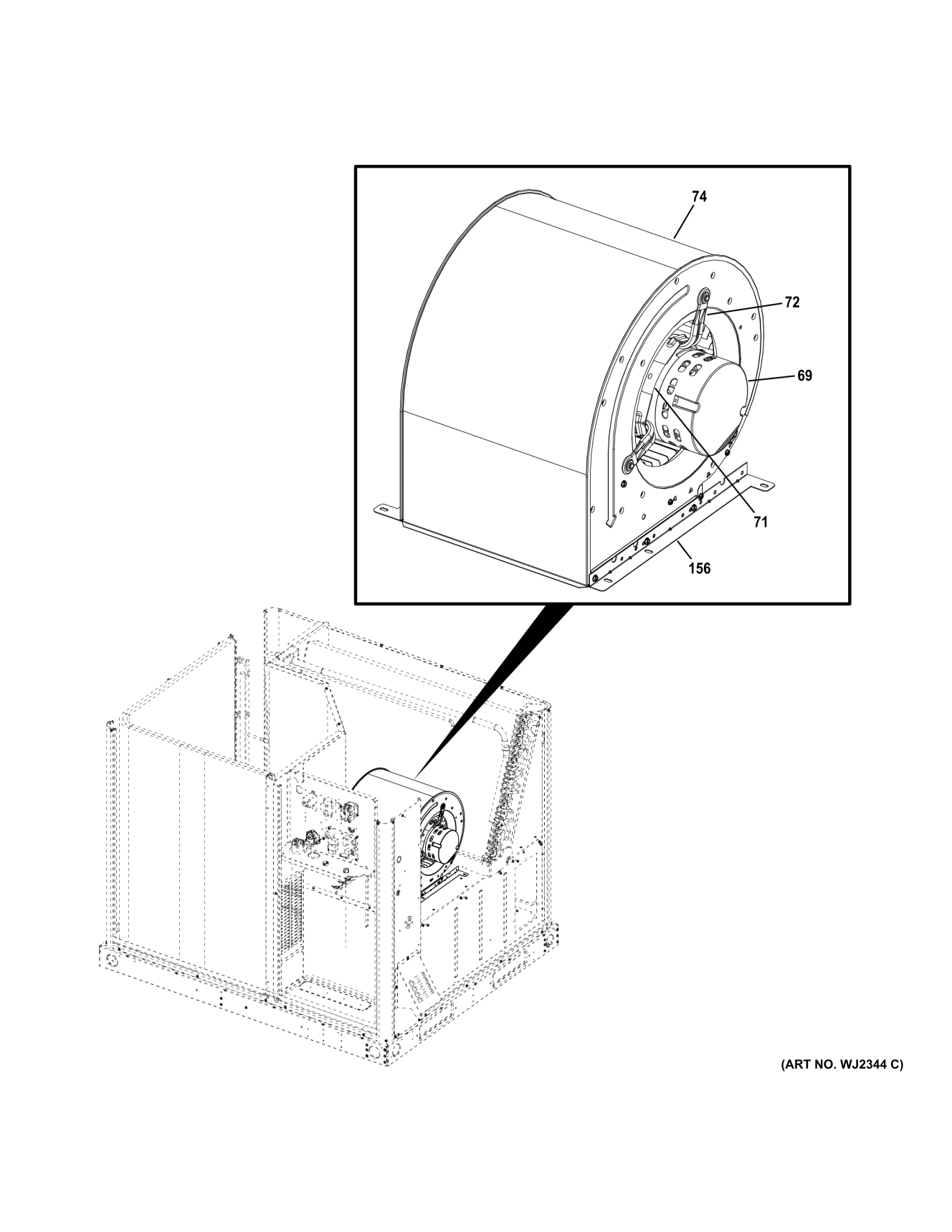

BLOWER & MOTOR
Common parts from model GE NP14A30S03 HVAC – Packaged
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R104326-02 Contact Us For Availability
25
ASSY-COIL 3 ROW EVAP-(CTO) GEN 12J53 Contact Us For Availability
69
MTR BLWR PROG 1/2HP 230V ECM GEN 24X91 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
ARM, MOTOR MOUNTING BRACKET-(CTO) GEN R102301-01 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 6 -(CTO) GEN 12L14 Contact Us For Availability
130
LABEL - WIRING DIAGRAM-(CTO) GEN 537663-01 Contact Us For Availability
153
DIST ASSY 4TUBE W/PISTON .062-(CTO) GEN 18Y25 Contact Us For Availability
156
RAIL - BLOWER-(CTO) GEN 612961-02 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
262
COMPRESSOR ROTARY 50N6229 (104216-05) GEN 18X97 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-38 Dual Run Cap 50+5 @ 370V ROUND GEN 40W01 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT & SLEEVE COMBINATION-(CTO) GEN R100301-04 Contact Us For Availability
276
HARNESS-COMPRESSOR MOLDED PLUG-(CTO) GEN 18X95 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER SUCTION LINE FILTER-(CTO) GEN 18Y32 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
311
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P AC GE-(CTO) GEN 21V38 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R622285-02E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R621996-01E Contact Us For Availability
962
PANEL -UTILITY HP-AC SM-(CTO) GEN R621893-02E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R621894-01E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R621888-02E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
PANEL -CONTROL ACCESS SM-(CTO) GEN R621889-02E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R622635-03 Contact Us For Availability
992
PANEL-LOUVER LEFT SIDE SMALL GEN R621890-02E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R611267-02E Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-01 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
