Model GE NP13X60SR0720 Room Air Conditioner Built In – Common Parts & Diagrams

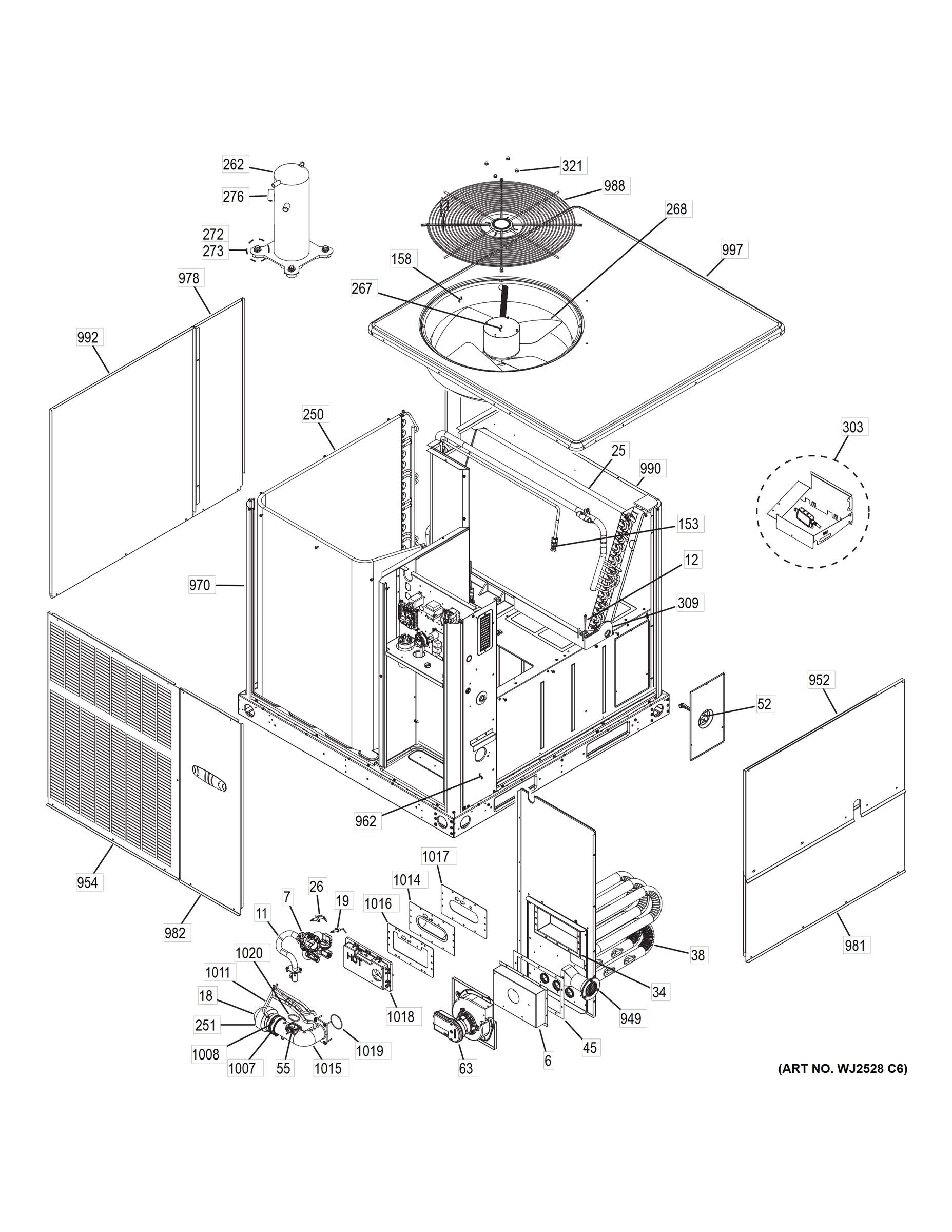

CABINET (1)

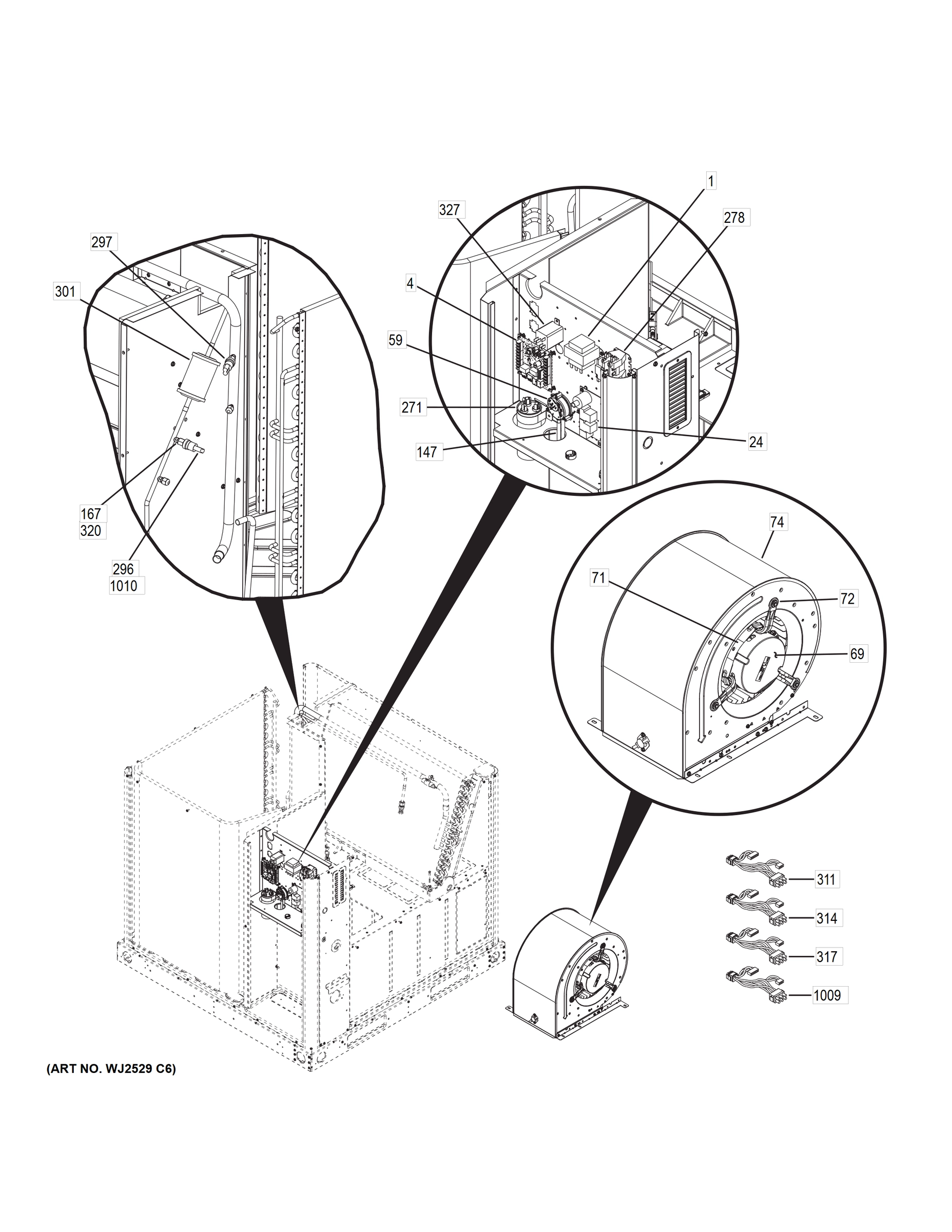

CABINET (2)
Common parts from model GE NP13X60SR0720 Room Air Conditioner Built In
4
ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability
6
BOX-FLUE COLLECTOR-(CTO) GEN R616079-10 Contact Us For Availability
7
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
11
ASSY-MANIFOLD NOZZLE ULN-(CTO) GEN 22U26 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R104326-02 Contact Us For Availability
18
617362-01 ASSEMBLY - SCREEN INTAKE (CTO) GEN 20V99 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
COIL EVAP 24X40.5 3/8 3R15FPI-(CTO) GEN 12J31 Contact Us For Availability
26
106379-01 IGNITOR GEN 20C76 Contact Us For Availability
34
ASSY-HEAT SHIELD-(CTO) GEN 21A46 Contact Us For Availability
38
HEAT EXCH ASSY ULNOX (CTO) GEN 628163-02 Contact Us For Availability
45
GKT-COLLECTOR BOX, 060(CTO) GEN 15V90 Contact Us For Availability
52
102857-28 LIMIT CONTROL (STILT) 200F GEN 22B75 Contact Us For Availability
55
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
59
105078-04 SWITCH-PRESS SINGLE STAGE ULN GEN 22U24 Contact Us For Availability
69
MTR BLWR PROG 1HP 230V ECM GEN 24X89 Contact Us For Availability
71
BAND MOTOR MTG - 4 ARM-(CTO) GEN 104610-04 Contact Us For Availability
72
ARM MOTOR MTG BRKT-(CTO) GEN 12X34 Contact Us For Availability
74
BLWR HSG & WHEEL 12 X 10-(CTO) GEN 22U33 Contact Us For Availability
147
LEAD ELECTRODE 21"-(CTO) GEN 22U21 Contact Us For Availability
153
DISTR 9 TUBE PSTN SZ 80 (INDOOR) (CTO) GEN 100579-123 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
167
Valve Core GEN 95M48 Contact Us For Availability
250
623920-02 ASSY-COIL COND (CTO) GEN 23V49 Contact Us For Availability
251
BOX-FLUE COLLECTOR-(CTO) GEN 20K67 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
107638-05 CONTACTOR SPST 24V 50A GEN 28G90 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
303
627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
HARNESS-WIRING ULNOX G/E (CTO) GEN 108084-02 Contact Us For Availability
314
HARNESS-WIRING LIMIT-(CTO) GEN 22U27 Contact Us For Availability
317
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
327
RELAY FAN SPDT-(CTO) GEN 25J38 Contact Us For Availability
949
COVER DUCT - HORIZONTAL (CTO) GEN 621895-01E Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PANEL-UTILITY G/E LG ARM (CTO) GEN 627727-04E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
1007
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1008
ORIFICE - AIR-(CTO) GEN 22J96 Contact Us For Availability
1009
HARNESS-WIRING SECONDARY LIMIT-(CTO) GEN 22U28 Contact Us For Availability
1010
SWITCH-LIMIT NC 150F GREEN/WHITE GEN 36K14 Contact Us For Availability
1011
ASSY VACUUM HOSE - ULN SMALL BASE-(CTO) GEN 22P51 Contact Us For Availability
1014
PLATE-BURNER PREMIX ULN-(CTO) GEN 20U89 Contact Us For Availability
1015
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
1016
GASKET-PLENUM (LOW HT) BACK-(CTO) GEN 20U86 Contact Us For Availability
1017
GASKET-BURNER BOX (LOW HT)-(CTO) GEN 20U83 Contact Us For Availability
1018
GASKET-SENSOR/IGNITER-(CTO) GEN 20B69 Contact Us For Availability
1019
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1020
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
× ![]()
