Model GE NP13X24SR0540 Room Air Conditioner Built In – Common Parts & Diagrams
CABINET (1)

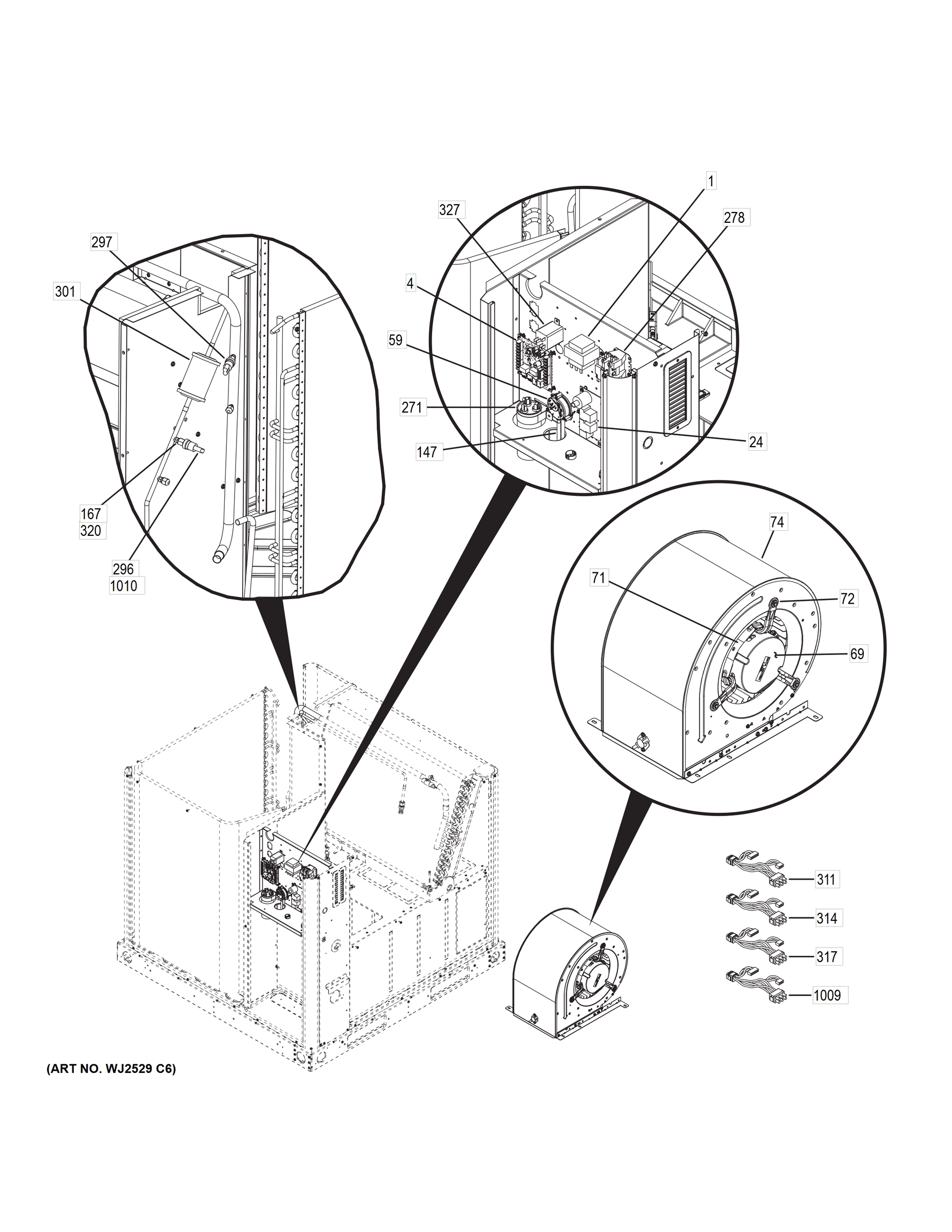

CABINET (2)
Common parts from model GE NP13X24SR0540 Room Air Conditioner Built In
4
ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability
6
BOX-FLUE COLLECTOR-(CTO) GEN R616079-10 Contact Us For Availability
7
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
11
ASSY-MANIFOLD NOZZLE ULN-(CTO) GEN 22U25 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R104326-02 Contact Us For Availability
18
617362-01 ASSEMBLY - SCREEN INTAKE (CTO) GEN 20V99 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL 3/8" 2 ROW EVAP -(CTO) GEN 12J28 Contact Us For Availability
26
106379-01 IGNITOR GEN 20C76 Contact Us For Availability
34
ASSY-HEAT SHIELD-(CTO) GEN 21A46 Contact Us For Availability
38
HEAT EXCH ASSY ULNOX (CTO) GEN 628163-03 Contact Us For Availability
45
GKT-COLLECTOR BOX, 060(CTO) GEN 15V90 Contact Us For Availability
52
102857-28 LIMIT CONTROL (STILT) 200F GEN 22B75 Contact Us For Availability
55
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
59
105078-04 SWITCH-PRESS SINGLE STAGE ULN GEN 22U24 Contact Us For Availability
69
MTR BLWR PROG 1/3HP 230V ECM GEN 621175-75 Contact Us For Availability
71
P-8-9501 BAND-MOTOR-(CTO) GEN 32866 Contact Us For Availability
72
MOUNT-MTR ARM BRACKET-(CTO) GEN 12X33 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 6-(CTO) GEN 22U29 Contact Us For Availability
147
LEAD ELECTRODE 21"-(CTO) GEN 22U21 Contact Us For Availability
153
DISTR 4 TUBE PSTN SZ52 (INDOOR) (CTO) GEN 100579-118 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
167
Valve Core GEN 95M48 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
251
BOX-FLUE COLLECTOR-(CTO) GEN 20K67 Contact Us For Availability
262
108046-03 COMPRESSOR ROTARY 50L5129 GEN 28V39 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
CAPACITOR 40+5 @ 440V ROUND GEN 89M77 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT & SLEEVE COMBINATION-(CTO) GEN R100301-04 Contact Us For Availability
276
HARNESS-COMPRESSOR MOLDED PLUG-(CTO) GEN 18X95 Contact Us For Availability
278
107638-04 CONTACTOR SPST 24V 35A GEN 28G86 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER SUCTION LINE FILTER-(CTO) GEN 18Y32 Contact Us For Availability
303
627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
311
HARNESS-WIRING ULNOX G/E (CTO) GEN 108084-02 Contact Us For Availability
314
HARNESS-WIRING LIMIT-(CTO) GEN 22U27 Contact Us For Availability
317
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
320
Fitting - PressureTap-(CTO) GEN 95M47 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
327
RELAY FAN SPDT-(CTO) GEN 25J38 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R622285-02E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R621996-01E Contact Us For Availability
962
PANEL-UTILITY G/E SM ARM (CTO) GEN 627727-03E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R621894-01E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R621888-02E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R622635-03 Contact Us For Availability
992
PANEL-LOUVER LEFT SIDE SMALL GEN R621890-02E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R611267-02E Contact Us For Availability
1007
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1008
ORIFICE - AIR-(CTO) GEN 22J96 Contact Us For Availability
1009
HARNESS-WIRING SECONDARY LIMIT-(CTO) GEN 22U28 Contact Us For Availability
1010
SWITCH-LIMIT NC 150F GREEN/WHITE GEN 36K14 Contact Us For Availability
1011
ASSY VACUUM HOSE - ULN SMALL BASE-(CTO) GEN 22P51 Contact Us For Availability
1014
PLATE-BURNER PREMIX ULN-(CTO) GEN 20U89 Contact Us For Availability
1015
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
1016
GASKET-PLENUM (LOW HT) BACK-(CTO) GEN 20U86 Contact Us For Availability
1017
GASKET-BURNER BOX (LOW HT)-(CTO) GEN 20U83 Contact Us For Availability
1018
GASKET-SENSOR/IGNITER-(CTO) GEN 20B69 Contact Us For Availability
1019
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1020
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
× ![]()
