Model GE NP13L24SR0540 Room Air Conditioner Built In – Common Parts & Diagrams

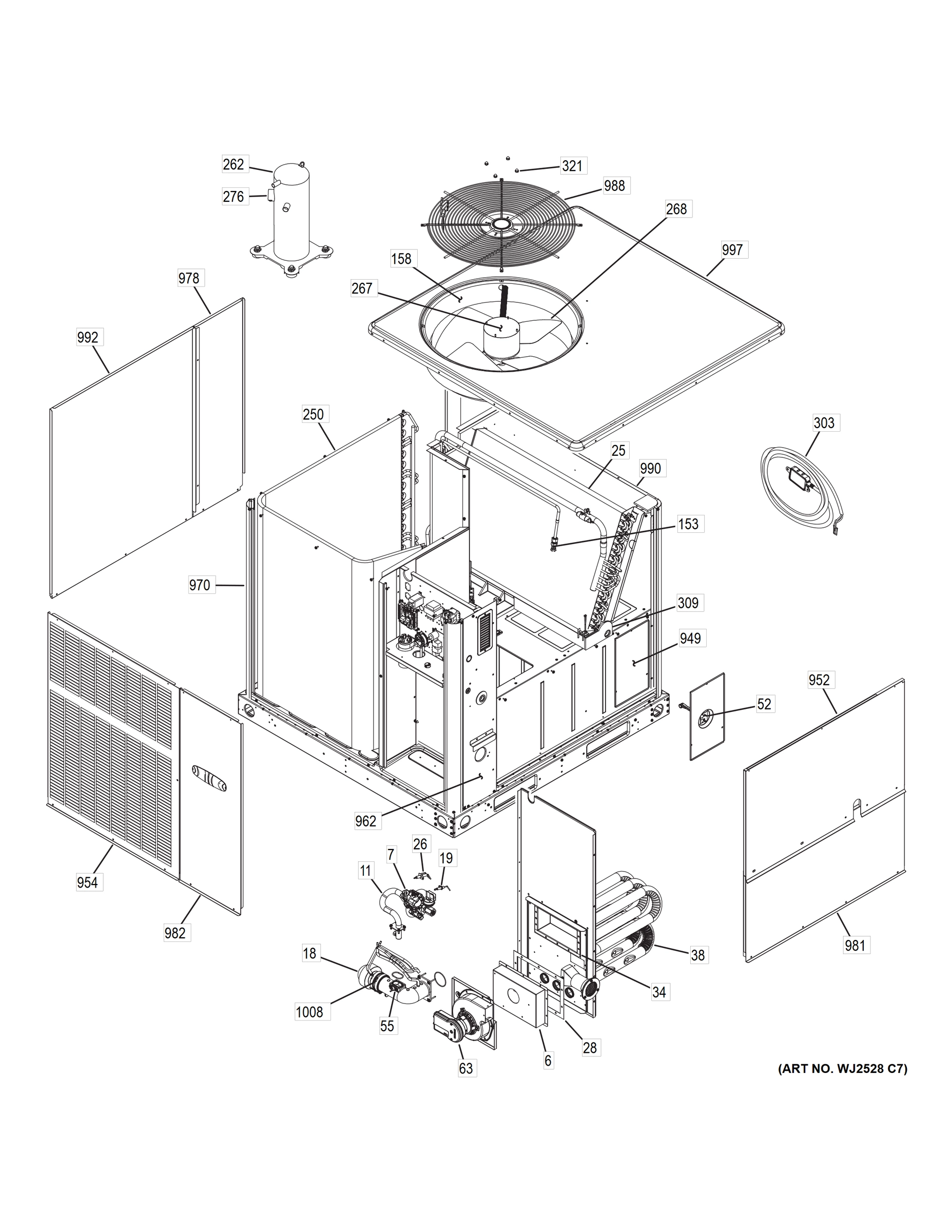

CABINET (1)

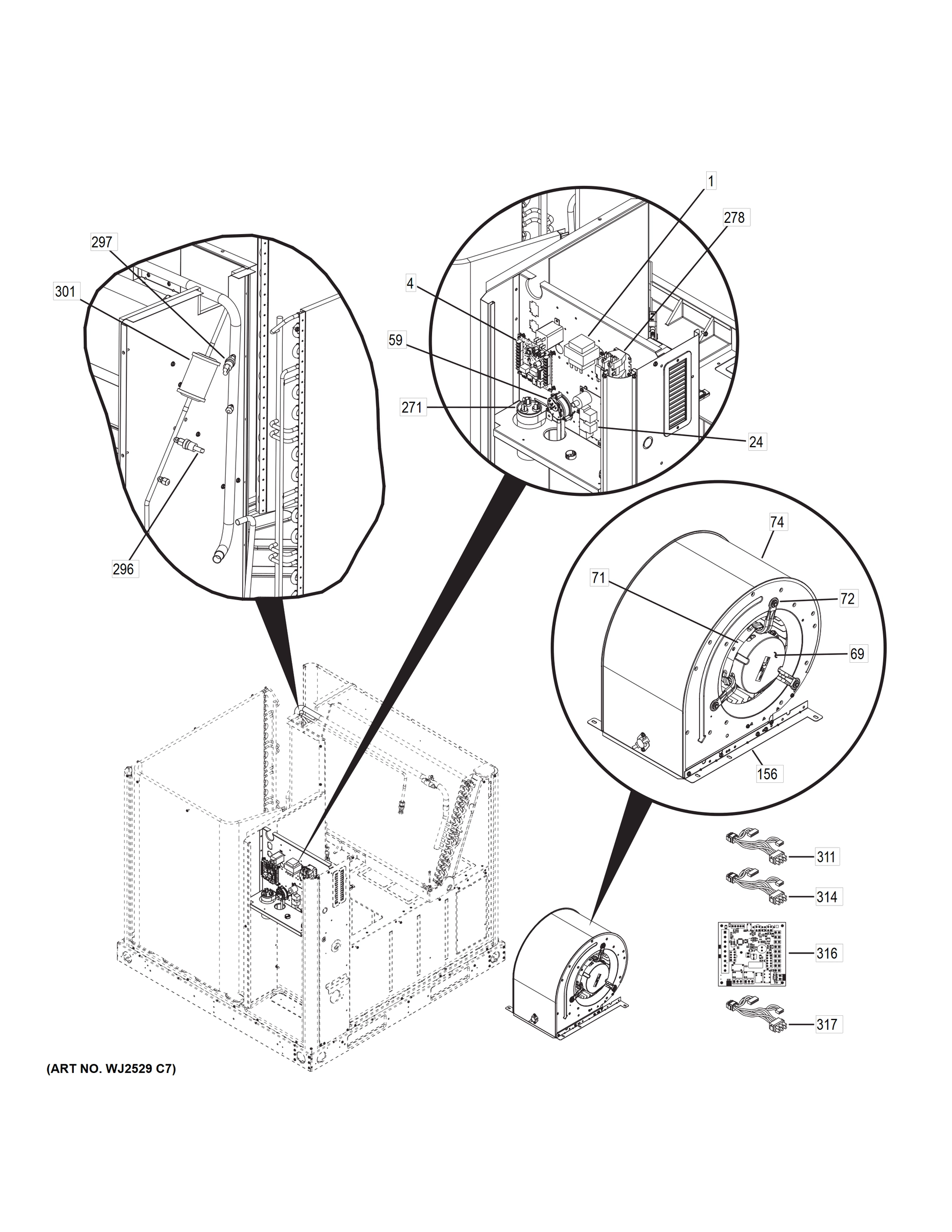

CABINET (2)
Common parts from model GE NP13L24SR0540 Room Air Conditioner Built In
1
104824-02 TRANSFORMER 208/240V SEC 24V 6 GEN 24Z05 Contact Us For Availability
4
ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability
6
BOX COLLECTOR (7 BURNER)-(CTO) GEN 12P11 Contact Us For Availability
11
ASSY-MANIFOLD GAS 6 BURNER-(CTO) GEN 12L06 Contact Us For Availability
18
INSERT-NOX-(CTO) GEN 25W78 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
COIL EVAP 24X40.5 3/8 3R15FPI-(CTO) GEN 12J31 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
28
GASKET FLUE COVER 6-7 BURNER-(CTO) GEN 12K82 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
HEAT EXCH LG 6TU W/VEST-(CTO) GEN 22B50 Contact Us For Availability
52
102857-27 LIMIT CONTROL (195F) GEN 22B74 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
71
BAND MOTOR MTG - 4 ARM-(CTO) GEN 104610-04 Contact Us For Availability
72
ARM MOTOR MTG BRKT-(CTO) GEN 12X34 Contact Us For Availability
74
BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability
153
DISTR 9 TUBE PSTN SZ 80 (INDOOR) (CTO) GEN 100579-123 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
623920-02 ASSY-COIL COND (CTO) GEN 23V49 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability
271
Dual Run Cap 70+10 @ 440V RND GEN 29W09 Contact Us For Availability
276
LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability
278
107638-05 CONTACTOR SPST 24V 50A GEN 28G90 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
303
627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
311
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
314
106908-01 HARNESS-WIRING HARNESS GEN 22B76 Contact Us For Availability
316
RDS INTEGRATED BOARD (CTO) GEN 29B47 Contact Us For Availability
317
HARNESS-WIRING CT G/E GEN 108084-01 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
949
COVER DUCT HORIZONTAL (CTO) GEN R621895-01E Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PANEL-UTILITY G/E LG (CTO) GEN 627727-02E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
1008
ORIFICE 7 TUBE (CTO) GEN 104115-05 Contact Us For Availability
× ![]()
