Model GE NP13H24SR0 Room Air Conditioner Built In – Common Parts & Diagrams

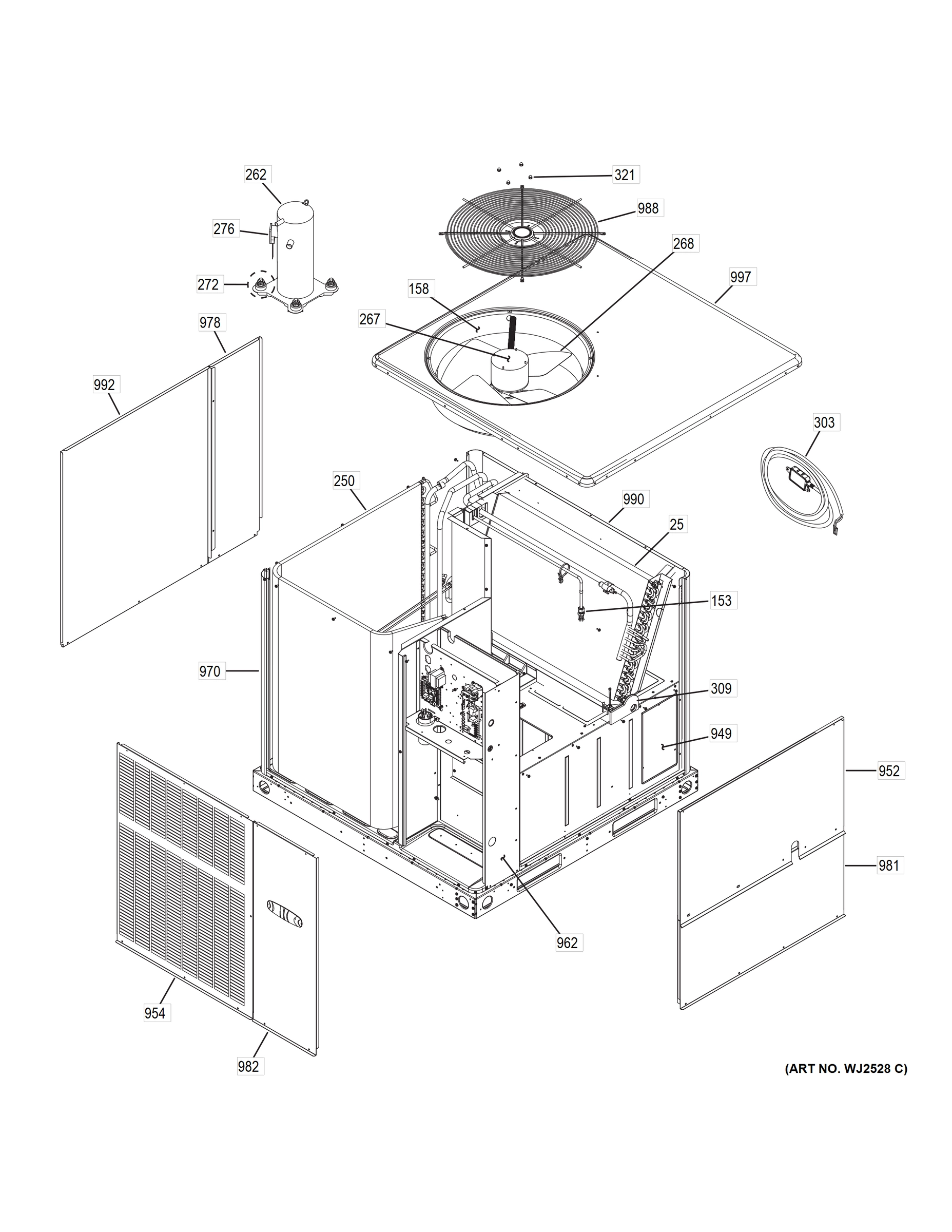

CABINET (1)

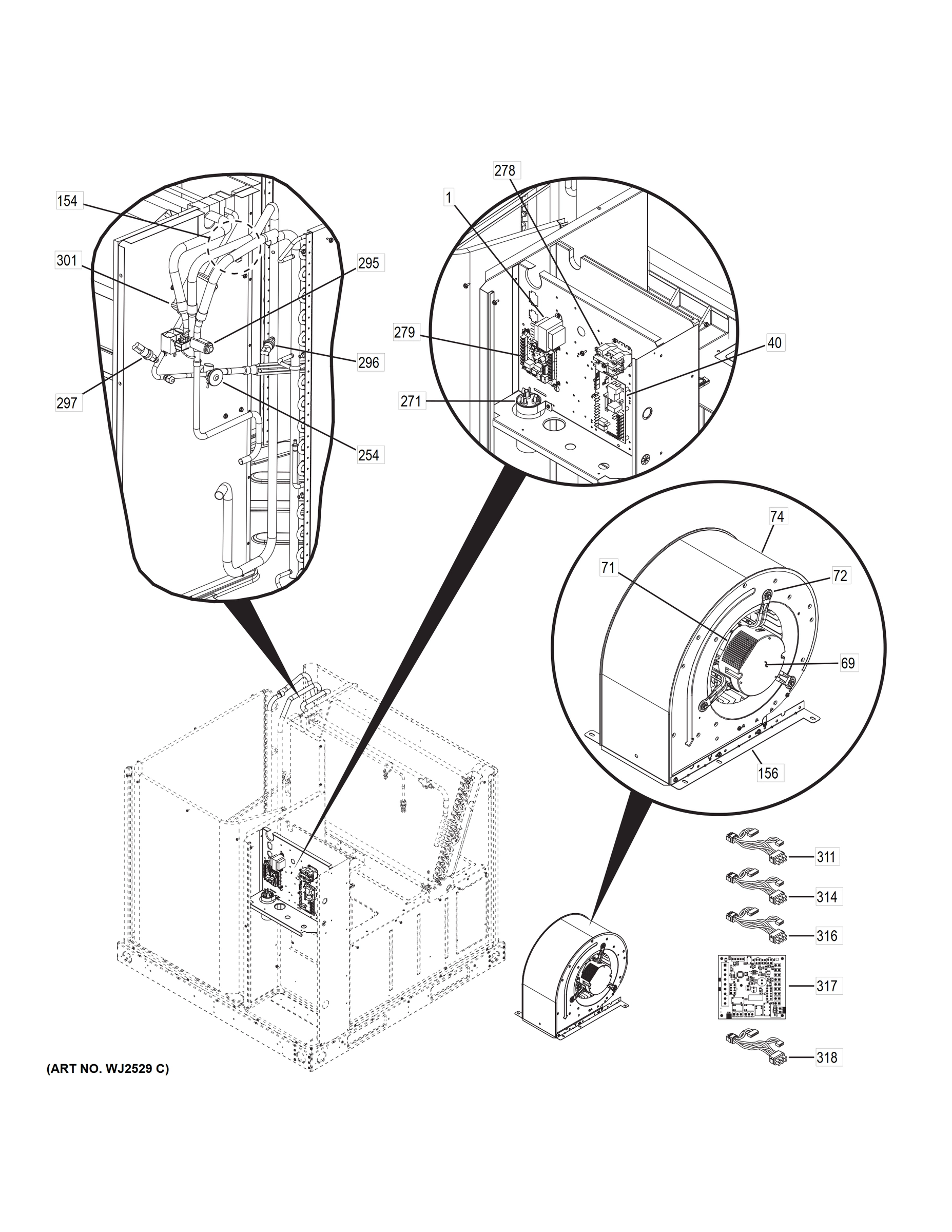

CABINET (2)
Common parts from model GE NP13H24SR0 Room Air Conditioner Built In
1
104824-02 TRANSFORMER 208/240V SEC 24V 6 GEN 24Z05 Contact Us For Availability
25
ASSY-COIL 3 ROW EVAP-(CTO) GEN 12J53 Contact Us For Availability
40
ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability
69
MTR BLWR PROG 1/3HP 230V ECM GEN 621175-61 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
622523-02 KIT ARM-MOTOR MTG 3 LEGS (CTO) GEN 21A89 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 6 -(CTO) GEN 12L14 Contact Us For Availability
153
DISTR 6 TUBE PSTN SIZE 51 (INDOOR) (CTO) GEN 100579-114 Contact Us For Availability
154
101322-13 ASSY-DISTRIBUTOR 3 TUBE-(CTO) GEN 12J24 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
613201-02 ASSY-COIL COND 1ROW-(CTO) GEN 12J85 Contact Us For Availability
254
VALVE-EXPANSION NXT (OUTDOOR 2 TON) GEN 108078-12 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
Dual Run Cap 35+5 @ 440V ROUND GEN 89M74 Contact Us For Availability
272
LB-106528 COMPRESSOR MTG KIT GEN 54M63 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
107638-04 CONTACTOR SPST 24V 35A GEN 28G86 Contact Us For Availability
279
CIRCUIT BOARD DEFROST CONTROL GEN 23X17 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER - BiFlow (R410A)CTO GEN 49W23 Contact Us For Availability
303
627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
311
SENSOR DEFROST (HARNESS) GEN 24X46 Contact Us For Availability
314
SENSOR DEFROST (HARNESS) GEN 24X45 Contact Us For Availability
316
104158-01 HARNESS-WIRING SECONDARY HP GEN 13K17 Contact Us For Availability
317
RDS INTEGRATED BOARD (CTO) GEN 29B47 Contact Us For Availability
318
HARNESS-WIRING CT HP (CTO) GEN 108086-01 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
949
COVER DUCT HORIZONTAL - (CTO) GEN R621895-02E Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R622285-02E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R621996-01E Contact Us For Availability
962
PANEL -UTILITY HP-AC SM-(CTO) GEN R621893-02E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R621894-01E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R621888-02E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R622635-03 Contact Us For Availability
992
PANEL-LOUVER LEFT SIDE SMALL GEN R621890-02E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R611267-02E Contact Us For Availability
× ![]()
