Model GE NP13A42SR0 Room Air Conditioner Built In – Common Parts & Diagrams

Common parts from model GE NP13A42SR0 Room Air Conditioner Built In

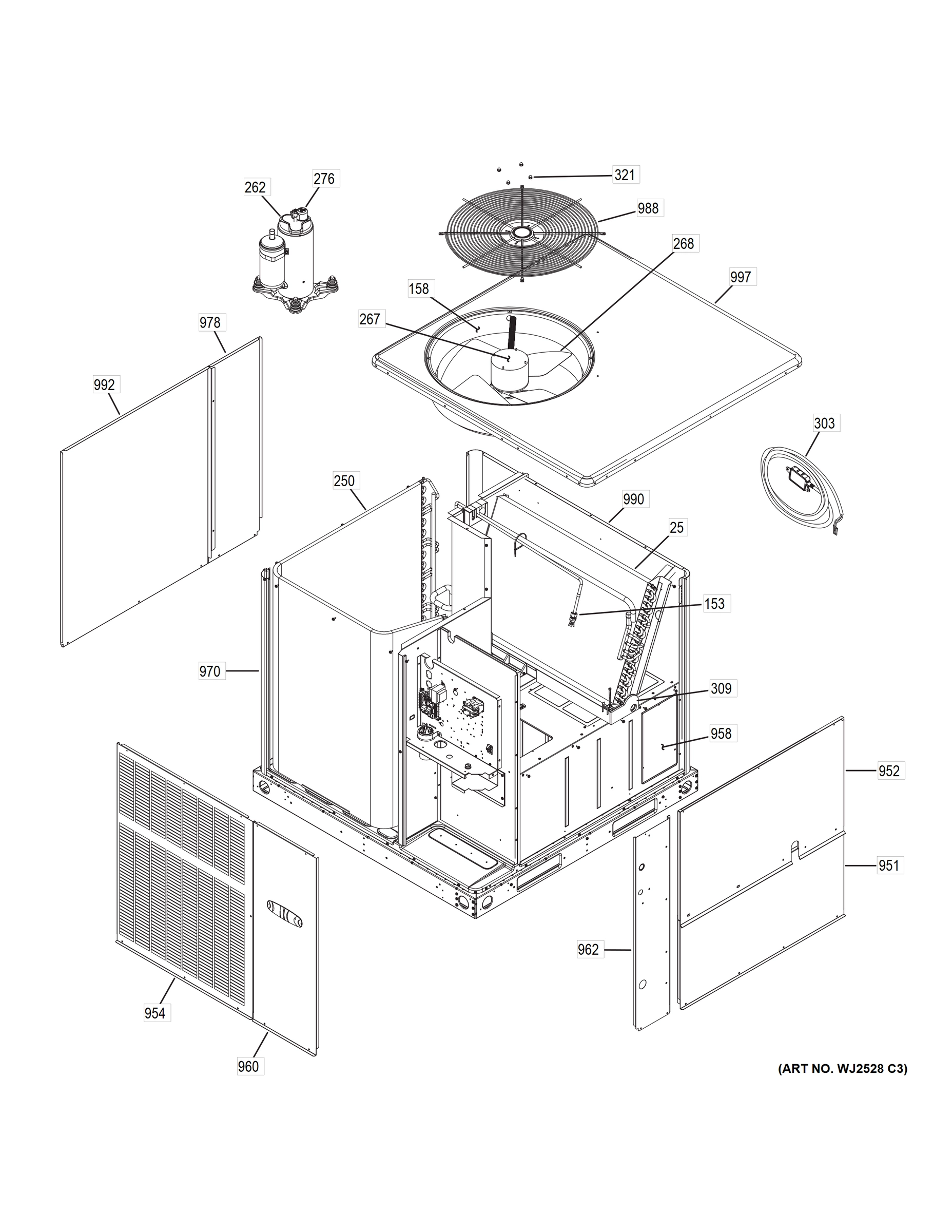

CABINET (1)

Print

• This Diagram
• All Diagrams

1

104824-02 TRANSFORMER 208/240V SEC 24V 6 GEN 24Z05 Contact Us For Availability

View on Model

25

ASSY-COIL EVAP 24 x 40.5, 3ROW-(CTO) GEN 18Y08 Contact Us For Availability

View on Model

69

MTR BLWR PROG 3/4HP 230V ECM GEN 24X77 Contact Us For Availability

View on Model

71

MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability

View on Model

72

622523-02 KIT ARM-MOTOR MTG 3 LEGS (CTO) GEN 21A89 Contact Us For Availability

View on Model

74

BLWR HOUSING & WHEEL 10 X 10-(CTO) GEN 12L17 Contact Us For Availability

View on Model

153

DISTR 9 TUBE PSTN SZ 65 (INDOOR) (CTO) GEN 100579-121 Contact Us For Availability

View on Model

156

RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability

View on Model

158

ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability

View on Model

250

ASSY-COIL COND 1 ROW 40 X 70.3-(CTO) GEN 18Y09 Contact Us For Availability

View on Model

262

COMPRESSOR YPH036KAA (LG) GEN 27U21 Contact Us For Availability

View on Model

267

100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability

View on Model

268

Fan Assy 24" 3Blade 27"PTH CCW-(CTO) GEN 12P56 Contact Us For Availability

View on Model

271

Dual Run Cap 45+10 440V ROUND GEN 89M83 Contact Us For Availability

View on Model

276

LG W/H-COMP MOLDED PLUG-(CTO) GEN 14N35 Contact Us For Availability

View on Model

278

107638-04 CONTACTOR SPST 24V 35A GEN 28G86 Contact Us For Availability

View on Model

296

12L20 GE 100087-14 High Pressure Switch Backorder GEN 12L20 View Details $28.86

View on Model

297

100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability

View on Model

301

DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability

View on Model

302

ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability

View on Model

303

627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability

View on Model

309

PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability

View on Model

311

HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability

View on Model

314

RDS INTEGRATED BOARD (CTO) GEN 29B47 Contact Us For Availability

View on Model

317

HARNESS-WIRING CT AC (CTO) GEN 108085-01 Contact Us For Availability

View on Model

321

Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability

View on Model

951

PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability

View on Model

952

PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability

View on Model

954

PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability

View on Model

958

COVER DUCT HORIZONTAL (CTO) GEN R621895-01E Contact Us For Availability

View on Model

960

CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability

View on Model

962

PNL-UTILITY HP-AC LG-(CTO) GEN R621893-01E Contact Us For Availability

View on Model

970

POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability

View on Model

978

PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability

View on Model

988

GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability

View on Model

990

PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability

View on Model

992

PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability

View on Model

997

PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability

View on Model

×
