Model Maytag NGD5800HW0 LAUNDRY, RESIDENTIAL, GAS DRYER – Common Parts & Diagrams

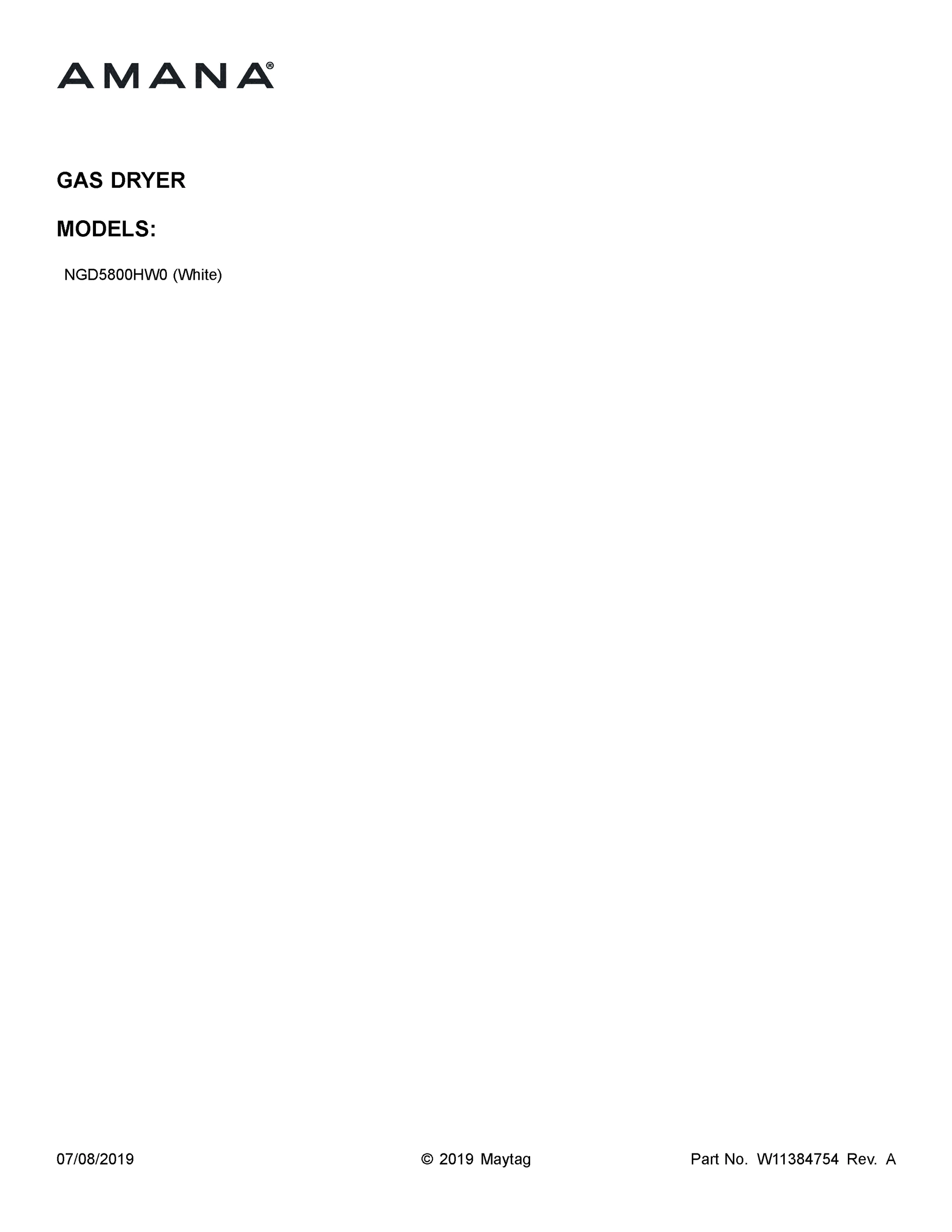

01 - COVER SHEET

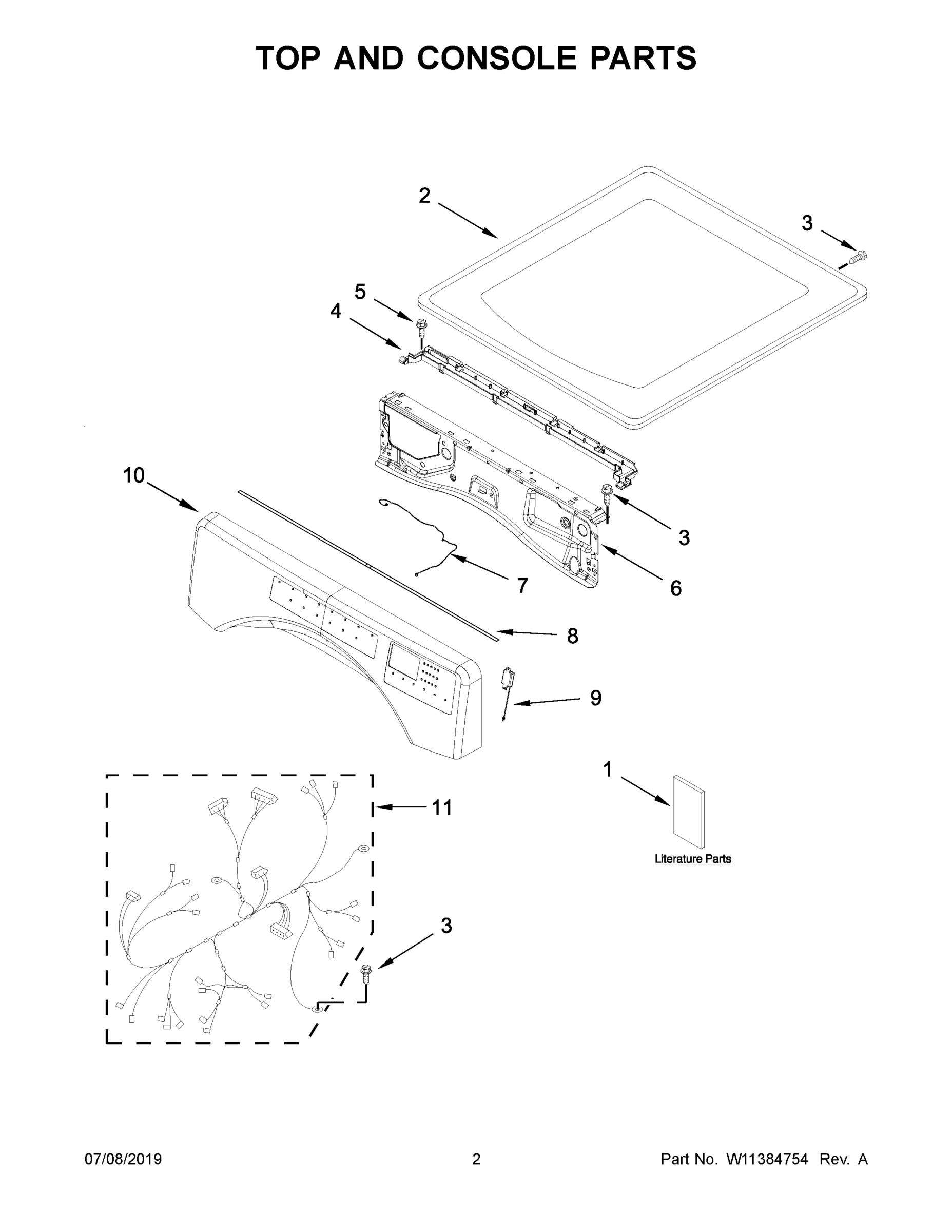

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - DOOR PARTS
06 - BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NGD5800HW0 LAUNDRY, RESIDENTIAL, GAS DRYER
1
MAY W11184584 MAY W11184584 Contact Us For Availability
1
COVER, TERMINAL BLOCK MAY 8317339 Contact Us For Availability
1
ASSEMBLY, AIR DUCT MAY W10293765 Contact Us For Availability
1
MAY W11114013 MAY W11114013 Contact Us For Availability
1
MAY W11192399 MAY W11192399 Contact Us For Availability
1A
MAY W11183136 MAY W11183136 Contact Us For Availability
1B
MAY W11184899 MAY W11184899 Contact Us For Availability
1C
MAY W11241395 MAY W11241395 Contact Us For Availability
1D
MAY W11184893 MAY W11184893 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
MAY W11122999 MAY W11122999 Contact Us For Availability
2
TUBE, BURNER MAY 688617 Contact Us For Availability
3
SCREW MAY W10773242 Contact Us For Availability
3
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
3
MAY W11100789 MAY W11100789 Contact Us For Availability
3
BRACKET, IGNITOR MAY 694298 Contact Us For Availability
4
MAY W11255768 MAY W11255768 Contact Us For Availability
4
BRACKET, REAR MAY W10208382 Contact Us For Availability
4
WASHER MAY 3387459 Contact Us For Availability
4
MAY W10891207 MAY W10891207 Contact Us For Availability
4
IGNITOR MAY 686590 Contact Us For Availability
5
SCREW MAY 12990702 Contact Us For Availability
5
PANEL, REAR MAY W10487431 Contact Us For Availability
5
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
5
MAY W11183899 MAY W11183899 Contact Us For Availability
5
SCREW MAY W10366705 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
PANEL, SIDE (LEFT) (WHITE) MAY W11177568 Contact Us For Availability
6
WASHER, TRI RING MAY W10512946 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY W11050690 MAY W11050690 Contact Us For Availability
7
MAY W11160620 MAY W11160620 Contact Us For Availability
7
MAY W11177569 MAY W11177569 Contact Us For Availability
7
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
7
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
7
MAY W11192400 MAY W11192400 Contact Us For Availability
8
MAY W11231800 MAY W11231800 Contact Us For Availability
8
MAY W11314905 MAY W11314905 Contact Us For Availability
8
SCREW MAY W10288126 Contact Us For Availability
8
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
9
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
9
BULKHEAD, FRONT MAY W10673493 Contact Us For Availability
9
MAY W11114011 MAY W11114011 Contact Us For Availability
9
BASE, BURNER MAY 3389871 Contact Us For Availability
10
CONSOLE ASSEMBLY (WHITE) MAY W11314467 Contact Us For Availability
10
PAD, FOAM MAY W10504381 Contact Us For Availability
10
LINT SCREEN (WHITE) MAY W10516085 Contact Us For Availability
10
SCREW, GROUNDING MAY 8540479 Contact Us For Availability
10
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 15418 Contact Us For Availability
10A
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 299372 Contact Us For Availability
10B
ORIFICE, BURNER (TYPE 4 (BUTANE)) MAY 229742 Contact Us For Availability
11
MAY W11157863 MAY W11157863 Contact Us For Availability
11
BRACKET, BURNER MAY 8529757 Contact Us For Availability
11
PLUG, REAR BULKHEAD MAY 8529007 Contact Us For Availability
11
MAY W11120174 MAY W11120174 Contact Us For Availability
11
SCREW MAY 326049536 Contact Us For Availability
12
BASE, CABINET MAY 8565046 Contact Us For Availability
12
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
12
MAY W11120683 MAY W11120683 Contact Us For Availability
12
COIL (60 HZ) MAY W10328463 Contact Us For Availability
13
FOOT, DRYER MAY 3392100 Contact Us For Availability
13
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
13
SCREW MAY 9742177 Contact Us For Availability
13
PIPE PLUG MAY W10295523 Contact Us For Availability
14
SCREW MAY 3390647 Contact Us For Availability
14
DOOR SWITCH, SNAP IN MAY W10569114 Contact Us For Availability
14
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
15
MAY W11084215 MAY W11084215 Contact Us For Availability
15
MAY W11254843 MAY W11254843 Contact Us For Availability
15
CLAMP, PIPE MAY 3387561 Contact Us For Availability
16
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
16
WHEEL, BLOWER MAY 697772 Contact Us For Availability
16
BRACKET, SUPPORT MAY 3389889 Contact Us For Availability
17
SCREW MAY 3357011 Contact Us For Availability
17
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
18
SCREW MAY 693995 Contact Us For Availability
18
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
19
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
20
MAY W11126752 MAY W11126752 Contact Us For Availability
20
THERMISTOR MAY 8577274 Contact Us For Availability
21
MAY W11045946 MAY W11045946 Contact Us For Availability
21
EXHAUST PIPE MAY W10342188 Contact Us For Availability
22
BRACKET, GAS PIPE MAY 3978776 Contact Us For Availability
22
COLLAR, DUCT MAY W10344699 Contact Us For Availability
23
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
23
THERMISTOR, GAS INLET MAY W10623852 Contact Us For Availability
24
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
24
NUT, HEX MAY 3934666 Contact Us For Availability
25
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
26
SPRING, IDLER MAY W10446781 Contact Us For Availability
26
FUNNEL, BURNER MAY 8573824 Contact Us For Availability
27
SCREW MAY 3389420 Contact Us For Availability
27
CUT-OFF, THERMAL MAY 8573713 Contact Us For Availability
28
ASSEMBLY, MOTOR MAY W10806758 Contact Us For Availability
28
SENSOR, RADIANT MAY 338906 Contact Us For Availability
29
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
29
ASSEMBLY, DRUM (COMPLETE) MAY W10508188 Contact Us For Availability
30
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
30
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
31
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
31
BAFFFLE, DRUM MAY W10416098 Contact Us For Availability
32
SWITCH, BROKEN BELT MAY W10774832 Contact Us For Availability
32
SCREW MAY W10219342 Contact Us For Availability
33
SEAL, DRUM MAY W10521118 Contact Us For Availability
34
BELT, DRIVE MAY 3387610 Contact Us For Availability
34
BULKHEAD, REAR MAY W11162462 Contact Us For Availability
35
CORD, POWER MAY W10869142 Contact Us For Availability
35
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
36
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
37
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
38
SCREW MAY W10794806 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT NOT INCLUDED, KIT, 4-WAY VE MAY W10323246 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) MAY W10606694 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, INLET HOSE MAY 3976300 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE KIT FOR STEAM DRYER MAY W10044609 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -"Y" MAY W10336486 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2') MAY W10439655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
NI
MAY W10623830 MAY W10623830 Contact Us For Availability
NI
ACCESSORY PARTS, BAG ASSEMBLY, INCLUDES THE F MAY W10676169 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER MAY W10782875 Contact Us For Availability
NI
MAY W10869845 MAY W10869845 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10886894 Contact Us For Availability
× ![]()
