Model Maytag NGD4705EW1 LAUNDRY, GAS, DRYER – Common Parts & Diagrams

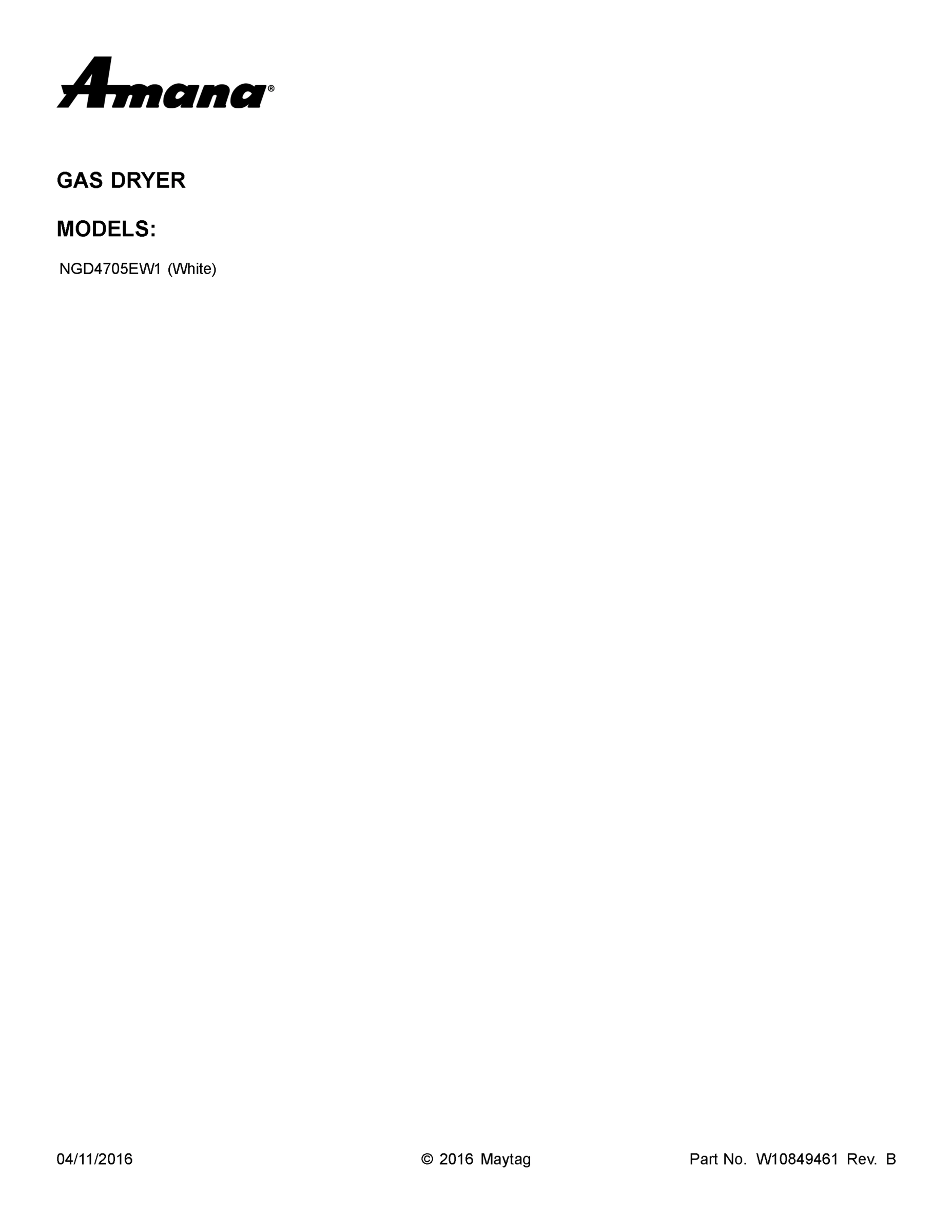

01 - COVER SHEET

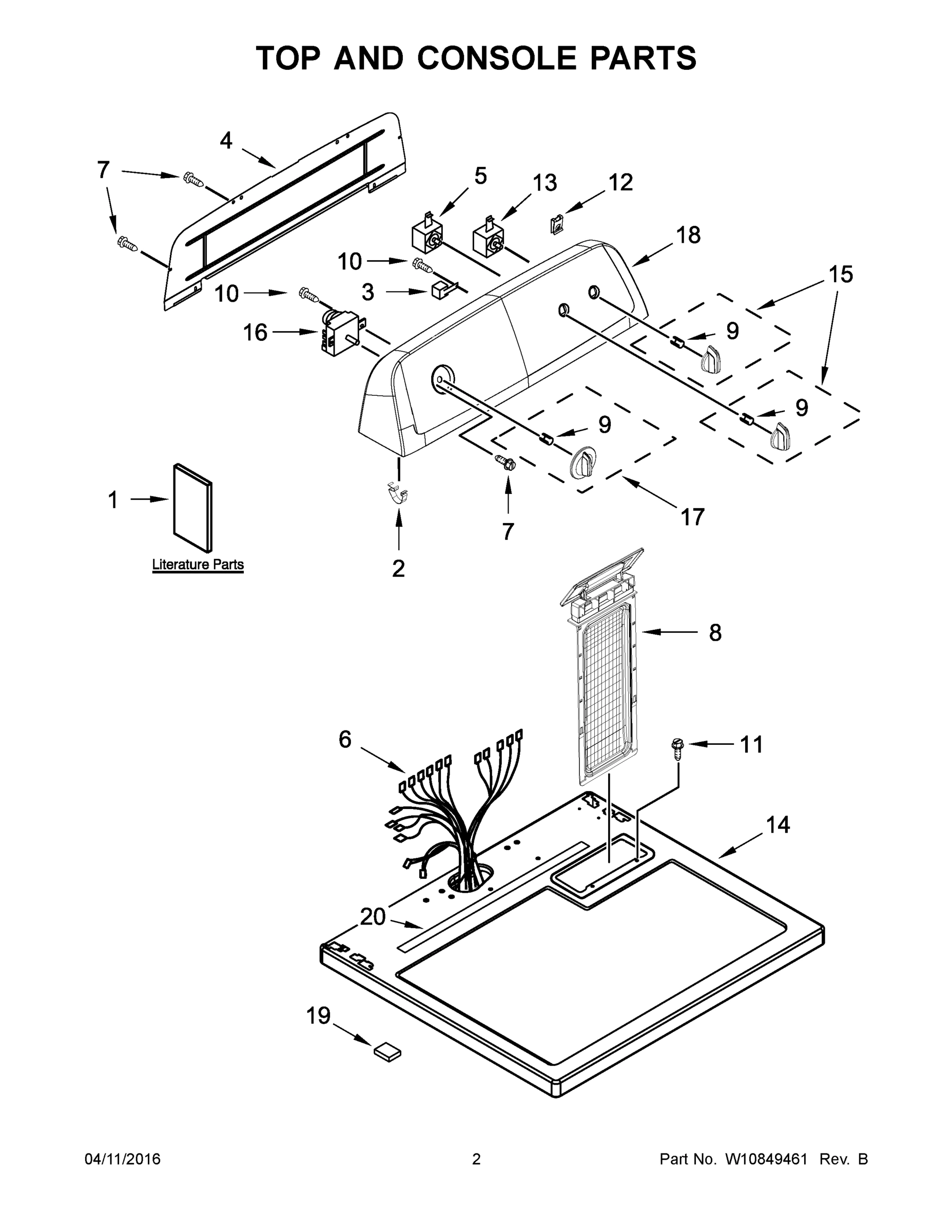

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - BURNER ASSEMBLY PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NGD4705EW1 LAUNDRY, GAS, DRYER
1
MAY W10514185 MAY W10514185 Contact Us For Availability
1
SCREW MAY 3390631 Contact Us For Availability
1
MAY W10336852 MAY W10336852 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10096991 Contact Us For Availability
1B
MAY W10185986 MAY W10185986 Contact Us For Availability
2
MAY 8312709 MAY 8312709 Contact Us For Availability
2
SCREW MAY 489463 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
MAY 694419 MAY 694419 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY W10416486 MAY W10416486 Contact Us For Availability
4
MAY W10841728 MAY W10841728 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAY W10420747 MAY W10420747 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY 3396795 Contact Us For Availability
5
MAY W10366705 MAY W10366705 Contact Us For Availability
6
MAY W10450291 MAY W10450291 Contact Us For Availability
6
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
6
MAY W10214261 MAY W10214261 Contact Us For Availability
6
MAY 693986 MAY 693986 Contact Us For Availability
7
MAY W10571724 MAY W10571724 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
7
SCREW MAY 3387057 Contact Us For Availability
8
MAY W10717210 MAY W10717210 Contact Us For Availability
8
MAY W10567345 MAY W10567345 Contact Us For Availability
8
MAY 3402841 MAY 3402841 Contact Us For Availability
8
TYPE 1 (NATURAL) MAY 234826 Contact Us For Availability
9
CLIP, SPRING MAY 8536939 Contact Us For Availability
9
MAY W10529198 MAY W10529198 Contact Us For Availability
9
THERMOSTAT MAY 3387134 Contact Us For Availability
9
MAY W10622159 MAY W10622159 Contact Us For Availability
10
MAY 3348629 MAY 3348629 Contact Us For Availability
10
MAY W10569603 MAY W10569603 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
10
MAY W10295523 MAY W10295523 Contact Us For Availability
11
SCREW MAY 688983 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
11
MAY W10328463 MAY W10328463 Contact Us For Availability
12
MAY W10298336 MAY W10298336 Contact Us For Availability
12
MAY W10727507 MAY W10727507 Contact Us For Availability
12
MAY 3398161 MAY 3398161 Contact Us For Availability
12
MAY 326049536 MAY 326049536 Contact Us For Availability
13
MAY W10446920 MAY W10446920 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
14
MAY 8559800 MAY 8559800 Contact Us For Availability
14
PLUG, HOLE MAY 3404413 Contact Us For Availability
14
BOX, HEATER (96C) MAY 8530285 Contact Us For Availability
15
KNOB ASSEMBLY (WHITE) MAY W10453947 Contact Us For Availability
15
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
15
MAY W10423382 MAY W10423382 Contact Us For Availability
16
MAY W10436302 MAY W10436302 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
THERMAL CUT-OFF (INCLUDES ITEM 15) MAY 3977394 Contact Us For Availability
17
MAY W10711289 MAY W10711289 Contact Us For Availability
17
MAY W10396029 MAY W10396029 Contact Us For Availability
18
PANEL CONTROL (WHITE) MAY W10429629 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
FUNNEL, BURNER LIGHT MAY 8066049 Contact Us For Availability
19
MAY 3389682 MAY 3389682 Contact Us For Availability
19
CLIP, GROUND MAY 98234 Contact Us For Availability
19
WASHER MAY 348197 Contact Us For Availability
20
MAY W10316616 MAY W10316616 Contact Us For Availability
20
MAY 8066092 MAY 8066092 Contact Us For Availability
20
MAY W10298789 MAY W10298789 Contact Us For Availability
21
MAY W10664698 MAY W10664698 Contact Us For Availability
21
MAY W10389567 MAY W10389567 Contact Us For Availability
22
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
22
MAY W10714468 MAY W10714468 Contact Us For Availability
23
CLIP, FELT PAD MAY 685203 Contact Us For Availability
23
BRACKET, BULKHEAD CHUTE MAY 3406022 Contact Us For Availability
24
MAY W10610880 MAY W10610880 Contact Us For Availability
24
SCREW MAY 3390647 Contact Us For Availability
25
MAY W10730752 MAY W10730752 Contact Us For Availability
25
MAY 339956 MAY 339956 Contact Us For Availability
26
BOLT MAY 3400500 Contact Us For Availability
26
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
27
MAY 342055 MAY 342055 Contact Us For Availability
27
NUT, PUSH ON MAY 90296 Contact Us For Availability
28
MAY W10362431 MAY W10362431 Contact Us For Availability
28
MAY 3976434 MAY 3976434 Contact Us For Availability
29
MAY 348780 MAY 348780 Contact Us For Availability
29
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
30
MAY W10131364 MAY W10131364 Contact Us For Availability
30
MAY W10757750 MAY W10757750 Contact Us For Availability
31
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
31
MAY W10725245 MAY W10725245 Contact Us For Availability
32
HINGE, TOP MAY 8066217 Contact Us For Availability
32
MAY W10219342 MAY W10219342 Contact Us For Availability
33
STRIKE, DOOR MAY 3403431 Contact Us For Availability
33
BEARING, RING MAY 692526 Contact Us For Availability
34
MAY W10775448 MAY W10775448 Contact Us For Availability
34
MAY W10512946 MAY W10512946 Contact Us For Availability
35
MAY W10463967 MAY W10463967 Contact Us For Availability
35
MAY W10359270 MAY W10359270 Contact Us For Availability
36
DOOR, FRONT (WHITE) MAY W10714510 Contact Us For Availability
36
MAY W10359269 MAY W10359269 Contact Us For Availability
37
MAY W10714516 MAY W10714516 Contact Us For Availability
37
MAY 3397590 MAY 3397590 Contact Us For Availability
38
MAY W10803476 MAY W10803476 Contact Us For Availability
38
MAY 338906 MAY 338906 Contact Us For Availability
39
PLUG, FRONT PANEL (WHITE) MAY 8564457 Contact Us For Availability
39
MAY 3977373 MAY 3977373 Contact Us For Availability
40
MAY 344020 MAY 344020 Contact Us For Availability
40
MAY 3406124 MAY 3406124 Contact Us For Availability
41
MAY 8533974 MAY 8533974 Contact Us For Availability
41
MAY 341029 MAY 341029 Contact Us For Availability
42
MAY W10529197 MAY W10529197 Contact Us For Availability
42
SCREW MAY 90767 Contact Us For Availability
43
MAY W10595510 MAY W10595510 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
MAY 49572A MAY 49572A Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS WASHER, INLET HO MAY 3976300 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 4 WI MAY PT220L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 4 WI MAY PT400L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS 6', 30 AMP, 4 WI MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS WASHER, HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, POWER CORDS CONNECTOR, HOSE MAY W10336486 Contact Us For Availability
× ![]()
