Model GE NF98U070M3B01 – Common Parts & Diagrams

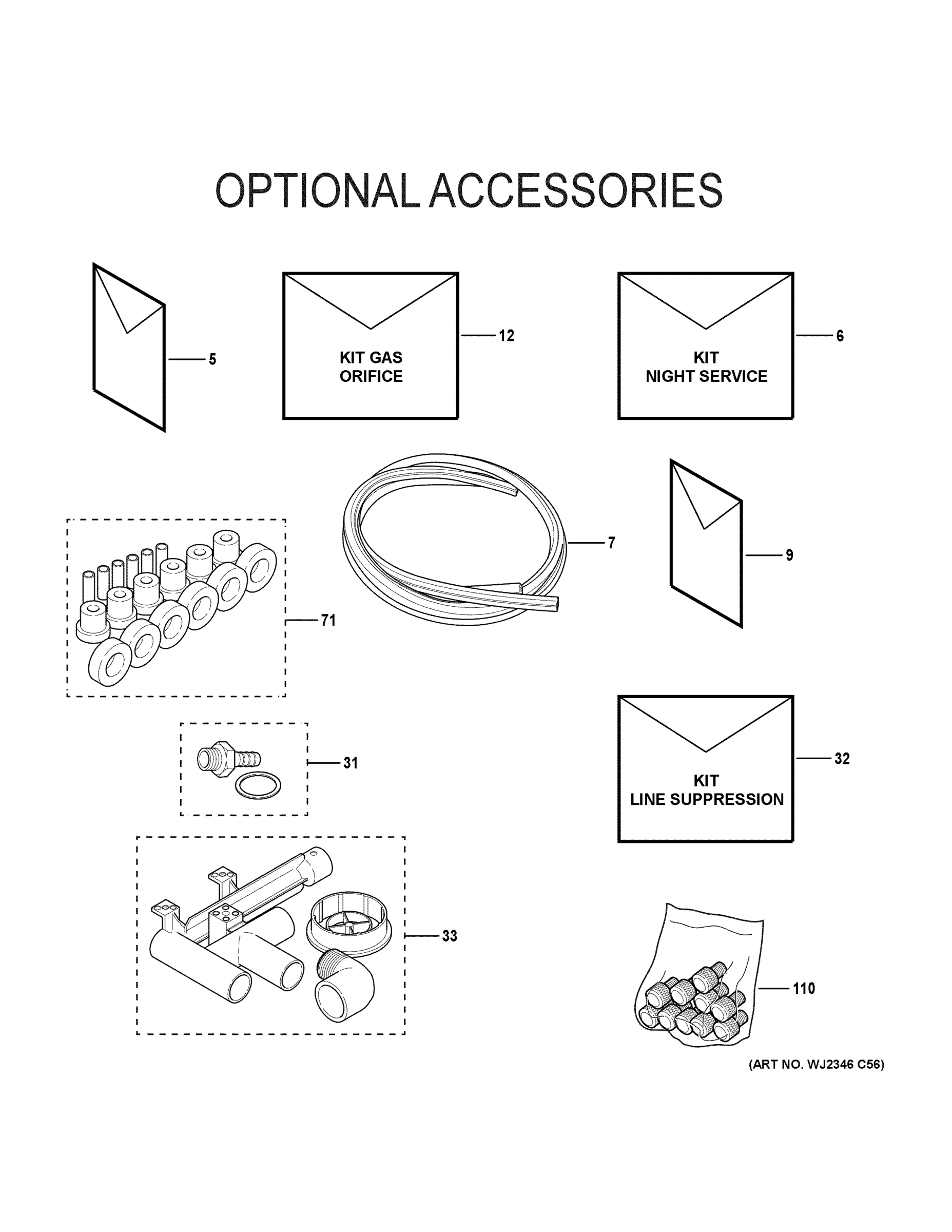

OPTIONAL ACCESSORIES

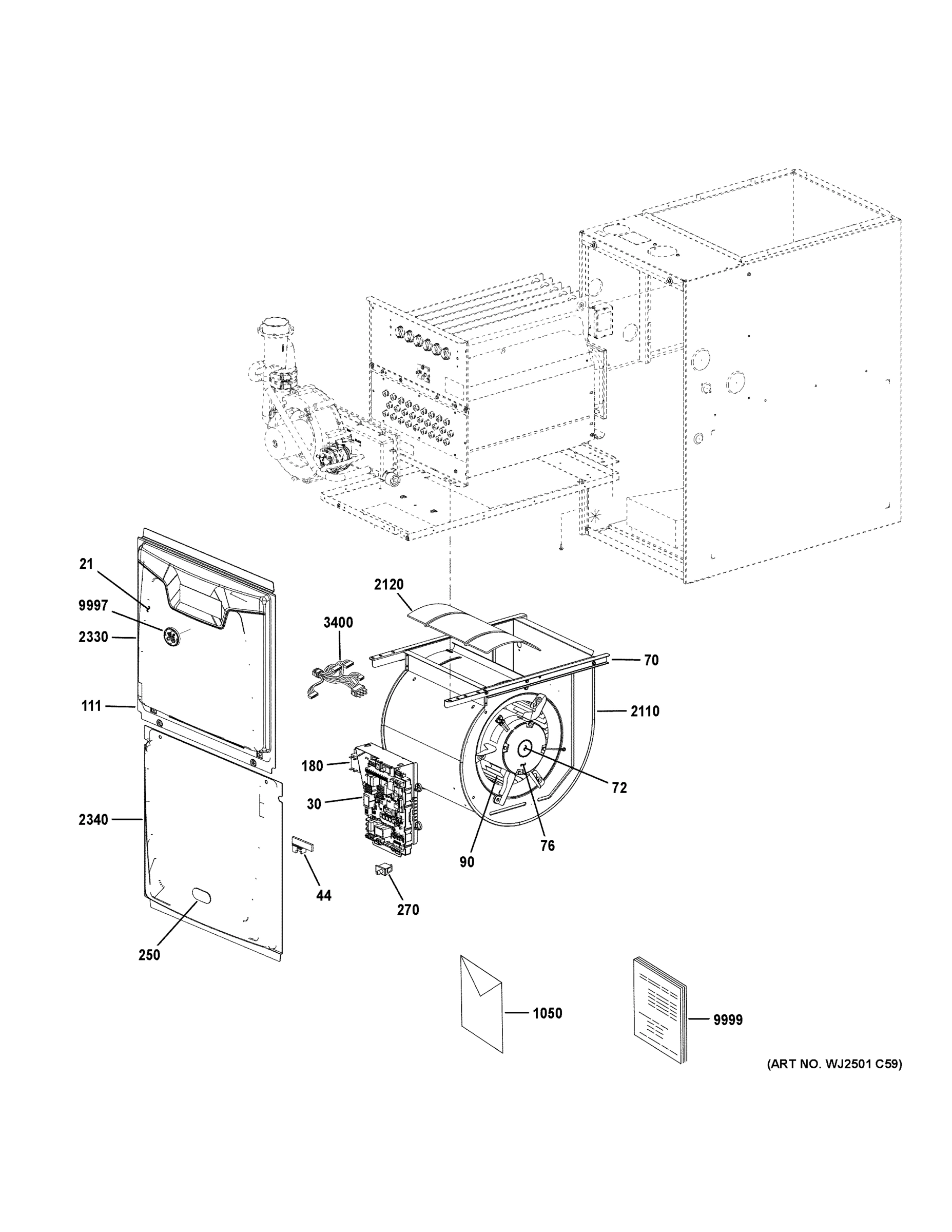

CABINET (1)

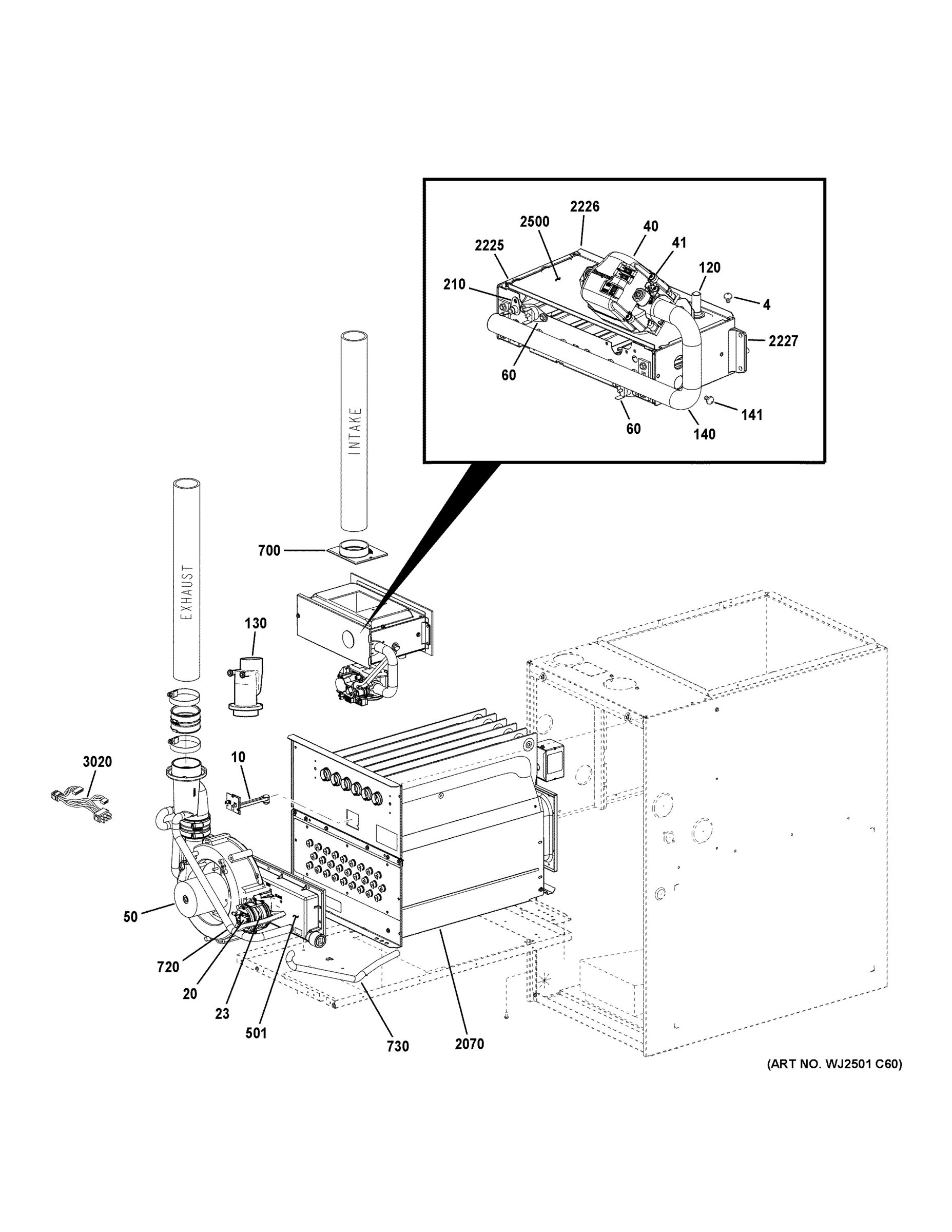

CABINET (2)
Common parts from model GE NF98U070M3B01
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
605154-02 LPG to NAT Conv Kit (A96) GEN 70W88 Contact Us For Availability
6
NIGHT SVC KIT -A96MV/A97MV-(CTO) GEN 15X38 Contact Us For Availability
7
LB-96015D TUBING KIT-PRESSURE SWITCH GEN 70W93 Contact Us For Availability
9
605152-02 NAT to LPG Conv Kit (A96MV) GEN 68W77 Contact Us For Availability
10
CONTROL-LIMIT(165F)Main-(CTO) GEN 75W15 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 060) CTO GEN 22P39 Contact Us For Availability
20
104936-02 SWITCH PRESS .90/.25 (UH) GEN 14T65 Contact Us For Availability
21
ARMSTRONG TEXT SLATE GRAY (DOORS)-(CTO) GEN R00419B164 Contact Us For Availability
23
104936-01 SWITCH PRESS 1.00/.25 (UH) GEN 14T64 Contact Us For Availability
30
607308-26 KIT-IGNITION CONTROL GEN 24Z39 Contact Us For Availability
31
FITTING-BARBED GEN 51M16 Contact Us For Availability
32
KIT - LINE SUPPRESSION-(CTO) GEN 54W22 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
41
103016-02 VALVE-GAS (Modulating LP) GEN 72W35 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724AL ASSY-BLOWER (REPLACEMENT) GEN 16A66 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
76
606008-04 3.0 ECM HP MODULE ONLY GEN 84W85 Contact Us For Availability
90
WHEEL-BLWR 10 X 9 X 1/2-(CTO) GEN 69W52 Contact Us For Availability
110
THUMB SCREW BAG ASSY (PKG 10)-(CTO) GEN 78W50 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W14 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
130
Flue-Exhaust-(CTO) GEN 71W26 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 71W22 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-14)-(CTO) GEN 17F44 Contact Us For Availability
700
Collar-Air Inlet-(CTO) GEN 71W27 Contact Us For Availability
720
HOSE DRAIN-(CTO) GEN 98W72 Contact Us For Availability
730
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53749201 Contact Us For Availability
2070
HEAT EXCH ASSY (613000-12)-(CTO) GEN 14K78 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W40 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W05 Contact Us For Availability
2225
BURNER ASSY (070)-(CTO) GEN 69W88 Contact Us For Availability
2226
BRACKET-BURNER MTG-L-(CTO) GEN 69W93 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
TOP DOOR B-WIDTH 90% UF BLWR-(CTO) GEN 62381701U Contact Us For Availability
2340
BTM DOOR B-WIDTH 90% UF VEST-(CTO) GEN 62365204U Contact Us For Availability
2500
COVER-BURNER BOX-(CTO) GEN 82W62 Contact Us For Availability
3020
HARNESS - WIRING-(CTO) GEN 12T02 Contact Us For Availability
3400
HARNESS MOTOR 3.0 ECM-(CTO) GEN 15T91 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
