Model GE NF97X080V4C02 HVAC – Gas Furnace – Common Parts & Diagrams

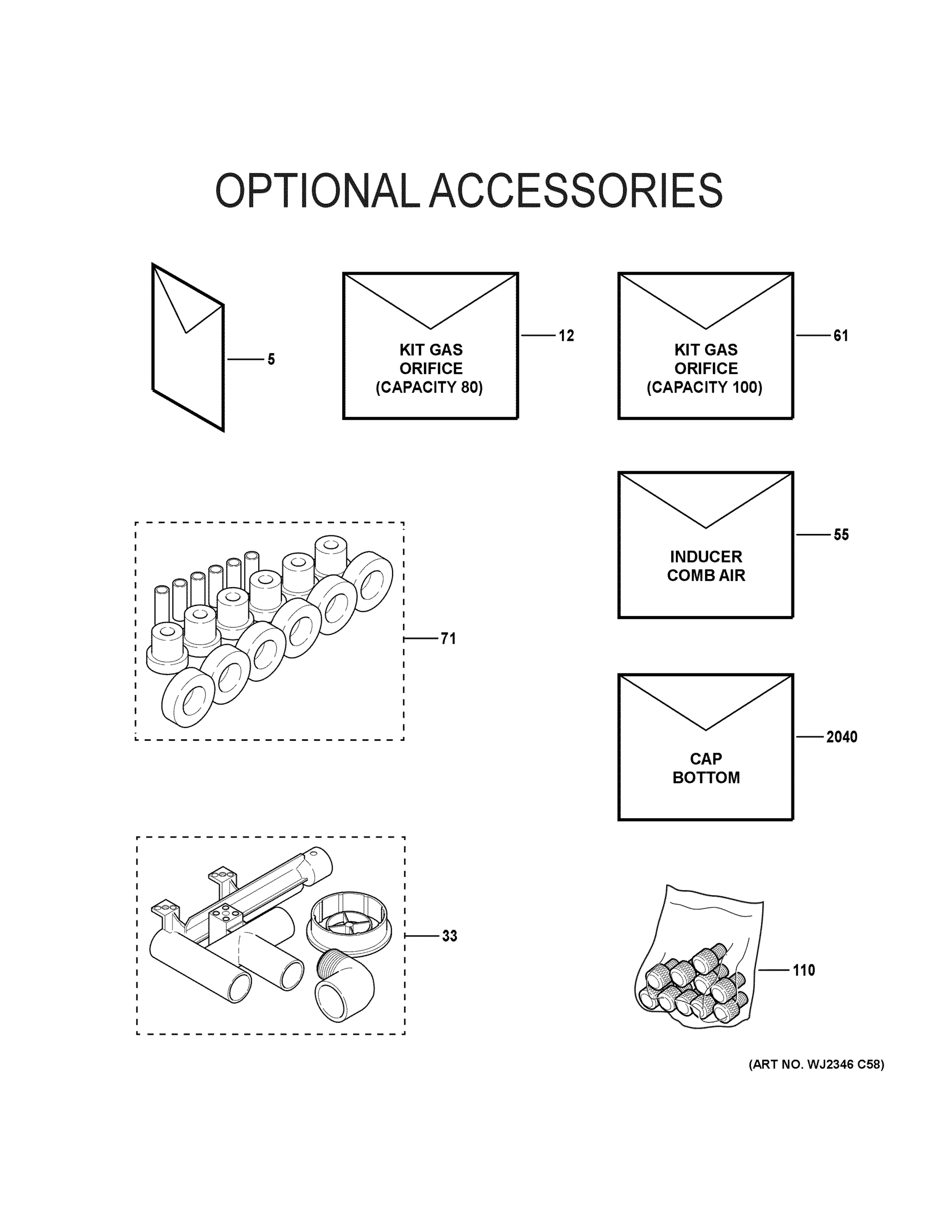

OPTIONAL ACCESSORIES

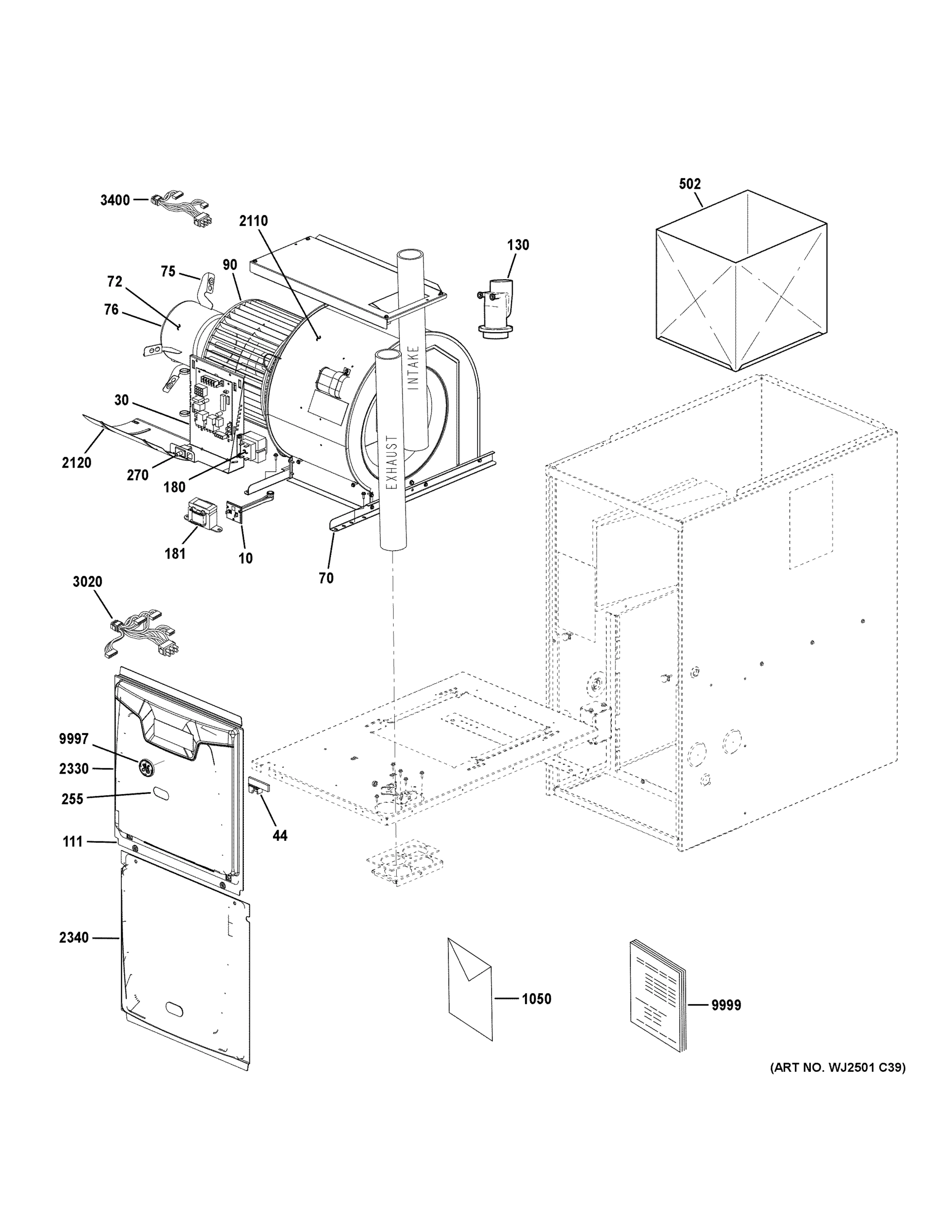

CABINET (1)
CABINET (2)
Common parts from model GE NF97X080V4C02 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
NAT to LPG CONV KIT A802/80G2-(CTO) GEN 11K48 Contact Us For Availability
10
105224-05 LIMIT CONTROL (STILT) 155F GEN 16G46 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 080) CTO GEN 22P40 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
20
PRESSURE SWITCH 2-STG-.50/-.15-(CTO) GEN 16V45 Contact Us For Availability
30
KIT-IGN CNTRL (103131-06)-(CTO) GEN 15T95 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
40
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
49
GKT-BRNR BOX/VEST PNL, 080-(CTO) GEN 15V94 Contact Us For Availability
50
GKT-GRAPHITE BRNR/PLEN, 080-(CTO) GEN 15V86 Contact Us For Availability
55
INDUCER-COMB AIR,VAR SPEED -(CTO) GEN 16J35 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
61
GAS ORIFICE KIT (Capacity 100) CTO GEN 22P41 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,080-(CTO) GEN 15V83 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT-MOTOR-(CTO) GEN 32M17 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MOTOR-BLWR 3/4 HP CONST CFM-(CTO) GEN 10U71 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 49L97 Contact Us For Availability
76
3.0 ECM HP MODULE ONLY-(CTO) GEN 84W86 Contact Us For Availability
90
WHEEL-BLOWER 11 X 11 X 1/2-(CTO) GEN 69W50 Contact Us For Availability
110
THUMB SCREW BAG ASSY (PKG 10)-(CTO) GEN 78W50 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W15 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
130
ASSY-FLUE EXHAUST TEE-(CTO) GEN 16V71 Contact Us For Availability
140
MANIFOLD - SPUD ASSY-(CTO) GEN 15P04 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
142
ULN Air Orifice 1.105"-(CTO) GEN 21U24 Contact Us For Availability
143
Air Orifice Sz 1.125,Resonance (more air GEN 19X31 Contact Us For Availability
144
Air Orifice Sz .812,Resonance (more air) GEN 21U23 Contact Us For Availability
145
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
181
TRANSFORMER POWER CHOKE-(CTO) GEN 10Y66 Contact Us For Availability
255
SIGHTGLASS REPL KIT-(CTO) GEN 27M47 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-34)-(CTO) GEN 17F59 Contact Us For Availability
502
PLENUM - GAS/AIR-(CTO) GEN 15P51 Contact Us For Availability
504
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
821
Flue Coupling-(CTO) GEN 17H92 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53791901 Contact Us For Availability
2040
CAP-BOTTOM-(CTO) GEN 72W28 Contact Us For Availability
2070
ASSY-HEAT EXCH ULN 90% (-080)-(CTO) GEN 16J41 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P66 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W42 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W08 Contact Us For Availability
2228
BURNER - PREMIX-(CTO) GEN 15P34 Contact Us For Availability
2330
TOP DOOR C-WIDTH 90% UF BLWR-(CTO) GEN 62381801U Contact Us For Availability
2340
BTM DOOR C-WIDTH 90% UF VEST-(CTO) GEN 62365304U Contact Us For Availability
3020
HARNESS UNIT - ULN - DSLC-(CTO) GEN 16V74 Contact Us For Availability
3400
HARNESS MOTOR 3.0 ECM-(CTO) GEN 15T91 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
