Model GE NF97X080V4C02 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

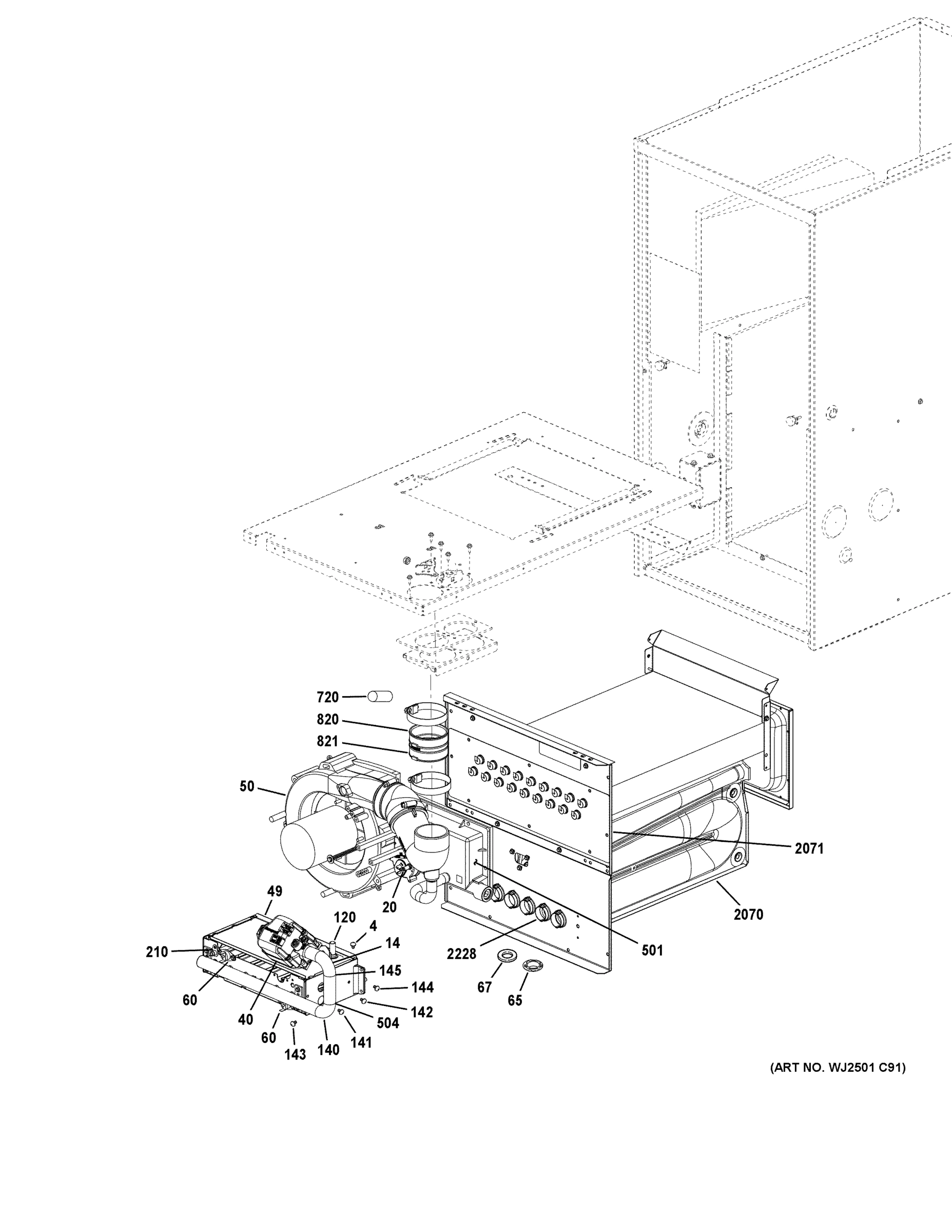

CABINET (2)
Common parts from model GE NF97X080V4C02 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
NAT to LPG CONV KIT A802/80G2-(CTO) GEN 11K48 Contact Us For Availability
10
105224-05 LIMIT CONTROL (STILT) 155F GEN 16G46 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 080) CTO GEN 22P40 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
20
PRESSURE SWITCH 2-STG-.50/-.15-(CTO) GEN 16V45 Contact Us For Availability
30
KIT-IGN CNTRL (103131-06)-(CTO) GEN 15T95 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
40
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
49
GKT-BRNR BOX/VEST PNL, 080-(CTO) GEN 15V94 Contact Us For Availability
50
GKT-GRAPHITE BRNR/PLEN, 080-(CTO) GEN 15V86 Contact Us For Availability
55
INDUCER-COMB AIR,VAR SPEED -(CTO) GEN 16J35 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
61
GAS ORIFICE KIT (Capacity 100) CTO GEN 22P41 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,080-(CTO) GEN 15V83 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT-MOTOR-(CTO) GEN 32M17 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MOTOR-BLWR 3/4 HP CONST CFM-(CTO) GEN 10U71 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 49L97 Contact Us For Availability
76
3.0 ECM HP MODULE ONLY-(CTO) GEN 84W86 Contact Us For Availability
90
WHEEL-BLOWER 11 X 11 X 1/2-(CTO) GEN 69W50 Contact Us For Availability
110
THUMB SCREW BAG ASSY (PKG 10)-(CTO) GEN 78W50 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W15 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
130
ASSY-FLUE EXHAUST TEE-(CTO) GEN 16V71 Contact Us For Availability
140
MANIFOLD - SPUD ASSY-(CTO) GEN 15P04 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
142
ULN Air Orifice 1.105"-(CTO) GEN 21U24 Contact Us For Availability
144
Air Orifice Sz .812,Resonance (more air) GEN 21U23 Contact Us For Availability
145
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
255
SIGHTGLASS REPL KIT-(CTO) GEN 27M47 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-34)-(CTO) GEN 17F59 Contact Us For Availability
502
PLENUM - GAS/AIR-(CTO) GEN 15P51 Contact Us For Availability
504
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
821
Flue Coupling-(CTO) GEN 17H92 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53791901 Contact Us For Availability
2040
CAP-BOTTOM-(CTO) GEN 72W28 Contact Us For Availability
2070
ASSY-HEAT EXCH ULN 90% (-080)-(CTO) GEN 16J41 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P66 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W42 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W08 Contact Us For Availability
2228
BURNER - PREMIX-(CTO) GEN 15P34 Contact Us For Availability
2330
TOP DOOR C-WIDTH 90% UF BLWR-(CTO) GEN 62381801U Contact Us For Availability
2340
BTM DOOR C-WIDTH 90% UF VEST-(CTO) GEN 62365304U Contact Us For Availability
3020
HARNESS UNIT - ULN - DSLC-(CTO) GEN 16V74 Contact Us For Availability
3400
HARNESS MOTOR 3.0 ECM-(CTO) GEN 15T91 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
