Model GE NF97X060V3B02 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

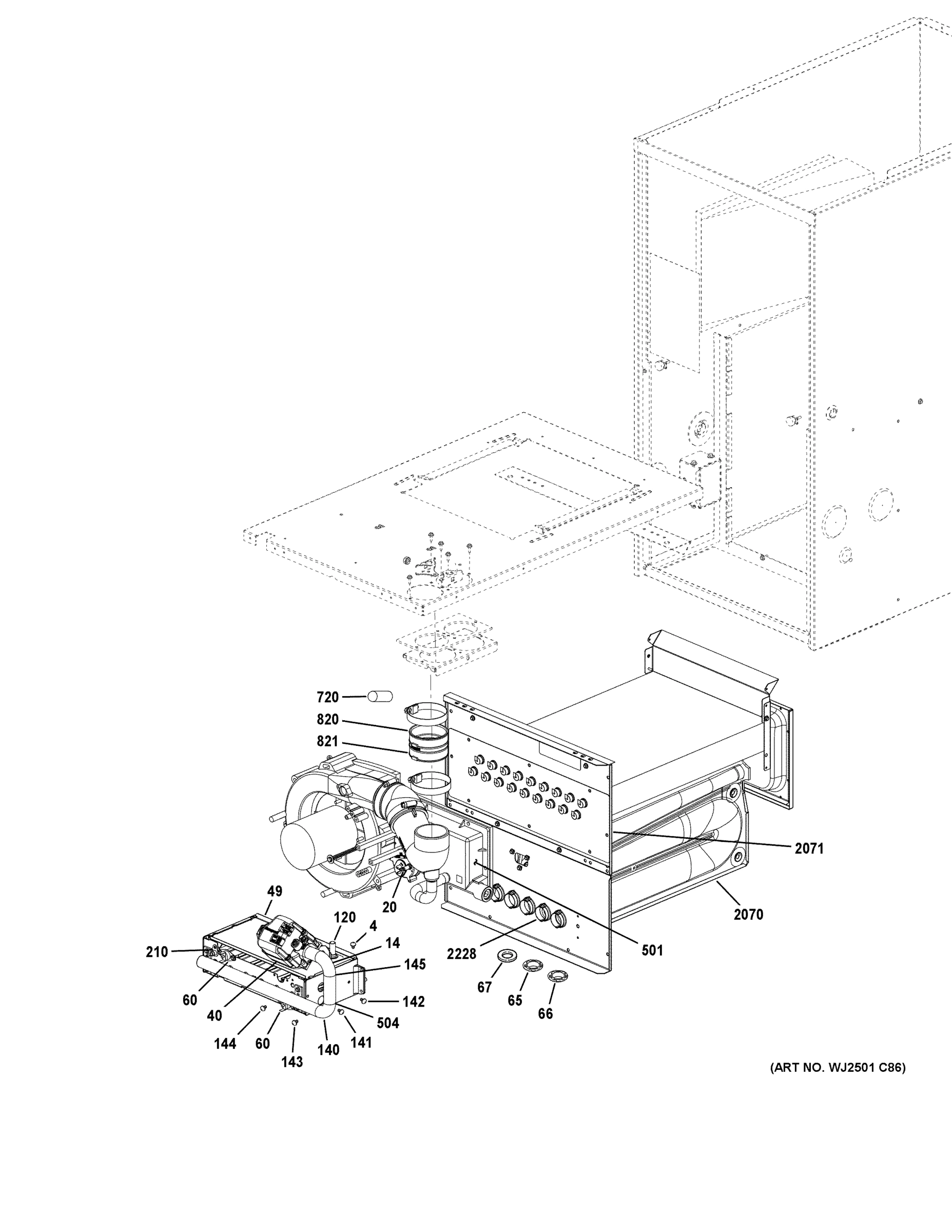

CABINET (2)
Common parts from model GE NF97X060V3B02 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
NAT to LPG CONV KIT A802/80G2-(CTO) GEN 11K48 Contact Us For Availability
10
105224-03 LIMIT CONTROL (STILT) 190F GEN 16G44 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 060) CTO GEN 22P39 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
20
PRESSURE SWITCH 2-STG-.50/-.15-(CTO) GEN 16V45 Contact Us For Availability
30
KIT-IGN CNTRL (103131-06)-(CTO) GEN 15T95 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
40
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
49
GKT-BRNR BOX/VEST PNL,040/060-(CTO) GEN 15V93 Contact Us For Availability
55
INDUCER-COMB AIR,VAR SPEED -(CTO) GEN 16J35 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,040-060-(CTO) GEN 15V47 Contact Us For Availability
66
GKT-GRAPHITE BRNR/PLEN 040/060-(CTO) GEN 15V48 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MTR 1/2HP VAR SPD 120/240/60/1-(CTO) GEN 33W12 Contact Us For Availability
76
MOTOR CTL KIT VAR SPD-(CTO) GEN 10U25 Contact Us For Availability
90
WHEEL-BLWR 10 X 9 X 1/2-(CTO) GEN 69W52 Contact Us For Availability
110
THUMB SCREW BAG ASSY (PKG 10)-(CTO) GEN 78W50 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W14 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
130
ASSY-FLUE EXHAUST TEE-(CTO) GEN 16V71 Contact Us For Availability
140
MANIFOLD -SPUD ASSY-(CTO) GEN 15P03 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
142
ULN AIR ORIFICE 0.995" DIA-(CTO) GEN 19X36 Contact Us For Availability
144
Air Orifice Sz .980,Difficulty igniting GEN 21U25 Contact Us For Availability
145
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
255
SIGHTGLASS REPL KIT-(CTO) GEN 27M47 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-34)-(CTO) GEN 17F59 Contact Us For Availability
502
PLENUM -GAS/AIR-(CTO) GEN 15P44 Contact Us For Availability
504
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
821
Flue Coupling-(CTO) GEN 17H92 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53791901 Contact Us For Availability
2040
CAP-BOTTOM-(CTO) GEN 72W27 Contact Us For Availability
2070
ASSY-HEAT EXCH ULN 90% (-060)-(CTO) GEN 16J37 Contact Us For Availability
2071
ASSY-HEAT SHIELD-(CTO) GEN 15P63 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W40 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W05 Contact Us For Availability
2228
BURNER - PREMIX-(CTO) GEN 15P33 Contact Us For Availability
2330
TOP DOOR B-WIDTH 90% UF BLWR-(CTO) GEN 62381701U Contact Us For Availability
2340
BTM DOOR B-WIDTH 90% UF VEST-(CTO) GEN 62365204U Contact Us For Availability
3020
HARNESS UNIT - ULN - DSLC-(CTO) GEN 16V74 Contact Us For Availability
3400
HARNESS MOTOR 3.0 ECM-(CTO) GEN 15T91 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
