Model GE NF97D070M3B06 – Common Parts & Diagrams

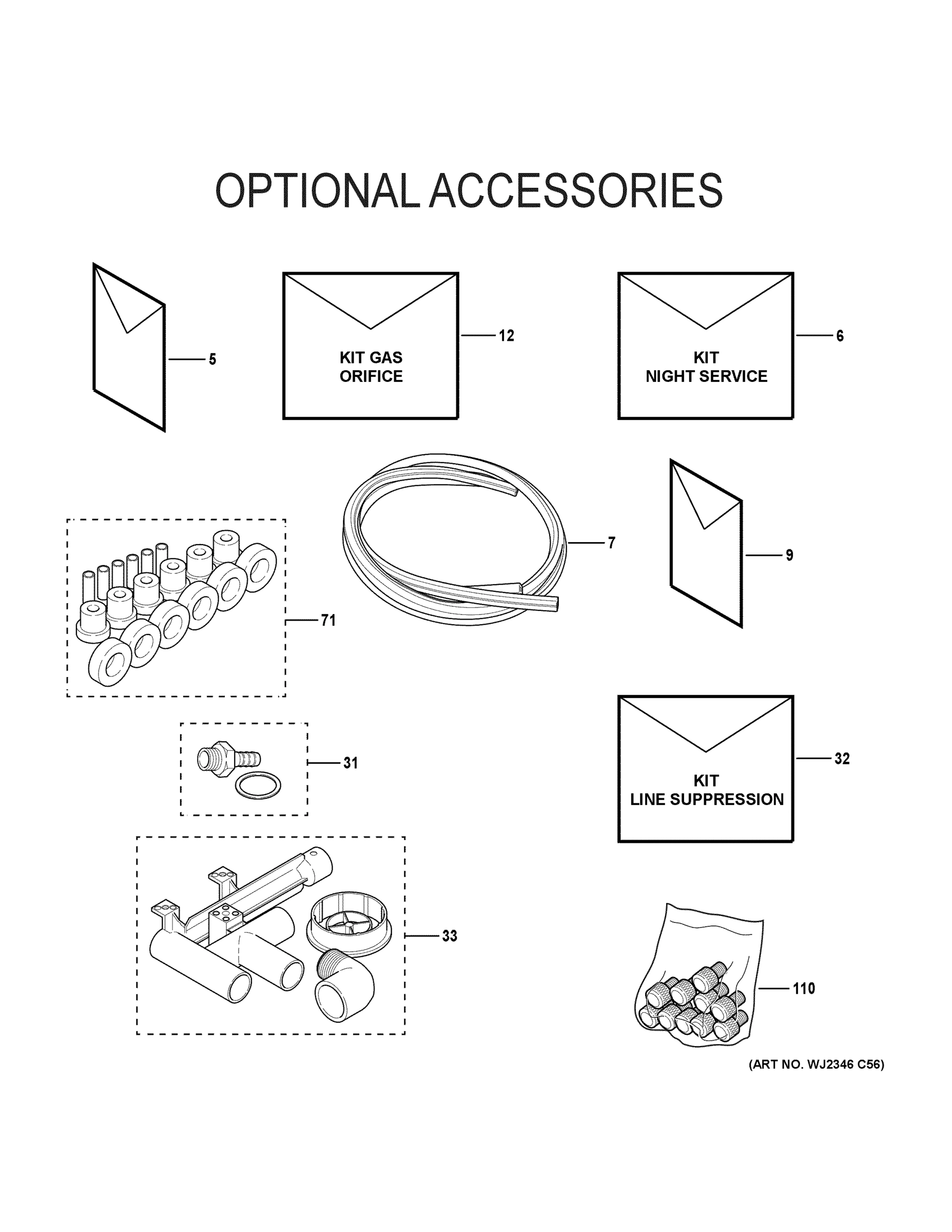

OPTIONAL ACCESSORIES

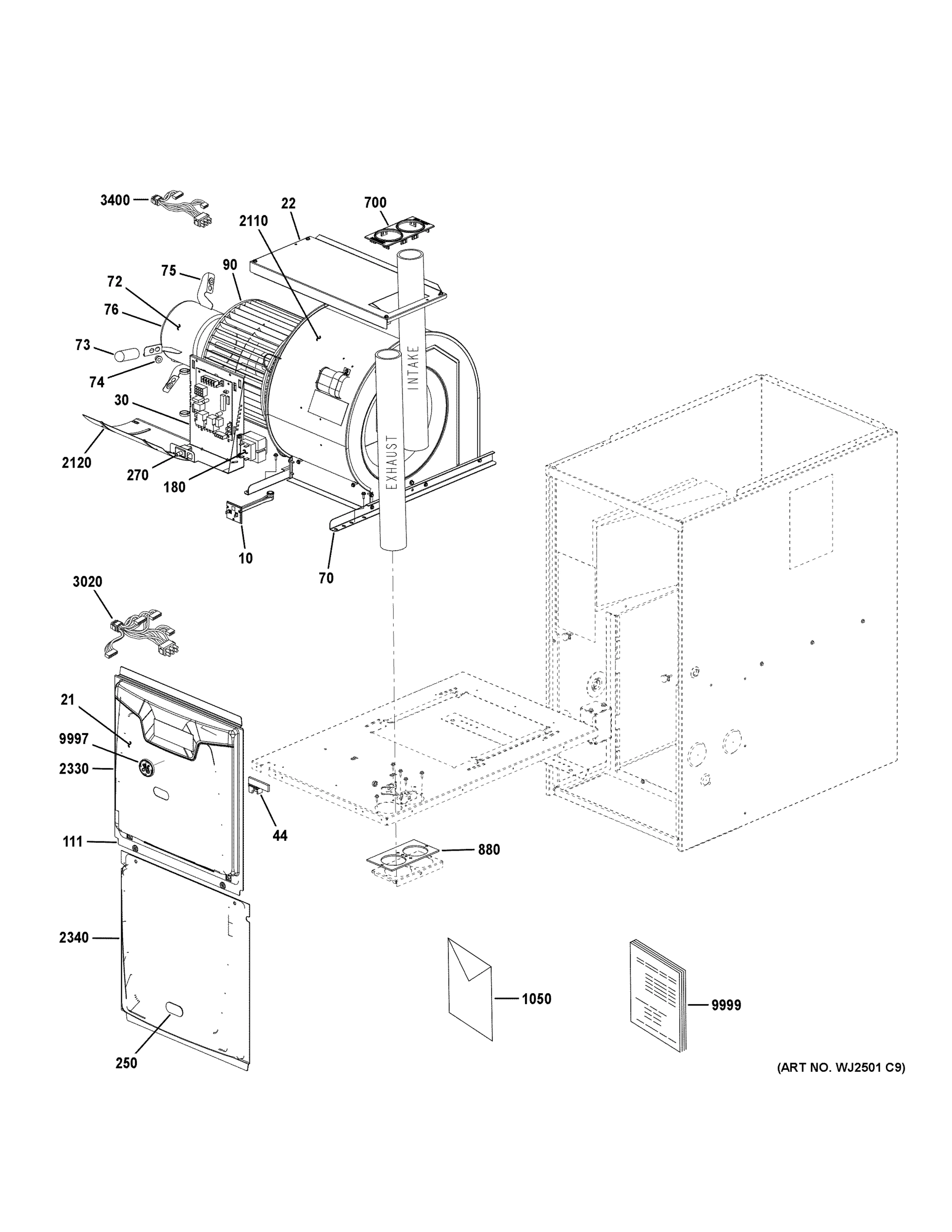

CABINET (1)
CABINET (2)
Common parts from model GE NF97D070M3B06
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
605154-02 LPG to NAT Conv Kit (A96) GEN 70W88 Contact Us For Availability
6
NIGHT SVC KIT -A96MV/A97MV-(CTO) GEN 15X38 Contact Us For Availability
7
LB-96015D TUBING KIT-PRESSURE SWITCH GEN 70W93 Contact Us For Availability
9
605152-02 NAT to LPG Conv Kit (A96MV) GEN 68W77 Contact Us For Availability
10
102857-04 Control-Limit (145F) Main GEN 71W44 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 060) CTO GEN 22P39 Contact Us For Availability
13
ELBOW - 2" Drain-(CTO) GEN 10M22 Contact Us For Availability
21
ARMSTRONG TEXT SLATE GRAY (DOORS)-(CTO) GEN R00419B164 Contact Us For Availability
22
ARMSTRONG TEXT PLT GRAY (TOP&CAB)-(CTO) GEN R00419B165 Contact Us For Availability
30
607308-21 KIT - IGNITION CONTROL GEN 19J99 Contact Us For Availability
31
FITTING-BARBED GEN 51M16 Contact Us For Availability
32
KIT - LINE SUPPRESSION-(CTO) GEN 54W22 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
41
103016-02 VALVE-GAS (Modulating LP) GEN 72W35 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724AL ASSY-BLOWER (REPLACEMENT) GEN 16A66 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MTR 1/2HP VAR SPD 120/240/60/1-(CTO) GEN 33W12 Contact Us For Availability
73
SLEEVE-(CTO) GEN 42W05 Contact Us For Availability
74
GROMMET-(CTO) GEN 43H81 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 49L97 Contact Us For Availability
76
606008-04 3.0 ECM HP MODULE ONLY GEN 84W85 Contact Us For Availability
90
WHEEL-BLWR 10 X 9 X 1/2-(CTO) GEN 69W52 Contact Us For Availability
110
THUMB SCREW BAG ASSY (PKG 10)-(CTO) GEN 78W50 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W14 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 71W38 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
500
GASKET-COLL BOX (70/90)-(CTO) GEN 71W28 Contact Us For Availability
501
BOX-COLLECTOR (105670-14)-(CTO) GEN 17F44 Contact Us For Availability
700
COLLAR-AIR INLET (DF)-(CTO) GEN 72W51 Contact Us For Availability
720
HOSE DRAIN (DF)-(CTO) GEN 71W46 Contact Us For Availability
721
Hose Drain (DF)-(CTO) GEN 71W47 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
840
COUPLING-2" RUBBER W/BEND-(CTO) GEN 80W29 Contact Us For Availability
850
COUPLING-2" AIR 12" LONG-(CTO) GEN 80W31 Contact Us For Availability
880
SEAL-EXHAUST/VENT (TOP CAP)-(CTO) GEN 72W53 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53749301 Contact Us For Availability
2070
HEAT EXCH ASSY (612993-12)-(CTO) GEN 14K83 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W40 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W05 Contact Us For Availability
2225
BURNER ASSY (070)-(CTO) GEN 69W88 Contact Us For Availability
2226
BRACKET-BURNER MTG-L-(CTO) GEN 69W93 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
TOP DOOR B-WIDTH 80/90% DF BLWR-(CTO) GEN 62365203U Contact Us For Availability
2340
BTM DOOR B-WIDTH 90% DF VEST-(CTO) GEN 60149704U Contact Us For Availability
2500
COVER-BURNER BOX-(CTO) GEN 82W62 Contact Us For Availability
3020
UNIT HARNESS-(CTO) GEN 12T06 Contact Us For Availability
3400
HARNESS MOTOR 3.0 ECM-(CTO) GEN 15T91 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
