Model GE NF96D070V4B02 HVAC – Gas Furnace – Common Parts & Diagrams

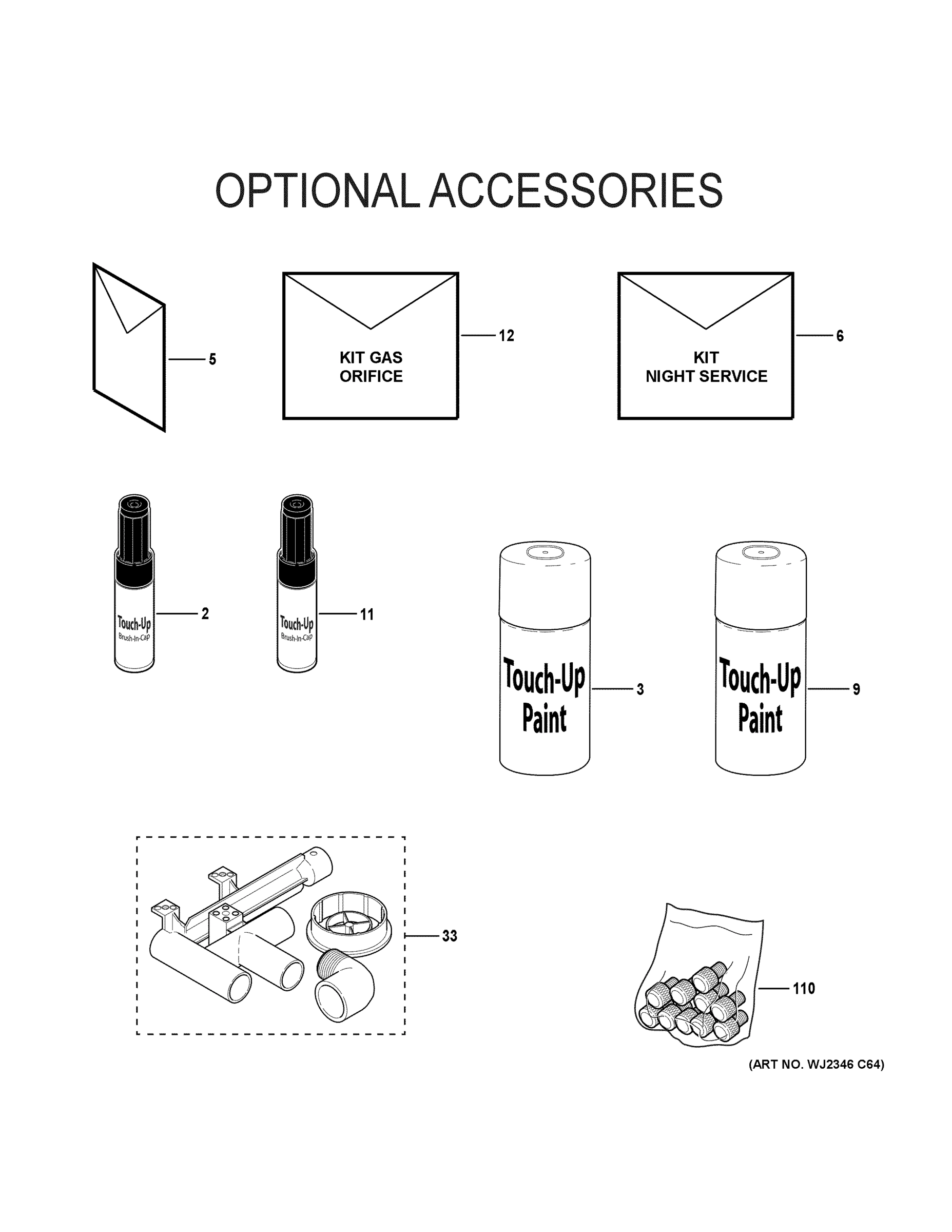

OPTIONAL ACCESSORIES
CABINET (1)

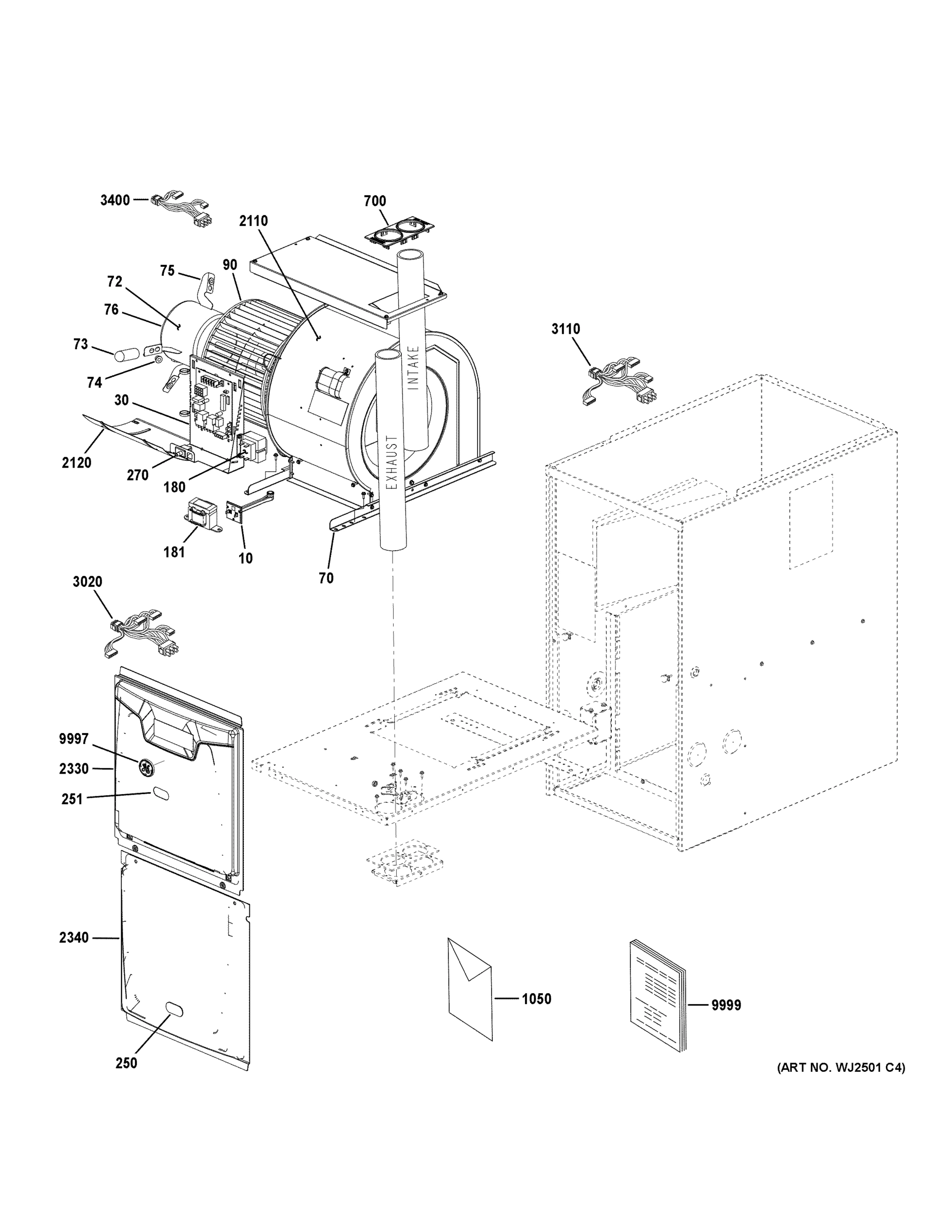

CABINET (2)
Common parts from model GE NF96D070V4B02 HVAC – Gas Furnace
2
TOUCH UP PAINT -BLACK UMBRA-(CTO) GEN 91M33 Contact Us For Availability
3
ARMSTRONG TEXT PLT GRAY (TOP&CAB)-(CTO) GEN R00419B165 Contact Us For Availability
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
NAT to LPG CONV KIT A802/80G2-(CTO) GEN 11K48 Contact Us For Availability
6
NIGHT SVCKIT-A95UH/DF2,95G2-(CTO) GEN 84W50 Contact Us For Availability
9
Aerosol - ALT - Black Umbra 12 oz can GEN 25C82 Contact Us For Availability
10
102857-06 Control-Limit (155F) GEN 73W19 Contact Us For Availability
11
PEN ALT - BLACK UMBRA GEN 25F19 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 060) CTO GEN 22P39 Contact Us For Availability
13
ELBOW - 2" Drain-(CTO) GEN 10M22 Contact Us For Availability
30
607308-14 KIT-IGNITION CONTROL GEN 14Y53 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
40
103181-02 VALVE-GAS (2 STG NAT) GEN 83W12 Contact Us For Availability
50
LB-94724AC Blower-Comb Air (103274-03) GEN 81W45 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT-MOTOR-(CTO) GEN 32M17 Contact Us For Availability
72
MOTOR-BLOWER ONLY (module sold separate) GEN 10B67 Contact Us For Availability
73
SLEEVE-(CTO) GEN 42W05 Contact Us For Availability
74
GROMMET-(CTO) GEN 43H81 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 49L97 Contact Us For Availability
76
610587-10 Module Kit GEN 10B77 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 36M22 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 71W38 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
251
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-28)-(CTO) GEN 17F56 Contact Us For Availability
700
COLLAR-AIR INLET (DF)-(CTO) GEN 72W51 Contact Us For Availability
720
HOSE DRAIN (DF)-(CTO) GEN 71W46 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1050
WIRING DIAGRAM-(CTO) GEN 53743701 Contact Us For Availability
2070
BOX-COLLECTOR (105670-28)-(CTO) GEN 13X31 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 57M89 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 81L92 Contact Us For Availability
2225
BURNER ASSY (070)-(CTO) GEN 69W88 Contact Us For Availability
2226
BRACKET-BURNER MTG-L-(CTO) GEN 69W93 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
TOP DOOR B-WIDTH 80/90% DF BLWR-(CTO) GEN 62365203U Contact Us For Availability
2340
BTM DOOR B-WIDTH 90% DF VEST-(CTO) GEN 60149704U Contact Us For Availability
3020
HARNESS-WIRING-(CTO) GEN 94W06 Contact Us For Availability
3110
HARN-WIRE-(CTO) GEN 27M25 Contact Us For Availability
3400
HARNESS-WIRING-(CTO) GEN 27M11 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
