Model GE NF96D045S3B56 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

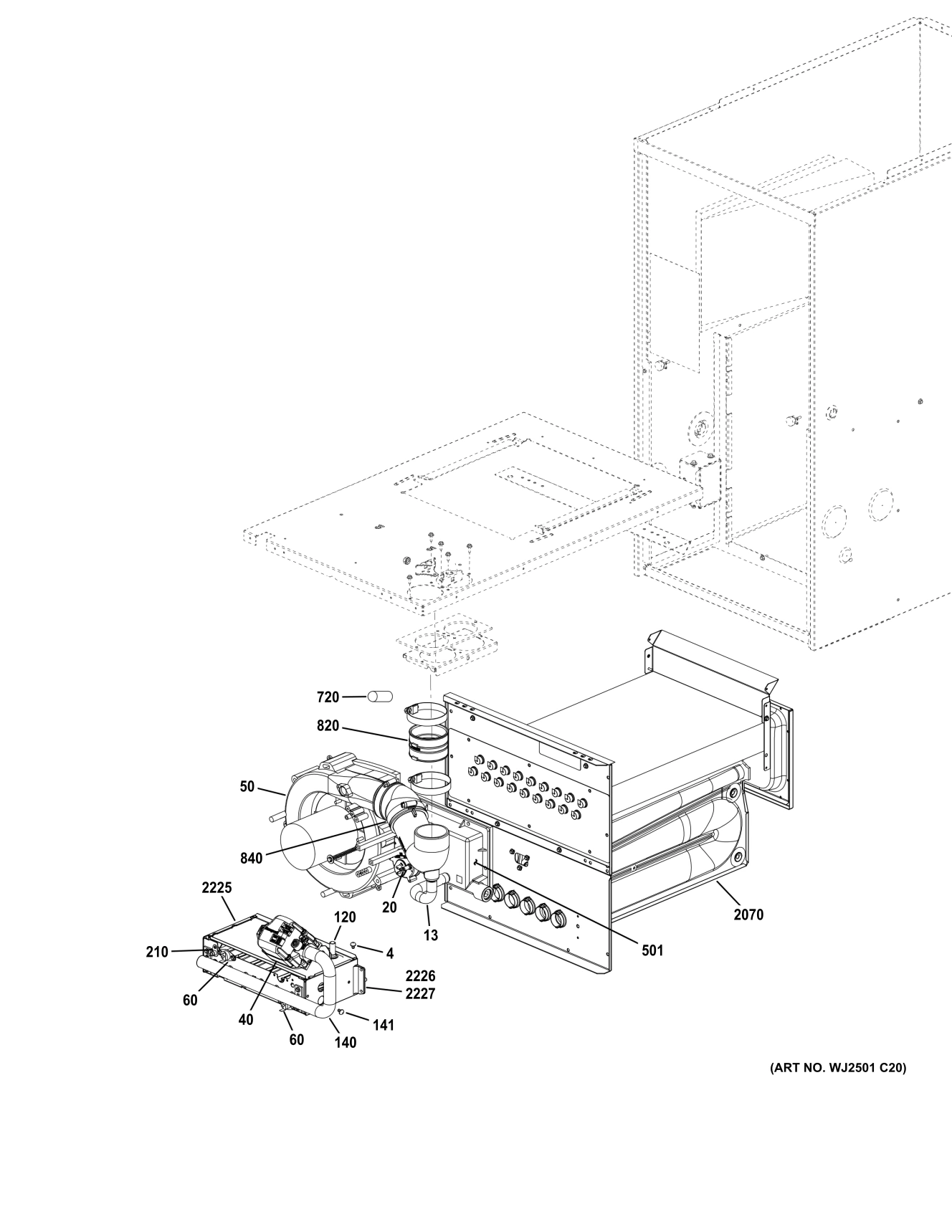

CABINET (2)
Common parts from model GE NF96D045S3B56 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
CONV KIT GEN 11K50 Contact Us For Availability
7
LB-96015D TUBING KIT-PRESSURE SWITCH GEN 70W93 Contact Us For Availability
10
102857-05 Control-Limit (150F) Main GEN 73W18 Contact Us For Availability
13
ELBOW - 2" Drain-(CTO) GEN 10M22 Contact Us For Availability
20
104371-09 Pressure Switch Kit 0.90" GEN 10U94 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
34
CAP VINYL 1.125 (10PK)-(CTO) GEN 10H28 Contact Us For Availability
40
102837-02 VALVE-GAS W/BARB GEN 74W26 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724AE Assy-Blower (Replacemt-Comb) GEN 93W13 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT-MOTOR-(CTO) GEN 32M17 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MOTOR REPL 1/2HP 115V CT GEN 23V72 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 36M22 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 71W38 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-05)-(CTO) GEN 17F39 Contact Us For Availability
720
HOSE DRAIN (DF)-(CTO) GEN 71W46 Contact Us For Availability
820
COLLAR-AIR INLET (DF)-(CTO) GEN 72W51 Contact Us For Availability
840
COUPLING-2" AIR 12" LONG-(CTO) GEN 80W31 Contact Us For Availability
880
SEAL-EXHAUST/VENT (TOP CAP)-(CTO) GEN 72W53 Contact Us For Availability
1050
WIRE DIAGRAM STICKER - 96G1DFE-(CTO) GEN 537923-01 Contact Us For Availability
2070
HT EXCH ASSY-DF045 (612989-11)-(CTO) GEN 16H68 Contact Us For Availability
2110
HSG-BLWR 10X8 612256-02-(CTO) GEN 57M87 Contact Us For Availability
2120
BLWR HSG CUTOFF PLATE-(CTO) GEN 68W48 Contact Us For Availability
2225
BURNER ASSY (045)-(CTO) GEN 69W87 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
PANEL-LOWER-(CTO) GEN 73W63 Contact Us For Availability
2340
PANEL-UPPER-(CTO) GEN 73W62 Contact Us For Availability
3020
HARNESS-WIRING-(CTO) GEN 94W31 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-05 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
