Model GE NF95X080S4C02 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

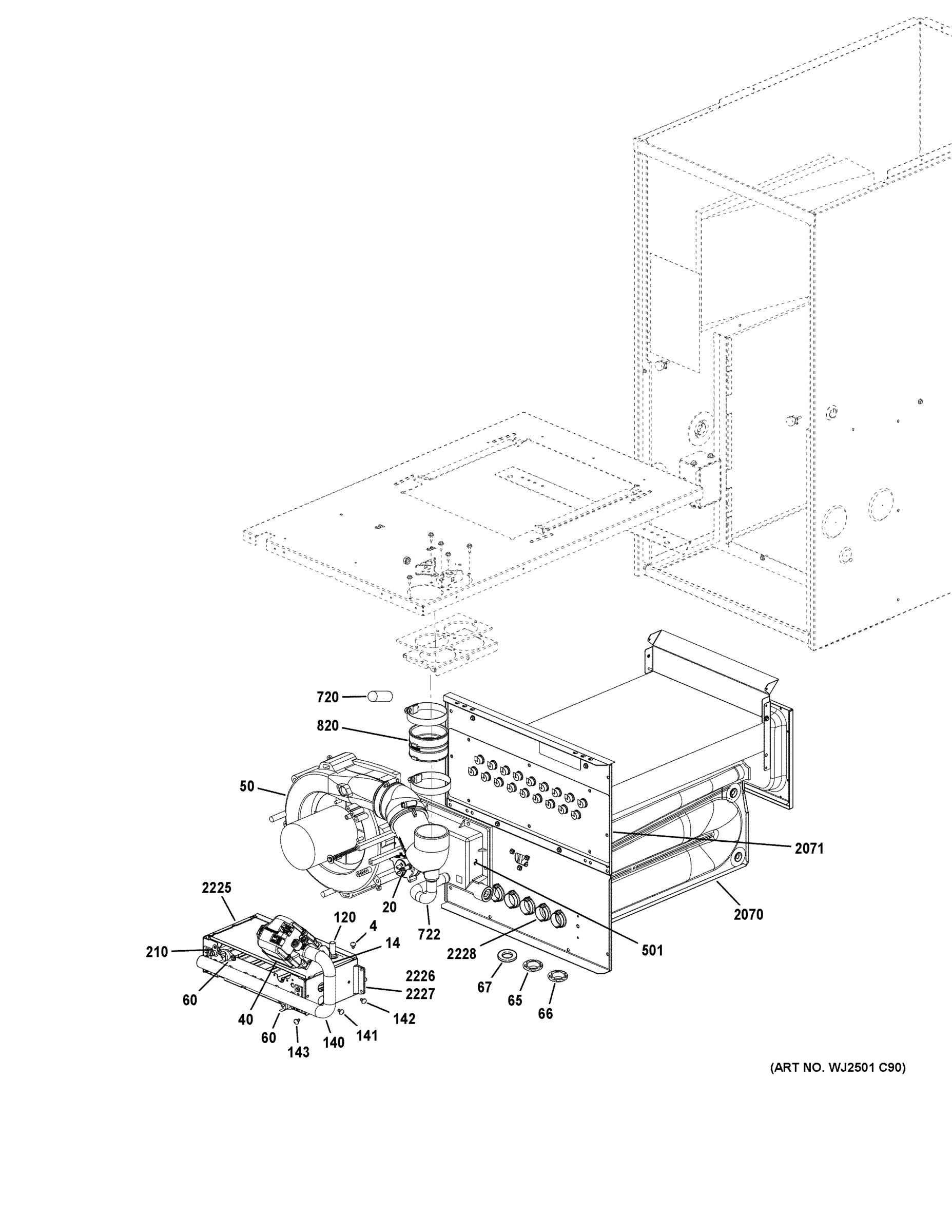

CABINET (2)
Common parts from model GE NF95X080S4C02 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
CONV KIT GEN 11K50 Contact Us For Availability
10
105224-06 LIMIT CONTROL (STILT) 150F GEN 16G47 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
15
DR PLUG KIT FOR 90% FURNACE-(CTO) GEN 82W08 Contact Us For Availability
30
607436-03 Ignition Control Kit GEN 16C81 Contact Us For Availability
33
DRAIN TRAP BAG ASSY (All ULN)-(CTO) GEN 16V73 Contact Us For Availability
40
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724AE Assy-Blower (Replacemt-Comb) GEN 93W13 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,080-(CTO) GEN 15V83 Contact Us For Availability
66
GKT-GRAPHITE BRNR/PLEN, 080-(CTO) GEN 15V86 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
607421-06 X13 3/4HP Motor - Programmed GEN 81W37 Contact Us For Availability
76
MTR BLO UNPROG CT3/4H 5S 115V 1100-(CTO) GEN R10072803 Contact Us For Availability
90
LB-29333BM WHEEL-(CTO) GEN 16596 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
130
ASSY-FLUE EXHAUST TEE-(CTO) GEN 16V71 Contact Us For Availability
140
MANIFOLD - SPUD ASSY-(CTO) GEN 15P04 Contact Us For Availability
141
ULN Air Orifice 1.105"-(CTO) GEN 21U24 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105671-36)-(CTO) GEN 17F30 Contact Us For Availability
502
PLENUM - GAS/AIR-(CTO) GEN 15P51 Contact Us For Availability
700
SCREEN-INTAKE-(CTO) GEN 16A62 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
722
HOSE DRAIN-(CTO) GEN 98W72 Contact Us For Availability
820
Flue Coupling-(CTO) GEN 17H92 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53791801 Contact Us For Availability
2070
ASSY-HEAT EXCH ULN 90% (-080)-(CTO) GEN 16J41 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P66 Contact Us For Availability
2110
HOUSING-BLOWER -(CTO) GEN 57M88 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 68W49 Contact Us For Availability
2225
BURNER ASSY (090)-(CTO) GEN 69W89 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2228
BURNER - PREMIX-(CTO) GEN 15P34 Contact Us For Availability
2330
TOP DOOR C-WIDTH 90% UF BLWR-(CTO) GEN 62381801U Contact Us For Availability
2340
BTM DOOR C-WIDTH 90% UF VEST-(CTO) GEN 62365304U Contact Us For Availability
3020
HARNESS UNIT ULN ELITE-(CTO) GEN 16V75 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
