Model GE NF95X040S3B02 HVAC – Gas Furnace – Common Parts & Diagrams

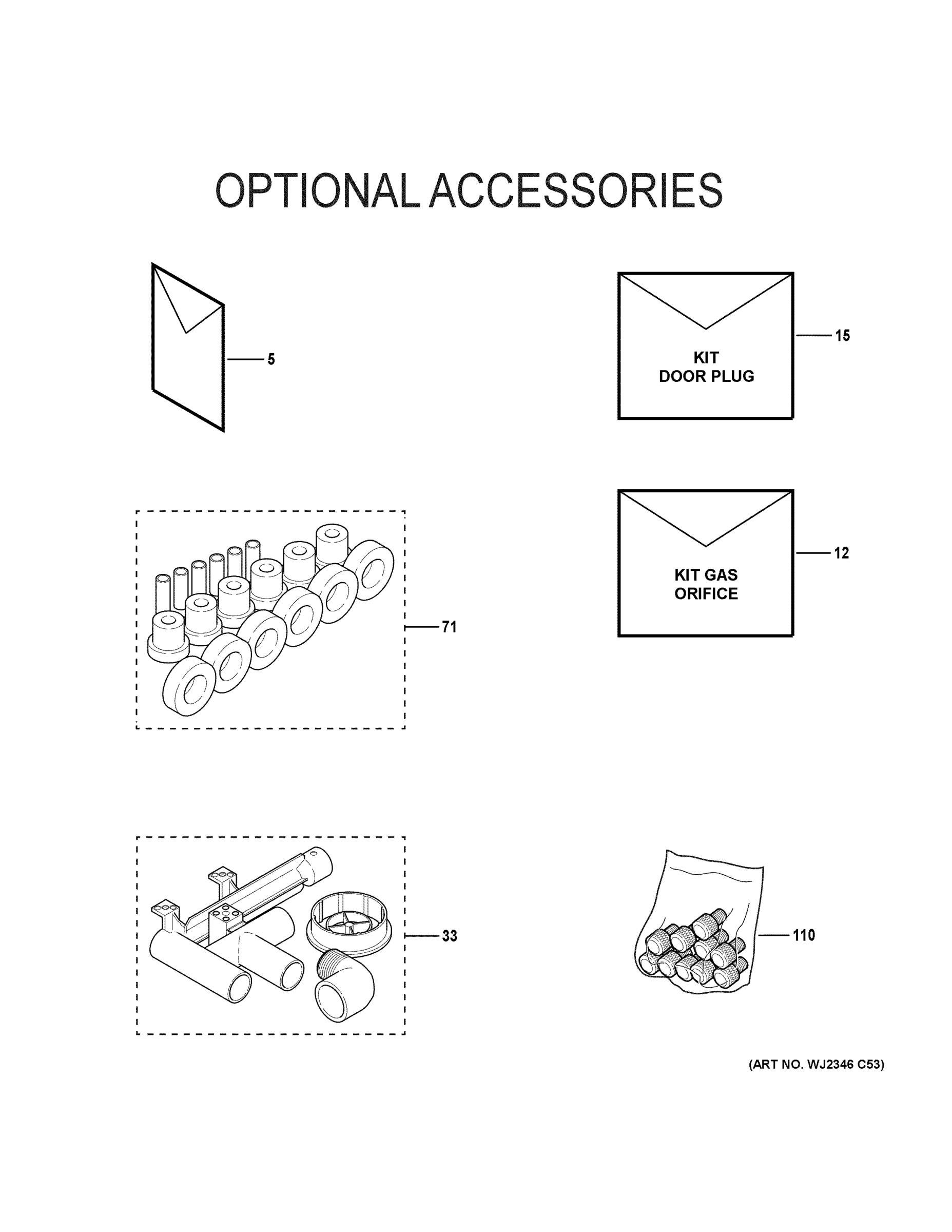

OPTIONAL ACCESSORIES

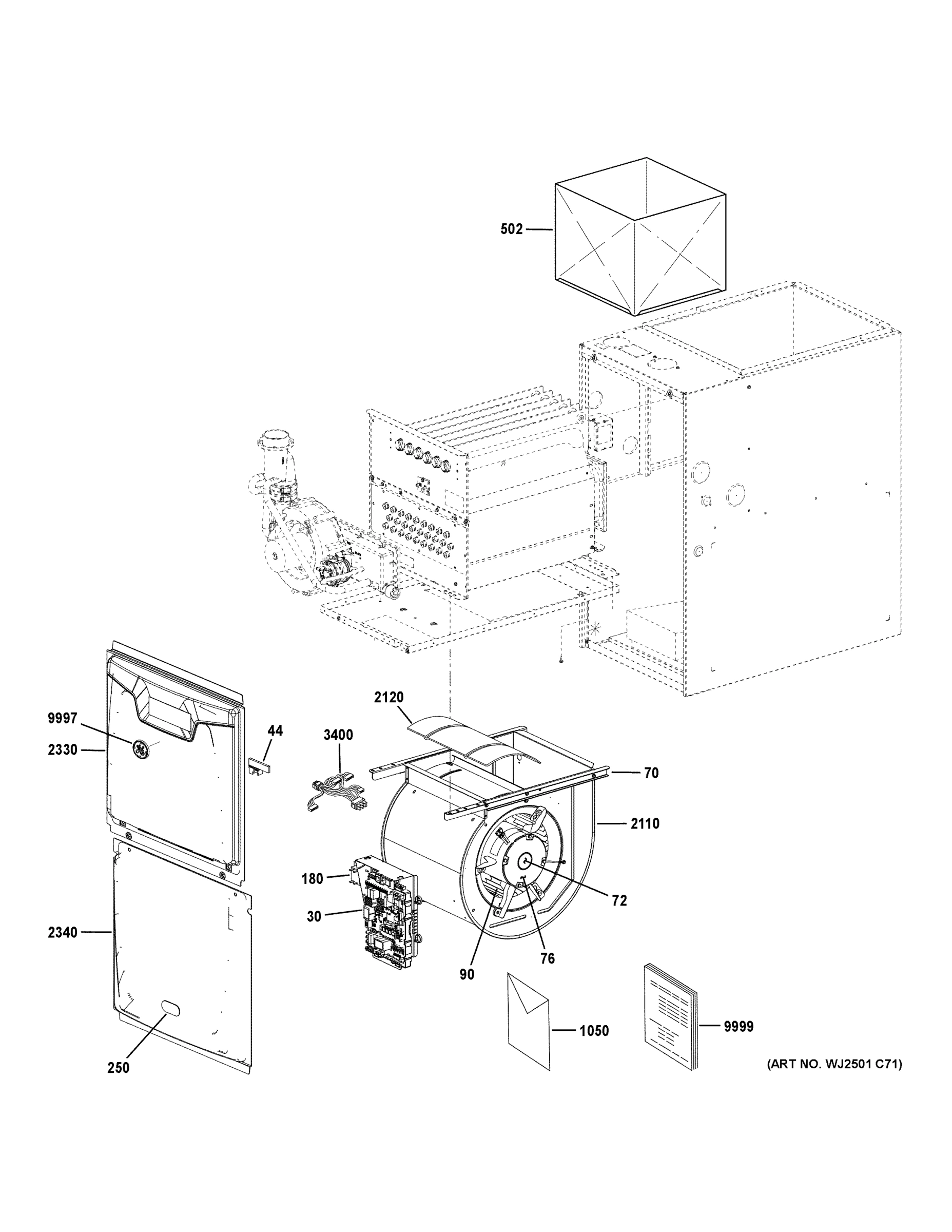

CABINET (1)

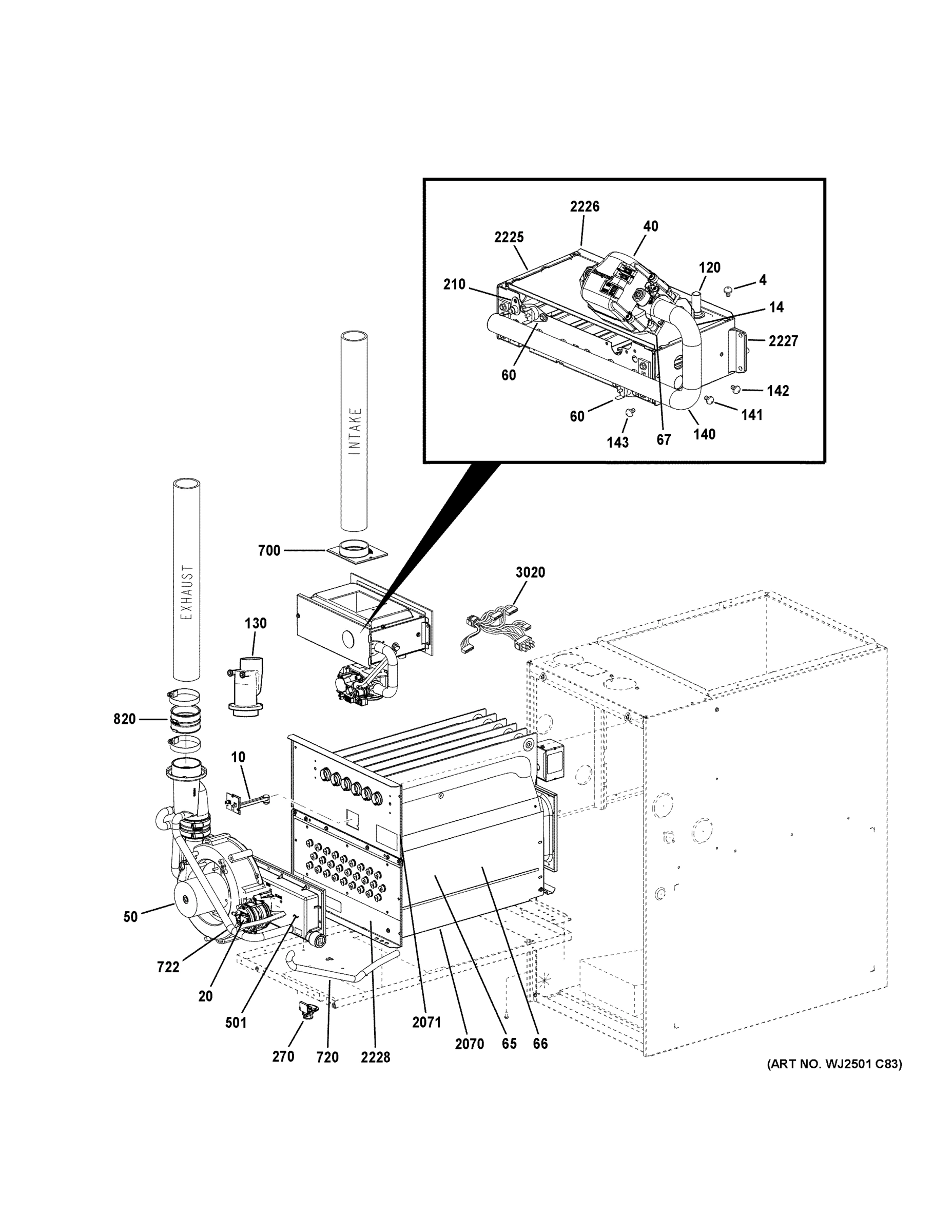

CABINET (2)
Common parts from model GE NF95X040S3B02 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
CONV KIT GEN 11K50 Contact Us For Availability
10
105224-01 LIMIT CONTROL (STILT) 230F GEN 16G42 Contact Us For Availability
12
GAS ORIFICE KIT (Capacity 040) CTO GEN 22P38 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
15
DR PLUG KIT FOR 90% FURNACE-(CTO) GEN 82W08 Contact Us For Availability
30
607436-03 Ignition Control Kit GEN 16C81 Contact Us For Availability
33
DRAIN TRAP BAG ASSY (All ULN)-(CTO) GEN 16V73 Contact Us For Availability
40
103016-03 VALVE-GAS (Modulating) GEN 15D34 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724AE Assy-Blower (Replacemt-Comb) GEN 93W13 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,040-060-(CTO) GEN 15V47 Contact Us For Availability
66
GKT-GRAPHITE BRNR/PLEN 040/060-(CTO) GEN 15V48 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
MOTOR REPL 1/2HP 115V CT GEN 23V72 Contact Us For Availability
76
MTR BLO UNPROG 1/2HP 5S 115V 1100-(CTO) GEN R10072802 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 89J10 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
130
ASSY-FLUE EXHAUST TEE-(CTO) GEN 16V71 Contact Us For Availability
140
MANIFOLD - SPUD ASSY-(CTO) GEN 15P02 Contact Us For Availability
141
ULN Air Orifice 0.800-(CTO) GEN 21U26 Contact Us For Availability
142
Air Orifice Sz .812,Resonance (more air) GEN 21U23 Contact Us For Availability
143
Air Orifice Sz .787, Difficulty igniting GEN 21U01 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
BOX-COLLECTOR (105670-19)-(CTO) GEN 17F49 Contact Us For Availability
502
PLENUM -GAS/AIR-(CTO) GEN 15P44 Contact Us For Availability
700
SCREEN-INTAKE-(CTO) GEN 16A62 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
722
HOSE DRAIN-(CTO) GEN 98W72 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1050
WIRING DIAGRAM LABEL-(CTO) GEN 53791802 Contact Us For Availability
2070
ASSY-HEAT EXCH ULN 90% (-040)-(CTO) GEN 16J36 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P57 Contact Us For Availability
2110
HSG-BLWR 10X8 612256-02-(CTO) GEN 57M87 Contact Us For Availability
2120
BLWR HSG CUTOFF PLATE-(CTO) GEN 68W48 Contact Us For Availability
2225
BURNER ASSY (045)-(CTO) GEN 69W87 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2228
BURNER - PREMIX-(CTO) GEN 15P33 Contact Us For Availability
2330
TOP DOOR B-WIDTH 90% UF BLWR-(CTO) GEN 62381701U Contact Us For Availability
2340
BTM DOOR B-WIDTH 90% UF VEST-(CTO) GEN 62365204U Contact Us For Availability
3020
HARNESS UNIT ULN ELITE-(CTO) GEN 16V75 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
