Model GE NF80X100S5C06 Room Air Conditioner Built In – Common Parts & Diagrams

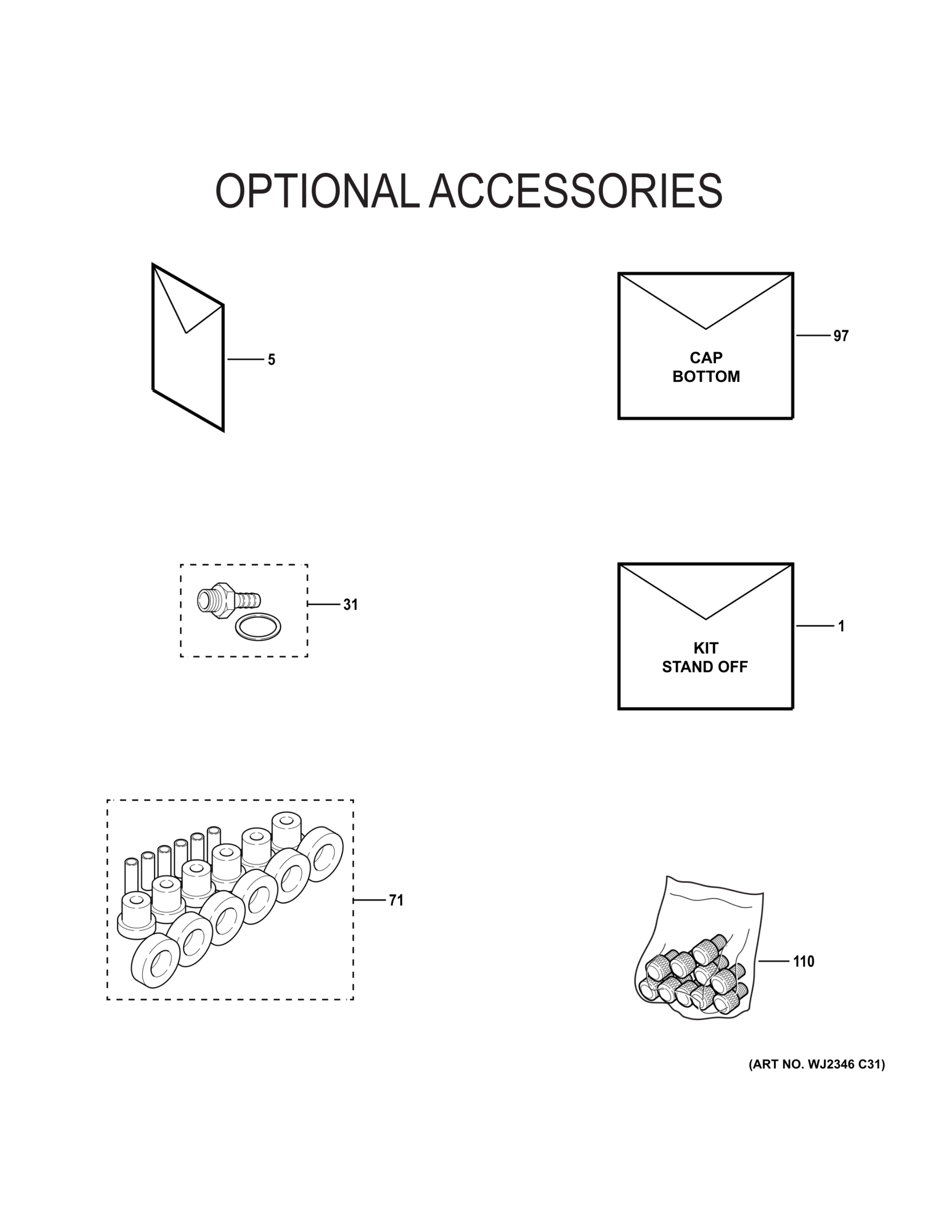

OPTIONAL ACCESSORIES

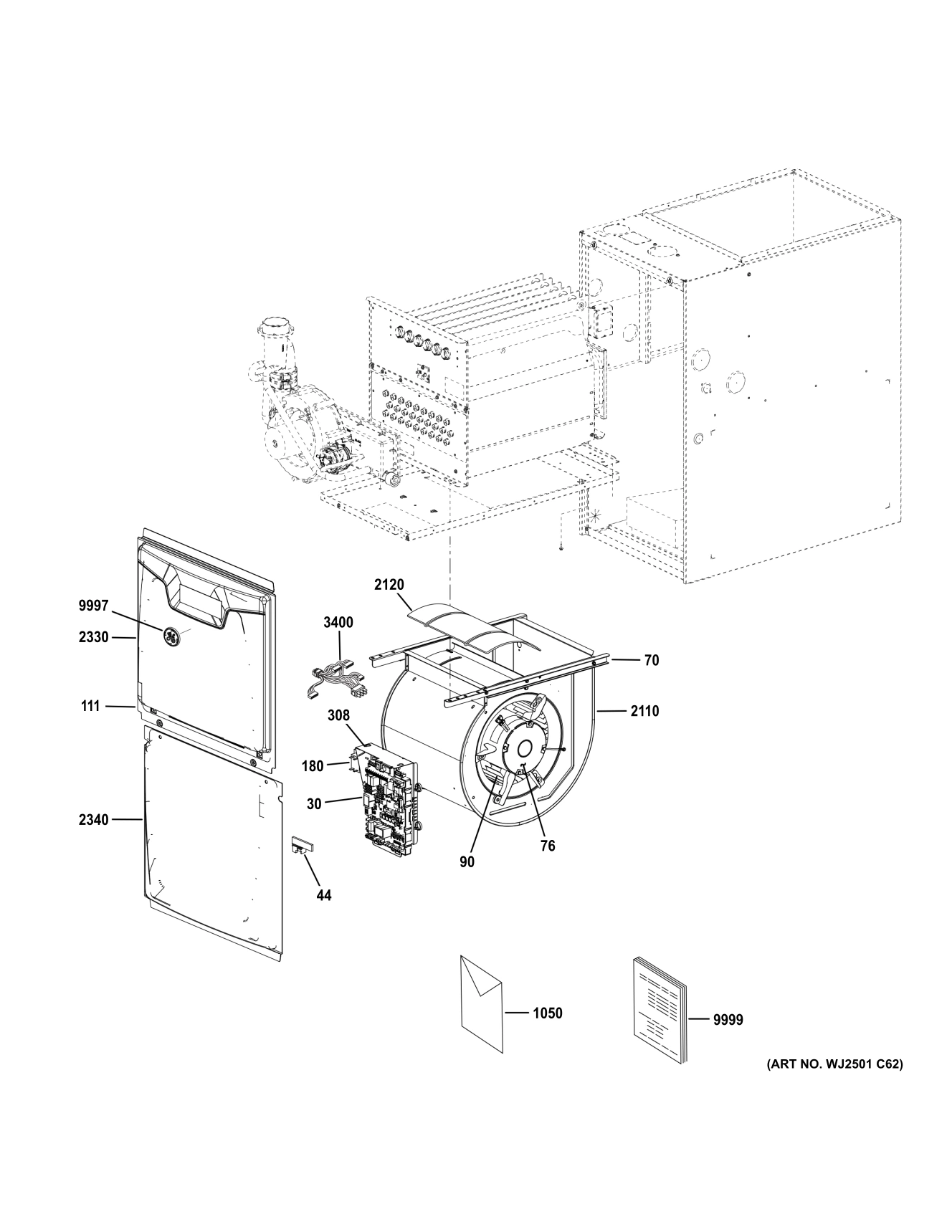

CABINET (1)

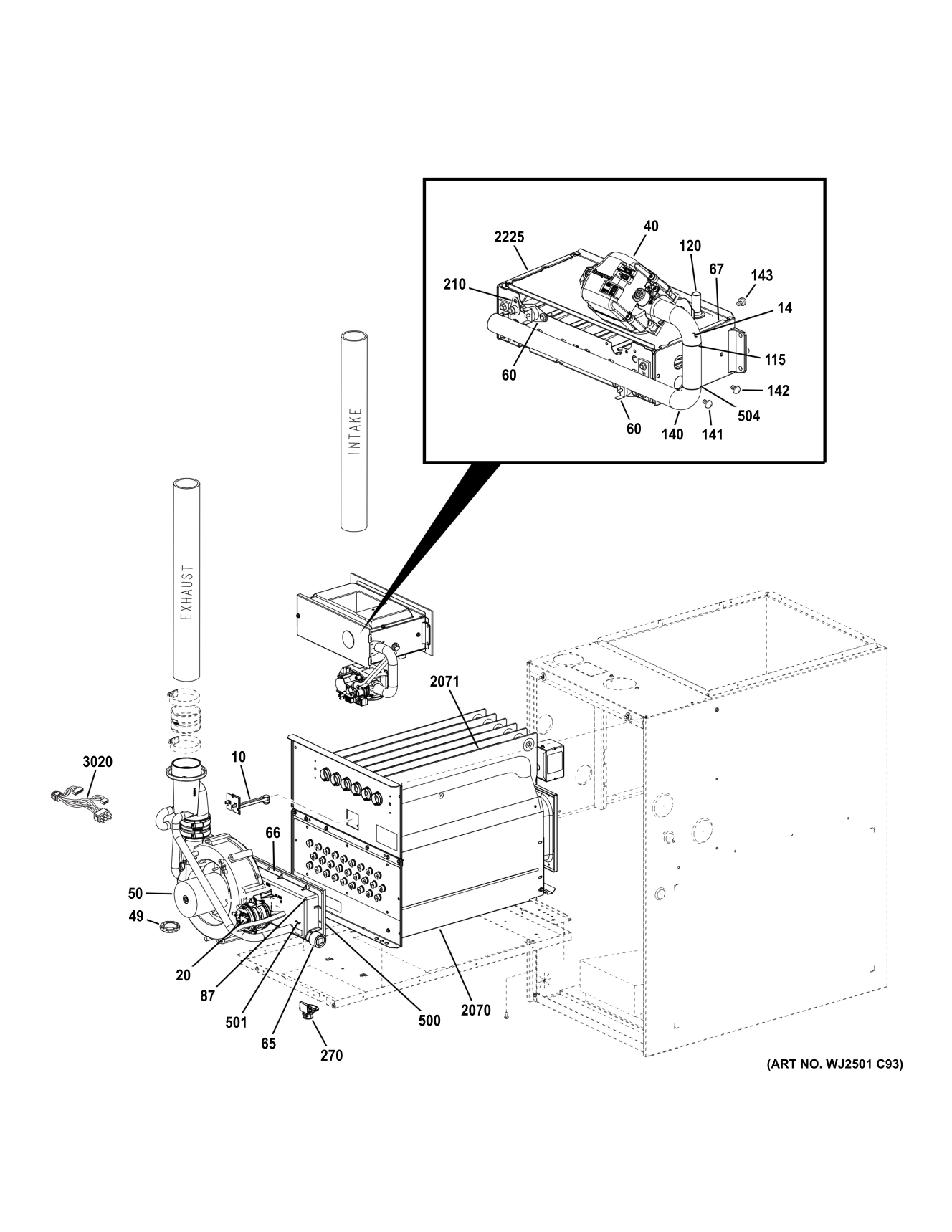

CABINET (2)
Common parts from model GE NF80X100S5C06 Room Air Conditioner Built In
1
KIT-SSSTAND OFF-(CTO) GEN 48M39 Contact Us For Availability
5
CONV KIT GEN 11K50 Contact Us For Availability
10
102857-06 Control-Limit (155F) GEN 73W19 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
20
107170-02 SWTCH-PRESS SNG STG ULN .20"WC GEN 22V51 Contact Us For Availability
30
607436-05 IGNITION CONTROL KIT GEN 23C48 Contact Us For Availability
31
617362-02 ASSY - SCREEN INTAKE / REDUCER GEN 24L29 Contact Us For Availability
40
105077-01 GAS VALVE, SIT 1:1 NEG REG GEN 15V44 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
49
GKT-BRNR BOX/VEST PNL, 100-(CTO) GEN 15V95 Contact Us For Availability
50
107205-04 CAI COMB-MTR REPLACEMENT KIT GEN 28S29 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC, 100-(CTO) GEN 15V84 Contact Us For Availability
66
GKT-GRAPHITE BRNR/PLEN, 100-(CTO) GEN 15V87 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
71
MTR MTG GROMMET KIT-(CTO) GEN 50W88 Contact Us For Availability
76
624623-18 PROG MTR 1HP VAR SPD 115V CT GEN 24M16 Contact Us For Availability
87
PLENUM - GAS/AIR-(CTO) GEN 15P54 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 36M22 Contact Us For Availability
97
CAP-BOTTOM-(CTO) GEN 72W28 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W15 Contact Us For Availability
115
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
140
105020-15 MANIFOLD ULN NOZZLE ASSY GEN 24L16 Contact Us For Availability
141
616086-29 AIR ORIFICE 1.160 GEN 23A32 Contact Us For Availability
143
ORIFICE - AIR-(CTO) GEN 22J97 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
308
BOX-CONTROL-(CTO) GEN 28W59 Contact Us For Availability
500
107227-03 GASKET COLLECTOR BOX - ULN GEN 24L28 Contact Us For Availability
501
623111-03 BOX - COLLECTOR ULN CAST (100) GEN 24L07 Contact Us For Availability
504
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1050
STICKER-WIRING DIAGRAM-(CTO) GEN 537869-02 Contact Us For Availability
2070
625024-07 HEAT EXCH 80% ULN 1S 100C GEN 24L38 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P73 Contact Us For Availability
2110
BLOWER HSG 10 X 10 UH 625023-03 (CTO) GEN 24K44 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 81L92 Contact Us For Availability
2225
BURNER - PREMIX-(CTO) GEN 15P43 Contact Us For Availability
2330
PANEL-LOWER-(CTO) GEN 73W63 Contact Us For Availability
2340
PANEL-UPPER-(CTO) GEN 73W62 Contact Us For Availability
3020
HARNESS(ULN80-060/080/100)-(CTO) GEN 16V34 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-05 Contact Us For Availability
9999
STICKER-WIRING DIAGRAM-(CTO) GEN 537867-03 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
