Model GE NF80X080S4B05 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

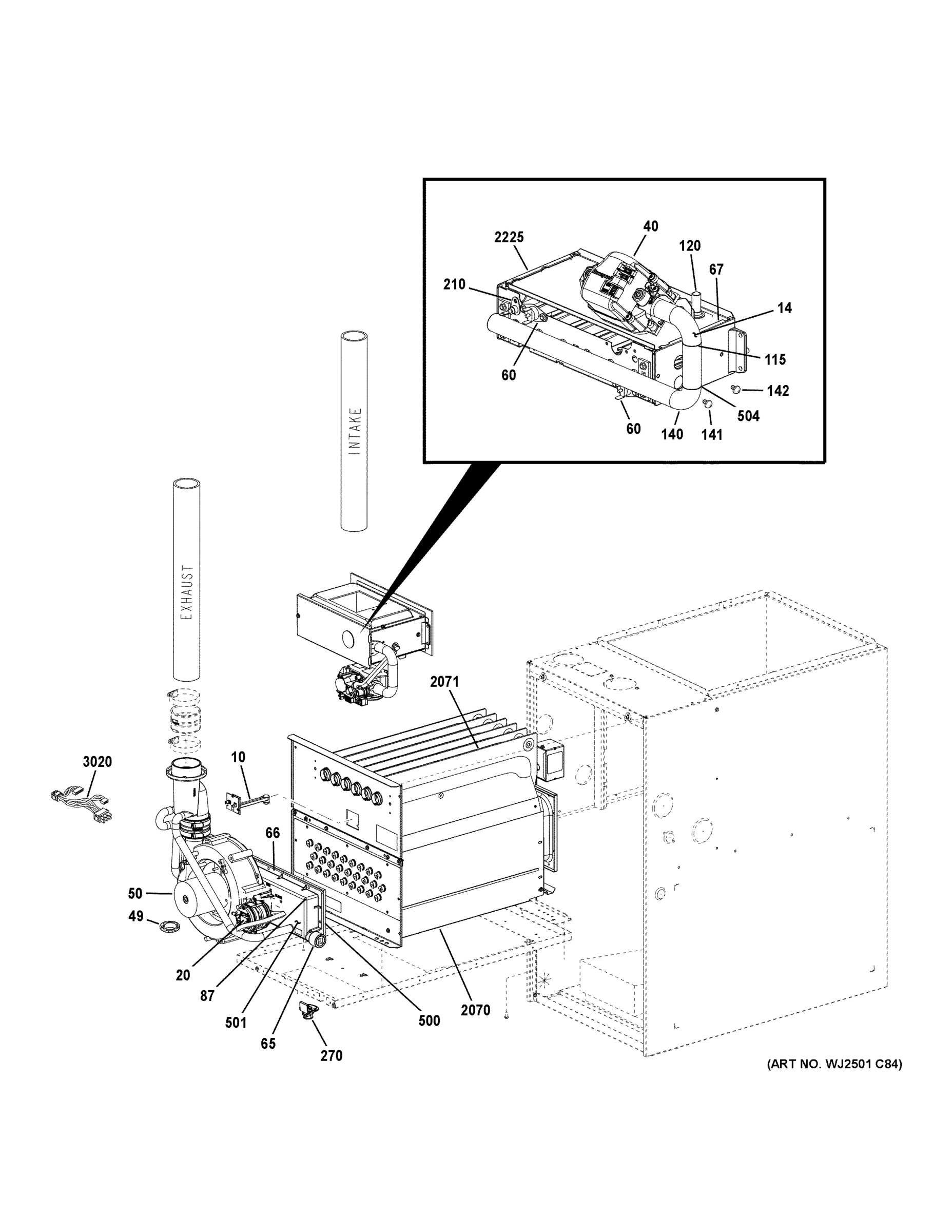

CABINET (2)
Common parts from model GE NF80X080S4B05 HVAC – Gas Furnace
1
KIT-SSSTAND OFF-(CTO) GEN 48M39 Contact Us For Availability
5
CONV KIT GEN 11K50 Contact Us For Availability
10
102857-31 LIMIT CONTROL (STILT) 170F GEN 24L58 Contact Us For Availability
14
ELBOW - GAS/AIR-(CTO) GEN 15P55 Contact Us For Availability
20
107170-02 SWTCH-PRESS SNG STG ULN .20"WC GEN 22V51 Contact Us For Availability
30
607436-05 IGNITION CONTROL KIT GEN 23C48 Contact Us For Availability
31
617362-02 ASSY - SCREEN INTAKE / REDUCER GEN 24L29 Contact Us For Availability
40
105077-01 GAS VALVE, SIT 1:1 NEG REG GEN 15V44 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
49
GKT-BRNR BOX/VEST PNL, 080-(CTO) GEN 15V94 Contact Us For Availability
50
615543-10 CAI COMB-MTR KIT PSC 1-STG GEN 23A35 Contact Us For Availability
60
ROLLOUT LIMIT-(CTO) GEN 66J78 Contact Us For Availability
65
GKT-GRAPHITE BRNR/CC,080-(CTO) GEN 15V83 Contact Us For Availability
66
GKT-GRAPHITE BRNR/PLEN, 080-(CTO) GEN 15V86 Contact Us For Availability
67
105165-01, Gasket-Graphite, Igniter/Sens GEN 16A58 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
76
624623-17 MOTOR (PROG) 3/4HP 115V CT GEN 24K31 Contact Us For Availability
87
PLENUM - GAS/AIR-(CTO) GEN 15P51 Contact Us For Availability
90
LB-29333BM WHEEL-(CTO) GEN 16596 Contact Us For Availability
97
CAP-BOTTOM-(CTO) GEN 72W27 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
111
PANEL FILLER DOOR TRIM-(CTO) GEN 74W14 Contact Us For Availability
115
O-RING,MANIFOLD/ELBOW-(CTO) GEN 15V45 Contact Us For Availability
120
617498-01 IGNITOR ASSY GEN 15K17 Contact Us For Availability
140
105020-11 MANIFOLD ULN NOZZLE ASSY GEN 24L10 Contact Us For Availability
141
Air Orifice Sz 1.210, Difficult ign/Nois GEN 25B20 Contact Us For Availability
142
616086-32 AIR ORIFICE GEN 27A19 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
308
BOX-CONTROL-(CTO) GEN 28W59 Contact Us For Availability
500
107227-02 GASKET COLLECTOR BOX - ULN GEN 24L25 Contact Us For Availability
501
623111-02 BOX - COLLECTOR ULN CAST (080) GEN 24L04 Contact Us For Availability
504
O-RING, ELBOW/PLENUM-(CTO) GEN 15K20 Contact Us For Availability
1050
STICKER-WIRING DIAGRAM-(CTO) GEN 53829901 Contact Us For Availability
2070
625024-06 HEAT EXCH 80% ULN 1S 80B GEN 24L37 Contact Us For Availability
2071
ASSY - HEAT SHIELD-(CTO) GEN 15P66 Contact Us For Availability
2110
BLOWER HSG 10 X 10 UH 625023-02 (CTO) GEN 24K43 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 68W49 Contact Us For Availability
2225
BURNER - PREMIX-(CTO) GEN 15P34 Contact Us For Availability
2330
PANEL-LOWER-(CTO) GEN 73W63 Contact Us For Availability
2340
PANEL-UPPER-(CTO) GEN 73W62 Contact Us For Availability
3020
HARNESS(ULN80-060/080/100)-(CTO) GEN 16V34 Contact Us For Availability
3400
HARNESS-MOTOR X13 CONSTANT GEN 22U03 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
