Model GE NF80U110T5C52 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

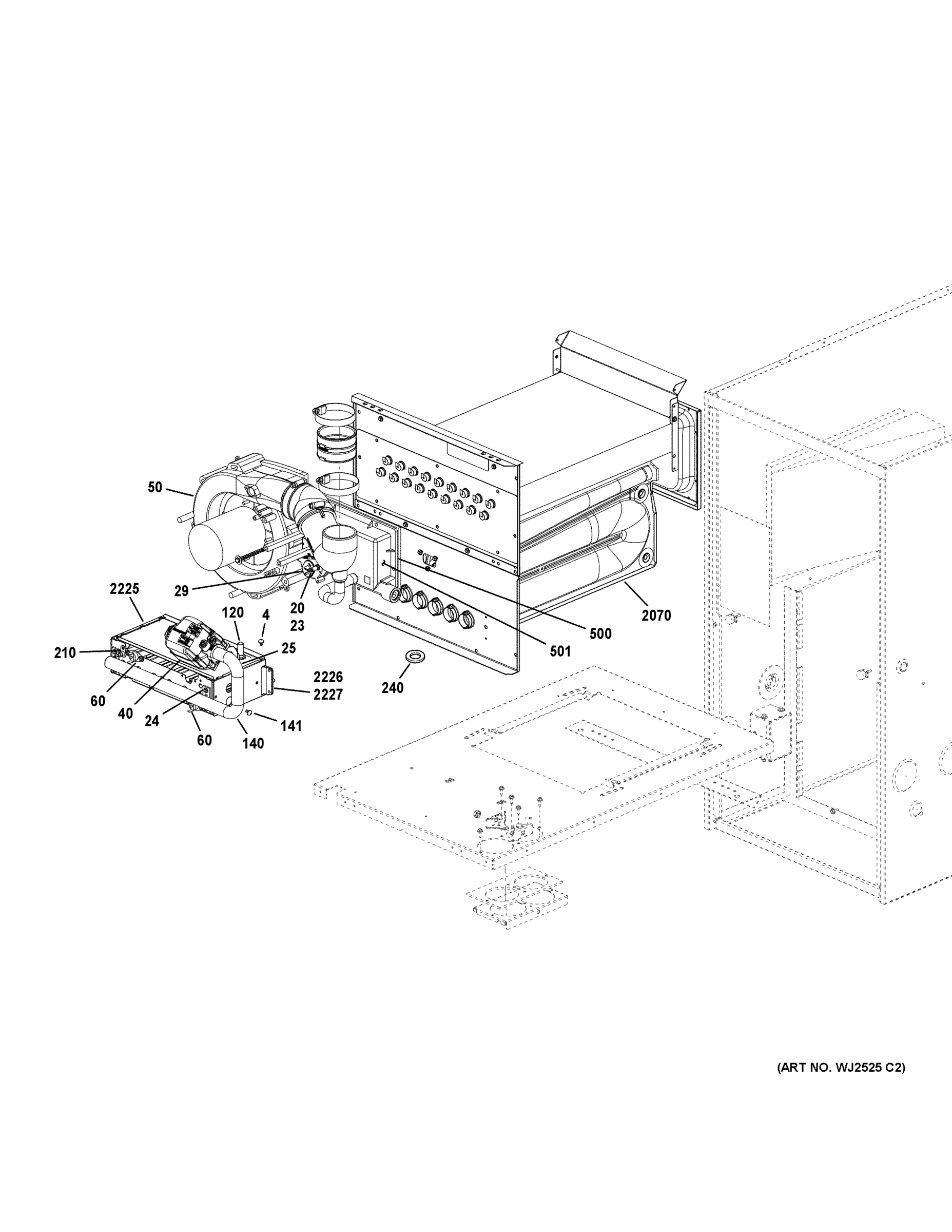

CABINET (2)
Common parts from model GE NF80U110T5C52 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
7
LB-97803A TUBING-PRESSURE SWITCH GEN 98L78 Contact Us For Availability
10
102135-04 Control-Limit Aux (165F) GEN 69W37 Contact Us For Availability
23
102737-09 Switch-Pressure 2 Stg(.55/.25) GEN 73W35 Contact Us For Availability
24
WIRE-FLAME SENSOR-(CTO) GEN 11M65 Contact Us For Availability
25
BRACKET-IGNITOR-(CTO) GEN 69W03 Contact Us For Availability
29
102737-11 Switch-Pressure 2 Stg(.30/.60) GEN 91W53 Contact Us For Availability
30
103132-03 CONTROL-IGN CONT-TORQUE-2STAGE GEN 10U92 Contact Us For Availability
40
103181-01 VALVE-GAS (2 STG NAT) GEN 77W04 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
72
607421-35 KIT - MOTOR REPL 1HP 115V CT GEN 23V93 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 36M22 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 74W70 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
181
TRANSFORMER POWER CHOKE-(CTO) GEN 10Y66 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
240
GASKET-ORIFICE PLATE-(CTO) GEN 69W51 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
308
BOX-CONTROL-(CTO) GEN 28W59 Contact Us For Availability
500
GASKET-COLL BOX-(CTO) GEN 69W47 Contact Us For Availability
501
BOX COLLECTOR-(CTO) GEN 68W92 Contact Us For Availability
2070
ASSY HEAT EXCH (610280-06)-(CTO) GEN 14D53 Contact Us For Availability
2110
HSG-BLWR 10X8 612256-02-(CTO) GEN 57M87 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 81L92 Contact Us For Availability
2225
BURNER ASSY (110)-(CTO) GEN 69W90 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2310
PLATE-CAI MOUNT(1.875)-(CTO) GEN 69W14 Contact Us For Availability
2330
TOP DOOR C-WIDTH 90% UF BLWR-(CTO) GEN 62381801U Contact Us For Availability
2340
BTM DOOR C-WIDTH 80% UF VEST-(CTO) GEN 62365302U Contact Us For Availability
3020
HARNESS-WIRING UNIT-(CTO) GEN 12T60 Contact Us For Availability
3050
HARN WIRE-(CTO) GEN 68L52 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 10721305 Contact Us For Availability
9999
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
× ![]()
