Model GE NF80D090T4B52 HVAC – Gas Furnace – Common Parts & Diagrams
OPTIONAL ACCESSORIES
CABINET (1)

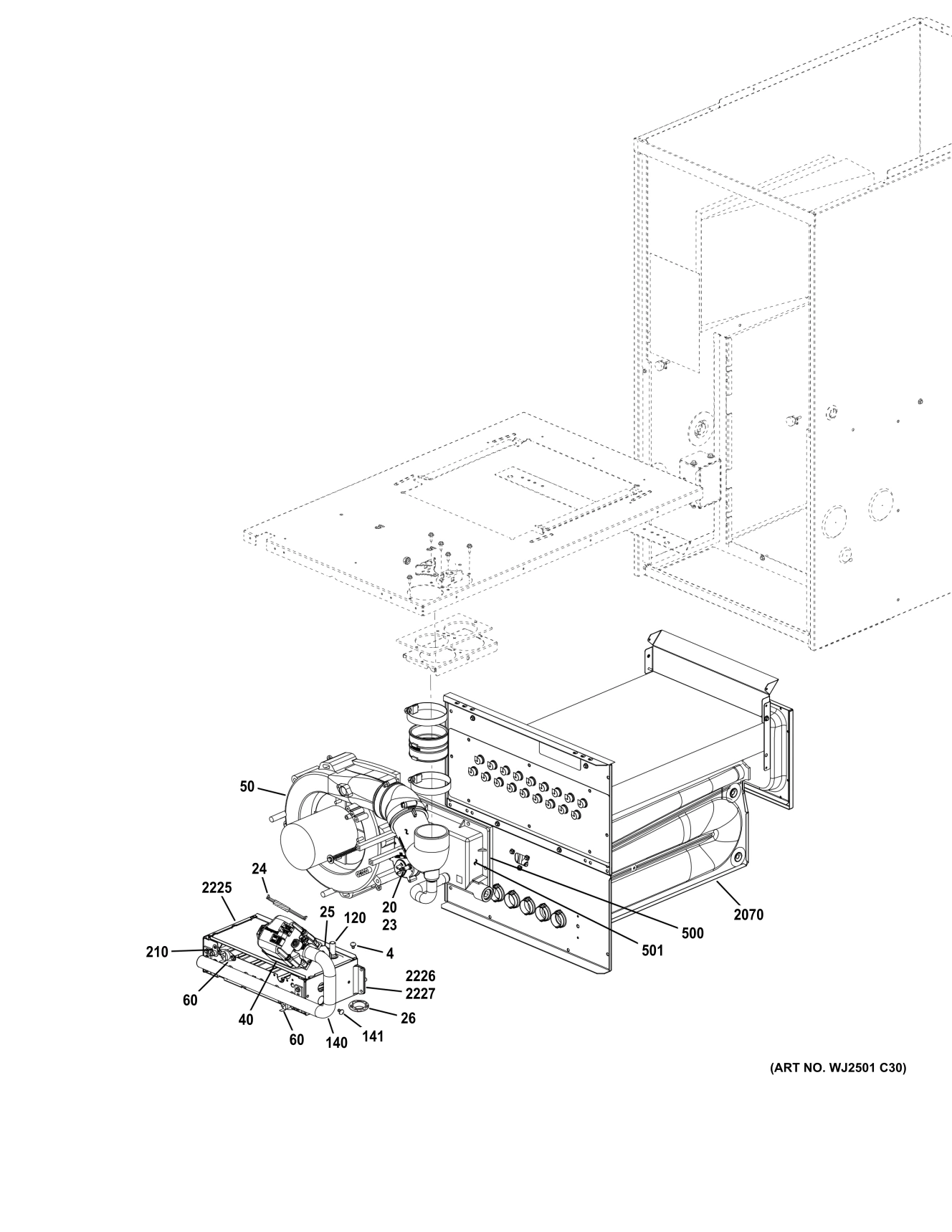

CABINET (2)
Common parts from model GE NF80D090T4B52 HVAC – Gas Furnace
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
7
LB-97803A TUBING-PRESSURE SWITCH GEN 98L78 Contact Us For Availability
10
102135-04 Control-Limit Aux (165F) GEN 69W37 Contact Us For Availability
20
102737-09 Switch-Pressure 2 Stg(.55/.25) GEN 73W35 Contact Us For Availability
23
102737-11 Switch-Pressure 2 Stg(.30/.60) GEN 91W53 Contact Us For Availability
24
WIRE-FLAME SENSOR-(CTO) GEN 11M65 Contact Us For Availability
25
BRACKET-IGNITOR-(CTO) GEN 69W03 Contact Us For Availability
26
GASKET-ORIFICE PLATE-(CTO) GEN 69W51 Contact Us For Availability
27
PLATE-CAI MOUNT (1.690)-(CTO) GEN 75W98 Contact Us For Availability
30
607308-24 KIT-IGN CONTROL GEN 22K53 Contact Us For Availability
40
103181-01 VALVE-GAS (2 STG NAT) GEN 77W04 Contact Us For Availability
44
BREAKER CIRCUIT-(CTO) GEN 26W34 Contact Us For Availability
50
LB-94724P BLOWER-COMB / INDUCER GEN 70W38 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
72
ASSY, MOTOR PROGRAMMED 607363-24 GEN 16U33 Contact Us For Availability
90
LB-29333BM WHEEL-(CTO) GEN 16596 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 74W72 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
181
TRANSFORMER POWER CHOKE-(CTO) GEN 10Y66 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
500
GASKET-COLL BOX-(CTO) GEN 69W46 Contact Us For Availability
501
BOX-COLLECTOR-(CTO) GEN 68W90 Contact Us For Availability
1050
WIRING DIAGRAM (DF) STICKER-(CTO) GEN 538164-01 Contact Us For Availability
2070
ASSY HEAT EXCH (610280-12)-(CTO) GEN 14D56 Contact Us For Availability
2110
HOUSING-BLOWER -(CTO) GEN 57M88 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 68W49 Contact Us For Availability
2225
BURNER ASSY (090)-(CTO) GEN 69W89 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
TOP DOOR B-WIDTH 80/90% DF BLWR-(CTO) GEN 623652-03U Contact Us For Availability
2340
BTM DOOR B-WIDTH 80% DF VESTIBULE-(CTO) GEN 623817-03U Contact Us For Availability
3020
HARNESS-WIRING UNIT-(CTO) GEN 12T78 Contact Us For Availability
3050
HARNESS-WIRING UNIT-(CTO) GEN 12M66 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-05 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
