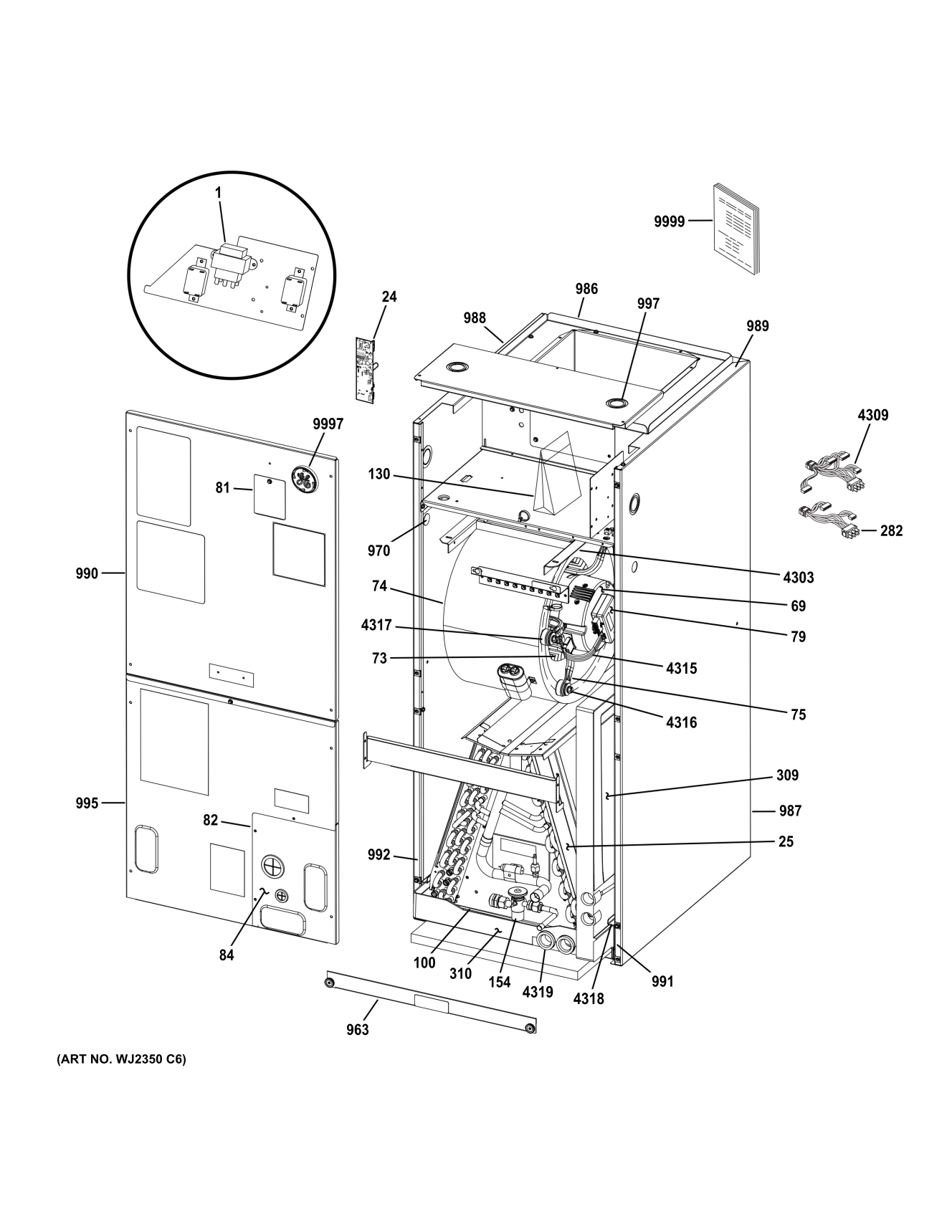

Model GE NAM48V2TA451 HVAC – Air Handler – Common Parts & Diagrams

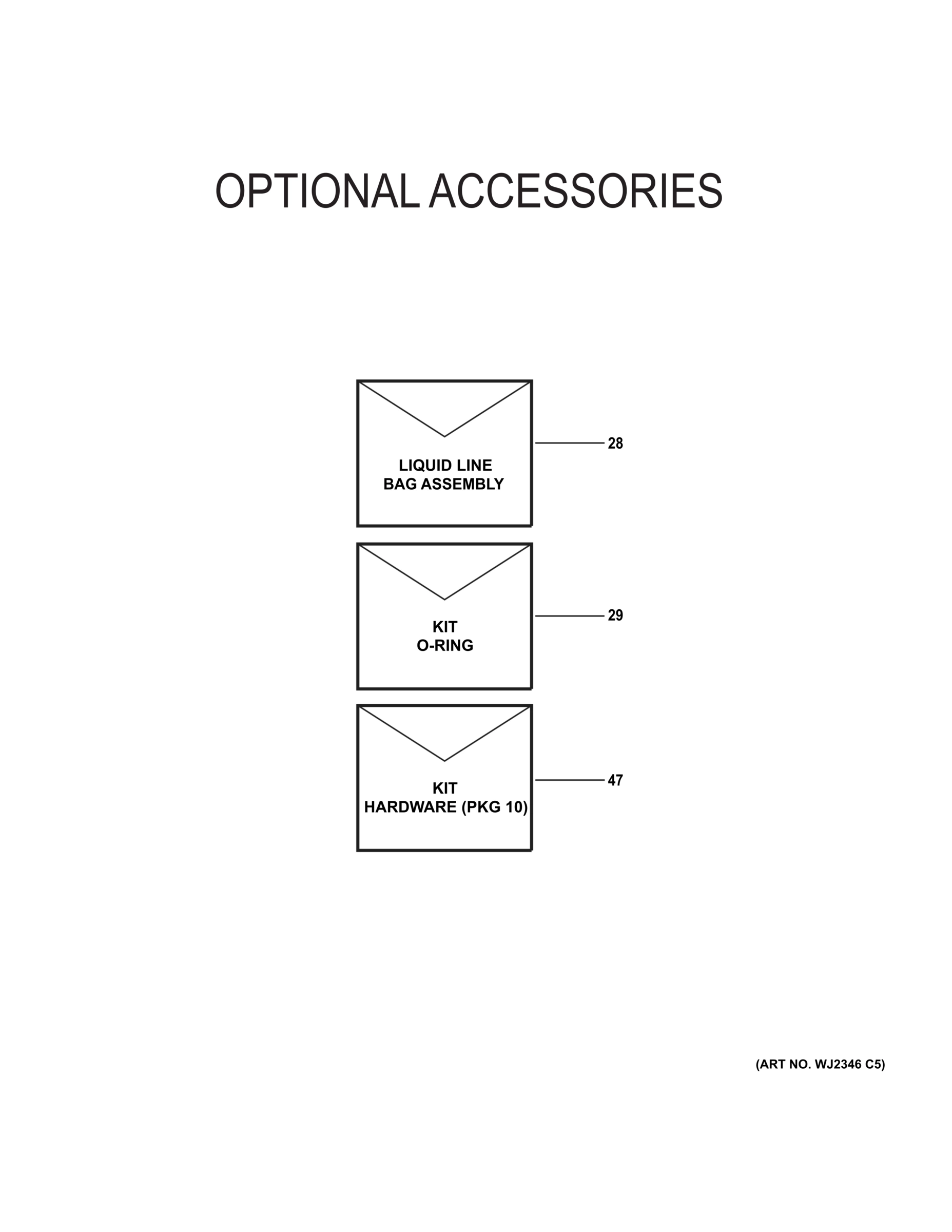

OPTIONAL ACCESSORIES
ROOM AIR CONDITIONER
Common parts from model GE NAM48V2TA451 HVAC – Air Handler
24
ASSY-P.C.BOARD ALLIED AHC GEN R105153-01 Contact Us For Availability
25
CBA27UHE-048 REPAIR COIL-(CTO) GEN 15Z72 Contact Us For Availability
28
LIQ. LINE BAG ASSEMBLY-(CTO) GEN 69J46 Contact Us For Availability
29
KIT-O RING-(CTO) GEN 49J23 Contact Us For Availability
47
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
69
103070-03 MTR Base Kit Vari SPD 1 HP GEN 72W45 Contact Us For Availability
73
WHEEL-(CTO) GEN 21793 Contact Us For Availability
74
HOUSING-12X9 BLR ASY-(CTO) GEN 53K65 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 98G23 Contact Us For Availability
79
Motor Control Kit Var Spd-(CTO) GEN 10U27 Contact Us For Availability
81
PLATE-COVER LB-88627E-(CTO) GEN RLB-88627E Contact Us For Availability
82
PLATE-CUTOFF-(CTO) GEN 32L41 Contact Us For Availability
84
PLATE-PATCH LB-106604E-(CTO) GEN RLB-106604E Contact Us For Availability
100
CHANNEL BOTTOM -(CTO) GEN R601502-01E Contact Us For Availability
130
WIRING DIAGRAM-(CTO) GEN 537793-03 Contact Us For Availability
154
104110-03 VALVE-TXV (3.5-5) (R410A) GEN 12J20 Contact Us For Availability
282
HARNESS-ADAPTOR WIRING AH-(CTO) GEN R105986-01 Contact Us For Availability
309
DRAIN PAN-(CTO) GEN 15V98 Contact Us For Availability
310
PAN-HORIZONTAL DRAIN-(CTO) GEN 93J60 Contact Us For Availability
963
DOOR FILTER -(CTO) GEN RLB-87799E Contact Us For Availability
970
POST-CORNER-(CTO) GEN 18K73 Contact Us For Availability
986
PNL TOP BACK WRAPPER-(CTO) GEN RLB-87816E Contact Us For Availability
987
PNL BOTTOM BACK WRAPPER-(CTO) GEN RLB-87819E Contact Us For Availability
988
PNL TOP LEFT -(CTO) GEN RLB-107218E Contact Us For Availability
989
PNL TOP RIGHT WRAPPER -(CTO) GEN RLB-107219E Contact Us For Availability
990
PNL UPPER-(CTO) GEN RLB-88998E Contact Us For Availability
991
PNL BOTTOM RIGHT WRAPPER -(CTO) GEN RLB-87821E Contact Us For Availability
992
PNL BOTTOM LEFT WRAPPER LB-87820E-(CTO) GEN RLB-87820E Contact Us For Availability
995
PANEL-LOWER-(CTO) GEN RLB-88053E Contact Us For Availability
997
PANEL TOP CAP -(CTO) GEN RLB-106598E Contact Us For Availability
4303
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
4309
HARNESS-(CTO) GEN 78K52 Contact Us For Availability
4315
HARNESS-MOTOR 3.0 ECM-(CTO) GEN 15T89 Contact Us For Availability
4316
SLEEVE-(CTO) GEN 42W05 Contact Us For Availability
4317
GROMMET-(CTO) GEN 43H81 Contact Us For Availability
4318
CHANNEL-CONDENSATE-(CTO) GEN 64K05 Contact Us For Availability
4319
CHANNEL-CONDENSATE-(CTO) GEN 71M36 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-07 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
