Model GE NAM30V2TA451 HVAC – Air Handler – Common Parts & Diagrams

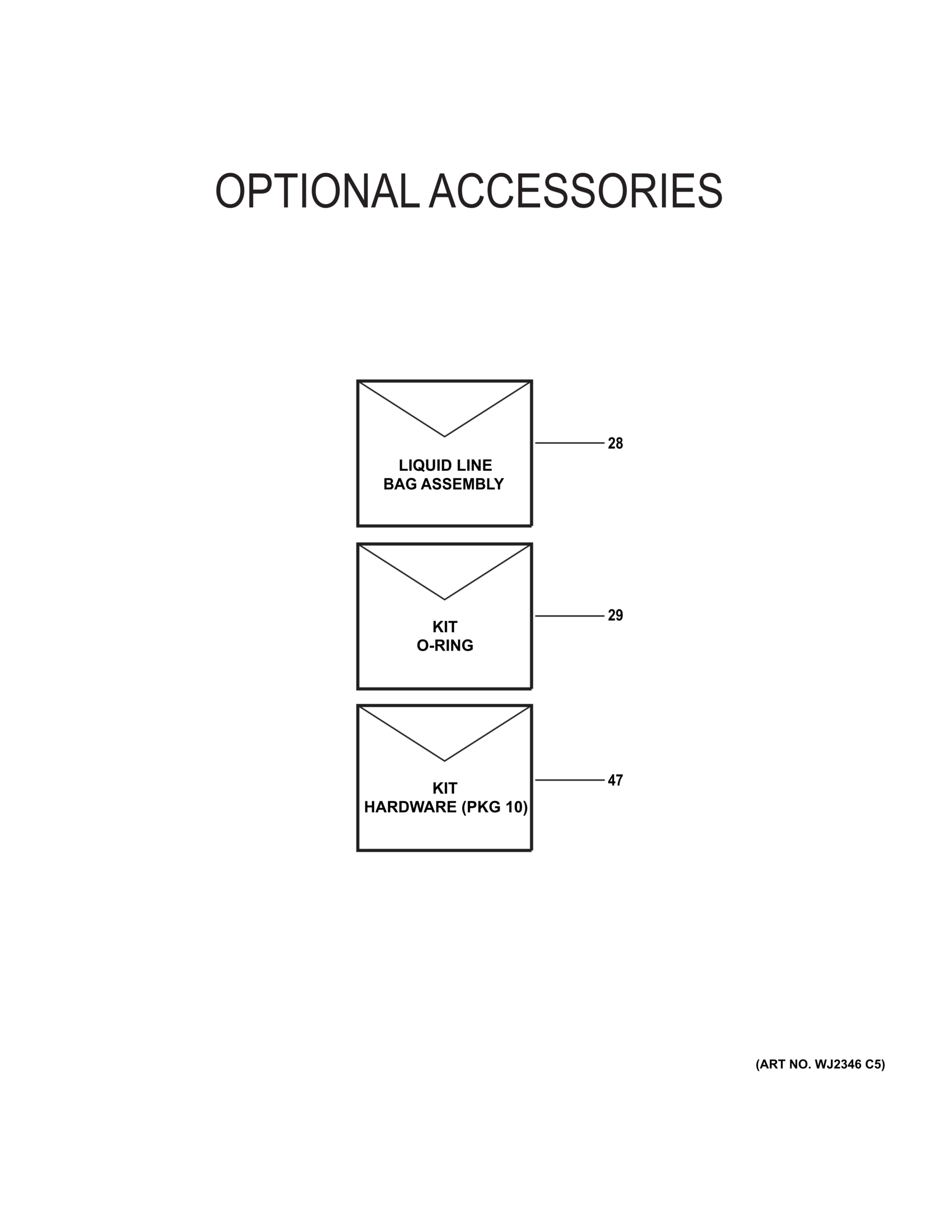

OPTIONAL ACCESSORIES
ROOM AIR CONDITIONER

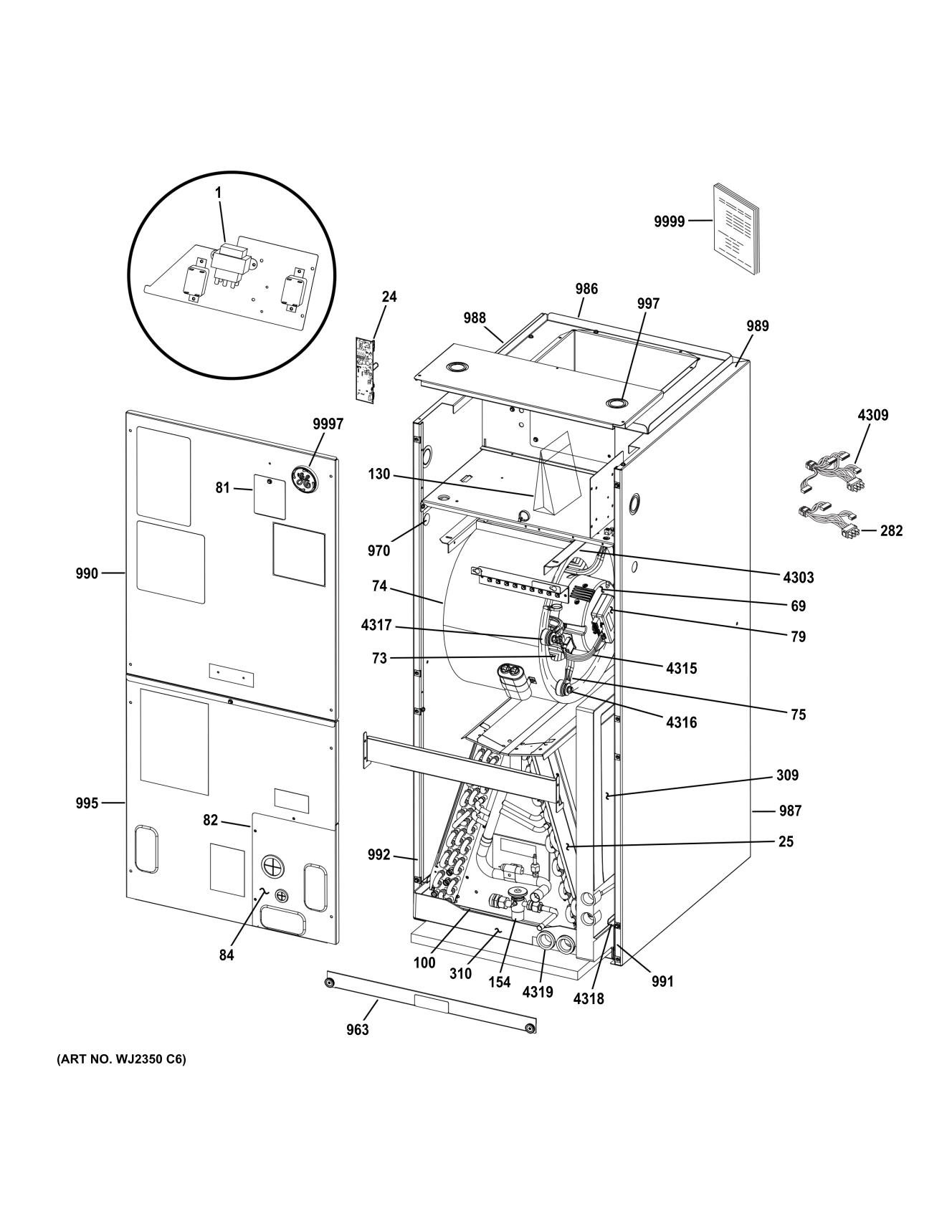

Common parts from model GE NAM30V2TA451 HVAC – Air Handler
24
ASSY-P.C.BOARD ALLIED AHC GEN R105153-01 Contact Us For Availability
25
CBA27UHE-030 Repair Coil-(CTO) GEN 15R27 Contact Us For Availability
28
LIQ. LINE BAG ASSEMBLY-(CTO) GEN 69J46 Contact Us For Availability
29
KIT-O RING-(CTO) GEN 49J23 Contact Us For Availability
47
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
69
103070-01 1/2 Hp Mtr Base Kit Vari Spd GEN 72W41 Contact Us For Availability
73
WHEEL-(CTO) GEN 10H00 Contact Us For Availability
74
HOUSING-BLOWER 11 X 8-(CTO) GEN 26W77 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 98G23 Contact Us For Availability
79
MOTOR CTL KIT VAR SPD-(CTO) GEN 10U25 Contact Us For Availability
81
PLATE-COVER LB-88627E-(CTO) GEN RLB-88627E Contact Us For Availability
82
PLATE-CUTOFF-(CTO) GEN 27W69 Contact Us For Availability
84
PLATE-PATCH LB-106604E-(CTO) GEN RLB-106604E Contact Us For Availability
100
CHANNEL BOTTOM -(CTO) GEN R601502-01E Contact Us For Availability
130
WIRING DIAGRAM-(CTO) GEN 537793-03 Contact Us For Availability
154
104110-01 VALVE-TXV (1.5-2.5) (R410A) GEN 12J18 Contact Us For Availability
282
HARNESS-ADAPTOR WIRING AH-(CTO) GEN R105986-01 Contact Us For Availability
309
DRAIN PAN-(CTO) GEN 15V97 Contact Us For Availability
310
PAN-HORIZONTAL DRAIN-(CTO) GEN 93J59 Contact Us For Availability
963
DOOR FILTER LB-110417E-(CTO) GEN RLB-110417E Contact Us For Availability
970
POST-CORNER-(CTO) GEN 18K73 Contact Us For Availability
986
PNL TOP BACK WRAPPER -(CTO) GEN RLB-88995E Contact Us For Availability
987
PNL BOTTOM BACK WRAPPER -(CTO) GEN RLB-88002E Contact Us For Availability
988
PNL TOP LEFT -(CTO) GEN RLB-107214E Contact Us For Availability
989
PNL TOP RIGHT WRAPPER -(CTO) GEN RLB-107215E Contact Us For Availability
990
PNL UPPER-(CTO) GEN RLB-88998E Contact Us For Availability
991
PNL BOTTOM RIGHT WRAPPER-(CTO) GEN RLB-88648E Contact Us For Availability
992
PNL BOTTOM LEFT WRAPPER-(CTO) GEN RLB-88647E Contact Us For Availability
995
PANEL-LOWER-(CTO) GEN R615751-02E Contact Us For Availability
997
PANEL TOP CAP -(CTO) GEN RLB-106596E Contact Us For Availability
4303
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
4309
HARNESS-(CTO) GEN 78K52 Contact Us For Availability
4315
HARNESS-MOTOR 3.0 ECM-(CTO) GEN 15T89 Contact Us For Availability
4316
SLEEVE-(CTO) GEN 42W05 Contact Us For Availability
4317
GROMMET-(CTO) GEN 43H81 Contact Us For Availability
4318
CHANNEL-CONDENSATE-(CTO) GEN 64K05 Contact Us For Availability
4319
CHANNEL-CND-(CTO) GEN 64K06 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-07 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
