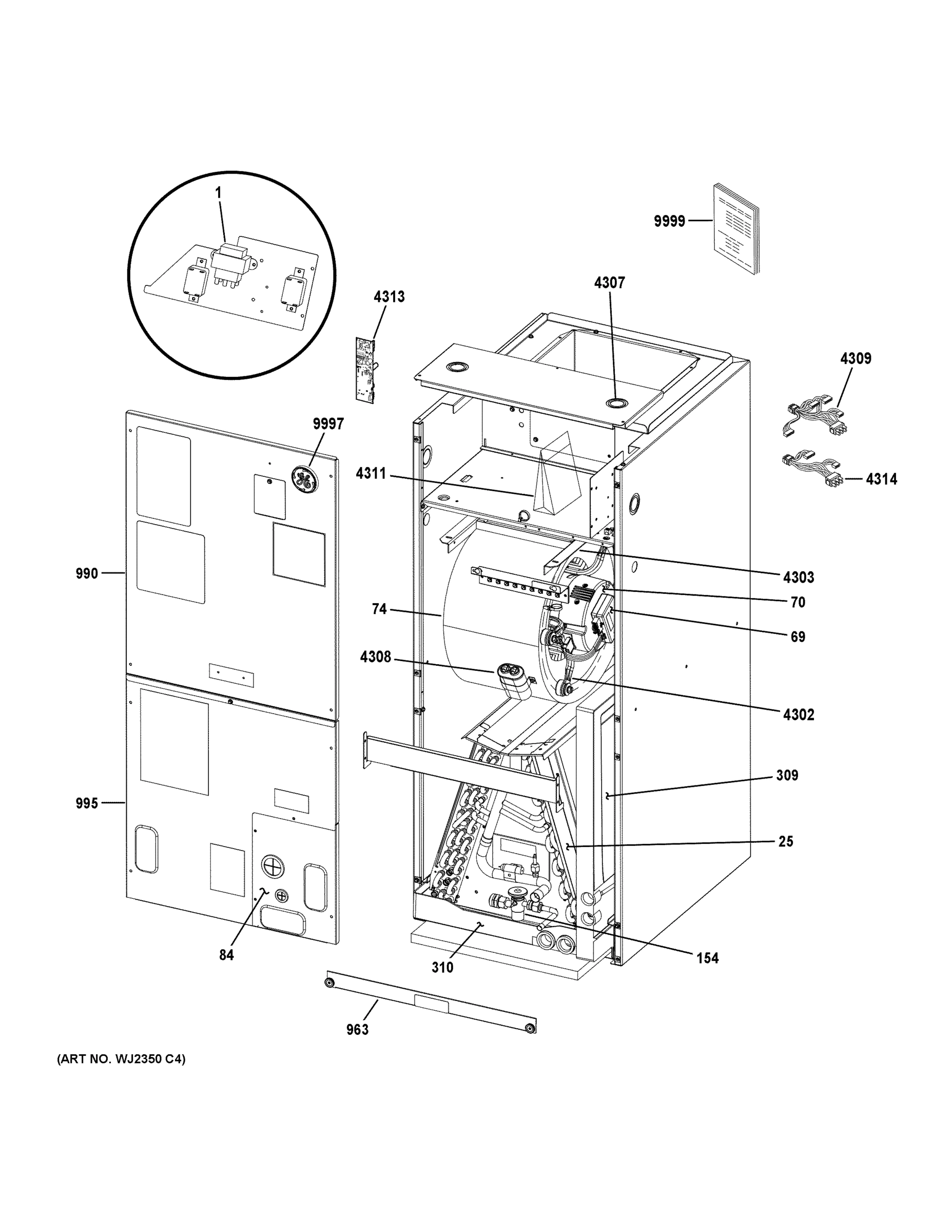

Model GE NAM24V1TA5D01 Room Air Conditioner Built In – Common Parts & Diagrams

1
TRANSFORMER 208/240V PRI, 24V-(CTO)
TRANSFORMER 208/240V PRI, 24V-(CTO) GEN 38M45 Contact Us For Availability
View on Model
25
ASSY - REPAIR PART COIL (CTO)
ASSY - REPAIR PART COIL (CTO) GEN 27X16 Contact Us For Availability
View on Model
69
REPL MODULE ONLY (CBA25UHV-24)-(CTO)
REPL MODULE ONLY (CBA25UHV-24)-(CTO) GEN 21L17 Contact Us For Availability
View on Model
70
103070-01 1/2 Hp Mtr Base Kit Vari Spd
103070-01 1/2 Hp Mtr Base Kit Vari Spd GEN 72W41 Contact Us For Availability
View on Model
74
Blower HOUSING W/WHEEL-(CTO)
Blower HOUSING W/WHEEL-(CTO) GEN 89W82 Contact Us For Availability
View on Model
84
ASSY-REP PART PATCH PL (BCE5M)-(CTO)
ASSY-REP PART PATCH PL (BCE5M)-(CTO) GEN R80100045 Contact Us For Availability
View on Model
154
104110-01 VALVE-TXV (1.5-2.5) (R410A)
104110-01 VALVE-TXV (1.5-2.5) (R410A) GEN 12J18 Contact Us For Availability
View on Model
309
REPL DRAIN PAN UPFLOW (21 X 17)-(CTO)
REPL DRAIN PAN UPFLOW (21 X 17)-(CTO) GEN 17D77 Contact Us For Availability
View on Model
310
DRAIN PAN SIDE(1.5ton-2.5ton)HORIZ-(CTO)
DRAIN PAN SIDE(1.5ton-2.5ton)HORIZ-(CTO) GEN 17F02 Contact Us For Availability
View on Model
963
ASSY-REP PART FILTER ACS PNL-(CTO)
ASSY-REP PART FILTER ACS PNL-(CTO) GEN R80100047 Contact Us For Availability
View on Model
990
ASSY-REP PART BLWR ACS PNL-(CTO)
ASSY-REP PART BLWR ACS PNL-(CTO) GEN R80100035 Contact Us For Availability
View on Model
995
ASSY-REP PART PLUMB ACS PNL-(CTO)
ASSY-REP PART PLUMB ACS PNL-(CTO) GEN R80100040 Contact Us For Availability
View on Model
4302
ARM-MOTOR MTG-(CTO)
ARM-MOTOR MTG-(CTO) GEN 13W14 Contact Us For Availability
View on Model
4303
BAND-MOTOR MTG (4 LEG)-(CTO)
BAND-MOTOR MTG (4 LEG)-(CTO) GEN 13W16 Contact Us For Availability
View on Model

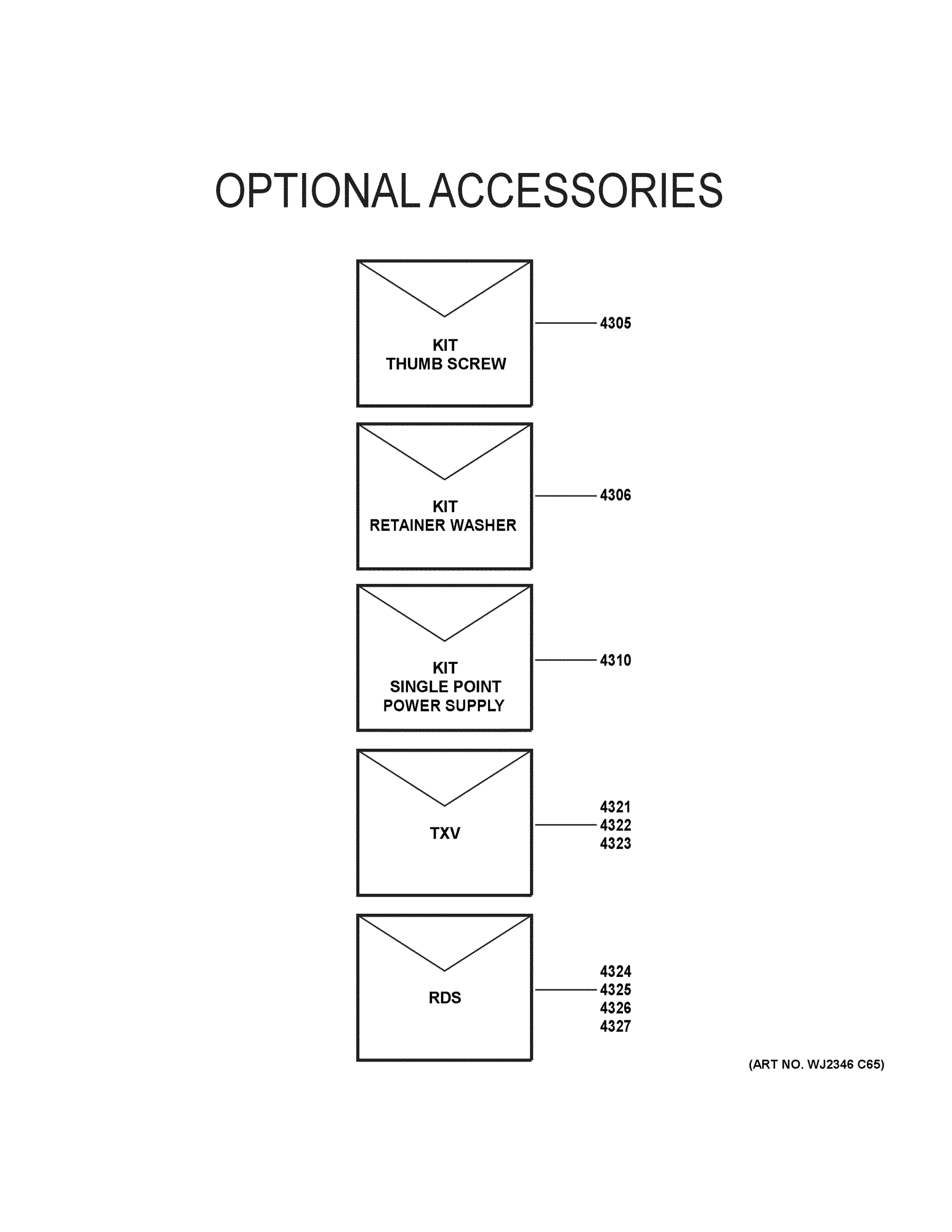

4305
KIT - THUMB SCREW-(CTO)
KIT - THUMB SCREW-(CTO) GEN 14J90 Contact Us For Availability
View on Model
4306
KIT - RETAINER WASHER-(CTO)
KIT - RETAINER WASHER-(CTO) GEN 14J91 Contact Us For Availability
View on Model
4307
KIT - CABINET PLUG-(CTO)
KIT - CABINET PLUG-(CTO) GEN 14Y49 Contact Us For Availability
View on Model
4309
HARNESS-WIRING AH-(CTO)
HARNESS-WIRING AH-(CTO) GEN 21L23 Contact Us For Availability
View on Model
4310
SINGLE POINT POWER SUP KIT-(CTO)
SINGLE POINT POWER SUP KIT-(CTO) GEN 21H39 Contact Us For Availability
View on Model
4311
LABEL WIRING DIAGRAM-(CTO)
LABEL WIRING DIAGRAM-(CTO) GEN 53798203 Contact Us For Availability
View on Model
4313
40K8201 CTL BDC3-1
40K8201 CTL BDC3-1 GEN 40K82 Contact Us For Availability
View on Model
4314
W/H BC ENHANCED-(CTO)
W/H BC ENHANCED-(CTO) GEN 21L24 Contact Us For Availability
View on Model
4321
TXV (LARGE) CTO
TXV (LARGE) CTO GEN 26Z72 Contact Us For Availability
View on Model
4322
TXV (MEDIUM) CTO
TXV (MEDIUM) CTO GEN 26Z71 Contact Us For Availability
View on Model
4323
TXV (SMALL) CTO
TXV (SMALL) CTO GEN 26Z70 Contact Us For Availability
View on Model
4324
RDS SENSOR (AHU) CTO
RDS SENSOR (AHU) CTO GEN 27J27 Contact Us For Availability
View on Model
4325
RDS SENSOR (COIL) CTO
RDS SENSOR (COIL) CTO GEN 26Z69 Contact Us For Availability
View on Model
4326
RDS CONTROL BOARD - CTO
RDS CONTROL BOARD - CTO GEN 27A05 Contact Us For Availability
View on Model
4327
108107-01 ASSY-KIT AHC RDS CTL (CTO)
108107-01 ASSY-KIT AHC RDS CTL (CTO) GEN 27J26 Contact Us For Availability
View on Model
9997
SIDE GEA BADGE
SIDE GEA BADGE GEN 10721307 Contact Us For Availability
View on Model
9999
PM SERVICE INSTRUCTIONS
PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability
View on Model
