Model NA3312 – Common Parts & Diagrams

01 - 30978 TRANSMISSION ASSY COMPONENTS

01 - 30978 TRANSMISSION ASSY COMPONENTS

02 - 33227 TRANSMISSION ASSY COMPONENTS

02 - 33227 TRANSMISSION ASSY COMPONENTS

03 - AGITATOR, DRIVE BELL & SEAL KIT

03 - AGITATOR, DRIVE BELL & SEAL KIT

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

05 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

05 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

06 - FRONT PANEL, CABINET & BASE

06 - FRONT PANEL, CABINET & BASE

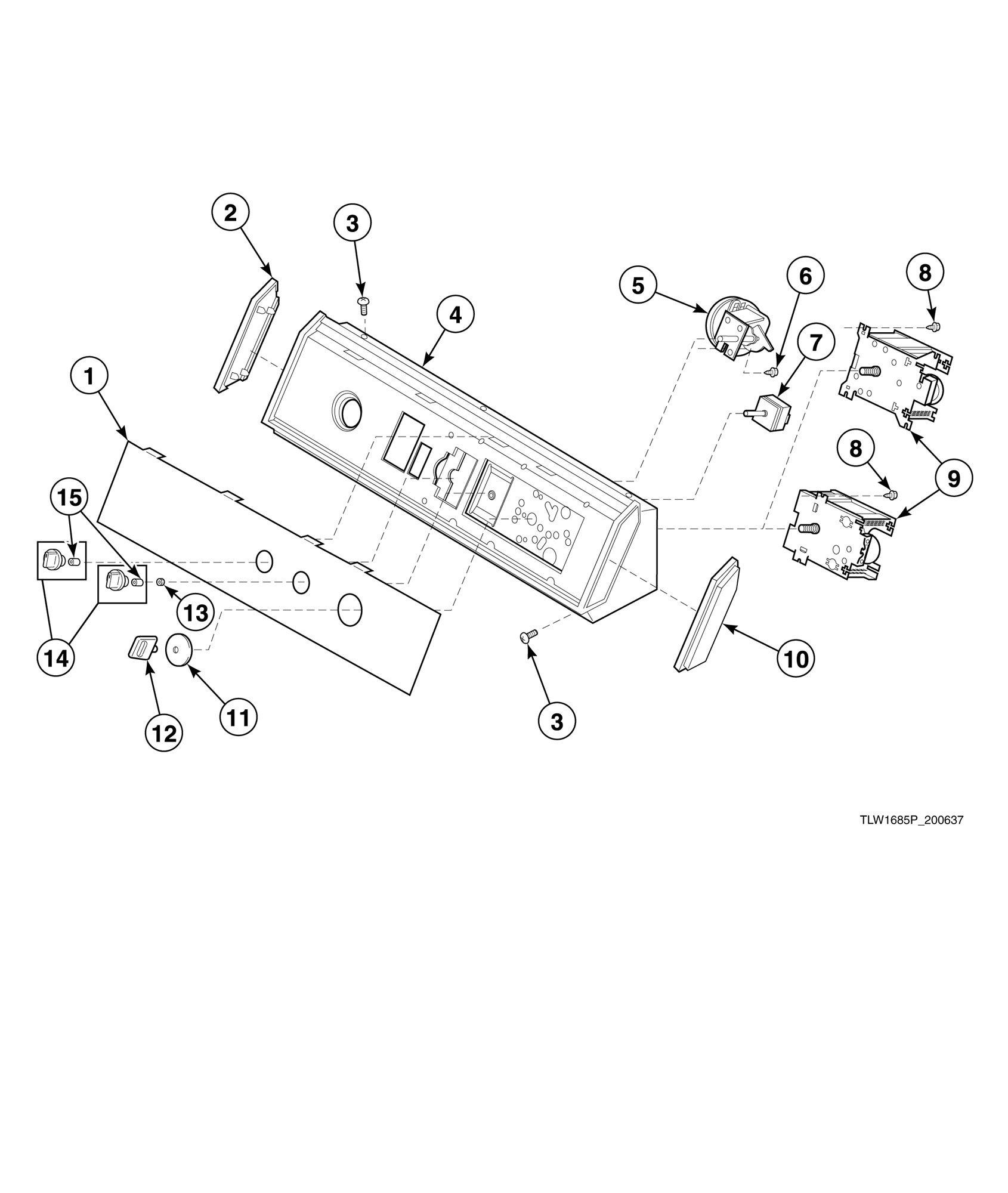

07 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

07 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

08 - HOSES/BACK FL PREVENTER & VLV BRKT

08 - HOSES/BACK FL PREVENTER & VLV BRKT

09 - LINT FILTER, WASHTUB & HUB

09 - LINT FILTER, WASHTUB & HUB

10 - LOADING DOOR SWITCH & BRACKET ASSY

10 - LOADING DOOR SWITCH & BRACKET ASSY

11 - MIXING VALVE ASSY

11 - MIXING VALVE ASSY

12 - MIXING VALVE ASSY

12 - MIXING VALVE ASSY

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

14 - OUTER TUB, COVER & PRESSURE HOSE

14 - OUTER TUB, COVER & PRESSURE HOSE

15 - POWER CORD & WIRE TERMINALS

15 - POWER CORD & WIRE TERMINALS

16 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

16 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

17 - SPECIAL TOOLS

17 - SPECIAL TOOLS

18 - SPECIAL TOOLS

18 - SPECIAL TOOLS

19 - TRANSMISSION ASSY & BALANCE RING

19 - TRANSMISSION ASSY & BALANCE RING

Common parts from model NA3312

27243P Speed Queen Oil CW TRANSMISS

27243P Speed Queen Oil CW TRANSMISS Out of Stock SPQ 27243P $53.34

27104 Speed Queen Motor Pulley

27104 Speed Queen Motor Pulley Out of Stock SPQ 27104 $5.54

33435 Speed Queen Conical Spring

33435 Speed Queen Conical Spring Out of Stock SPQ 33435 $4.45

WP22001650 Whirlpool Spring Clip

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $3.46

WP40008301 Whirlpool Insert

WP40008301 Whirlpool Insert In Stock WPL WP40008301 $3.02

27604P Speed Queen ANTI-SEIZE COMPOUND-1 OZ T

27604P Speed Queen ANTI-SEIZE COMPOUND-1 OZ T In Stock SPQ 27604P $4.46

WPY014874 Whirlpool Screw

WPY014874 Whirlpool Screw In Stock WPL WPY014874 $2.34

24122 Speed Queen SCREEN MIXING Valve

24122 Speed Queen SCREEN MIXING Valve In Stock SPQ 24122 $4.50

38008 Speed Queen Plastic Drive Helix Gear At

38008 Speed Queen Plastic Drive Helix Gear At In Stock SPQ 38008 $5.22

27222 Speed Queen Nut Retainer 5/1

27222 Speed Queen Nut Retainer 5/1 Out of Stock SPQ 27222 $4.38

31239P Speed Queen Timer 3 Cycle

31239P Speed Queen Timer 3 Cycle Out of Stock SPQ 31239P $317.47

202860 Whirlpool Primary Inlet Hose 5 FT.

202860 Whirlpool Primary Inlet Hose 5 FT. In Stock WPL 202860 $31.73

Speed Queen Washer V-Style Drive Belt (32.5"

Speed Queen Washer V-Style Drive Belt (32.5" In Stock SPQ 28808 $14.33

27155 Speed Queen Drive Belt

27155 Speed Queen Drive Belt In Stock SPQ 27155 $8.37

29210 Speed Queen Hose Clamp

29210 Speed Queen Hose Clamp Out of Stock SPQ 29210 $4.38

WPW10139757 Whirlpool Nut

WPW10139757 Whirlpool Nut Out of Stock WPL WPW10139757 $2.34

31140 Speed Queen Hose Water Inlet

31140 Speed Queen Hose Water Inlet Out of Stock SPQ 31140 $17.98

28800P Speed Queen Idler Pulley Wheel

28800P Speed Queen Idler Pulley Wheel Out of Stock SPQ 28800P $8.21

WP23748 Whirlpool Retaining Ring

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $4.61

52549 Speed Queen Washer/Dryer Washer 3/4"

52549 Speed Queen Washer/Dryer Washer 3/4" In Stock SPQ 52549 $2.66
