Model Maytag N3478XRW GAS RANGE – Common Parts & Diagrams

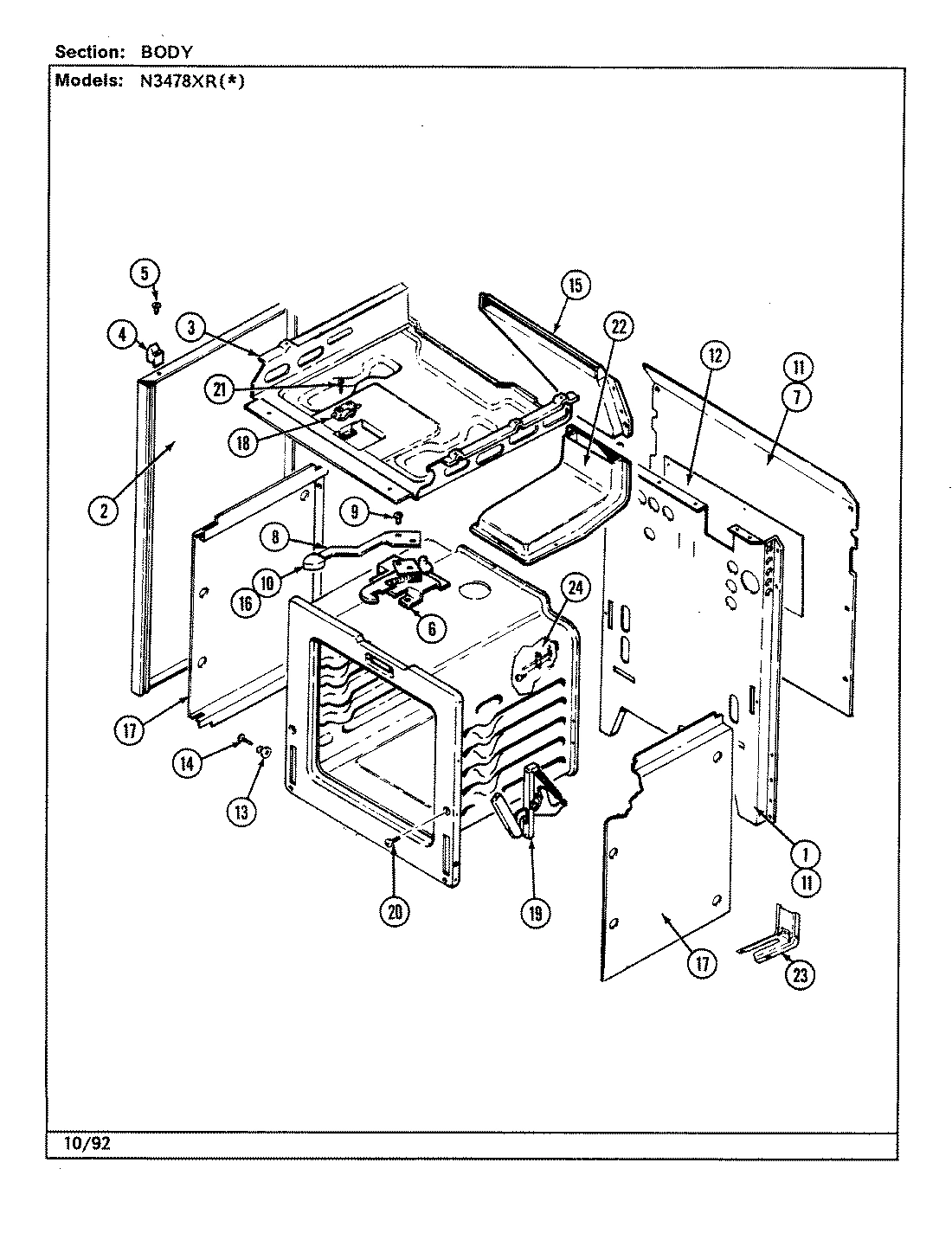

01 - BODY

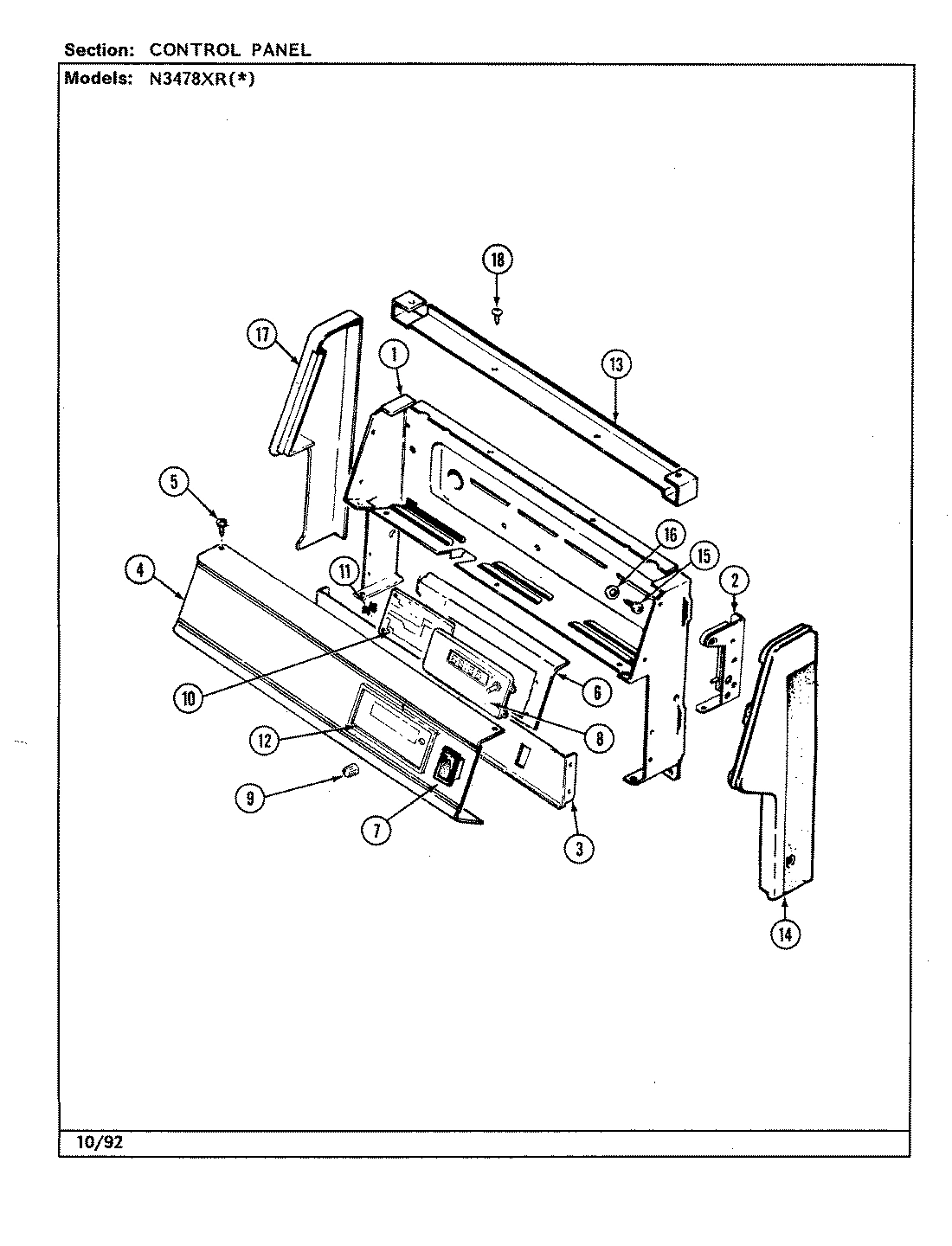

02 - CONTROL PANEL

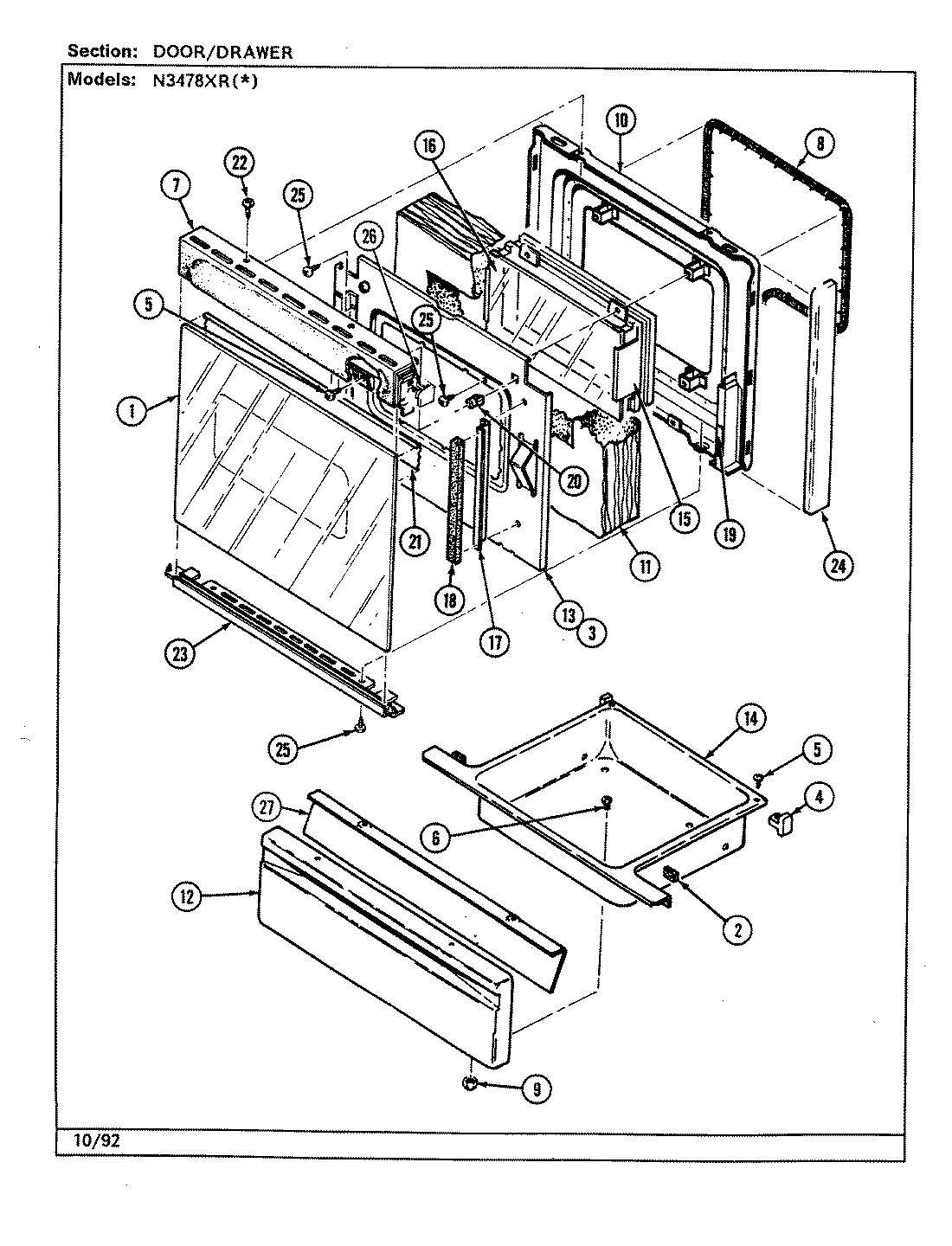

03 - DOOR/DRAWER

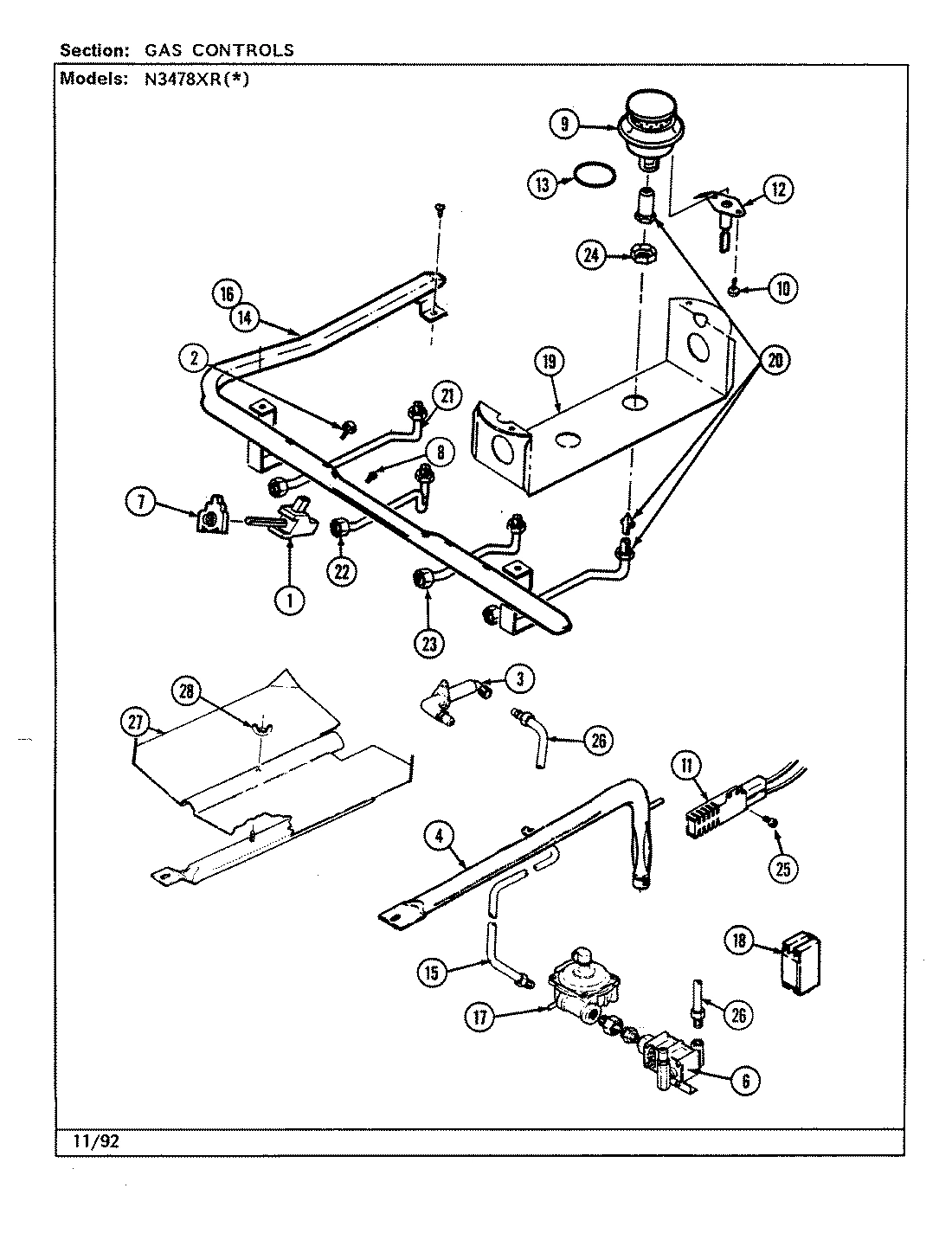

04 - GAS CONTROLS

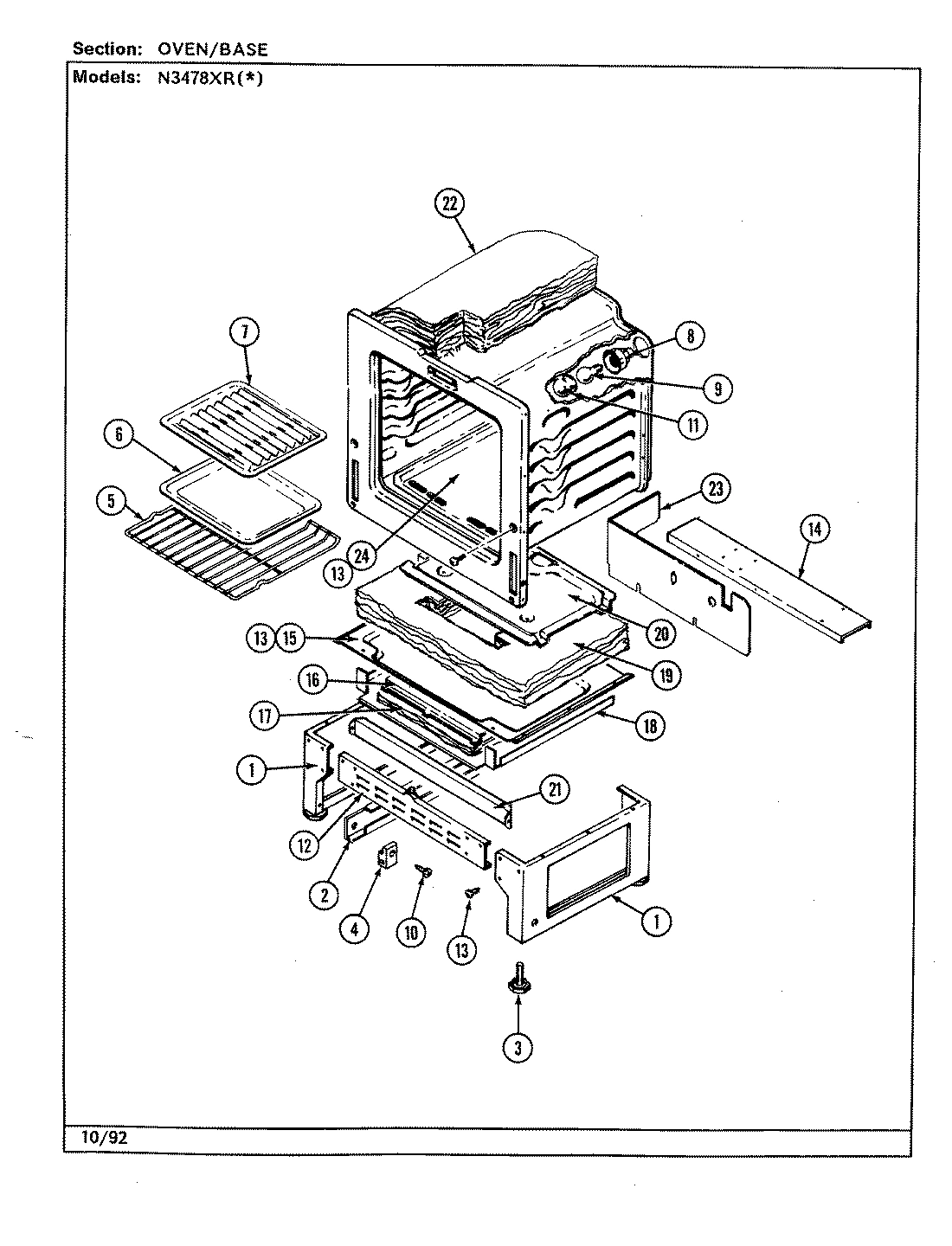

05 - OVEN/BASE

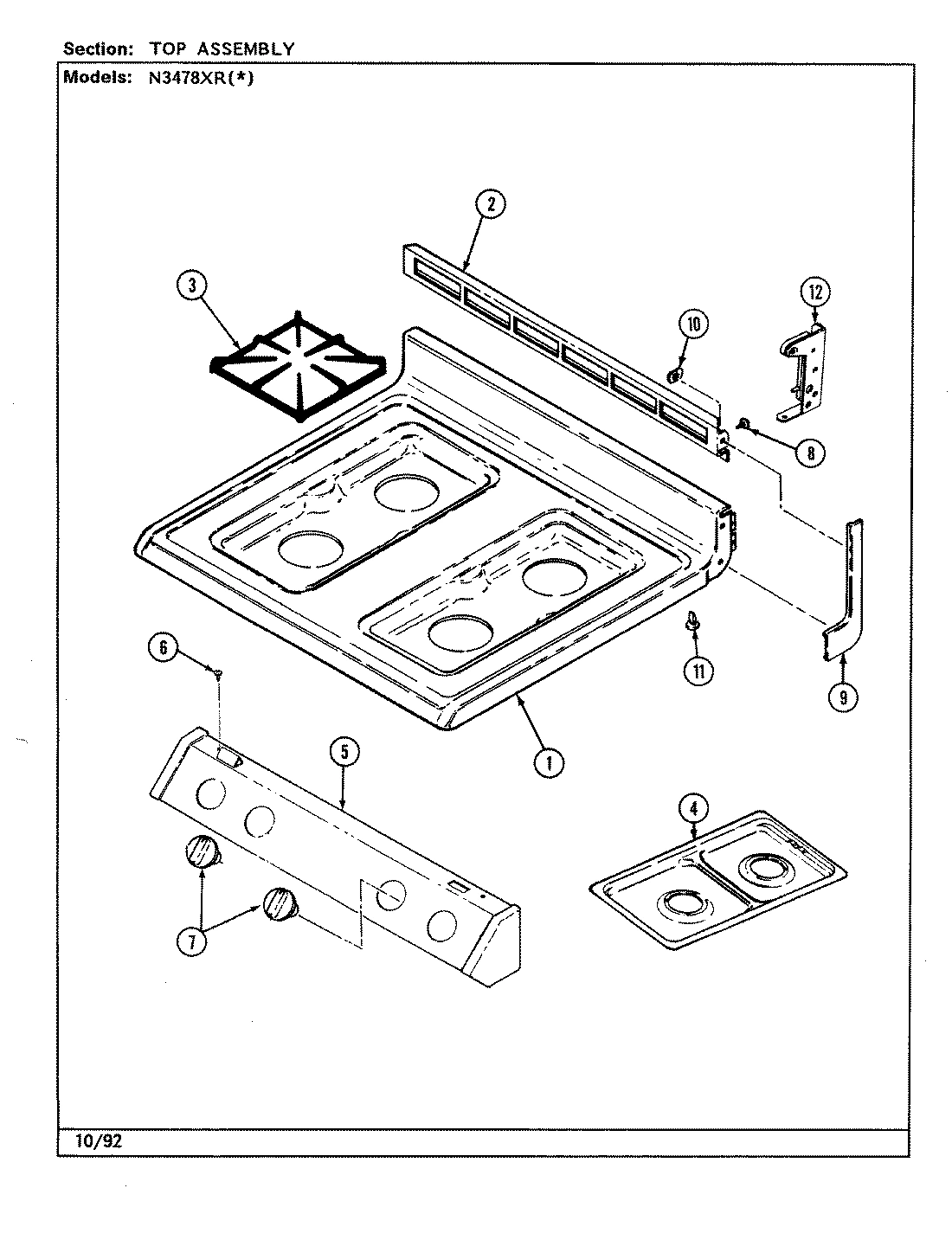

06 - TOP ASSEMBLY
Common parts from model Maytag N3478XRW GAS RANGE
1
MAY 4001F088-51 MAY 4001F088-51 Contact Us For Availability
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 7502P217-60 MAY 7502P217-60 Contact Us For Availability
1
MAY 7502P250-60 MAY 7502P250-60 Contact Us For Availability
1
MAY 4020W009-80 MAY 4020W009-80 Contact Us For Availability
1
MAY 2001W082-81 MAY 2001W082-81 Contact Us For Availability
2
MAY 8010P086-60 MAY 8010P086-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 4011F210-80 MAY 4011F210-80 Contact Us For Availability
3
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
3
MAY 2003W023-00 MAY 2003W023-00 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
4
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
4
MAY 4851S003-59 MAY 4851S003-59 Contact Us For Availability
4
MAY 4851S009-59 MAY 4851S009-59 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
5
MAY 7118P019-60 MAY 7118P019-60 Contact Us For Availability
5
MAY 7101P291-60 MAY 7101P291-60 Contact Us For Availability
5
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
5
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
5
MAY 7801P036-60 MAY 7801P036-60 Contact Us For Availability
5
MAY 7712P190-60 MAY 7712P190-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 8002P024-60 MAY 8002P024-60 Contact Us For Availability
6
MAY 3801F263-45 MAY 3801F263-45 Contact Us For Availability
6
MAY 3801F310-45 MAY 3801F310-45 Contact Us For Availability
6
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
6
MAY 4005F334-51 MAY 4005F334-51 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
7
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
7
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
8
MAY 8009P015-60 MAY 8009P015-60 Contact Us For Availability
8
MAY 7601P169-60 MAY 7601P169-60 Contact Us For Availability
8
MAY 7601P208-60 MAY 7601P208-60 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
9
MAY 3412D017-09 MAY 3412D017-09 Contact Us For Availability
9
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
9
MAY 7407P091-60 MAY 7407P091-60 Contact Us For Availability
9
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
9
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
10
MAY 7701P088-60 MAY 7701P088-60 Contact Us For Availability
10
MAY 7428P012-60 MAY 7428P012-60 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
10
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
10
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
10
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
11
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
11
MAY 4804F012-60 MAY 4804F012-60 Contact Us For Availability
11
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
11
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
11
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
12
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
12
MAY 3807F423-51 MAY 3807F423-51 Contact Us For Availability
12
MAY 3807F424-51 MAY 3807F424-51 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
12
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
12
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
12
MAY 8113P026-60 MAY 8113P026-60 Contact Us For Availability
13
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
13
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
13
MAY 3601F232-45 MAY 3601F232-45 Contact Us For Availability
13
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
13
MAY 8113P018-60 MAY 8113P018-60 Contact Us For Availability
14
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
14
MAY 7726P060-60 MAY 7726P060-60 Contact Us For Availability
14
MAY 3405F014-80 MAY 3405F014-80 Contact Us For Availability
14
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
14
MAY 3807F443-51 MAY 3807F443-51 Contact Us For Availability
15
MAY 4022W005-19 MAY 4022W005-19 Contact Us For Availability
15
MAY 7118P018-60 MAY 7118P018-60 Contact Us For Availability
15
MAY 7907P009-60 MAY 7907P009-60 Contact Us For Availability
15
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
15
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
16
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
16
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
16
MAY 7902P323-60 MAY 7902P323-60 Contact Us For Availability
16
MAY 7902P341-60 MAY 7902P341-60 Contact Us For Availability
16
MAY 7902P342-60 MAY 7902P342-60 Contact Us For Availability
16
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
16
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
17
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
17
MAY 7726P059-60 MAY 7726P059-60 Contact Us For Availability
17
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
17
MAY 7510P050-60 MAY 7510P050-60 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 3801F267-45 MAY 3801F267-45 Contact Us For Availability
18
MAY 7403P228-60 MAY 7403P228-60 Contact Us For Availability
18
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
18
MAY 3807F421-51 MAY 3807F421-51 Contact Us For Availability
18
MAY 7431P021-60 MAY 7431P021-60 Contact Us For Availability
18
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
19
MAY 7106P033-60 MAY 7106P033-60 Contact Us For Availability
19
MAY 5170P123-60 MAY 5170P123-60 Contact Us For Availability
19
MAY 5170P124-60 MAY 5170P124-60 Contact Us For Availability
19
MAY 5170P160-60 MAY 5170P160-60 Contact Us For Availability
19
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
19
MAY 3807F444-45 MAY 3807F444-45 Contact Us For Availability
19
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
20
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
20
MAY 5180D142-60 MAY 5180D142-60 Contact Us For Availability
20
MAY 5180D152-60 MAY 5180D152-60 Contact Us For Availability
20
MAY 8010P075-60 MAY 8010P075-60 Contact Us For Availability
20
MAY 7507P085-60 MAY 7507P085-60 Contact Us For Availability
20
MAY 3401F023-45 MAY 3401F023-45 Contact Us For Availability
21
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
21
MAY 5125A320-60 MAY 5125A320-60 Contact Us For Availability
21
MAY 5125A354-60 MAY 5125A354-60 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
21
MAY 7507P113-60 MAY 7507P113-60 Contact Us For Availability
21
MAY 3601F208-45 MAY 3601F208-45 Contact Us For Availability
22
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
22
MAY 7507P084-60 MAY 7507P084-60 Contact Us For Availability
22
MAY 4804F015-60 MAY 4804F015-60 Contact Us For Availability
22
MAY 4804F016-60 MAY 4804F016-60 Contact Us For Availability
23
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
23
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
23
MAY 7744P078-60 MAY 7744P078-60 Contact Us For Availability
23
MAY 7507P091-60 MAY 7507P091-60 Contact Us For Availability
23
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
24
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
24
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
24
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
24
MAY 5504M002-21 MAY 5504M002-21 Contact Us For Availability
24
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
25
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
26
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
26
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
26
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
27
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
27
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
28
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
28
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
28
NUT, WING MAY 7103P030-60 Contact Us For Availability
× ![]()
