Model Accelerated Cooking Products MXP5201SWJ-P2005633M Amana Menumaster MXP5201SWJ – Common Parts & Diagrams
ANTENNA / BASEPAN
CONTROL ASSEMBLY

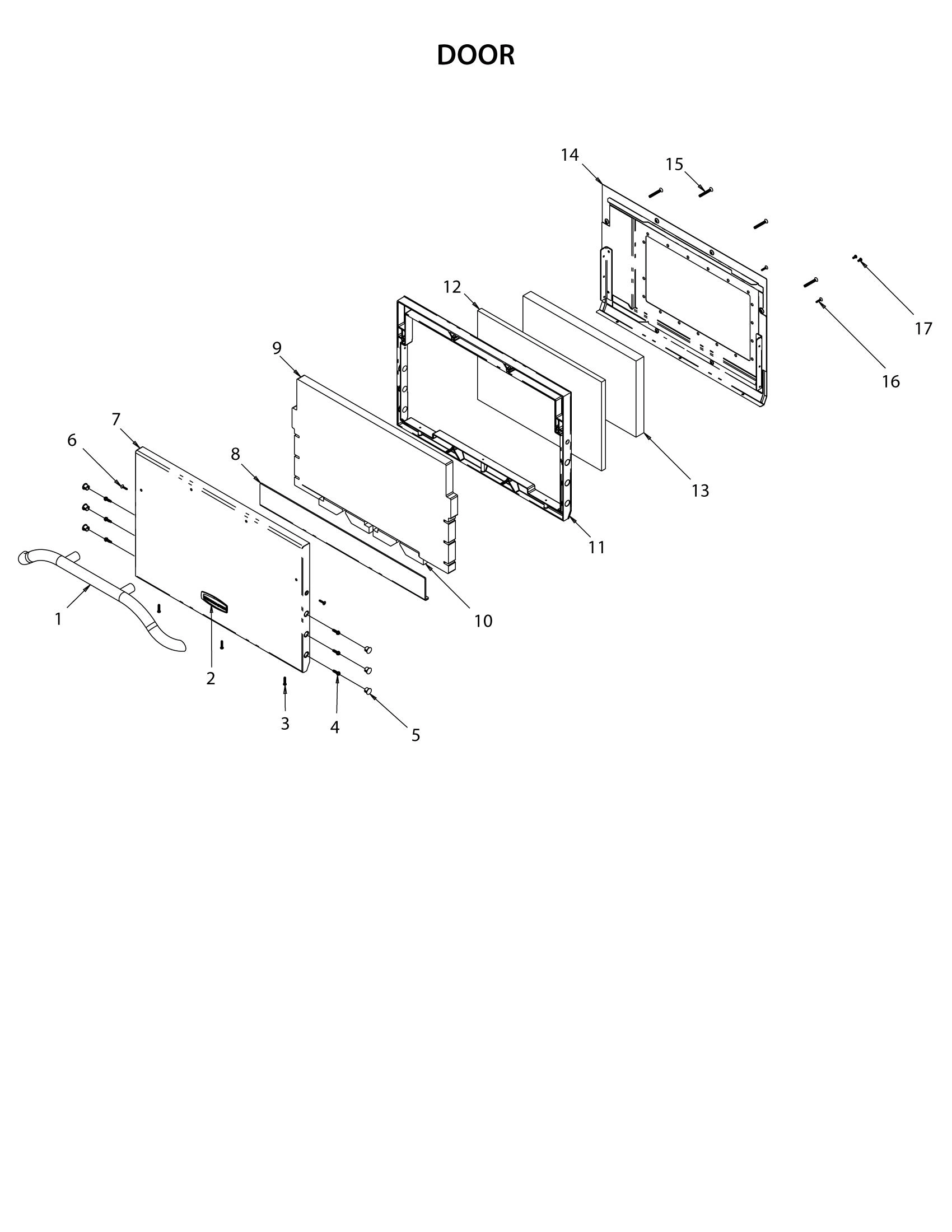

DOOR

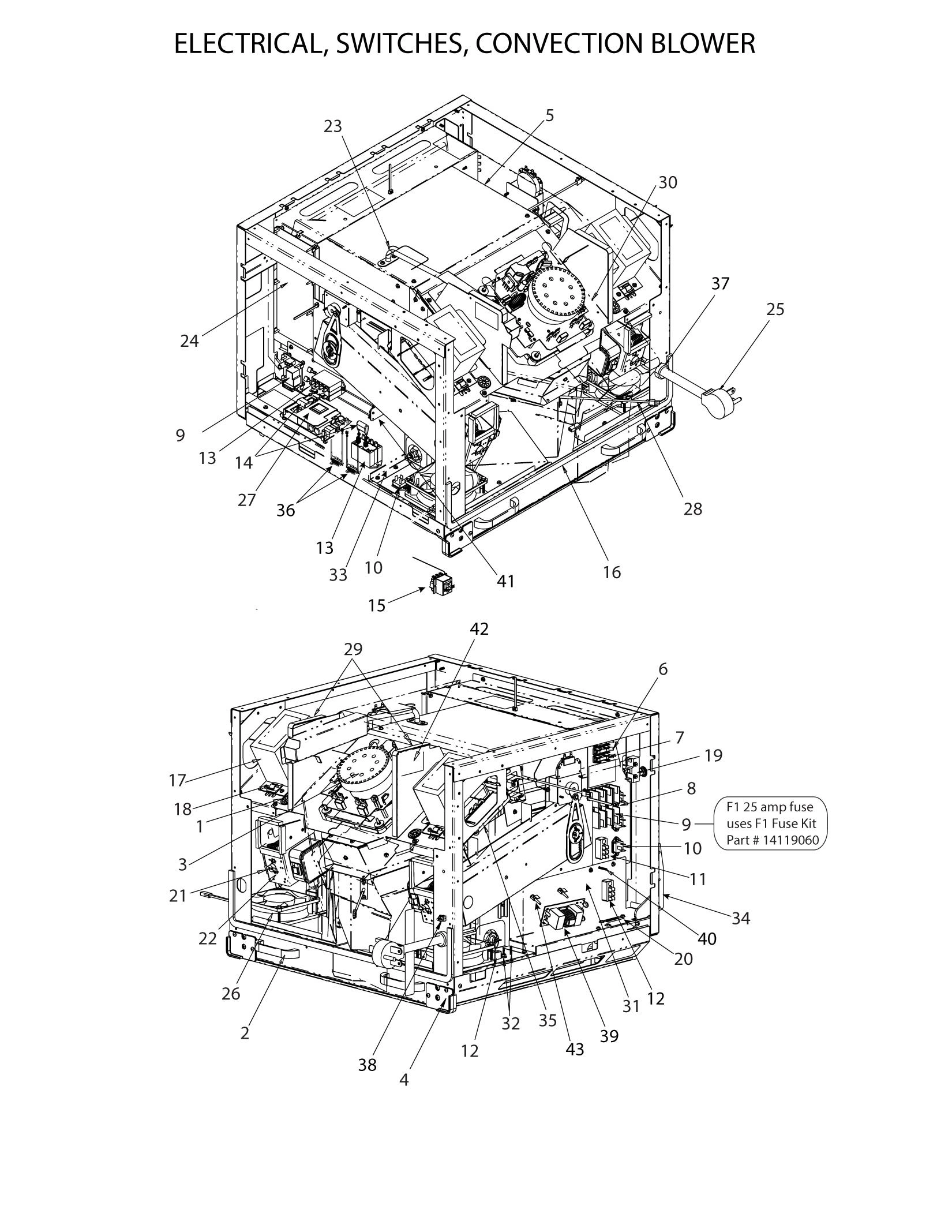

ELECTRICAL- MAIN

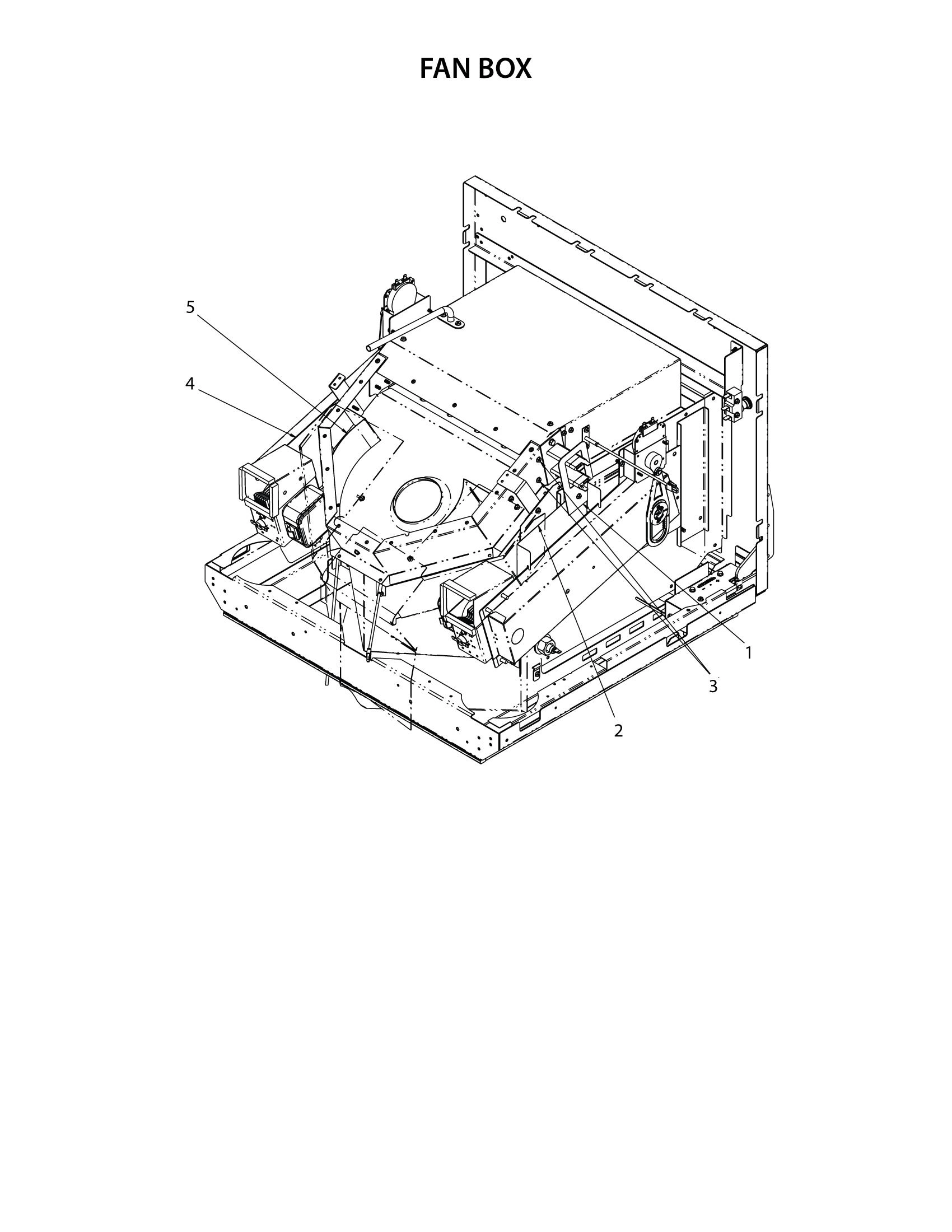

FAN BOX

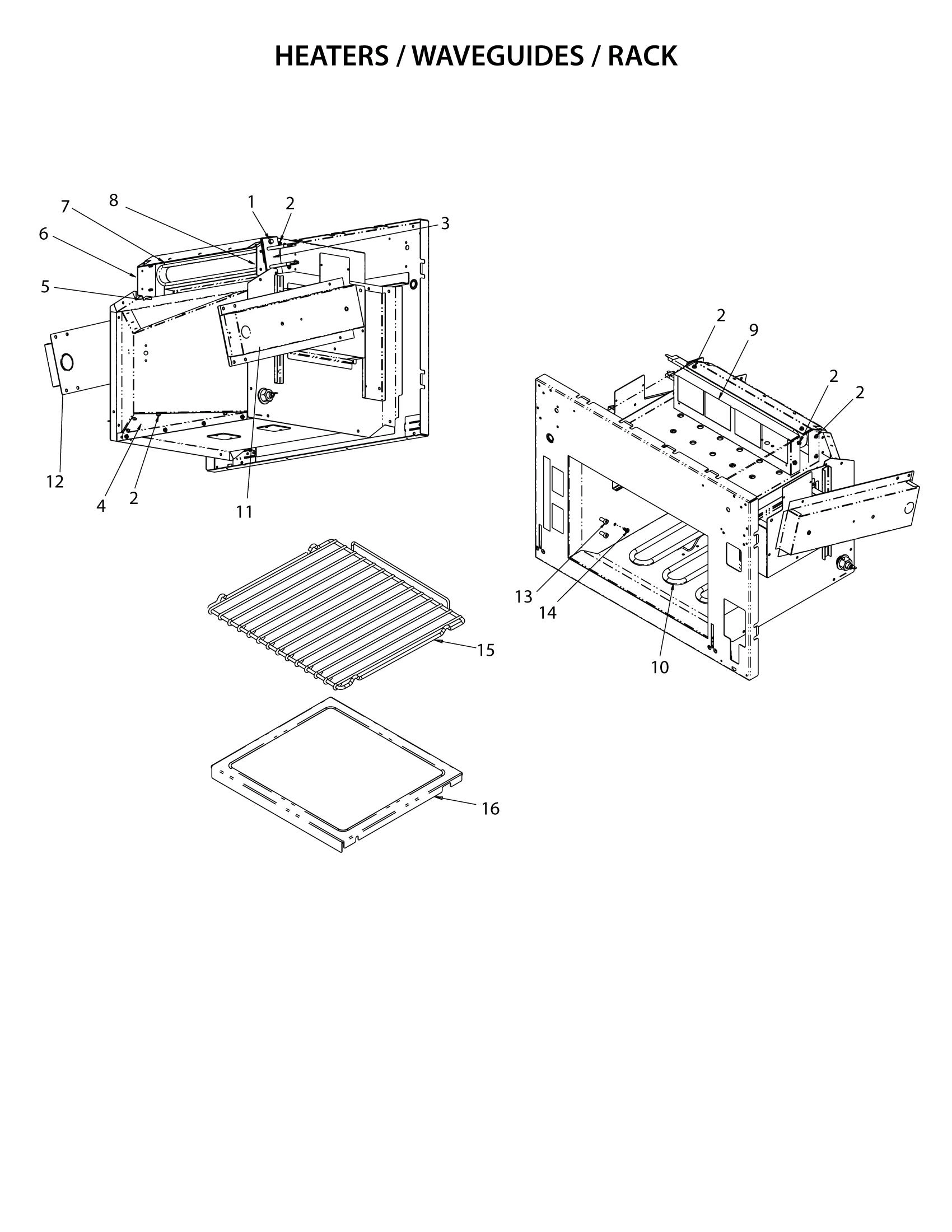

HEATERS / WAVEGUIDES / RACK

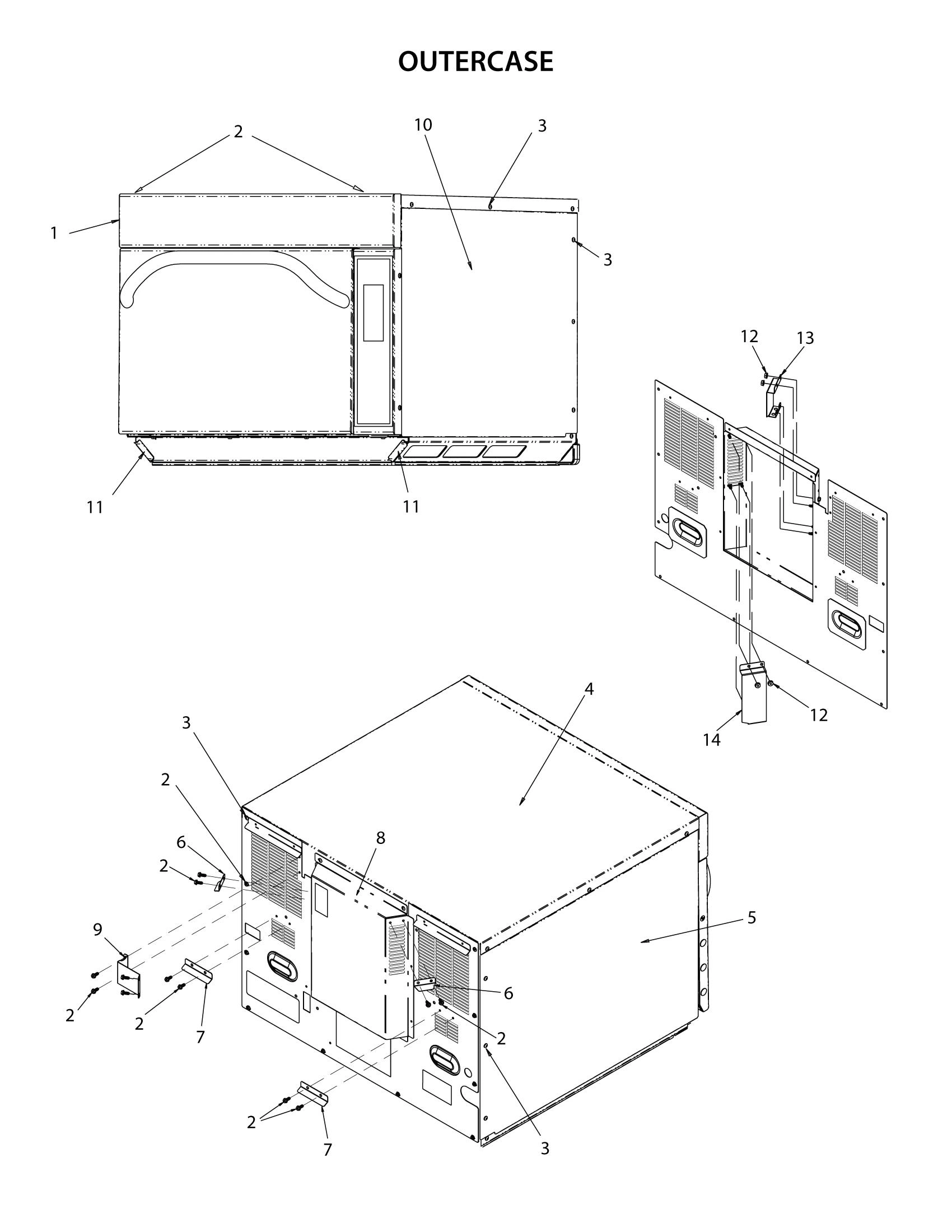

OUTERCASE
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MXP5201SWJ-P2005633M Amana Menumaster MXP5201SWJ
1
RETAINER-HTR INSUL ACP 21007301 Contact Us For Availability
1
SCREW-TR/HEX ACP 12992405 Contact Us For Availability
1
ESCUTCHEON- TOP ACP 13098505 Contact Us For Availability
1
HARNESS-OVEN ACP 20241701 Contact Us For Availability
2
SCREW-SM/HEX ACP 12990529 Contact Us For Availability
2
SCREW ACP 12991605 Contact Us For Availability
2
DUCT-LH ACP 13087603 Contact Us For Availability
2
WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability
3
KIT, ANTENNA MOTOR & GEARS ACP 14169104 Contact Us For Availability
3
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
3
ELEMENT- TOP CONVECTION & GASKET ACP 59002125 Contact Us For Availability
3
HARNESS-PC BOARD ACP 13087301 Contact Us For Availability
4
DUCT-RH ACP 13087102 Contact Us For Availability
4
BOTTOM-PLENUM ACP 21004702 Contact Us For Availability
4
OUTER PANEL, TOP ACP 59002136 Contact Us For Availability
4
CABLE, ETHERNET ACP 59164514 Contact Us For Availability
5
NAMEPLATE-ESC ACP 14169110 Contact Us For Availability
5
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
5
INSULATION-TOP/SIDES CAVITY ACP 13084602 Contact Us For Availability
5
GASKET-PLENUM RETURN ACP 13077902 Contact Us For Availability
5
GASKET-PLENUM NOZZLE ACP 13077702 Contact Us For Availability
5
OUTER PANEL, LEFT SIDE ACP 59002138 Contact Us For Availability
5
TAPE-DUCT ACP M0275089 Contact Us For Availability
6
BLOCK, FUSE- 3 POLE ACP 59001682 Contact Us For Availability
6
PLATE-R PLENUM ACP 21005001 Contact Us For Availability
6
CHOKE FILTER RING ACP 20025101 Contact Us For Availability
7
PLATE-TOP PLENUM ACP 21004802 Contact Us For Availability
7
TOROID ACP 44780P01 Contact Us For Availability
8
BLOCK-FUSE ACP 10091101 Contact Us For Availability
8
PLATE-L PLENUM ACP 21004901 Contact Us For Availability
8
OC BACK WELD ACP 13081916 Contact Us For Availability
8
WIRE-JUMPER ACP 13017726 Contact Us For Availability
9
CONVERTER - CATALYTIC ACP 59204723 Contact Us For Availability
9
STRAP, GROUND- CONTROL TO ESC ACP 21032602 Contact Us For Availability
10
KIT, TRIAC(40A) & SNUBBER ACP 59174520 Contact Us For Availability
10
KIT, BOTTOM ELEMENT ACP 12002874 Contact Us For Availability
10
OUTER PANEL, RIGHT SIDE ACP 59002137 Contact Us For Availability
10
24"H CART ACP CA24 Contact Us For Availability
11
KIT, WAVEGUIDE LEFT ACP 14119054 Contact Us For Availability
11
BLOCK, TERMINAL ACP B5677215 Contact Us For Availability
11
30"H CART ACP CA30 Contact Us For Availability
12
KIT, WAVEGUIDE RIGHT ACP 14119055 Contact Us For Availability
12
BLOCK - TERMINAL ACP B5677214 Contact Us For Availability
12
NUT -#8 KEPS ACP 13045502 Contact Us For Availability
12
XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability
13
OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZLES ACP CL10 Contact Us For Availability
13
SCREW-MACH/SHLD (RACK SUPPORT) ACP 59224797 Contact Us For Availability
14
KIT, INNER DOOR ACP 14169111 Contact Us For Availability
14
SPACER-THREADED ACP 20176201 Contact Us For Availability
14
GUARD-L SPLASH ACP 59194639 Contact Us For Availability
14
PANINI GRILL FOR XP XPRESS OVENS ACP GR10 Contact Us For Availability
15
THERMAL CUTOUT, CAVITY- MECHANICAL ACP 59174519 Contact Us For Availability
15
RACK, OVEN ACP 59002140 Contact Us For Availability
15
LEG KIT FOR XP XPRESS OVENS ACP LG10 Contact Us For Availability
16
GASKET, PER FT ACP 59004077 Contact Us For Availability
16
COVER, ELEMENT ACP 59164513 Contact Us For Availability
16
13.87" (352 mm) x 13.87" (352 mm) Non-Stick B ACP OB10 Contact Us For Availability
17
OVEN PADDLE ACP PA10 Contact Us For Availability
17
TRANSFORMER, HV ACP 59004041 Contact Us For Availability
18
CLIP-CORD ACP M0104106 Contact Us For Availability
18
5.5" (139 mm) x 11.18" (284 mm) Non-Stick Bas ACP SB10 Contact Us For Availability
19
SWITCH, PRIMARY INTERLOCK ACP 59224798 Contact Us For Availability
20
KIT- F1 FUSE, SWITCHES, RELAY, RELAY BRD ACP 14189151 Contact Us For Availability
20
ALUMINUM PAN FOR XP XPRESS OVENS ACP SQ10 Contact Us For Availability
21
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
21
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
21
PIZZA STONE FOR A/MXP XPRESS OVENS ACP ST10X Contact Us For Availability
22
DUCT-MAGNETRON ACP 21007102 Contact Us For Availability
22
GASKET, PER FT ACP 59002162 Contact Us For Availability
22
11.25" (285 mm) x 11.25" (285 mm) Non-Stick B ACP TB10 Contact Us For Availability
23
VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability
23
SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T Contact Us For Availability
24
BOARD- MAIN CONTROL ACP 59184623 Contact Us For Availability
24
SET OF 2 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T2 Contact Us For Availability
25
CORD-POWER ACP 20157201 Contact Us For Availability
25
ACP PRODUCT LITERATURE WEBKEY ACP WK10 Contact Us For Availability
26
XP XPRESS PANINI PRESS ACP PRS10 Contact Us For Availability
27
BOARD, POWER SUPPLY (24V DC) ACP 59204716 Contact Us For Availability
29
TAPE, FOAM (1 ROLL) ACP 59154448 Contact Us For Availability
30
INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability
31
PLATE-L HINGE PARTITION ACP 21005904 Contact Us For Availability
33
PLATE-R HINGE PARTITION ACP 21073602 Contact Us For Availability
34
HINGE ACP 59194677 Contact Us For Availability
34
SEAL-HINGE ACP 13087001 Contact Us For Availability
35
KIT, CAPACITOR- 1.00 & DIODE ACP 59174542 Contact Us For Availability
35
STRAP-CAPACITOR ACP A4055406 Contact Us For Availability
36
RESISTORS- FAN ACP 59174565 Contact Us For Availability
37
RELIEF-STRAIN ACP M0372001 Contact Us For Availability
39
FILTER- EMI ACP 59184620 Contact Us For Availability
41
KIT- STUDS & HARDWARE ACP 14179138 Contact Us For Availability
41
BRKT-THERMAL LINK ACP 20004501 Contact Us For Availability
41
THERMAL CUTOUT, CAVITY ACP B5795317 Contact Us For Availability
42
GUARD-SPLASH ACP 20030001 Contact Us For Availability
43
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
× ![]()
