Model Accelerated Cooking Products MXP22TLTM-P2006830M Amana Menumaster MXP22TLTM – Common Parts &amp; Diagrams

1

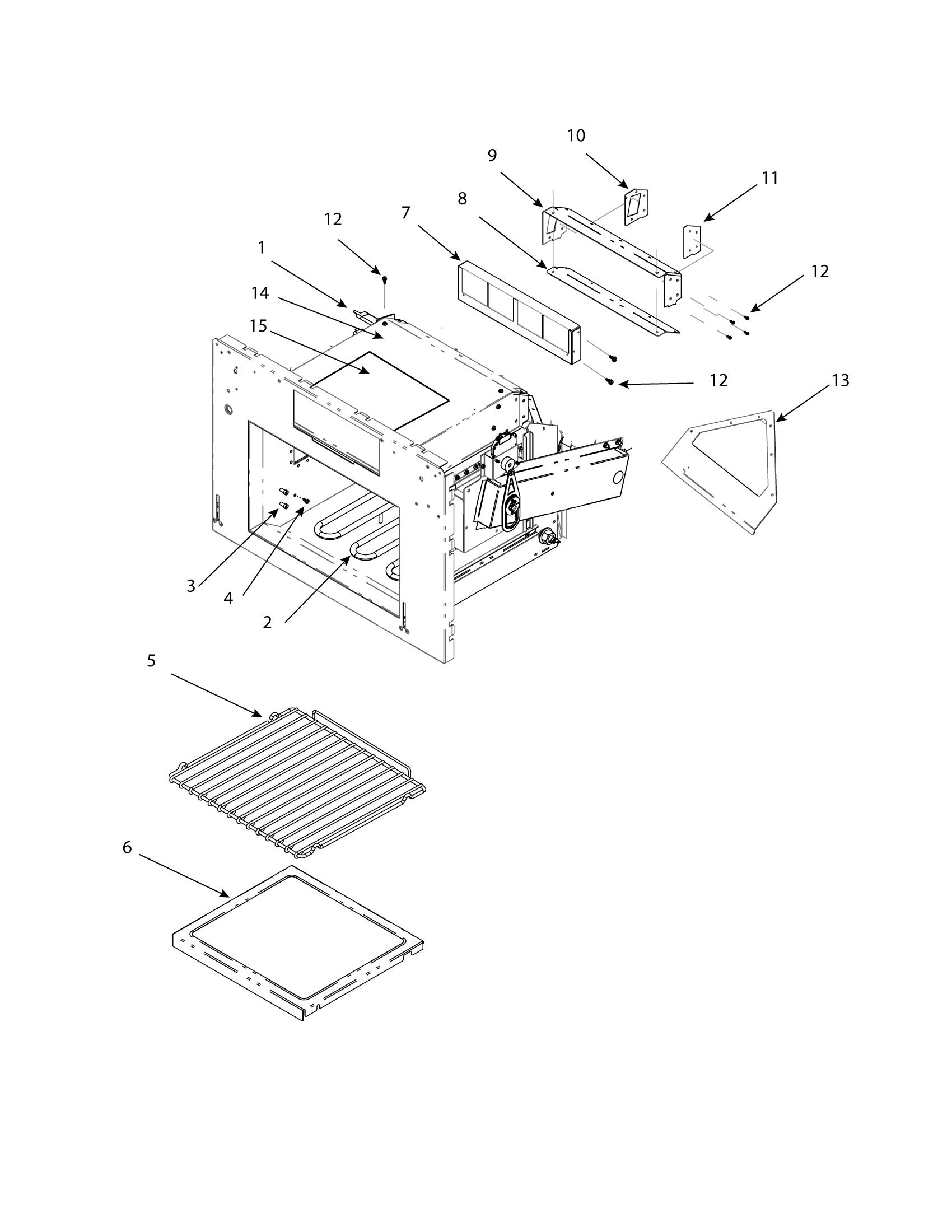

59002125 Amana Top Convection Element Backorder ACP 59002125 $311.46

1

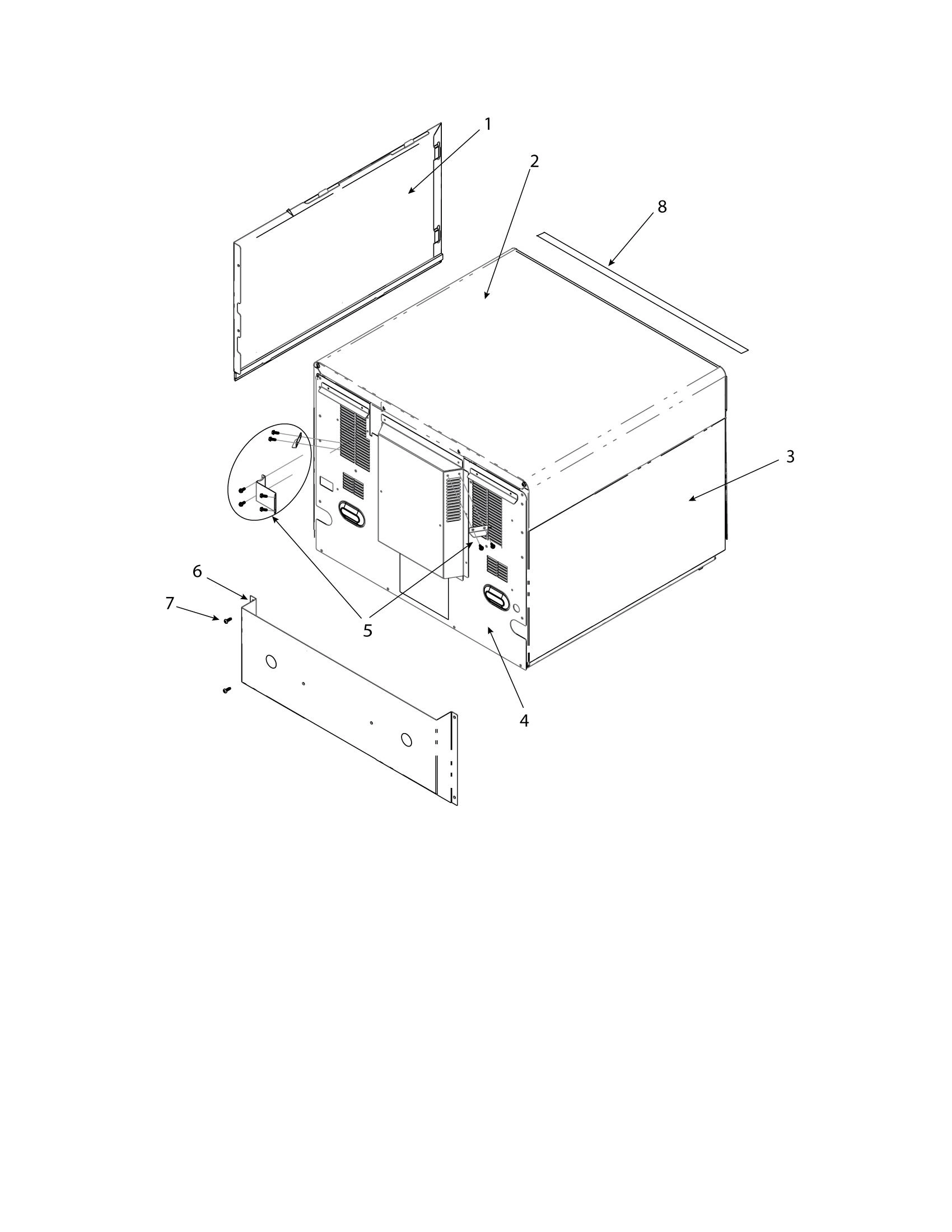

OUTER PANEL- RIGHT ACP 59194671 Contact Us For Availability

1

HARNESS-OVEN ACP 20300201 Contact Us For Availability

2

12002874 Amana Bottom Element Kit Backorder ACP 12002874 $310.64

2

14169104 Amana Antenna Motor and Gears Kit Backorder ACP 14169104 $61.38

2

59204719 Amana J5 Connector Harness Backorder ACP 59204719 $124.41

2

OUTER PANEL- TOP ACP 59194672 Contact Us For Availability

3

14119054 Amana Left Waveguide Kit Backorder ACP 14119054 $699.89

3

59002076 Amana Convection Motor Assembly In Stock ACP 59002076 $1,780.16

3

SHOULDER SCREWS (2) & NUTS (3) ACP 59224797 Contact Us For Availability

3

OUTER PANEL- LEFT ACP 59194670 Contact Us For Availability

3

WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability

4

14119055 Amana Waveguide Kit - RH Backorder ACP 14119055 $699.89

4

20176201 Amana Threaded Spacer Backorder ACP 20176201 $24.40

4

OC BACK WELD-E CT ACP 20289302 Contact Us For Availability

4

HARNESS-PC BOARD ACP 13087302 Contact Us For Availability

5

59002140 Amana Oven Rack Backorder ACP 59002140 $135.15

5

59194677 Amana Door Hinge Set of Two Backorder ACP 59194677 $358.00

5

KIT- DRIP CAPS & SPLASH GUARDS ACP 59194639 Contact Us For Availability

5

CABLE, ETHERNET ACP 59164514 Contact Us For Availability

6

59164513 Amana Element Cover Backorder ACP 59164513 $130.67

6

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $43.09

6

REAR AIR DUCT-E CT ACP 21070003 Contact Us For Availability

6

TAPE, CLOTH- 15 ft (4.5 m) ACP 20070008 Contact Us For Availability

7

13074001 Amana RoHS TORX Pan Head Screw Backorder ACP 13074001 $5.59

7

M0805105 Amana 12 AMP Fuse In Stock ACP M0805105 $3.78

7

CATALYTIC CONVERTER & GASKETS ACP 59204723 Contact Us For Availability

7

TAPE-DUCT ACP M0275089 Contact Us For Availability

8

PLATE-TOP PLENUM ACP 21004802 Contact Us For Availability

8

TAPE- FOAM GASKET ACP 59194679 Contact Us For Availability

8

24"H CART ACP CA24 Contact Us For Availability

9

13077702 Amana Plenum Nozzle Gasket Backorder ACP 13077702 $10.02

9

M0805201 Amana Fuse In Stock ACP M0805201 $5.66

9

30"H CART ACP CA30 Contact Us For Availability

10

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $57.41

10

PLATE-L PLENUM ACP 21004901 Contact Us For Availability

10

XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability

59154429 Amana Air Filter In Stock ACP 59154429 $81.02

B5677215 Amana Terminal Block Backorder ACP B5677215 $6.71

CL10 Amana Xpress Oven Cleaner (6) 1 Liter Backorder ACP CL10 $83.68

PLATE-R PLENUM ACP 21005001 Contact Us For Availability

12

12991605 Amana Screw TC/HEX ROHS Backorder ACP 12991605 $5.14

12

PANINI GRILL FOR XP XPRESS OVENS ACP GR10 Contact Us For Availability

13

13077902 Amana Plenum Return Gasket Backorder ACP 13077902 $16.56

13

59001981 Amana Relay Backorder ACP 59001981 $41.13

13

LG10 Amana Oven Leg Kit for XP Xpress Backorder ACP LG10 $110.77

14

59002017 Amana Snubber Assembly Backorder ACP 59002017 $38.45

14

INSULATION-TOP/SIDES CAVITY ACP 13084602 Contact Us For Availability

14

13.87" (352 mm) x 13.87" (352 mm) Non-Stick B ACP OB10 Contact Us For Availability

15

59174519 Amana Mechanical Cavity Thermal Cuto Backorder ACP 59174519 $164.68

15

PA10 Amana Oven Paddle Backorder ACP PA10 $184.60

15

INSULATION-TOP ACP 20260301 Contact Us For Availability

16

SB10 Amana Inner Bin Backorder ACP SB10 $194.45

17

59002124 Amana High Voltage Transformer Backorder ACP 59002124 $313.25

17

SH10 Amana Oven Shield 1 Liter Backorder ACP SH10 $100.92

18

ALUMINUM PAN FOR XP XPRESS OVENS ACP SQ10 Contact Us For Availability

19

ST10X Amana Pizza Stone Backorder ACP ST10X $300.27

20

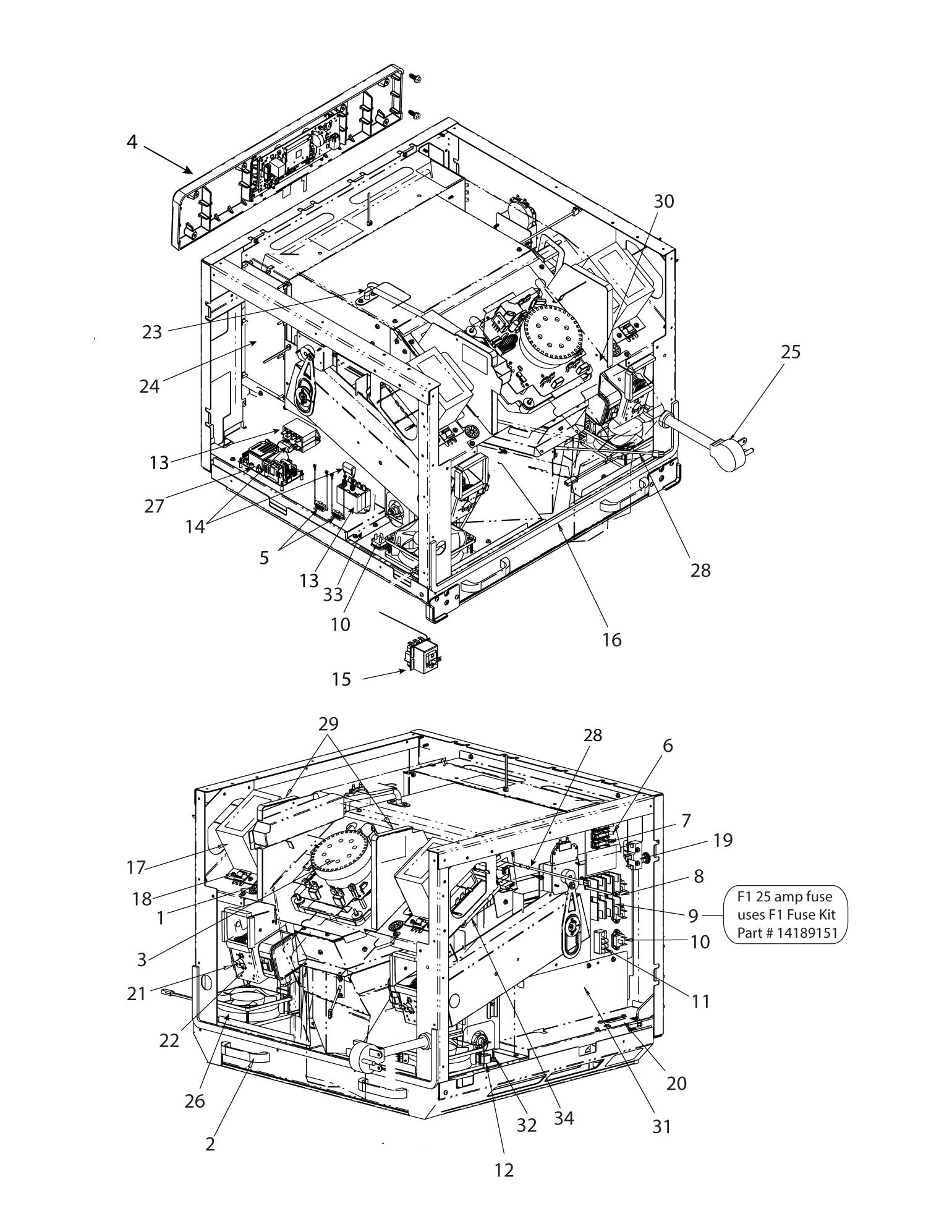

14189151 Amana Fuse and Switches Kit In Stock ACP 14189151 $277.45

20

TB10 Amana 10" x 12" (254 mm x 305 mm) Backorder ACP TB10 $159.99

21

20241404 Amana Thermal Cutout Switch Backorder ACP 20241404 $8.36

21

SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability

21

SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T Contact Us For Availability

59004010 Amana Magnetron In Stock ACP 59004010 $118.14

TL10T2 Amana Non-Stick Liners Backorder ACP TL10T2 $68.43

DUCT-MAGNETRON ACP 21007102 Contact Us For Availability

GASKET, PER FT ACP 59002162 Contact Us For Availability

23

VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability

23

ACP PRODUCT LITERATURE WEBKEY ACP WK10 Contact Us For Availability

24

59174578 Amana Main Control Board In Stock ACP 59174578 $673.94

24

PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability

24

XP XPRESS PANINI PRESS ACP PRS10 Contact Us For Availability

25

59004001 Amana Power Cord Backorder ACP 59004001 $76.31

26

14149088 Amana Fan Motor Kit In Stock ACP 14149088 $264.92

27

59184629 Amana Power Supply Board In Stock ACP 59184629 $170.95

28

59001709 Amana Temperature Sensor Backorder ACP 59001709 $24.59

29

59154448 Amana Foam Tape (1 Roll) Backorder ACP 59154448 $44.86

30

INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability

31

PLATE-L HINGE PARTITION ACP 21005904 Contact Us For Availability

32

14179138 Amana Kit - Studs and Hardware Backorder ACP 14179138 $24.68

33

PLATE-R HINGE PARTITION ACP 21066902 Contact Us For Availability

34

59174542 Amana Capacitor and Diode Kit Backorder ACP 59174542 $56.26

34

A4055406 Amana Capacitor Strap Backorder ACP A4055406 $5.42
