Model Accelerated Cooking Products MXP22TLT-P2005604M Amana Menumaster MXP22TLT – Common Parts & Diagrams
ANTENNA / BASEPAN

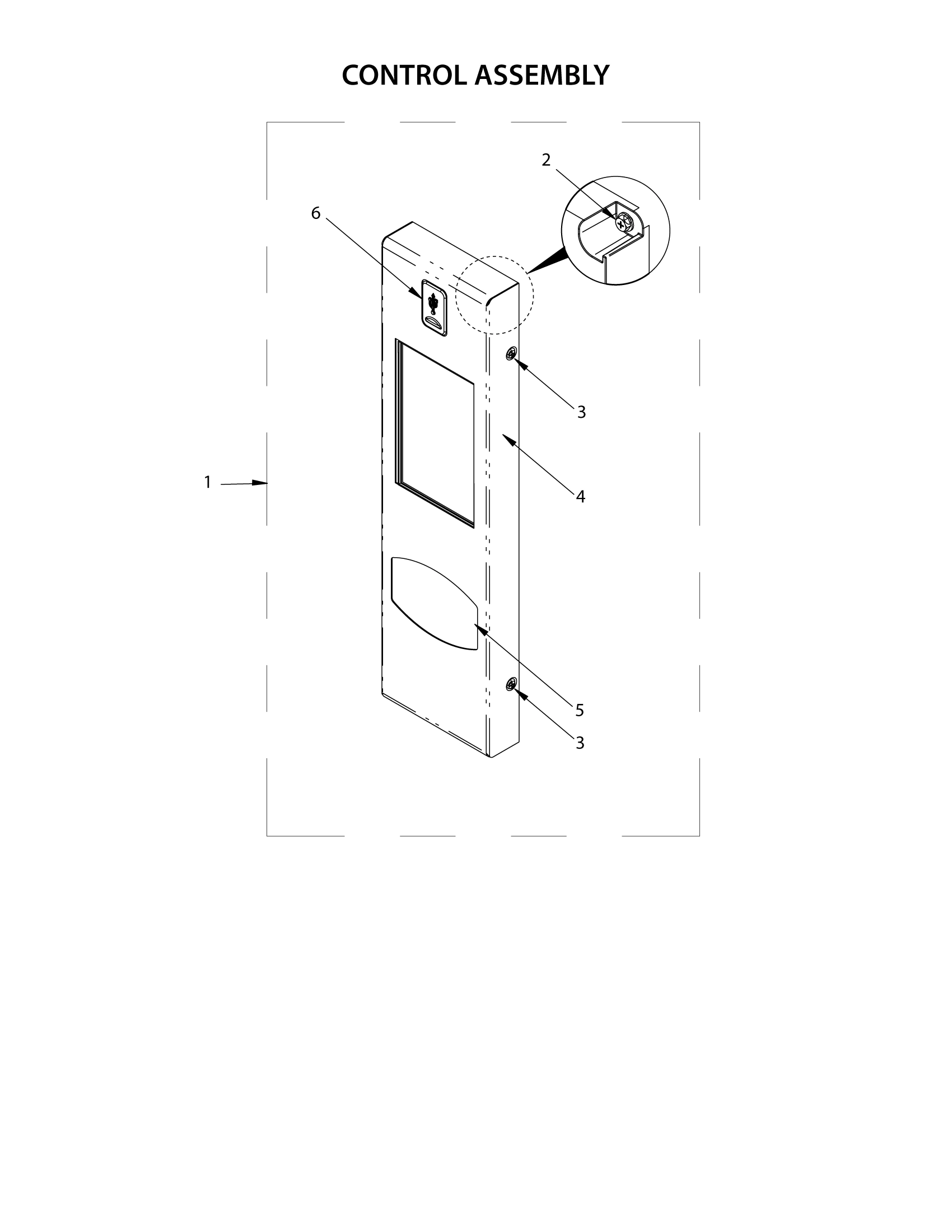

CONTROL ASSEMBLY

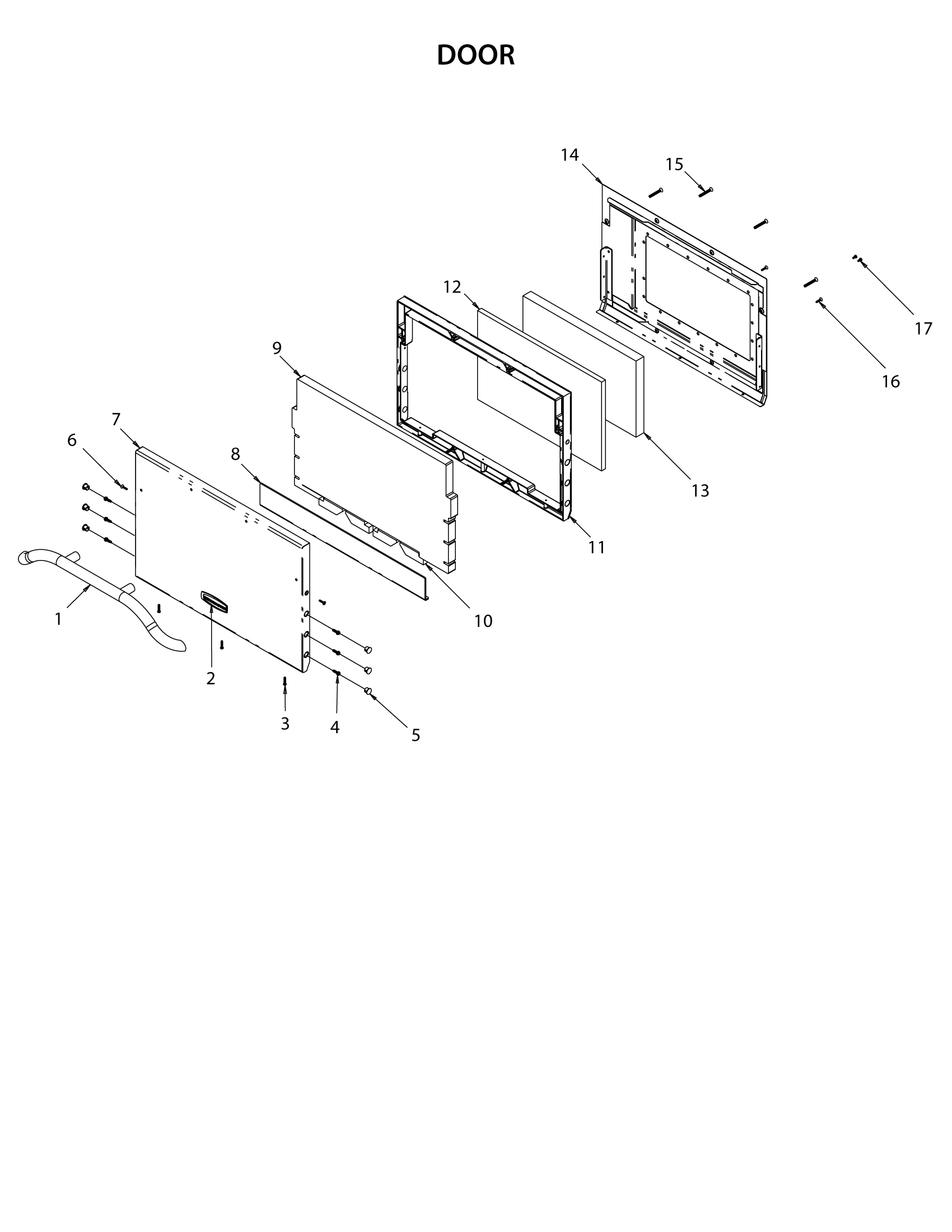

DOOR

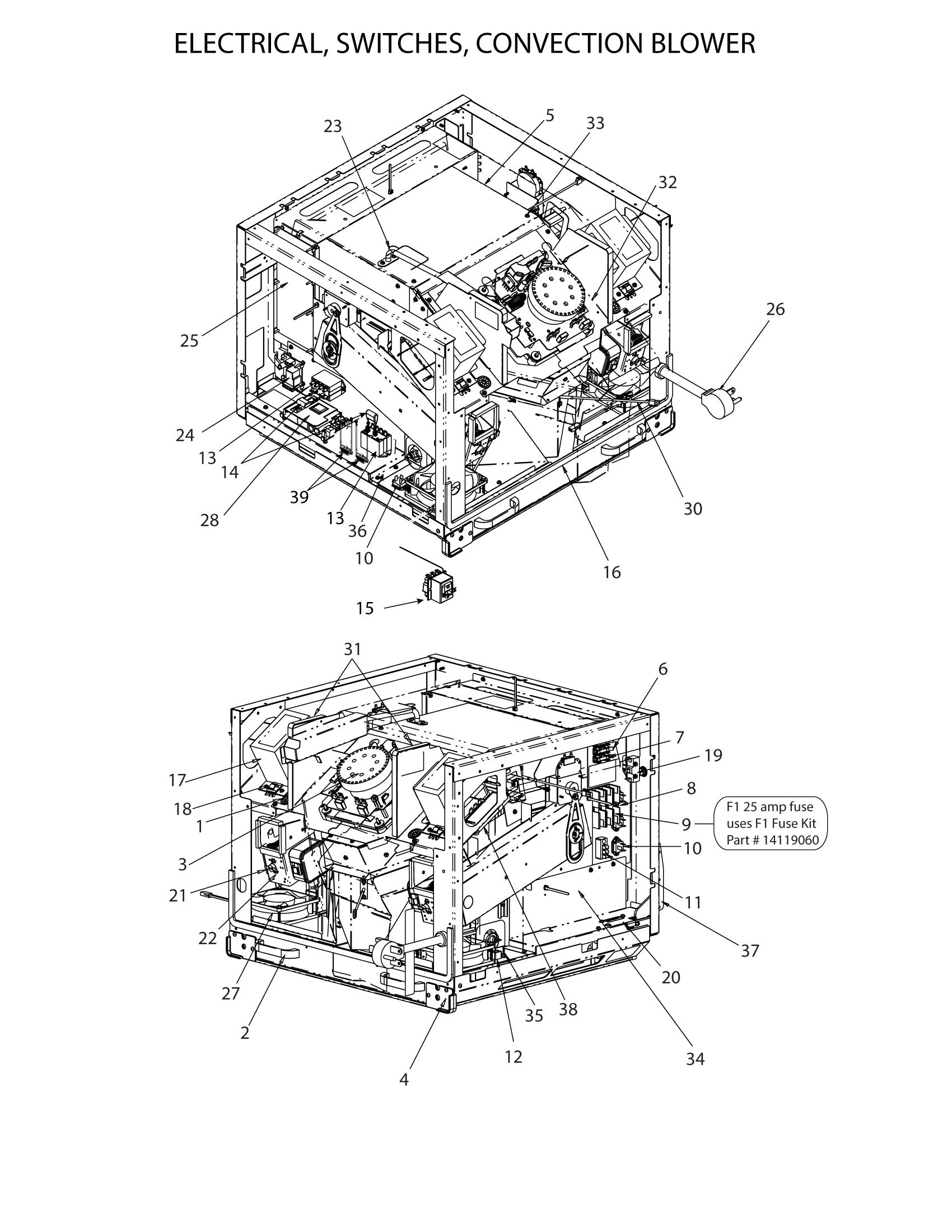

ELECTRICAL, SWITCHES, CONVECTION BLOWER

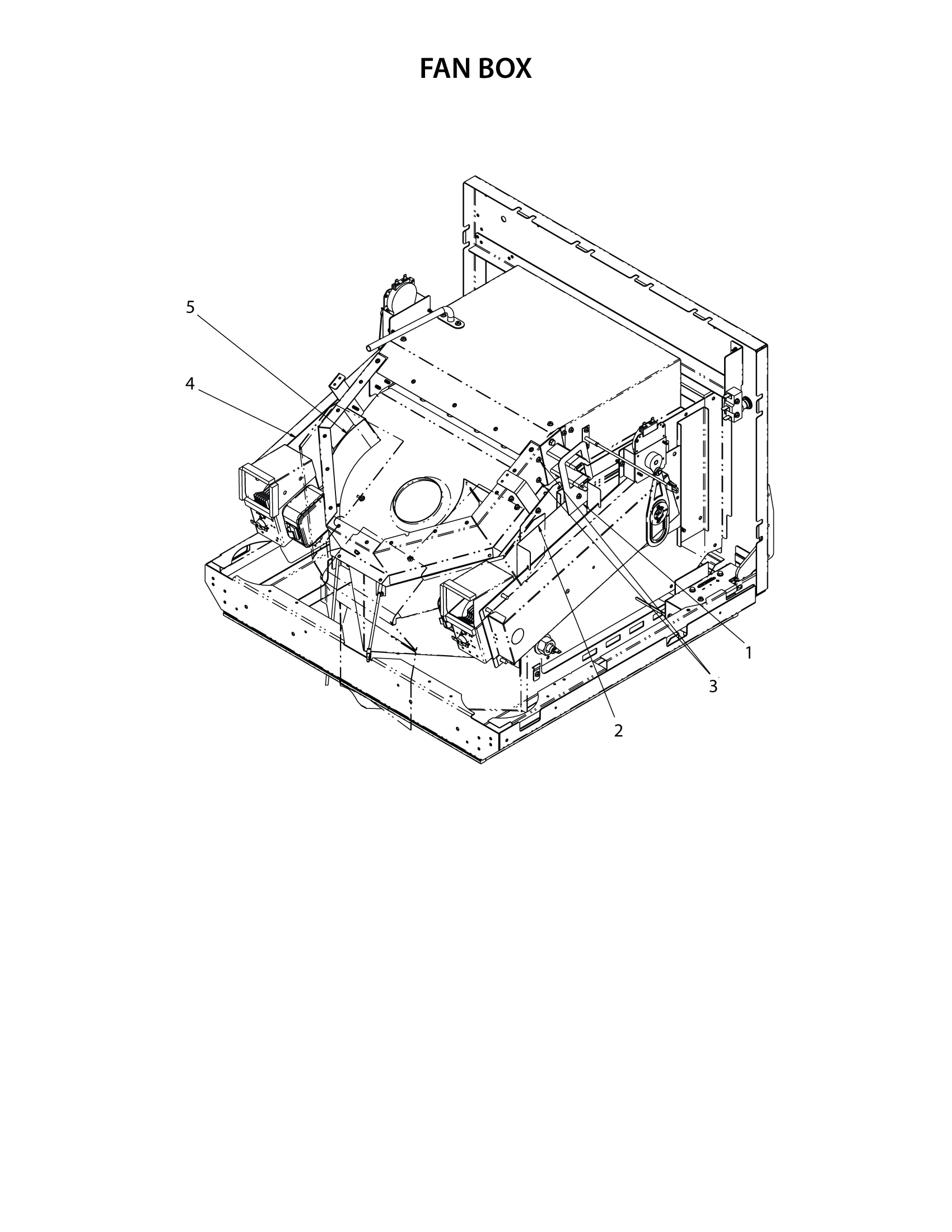

FAN BOX

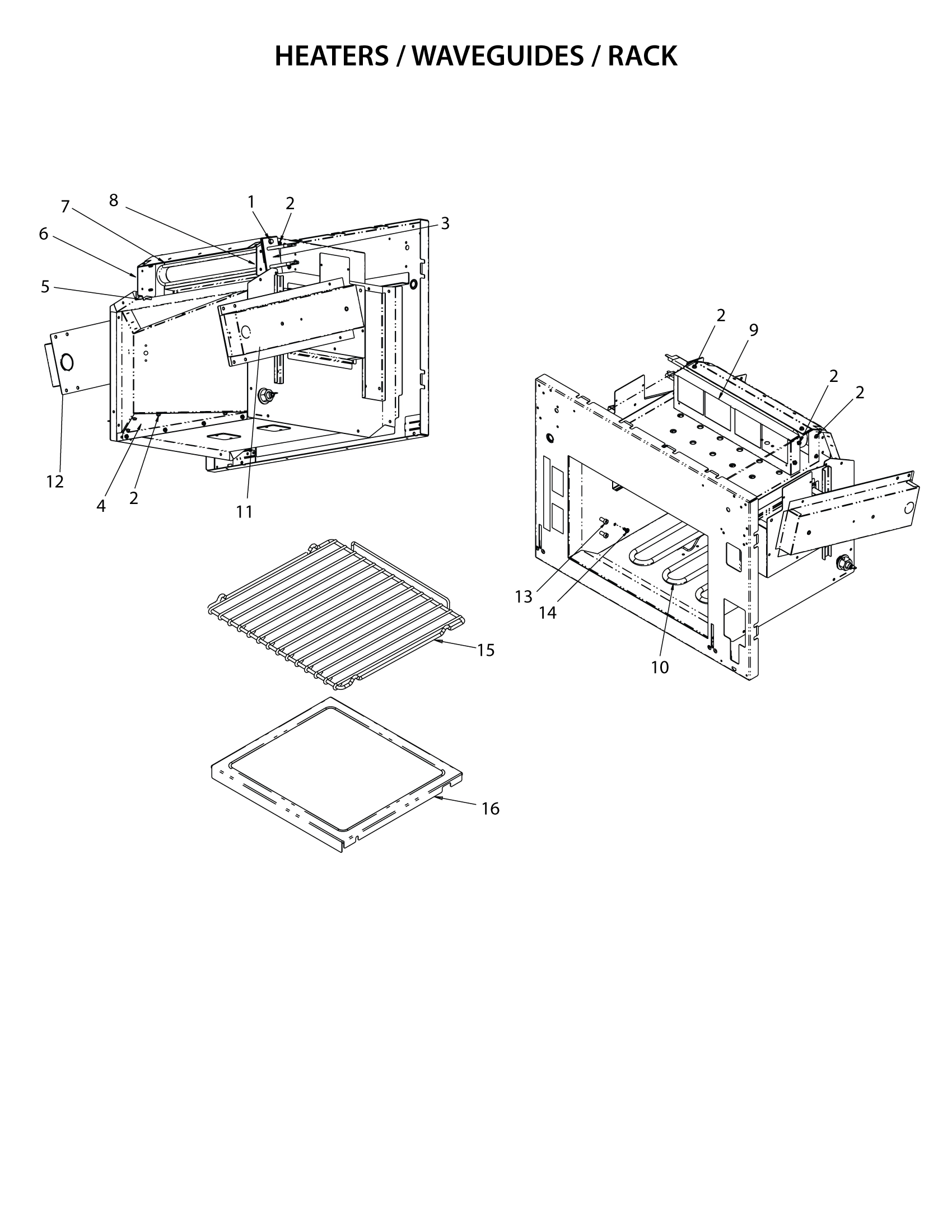

HEATERS / WAVEGUIDES / RACK

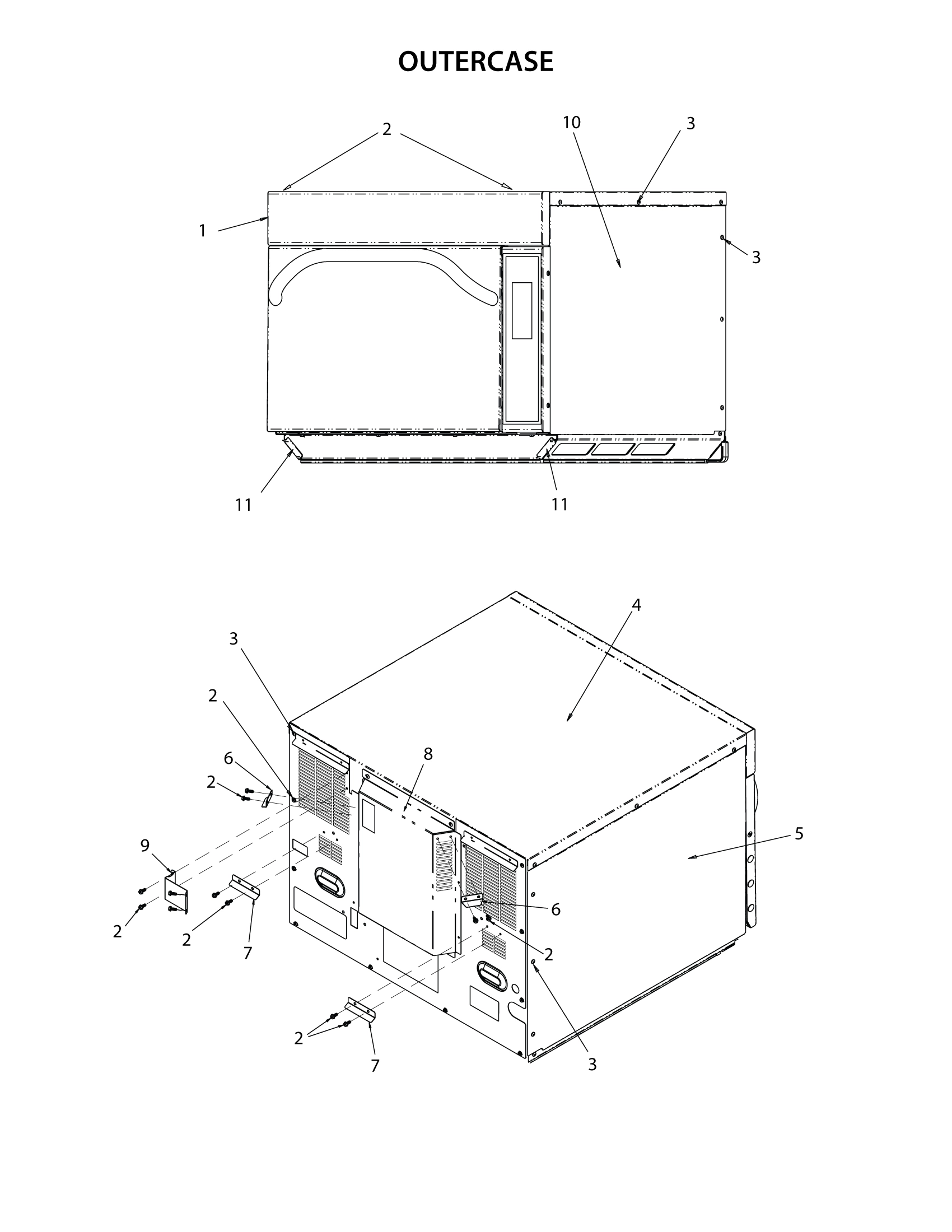

OUTERCASE
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MXP22TLT-P2005604M Amana Menumaster MXP22TLT
1
KIT, ANTENNA & STIRRER COVER ACP 14114053 Contact Us For Availability
1
RETAINER-HTR INSUL ACP 21007301 Contact Us For Availability
1
SCREW-TR/HEX ACP 12992405 Contact Us For Availability
1
ESCUTCHEON- TOP ACP 13098505 Contact Us For Availability
1
HARNESS-OVEN ACP 20208401 Contact Us For Availability
2
SCREW ACP 12991605 Contact Us For Availability
2
DUCT-LH ACP 13087603 Contact Us For Availability
2
WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability
3
SCREW-SM/HEX ACP 12990529 Contact Us For Availability
3
KIT, ANTENNA MOTOR & GEARS ACP 14169104 Contact Us For Availability
3
CONVECTION MOTOR ASSY ACP 59002076 Contact Us For Availability
3
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
3
ELEMENT- TOP CONVECTION & GASKET ACP 59002125 Contact Us For Availability
3
HARNESS-PC BOARD ACP 13087301 Contact Us For Availability
4
DUCT-RH ACP 13087102 Contact Us For Availability
4
BOTTOM-PLENUM ACP 21004702 Contact Us For Availability
4
OUTER PANEL, TOP ACP 59002136 Contact Us For Availability
4
HARNESS- J5 CONNECTOR ACP 59204719 Contact Us For Availability
5
NAMEPLATE-ESC ACP 14169110 Contact Us For Availability
5
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
5
INSULATION-TOP/SIDES CAVITY ACP 13084602 Contact Us For Availability
5
GASKET-PLENUM RETURN ACP 13077902 Contact Us For Availability
5
GASKET-PLENUM NOZZLE ACP 13077702 Contact Us For Availability
5
OUTER PANEL, LEFT SIDE ACP 59002138 Contact Us For Availability
5
CABLE, ETHERNET ACP 59164514 Contact Us For Availability
6
BLOCK, FUSE- 3 POLE ACP 59001682 Contact Us For Availability
6
PLATE-R PLENUM ACP 21005001 Contact Us For Availability
6
TAPE-DUCT ACP M0275089 Contact Us For Availability
7
FUSE-12A ACP M0805105 Contact Us For Availability
7
PLATE-TOP PLENUM ACP 21004802 Contact Us For Availability
7
WIRE-JUMPER ACP 13017726 Contact Us For Availability
8
BLOCK-FUSE ACP 10091101 Contact Us For Availability
8
PLATE-L PLENUM ACP 21004901 Contact Us For Availability
8
OC BACK WELD ACP 13081916 Contact Us For Availability
8
STRAP, GROUND- CONTROL TO ESC ACP 21032602 Contact Us For Availability
9
FUSE-25A ACP M0805201 Contact Us For Availability
9
CONVERTER - CATALYTIC ACP 59204723 Contact Us For Availability
9
HOOD-EXHAUST ACP 59194639 Contact Us For Availability
9
24"H CART ACP CA24 Contact Us For Availability
10
KIT, TRIAC(40A) & SNUBBER ACP 59174520 Contact Us For Availability
10
KIT, BOTTOM ELEMENT ACP 12002874 Contact Us For Availability
10
SCREW-TF/HEX RoHS ACP 12992302 Contact Us For Availability
10
OUTER PANEL, RIGHT SIDE ACP 59002137 Contact Us For Availability
10
30"H CART ACP CA30 Contact Us For Availability
11
FILTER, AIR ACP 59154429 Contact Us For Availability
11
KIT, WAVEGUIDE LEFT ACP 14119054 Contact Us For Availability
11
BLOCK, TERMINAL ACP B5677215 Contact Us For Availability
11
SCREW-TR/ROUND RoHS ACP 13042202 Contact Us For Availability
11
XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability
12
OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZLES ACP CL10 Contact Us For Availability
12
KIT, WAVEGUIDE RIGHT ACP 14119055 Contact Us For Availability
12
BLOCK - TERMINAL ACP B5677214 Contact Us For Availability
13
RELAY ACP 59001981 Contact Us For Availability
13
SCREW-MACH/SHLD (RACK SUPPORT) ACP 59224797 Contact Us For Availability
13
PANINI GRILL FOR XP XPRESS OVENS ACP GR10 Contact Us For Availability
14
KIT, INNER DOOR ACP 14169111 Contact Us For Availability
14
SNUBBER ASSY ACP 59002017 Contact Us For Availability
14
SPACER-THREADED ACP 20176201 Contact Us For Availability
14
LEG KIT FOR XP XPRESS OVENS ACP LG10 Contact Us For Availability
15
THERMAL CUTOUT, CAVITY- MECHANICAL ACP 59174519 Contact Us For Availability
15
RACK, OVEN ACP 59002140 Contact Us For Availability
15
13.87" (352 mm) x 13.87" (352 mm) Non-Stick B ACP OB10 Contact Us For Availability
16
OVEN PADDLE ACP PA10 Contact Us For Availability
16
GASKET, PER FT ACP 59004077 Contact Us For Availability
16
COVER, ELEMENT ACP 59164513 Contact Us For Availability
17
TRANSFORMER, HV ACP 59002124 Contact Us For Availability
17
NUT -#8 KEPS ACP 13045502 Contact Us For Availability
17
5.5" (139 mm) x 11.18" (284 mm) Non-Stick Bas ACP SB10 Contact Us For Availability
18
CLIP-CORD ACP M0104106 Contact Us For Availability
18
OVEN SHIELD (6) 1 LITER BOTTLES, (2) NOZZLES ACP SH10 Contact Us For Availability
19
SWITCH, PRIMARY INTERLOCK ACP 59224798 Contact Us For Availability
19
ALUMINUM PAN FOR XP XPRESS OVENS ACP SQ10 Contact Us For Availability
20
PIZZA STONE FOR A/MXP XPRESS OVENS ACP ST10X Contact Us For Availability
21
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
21
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
21
11.25" (285 mm) x 11.25" (285 mm) Non-Stick B ACP TB10 Contact Us For Availability
22
MAGNETRON ACP 59004010 Contact Us For Availability
22
DUCT-MAGNETRON ACP 21007102 Contact Us For Availability
22
GASKET, PER FT ACP 59002162 Contact Us For Availability
22
SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T Contact Us For Availability
23
VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability
23
SET OF 2 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T2 Contact Us For Availability
24
KIT- F1 FUSE, SWITCHES, RELAY, RELAY BRD ACP 14189151 Contact Us For Availability
24
ACP PRODUCT LITERATURE WEBKEY ACP WK10 Contact Us For Availability
25
BOARD, MAIN CONTROL ACP 59174578 Contact Us For Availability
25
SCREW-SM/HEX RoHS ACP 12990522 Contact Us For Availability
25
XP XPRESS PANINI PRESS ACP PRS10 Contact Us For Availability
26
POWER CORD ACP 59004001 Contact Us For Availability
27
KIT, FAN MOTOR ACP 14149088 Contact Us For Availability
27
SCREW-SM/HEX RoHS ACP 12990515 Contact Us For Availability
28
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
28
BOARD, POWER SUPPLY (24V DC) ACP 59204716 Contact Us For Availability
30
SENSOR, TEMP ACP 59001709 Contact Us For Availability
31
TAPE, FOAM (1 ROLL) ACP 59154448 Contact Us For Availability
32
INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability
34
PLATE-L HINGE PARTITION ACP 21005904 Contact Us For Availability
35
KIT- STUDS & HARDWARE ACP 14179138 Contact Us For Availability
36
PLATE-R HINGE PARTITION ACP 21073602 Contact Us For Availability
37
HINGE ACP 59194677 Contact Us For Availability
37
SEAL-HINGE ACP 13087001 Contact Us For Availability
38
KIT, CAPACITOR- 1.00 & DIODE ACP 59174542 Contact Us For Availability
38
SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability
38
STRAP-CAPACITOR ACP A4055406 Contact Us For Availability
39
RESISTORS- FAN ACP 59174565 Contact Us For Availability
× ![]()
