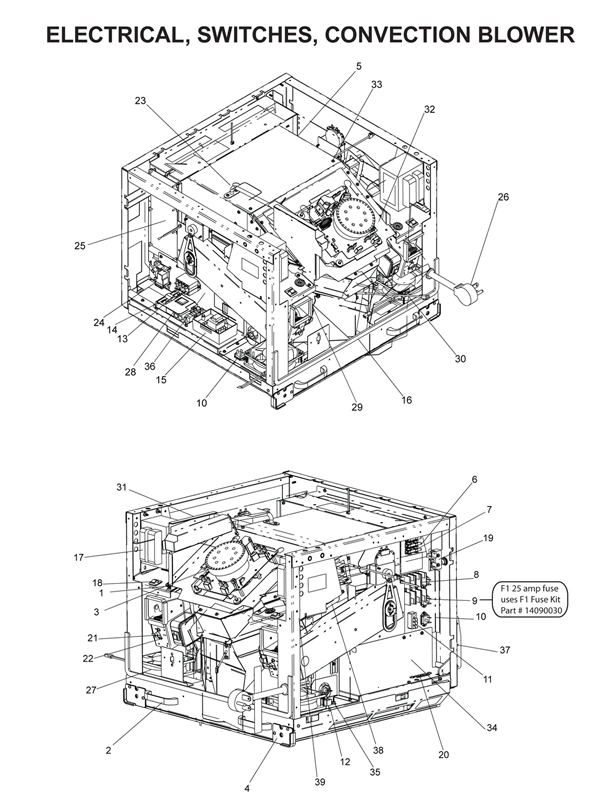

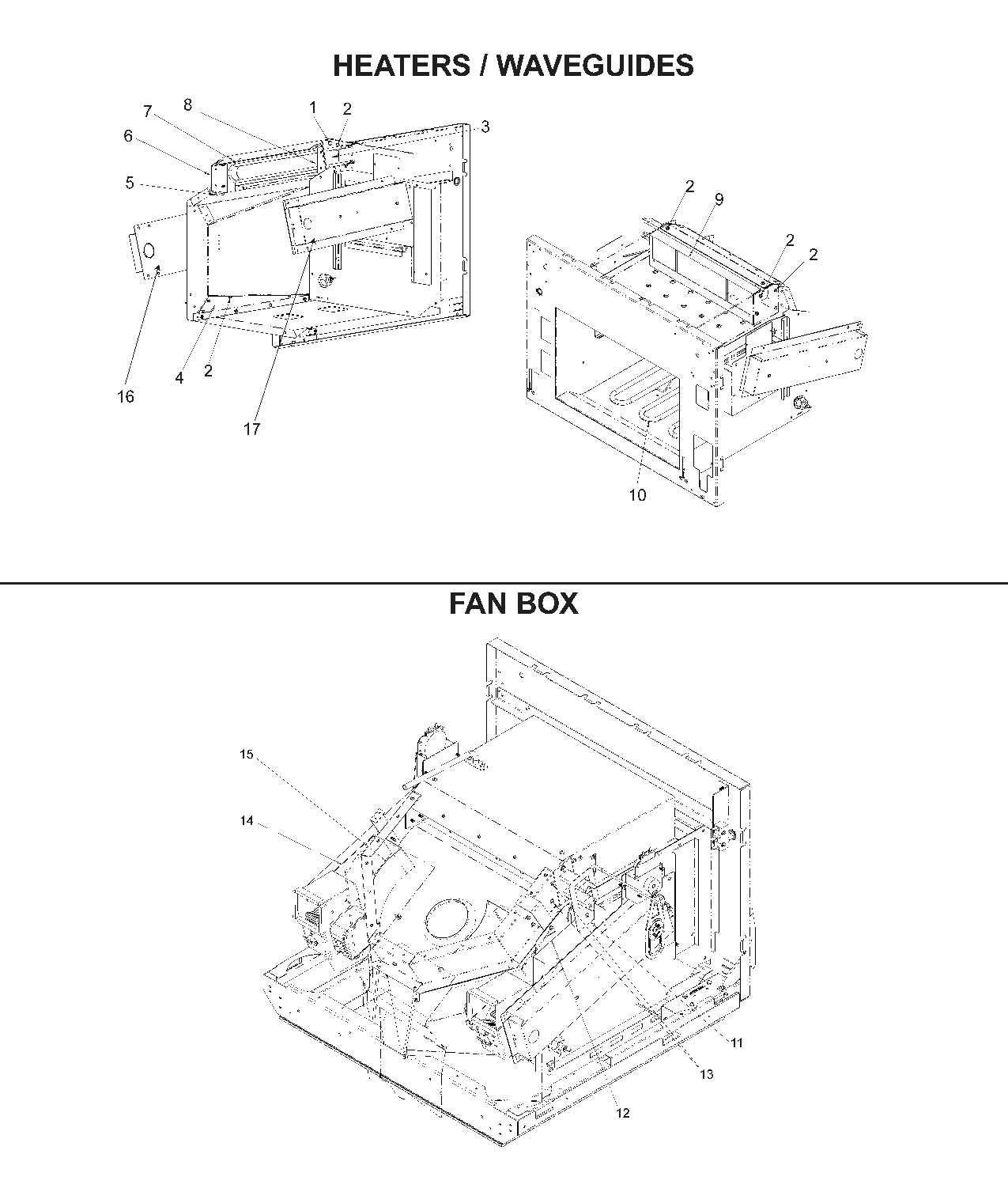

Model Accelerated Cooking Products MXP22SF-P2001609M Amana Menumaster MXP22SF – Common Parts &amp; Diagrams

1

20161501 Amana Oven Harness Backorder ACP 20161501 $352.63

1

ESCUTCHEON- TOP ACP 13098505 Contact Us For Availability

2

12991605 Amana Screw TC/HEX ROHS Backorder ACP 12991605 $5.14

2

WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability

3

13087301 Amana Control Board to Filter Board Backorder ACP 13087301 $35.08

3

14114053 Amana Stirrer Cover and Antenna Kit Backorder ACP 14114053 $414.39

3

59002076 Amana Convection Motor Assembly In Stock ACP 59002076 $1,780.16

3

59002125 Amana Top Convection Element Backorder ACP 59002125 $311.46

3

NAMEPLATE-AXP ACP 13079803 Contact Us For Availability

4

13074001 Amana RoHS TORX Pan Head Screw Backorder ACP 13074001 $5.59

4

BOTTOM-RETURN PLENUM ACP 21004702 Contact Us For Availability

4

HARNESS-DATA KEY ACP 13087401 Contact Us For Availability

5

12696201 Amana HV Harness Backorder ACP 12696201 $175.42

5

13077702 Amana Plenum Nozzle Gasket Backorder ACP 13077702 $10.02

5

OUTER PANEL, TOP ACP 59002136 Contact Us For Availability

6

PLATE-R PLENUM ACP 21005001 Contact Us For Availability

6

OUTER PANEL, RIGHT SIDE ACP 59002137 Contact Us For Availability

7

M0805105 Amana 12 AMP Fuse In Stock ACP M0805105 $3.78

7

PLATE-PLENUM TOP ACP 21004802 Contact Us For Availability

8

PLATE-L PLENUM ACP 21004901 Contact Us For Availability

9

14169104 Amana Antenna Motor and Gears Kit Backorder ACP 14169104 $61.38

9

M0805201 Amana Fuse In Stock ACP M0805201 $5.66

9

CONVERTER - CATALYTIC ACP 59204723 Contact Us For Availability

9

BACK, OUTERCASE ACP 13081902 Contact Us For Availability

12002874 Amana Bottom Element Kit Backorder ACP 12002874 $310.64

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $5.08

14169111 Amana Inner Door Backorder ACP 14169111 $583.54

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $57.41

HOOD-EXHAUST ACP 59194639 Contact Us For Availability

59114152 Amana Touch Panel Assembly Backorder ACP 59114152 $94.87

B5677215 Amana Terminal Block Backorder ACP B5677215 $6.71

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $43.09

RETAINER-INSUL ACP 21007301 Contact Us For Availability

OUTER PANEL, LEFT SIDE ACP 59002138 Contact Us For Availability

12

14169110 Amana Control Assembly Kit AXP/MXP Backorder ACP 14169110 $1,646.80

12

DUCT-LH ACP 13087603 Contact Us For Availability

13

59001981 Amana Relay Backorder ACP 59001981 $41.13

13

BOARD, DISPLAY- SF ACP 14114050 Contact Us For Availability

13

SCREW-SM/FLAT ACP 20021702 Contact Us For Availability

14

59002017 Amana Snubber Assembly Backorder ACP 59002017 $38.45

14

59154429 Amana Air Filter In Stock ACP 59154429 $81.02

14

DUCT-RH ACP 13087102 Contact Us For Availability

15

13077902 Amana Plenum Return Gasket Backorder ACP 13077902 $16.56

15

59002133 Amana Electronic Limiter Backorder ACP 59002133 $386.64

15

59002140 Amana Oven Rack Backorder ACP 59002140 $135.15

16

14119055 Amana Waveguide Kit - RH Backorder ACP 14119055 $699.89

16

59004077 Amana Gasket per Foot Backorder ACP 59004077 $1.31

17

14119054 Amana Left Waveguide Kit Backorder ACP 14119054 $699.89

17

59002124 Amana High Voltage Transformer Backorder ACP 59002124 $313.25

18

CLIP-CORD ACP M0104106 Contact Us For Availability

19

59224798 Amana Primary Switch and Boot Backorder ACP 59224798 $51.03

21

20241404 Amana Thermal Cutout Switch Backorder ACP 20241404 $8.36

21

SCREW-TC ACP 20095801 Contact Us For Availability

22

59004010 Amana Magnetron In Stock ACP 59004010 $118.14

22

GASKET, PER FT ACP 59002162 Contact Us For Availability

22

DUCT, MAGNETRON ACP 21007102 Contact Us For Availability

23

VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability

24

14189151 Amana Fuse and Switches Kit In Stock ACP 14189151 $277.45

25

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $5.14

25

59174578 Amana Main Control Board In Stock ACP 59174578 $673.94

26

59004001 Amana Power Cord Backorder ACP 59004001 $76.31

26

RELIEF-STRAIN ACP M0370011 Contact Us For Availability

27

14149088 Amana Fan Motor Kit In Stock ACP 14149088 $264.92

27

SCREW-SM/HEX RoHS ACP 12990515 Contact Us For Availability

28

59204716 Amana Power Supply Board (24V DC) Backorder ACP 59204716 $212.12

28

SUPPORT ACP 59174558 Contact Us For Availability

29

59002131 Amana Thermocouple Backorder ACP 59002131 $128.88

30

12990529 Amana Hex Screw Backorder ACP 12990529 $5.14

30

59001709 Amana Temperature Sensor Backorder ACP 59001709 $24.59

31

59154448 Amana Foam Tape (1 Roll) Backorder ACP 59154448 $44.86

32

INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability

34

PLATE-LH FRNT PARTITION ACP 21005904 Contact Us For Availability

35

14179138 Amana Kit - Studs and Hardware Backorder ACP 14179138 $24.68

36

PLATE-RH FRNT PARTITION ACP 13097601 Contact Us For Availability

37

59194677 Amana Door Hinge Set of Two Backorder ACP 59194677 $358.00

37

SEAL-HINGE ACP 13087001 Contact Us For Availability

38

59174542 Amana Capacitor and Diode Kit Backorder ACP 59174542 $56.26

38

A4055406 Amana Capacitor Strap Backorder ACP A4055406 $5.42

39

20057401 Amana Diode In Stock ACP 20057401 $7.48

39

SCREW-SM/HEX RoHS ACP 12990524 Contact Us For Availability
