Model Accelerated Cooking Products MXP22EMC-P2006840M Amana Menumaster MXP22EMC – Common Parts & Diagrams

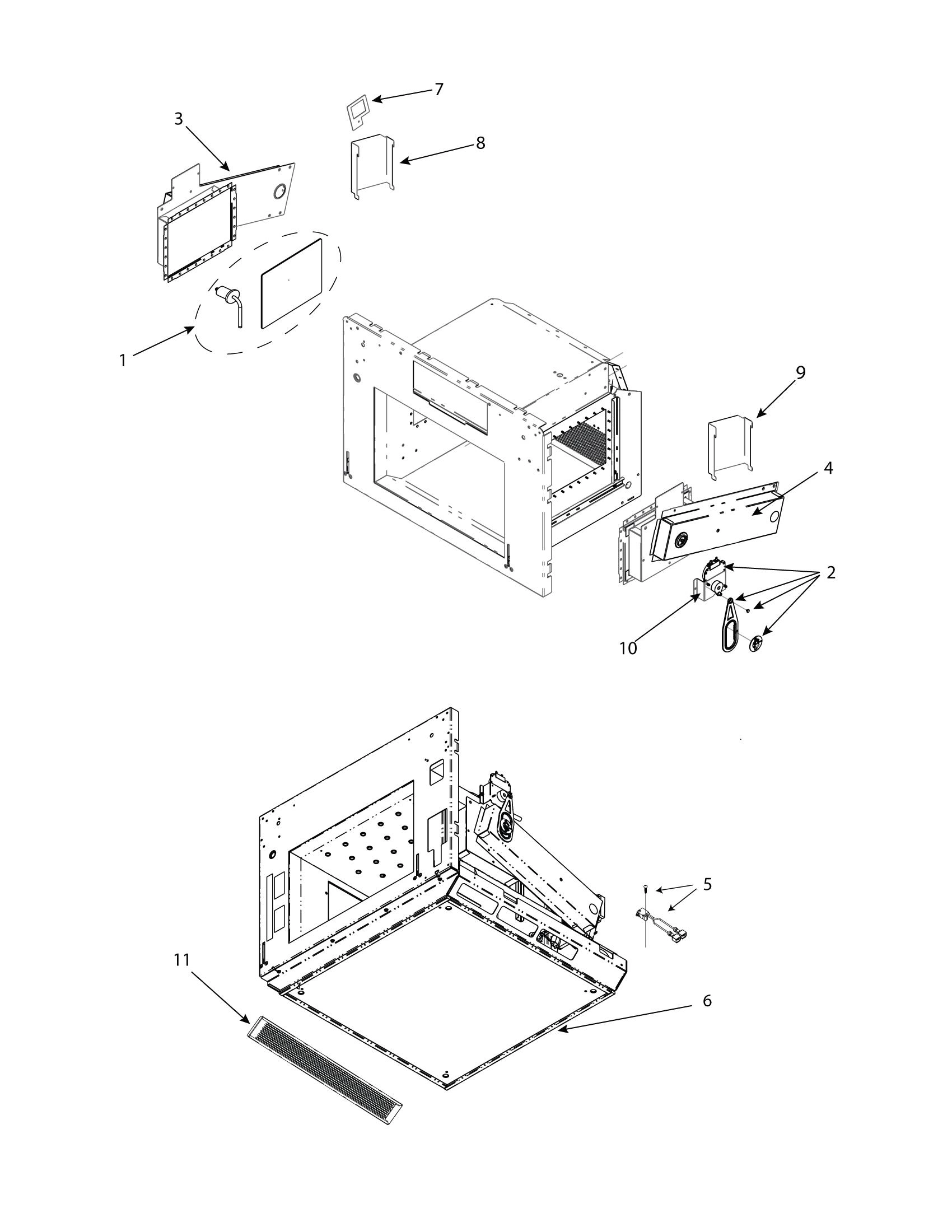

ANTENNA / WAVEGUIDES / BASEPAN

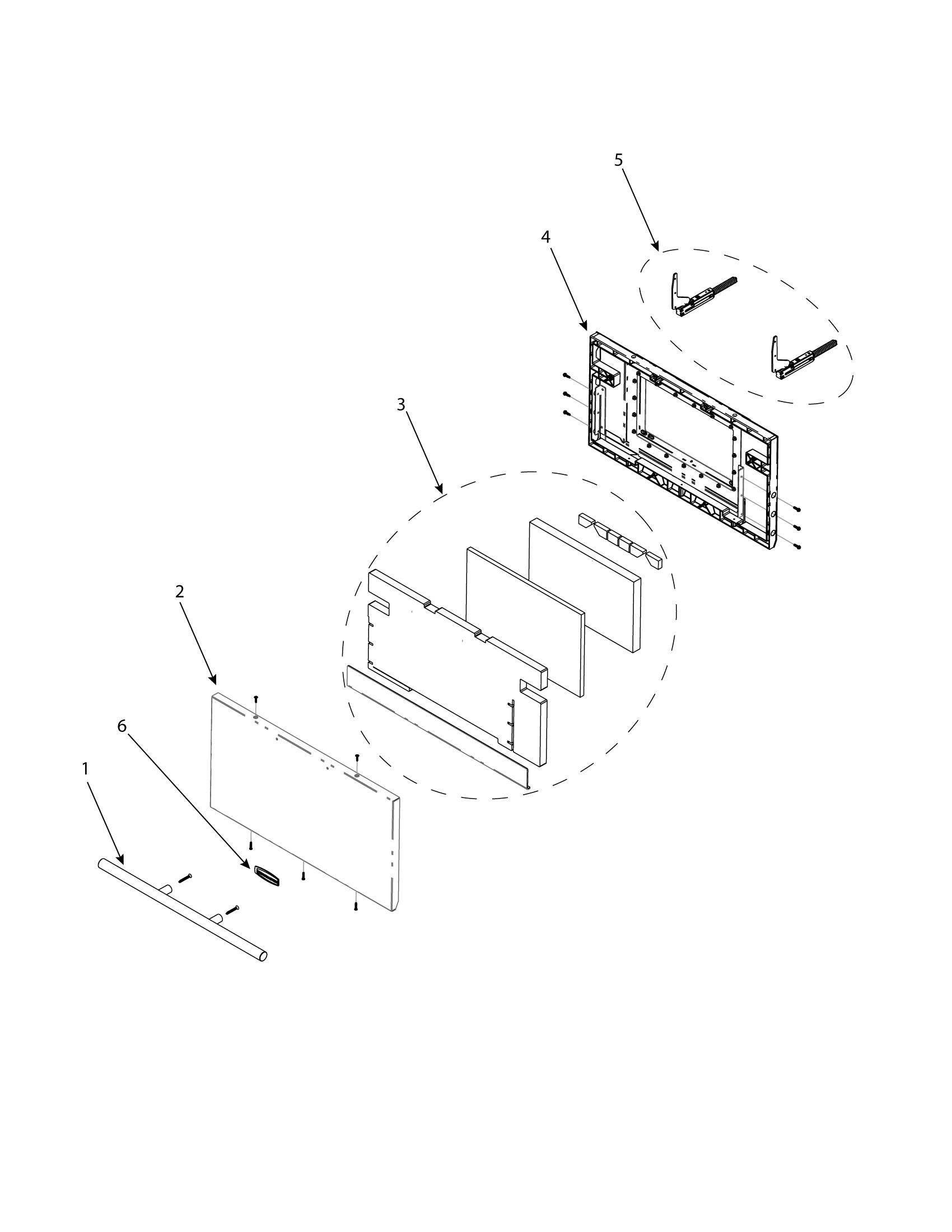

DOOR / HINGES
ELECTRICAL- MAIN
HEATERS / RACK / CATALYST
OUTERCASE
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MXP22EMC-P2006840M Amana Menumaster MXP22EMC
1
KIT, ANTENNA & STIRRER COVER ACP 14114053 Contact Us For Availability
1
ELEMENT- TOP CONVECTION & GASKET ACP 59002125 Contact Us For Availability
1
OUTER PANEL- RIGHT ACP 59194671 Contact Us For Availability
1
HARNESS-OVEN ACP 20300201 Contact Us For Availability
2
KIT, BOTTOM ELEMENT ACP 12002874 Contact Us For Availability
2
KIT, ANTENNA MOTOR & GEARS ACP 14169104 Contact Us For Availability
2
OUTER PANEL- TOP ACP 59194672 Contact Us For Availability
2
HARNESS- J5 CONNECTOR ACP 59204719 Contact Us For Availability
3
KIT, WAVEGUIDE LEFT ACP 14119054 Contact Us For Availability
3
CONVECTION MOTOR ASSY ACP 59002076 Contact Us For Availability
3
SHOULDER SCREWS (2) & NUTS (3) ACP 59224797 Contact Us For Availability
3
OUTER PANEL- LEFT ACP 59194670 Contact Us For Availability
3
WIRE, JUMPER - MAG FA TO CAP ACP 13017713 Contact Us For Availability
4
KIT, WAVEGUIDE RIGHT ACP 14119055 Contact Us For Availability
4
SPACER-THREADED ACP 20176201 Contact Us For Availability
4
OC BACK WELD-E CT ACP 20289302 Contact Us For Availability
4
HARNESS-PC BOARD ACP 13087302 Contact Us For Availability
5
HINGES- DOOR ACP 59194677 Contact Us For Availability
5
RACK, OVEN ACP 59002140 Contact Us For Availability
5
KIT- DRIP CAPS & SPLASH GUARDS ACP 59194639 Contact Us For Availability
5
CABLE, ETHERNET ACP 59164514 Contact Us For Availability
6
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
6
COVER, ELEMENT ACP 59164513 Contact Us For Availability
6
REAR AIR DUCT-E CT ACP 21070003 Contact Us For Availability
6
TAPE, CLOTH- 15 ft (4.5 m) ACP 20070008 Contact Us For Availability
7
FUSE-12A ACP M0805105 Contact Us For Availability
7
CATALYTIC CONVERTER & GASKETS ACP 59204723 Contact Us For Availability
7
SCREW-TC/PAN TORX RoHS ACP 13074001 Contact Us For Availability
7
TAPE-DUCT ACP M0275089 Contact Us For Availability
8
PLATE-TOP PLENUM ACP 21004802 Contact Us For Availability
8
TAPE- FOAM GASKET ACP 59194679 Contact Us For Availability
8
KIT, USB DOOR ACP 59204737 Contact Us For Availability
9
FUSE-25A ACP M0805201 Contact Us For Availability
9
GASKET-PLENUM NOZZLE ACP 13077702 Contact Us For Availability
9
XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability
10
KIT, TRIAC(40A) & SNUBBER ACP 59174520 Contact Us For Availability
10
OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZLES ACP CL10 Contact Us For Availability
10
PLATE-L PLENUM ACP 21004901 Contact Us For Availability
11
FILTER, AIR ACP 59154429 Contact Us For Availability
11
BLOCK, TERMINAL ACP B5677215 Contact Us For Availability
11
PLATE-R PLENUM ACP 21005001 Contact Us For Availability
11
PANINI GRILL FOR XP XPRESS OVENS ACP GR10 Contact Us For Availability
12
SCREW ACP 12991605 Contact Us For Availability
12
LEG KIT FOR XP XPRESS OVENS ACP LG10 Contact Us For Availability
13
RELAY ACP 59001981 Contact Us For Availability
13
GASKET-PLENUM RETURN ACP 13077902 Contact Us For Availability
13
13.87" (352 mm) x 13.87" (352 mm) Non-Stick B ACP OB10 Contact Us For Availability
14
SNUBBER ASSY ACP 59002017 Contact Us For Availability
14
OVEN PADDLE ACP PA10 Contact Us For Availability
14
INSULATION-TOP/SIDES CAVITY ACP 13084602 Contact Us For Availability
15
THERMAL CUTOUT, CAVITY- MECHANICAL ACP 59174519 Contact Us For Availability
15
INSULATION-TOP ACP 20260301 Contact Us For Availability
15
5.5" (139 mm) x 11.18" (284 mm) Non-Stick Bas ACP SB10 Contact Us For Availability
16
OVEN SHIELD (6) 1 LITER BOTTLES, (2) NOZZLES ACP SH10 Contact Us For Availability
17
TRANSFORMER, HV ACP 59002124 Contact Us For Availability
17
ALUMINUM PAN FOR XP XPRESS OVENS ACP SQ10 Contact Us For Availability
18
PIZZA STONE FOR A/MXP XPRESS OVENS ACP ST10X Contact Us For Availability
19
11.25" (285 mm) x 11.25" (285 mm) Non-Stick B ACP TB10 Contact Us For Availability
20
KIT- F1 FUSE, SWITCHES, RELAY, RELAY BRD ACP 14189151 Contact Us For Availability
20
SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T Contact Us For Availability
21
THERMAL CUTOUT- MAG TCO ACP 20241404 Contact Us For Availability
21
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
21
SET OF 2 NON-STICK LINERS FOR XP XPRESS OVENS ACP TL10T2 Contact Us For Availability
22
MAGNETRON ACP 59004010 Contact Us For Availability
22
DUCT-MAGNETRON ACP 21007102 Contact Us For Availability
22
GASKET, PER FT ACP 59002162 Contact Us For Availability
22
XP XPRESS PANINI PRESS ACP PRS10 Contact Us For Availability
23
VENT, CAVITY STEAM ACP 13078001 Contact Us For Availability
24
BOARD- MAIN CONTROL ACP 59174578 Contact Us For Availability
24
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
25
POWER CORD ACP 59004001 Contact Us For Availability
26
KIT, FAN MOTOR ACP 14149088 Contact Us For Availability
27
BOARD- POWER SUPPLY (24V DC) ACP 59184629 Contact Us For Availability
28
SENSOR, TEMP ACP 59001709 Contact Us For Availability
29
TAPE, FOAM (1 ROLL) ACP 59154448 Contact Us For Availability
30
INSUL RETAINER WELD ACP 20004202Q Contact Us For Availability
31
PLATE-L HINGE PARTITION ACP 21005904 Contact Us For Availability
32
KIT- STUDS & HARDWARE ACP 14179138 Contact Us For Availability
33
PLATE-R HINGE PARTITION ACP 21066902 Contact Us For Availability
34
KIT, CAPACITOR- 1.00 & DIODE ACP 59174542 Contact Us For Availability
34
STRAP, CAPACITOR ACP A4055406 Contact Us For Availability
× ![]()
