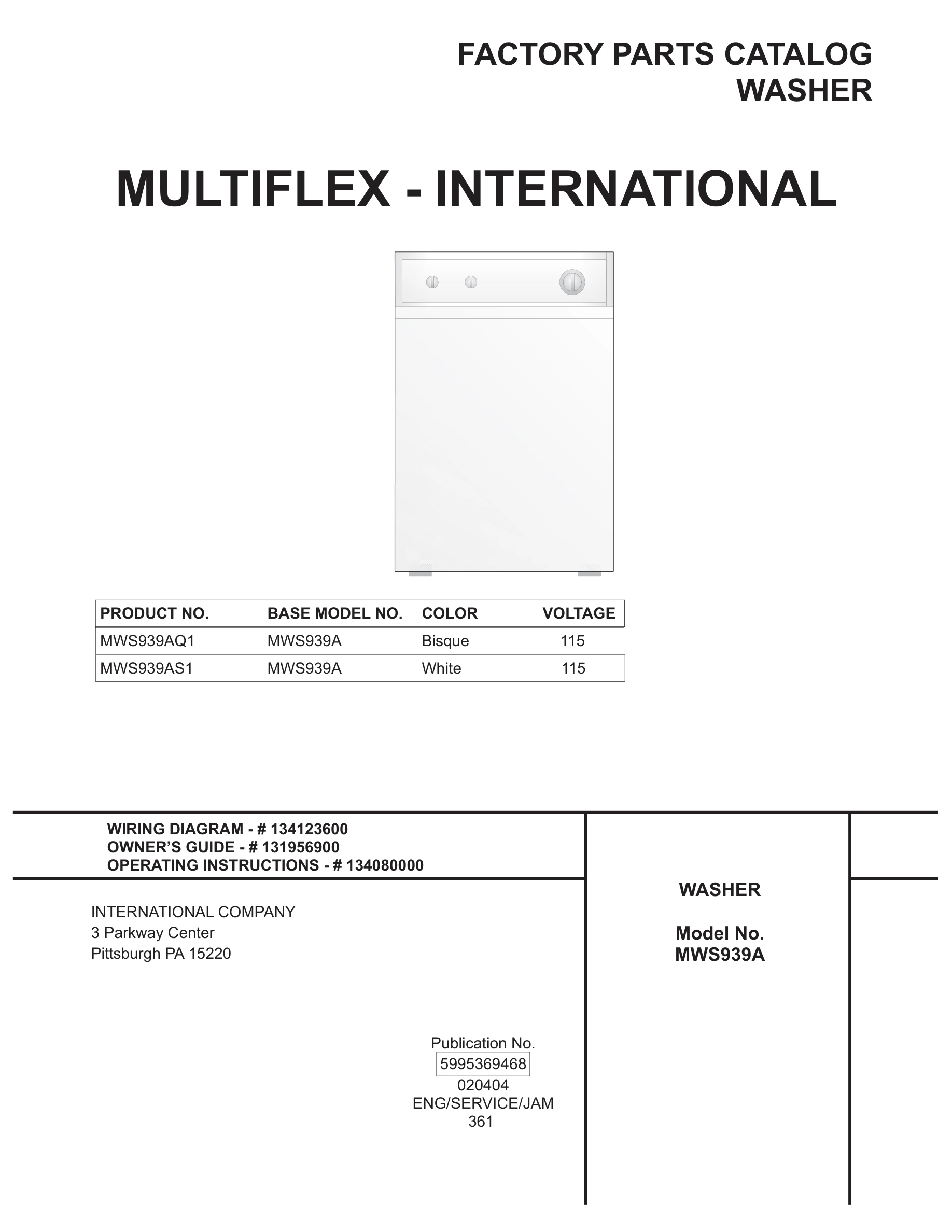

Model Universal Multiflex MWS939AS0 WASHER – Common Parts & Diagrams
01 - COVER

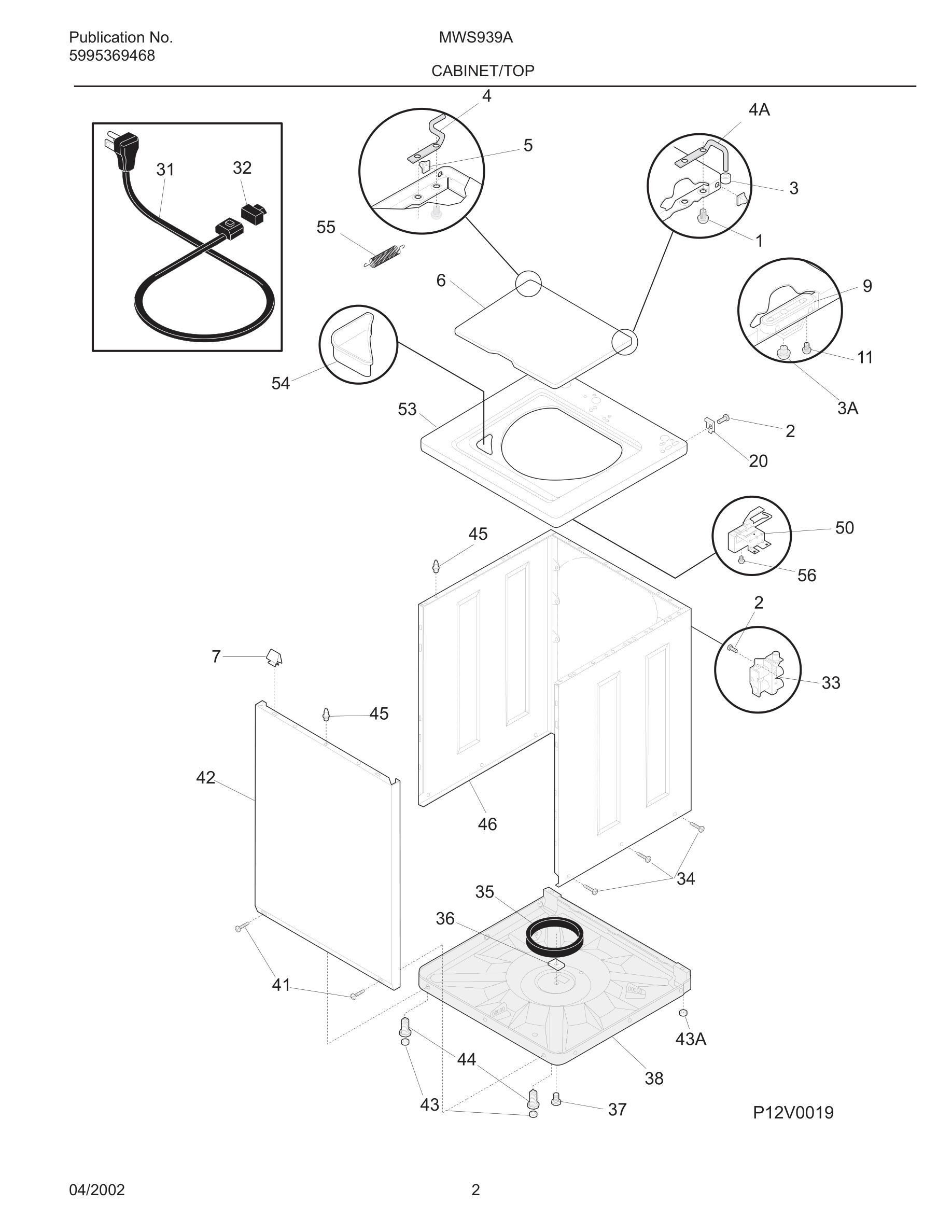

03 - CABINET/TOP
05 - MOTOR/TUB
07 - TRANSMISSION
09 - CONTROL PANEL
10 - WIRING DIAGRAM
Common parts from model Universal Multiflex MWS939AS0 WASHER
*
Insert-spring adj WCI 5303212877 Contact Us For Availability
*
Seal-splash tub cover WCI 131901400 Contact Us For Availability
*
Cushion WCI 131663500 Contact Us For Availability
*
Clip-backsheet WCI 5303309503 Contact Us For Availability
2
Screw, 8-18 x 0.31 WCI 131168200 Contact Us For Availability
3
Cover-end cap, white, LH WCI 131122611 Contact Us For Availability
3A
Bumper-lid WCI 134075500 Contact Us For Availability
4
Knob-rotary WCI 131786603 Contact Us For Availability
4
Hinge-bar-L.H. WCI 131385910 Contact Us For Availability
4#
Capacitor WCI 131212301 Contact Us For Availability
5
Grommet-lid WCI 5303208743 Contact Us For Availability
6
Cover-end cap, white, RH WCI 131122601 Contact Us For Availability
7
Clip-top panel to front panel WCI 3205821 Contact Us For Availability
7
Washer-inlet hose WCI 5303161296 Contact Us For Availability
8#
Timer-washer WCI 134063500 Contact Us For Availability
9
Strike-lid WCI 131390000 Contact Us For Availability
11
Assy-agitator-dual action WCI 131605901 Contact Us For Availability
11
Screw-strike, pfh b, 6-20 x .375 WCI 3204368 Contact Us For Availability
16
Trunnion WCI 131545101 Contact Us For Availability
18
Tub-splash, w\air dome, brng WCI 131557201 Contact Us For Availability
19
Screw, 10-16 x .75 WCI 131205300 Contact Us For Availability
20
End Cap, white, LH WCI 131122711 Contact Us For Availability
20
Screw-tub bearing, pph b st/z, WCI 3205150 Contact Us For Availability
20
Hinge-rear cabinet WCI 5303208751 Contact Us For Availability
21
Washer, spin bearing, upper WCI 5308002401 Contact Us For Availability
22
Leg & Dome Assy WCI 131373610 Contact Us For Availability
24
Spring-horizontal WCI 131373900 Contact Us For Availability
26
Seal-tub WCI 5303279394 Contact Us For Availability
26
Bearing-outer tub WCI 3204405 Contact Us For Availability
27
Clip-control panel WCI 131197000 Contact Us For Availability
28
Spacer-trans brg block-Koyo WCI 131784400 Contact Us For Availability
29
Pulley-transmission drive WCI 131498301 Contact Us For Availability
30
Asmy-VAW idler arm WCI 131862900 Contact Us For Availability
31
End Cap, white, RH WCI 131122701 Contact Us For Availability
32
Bushing-cord WCI 5303209428 Contact Us For Availability
33
Spring-torsion WCI 3204425 Contact Us For Availability
34
Screw-body, 1/4-14 x 0.625 WCI 131205500 Contact Us For Availability
35
Ring-snubber WCI 5308002385 Contact Us For Availability
35
Ring-retaining WCI 3161433 Contact Us For Availability
36
Washer-pivot shaft WCI 5303261031 Contact Us For Availability
37
Washer-spring WCI 5303161306 Contact Us For Availability
38
Nut-motor WCI 5303318708 Contact Us For Availability
38
Base Assembly WCI 5303311213 Contact Us For Availability
39
Screw, #8 pan head, 10-10B x 0.50, WCI 131205100 Contact Us For Availability
41
Shield-motor WCI 131513300 Contact Us For Availability
42
Panel-front, white WCI 131104303 Contact Us For Availability
43
Pad-leveling leg WCI 131422100 Contact Us For Availability
43A
Pad-level leg WCI 131422200 Contact Us For Availability
45
Pin-locating WCI 131346400 Contact Us For Availability
48
Clamp-pump WCI 131306234 Contact Us For Availability
49#
Hose-pump to tub WCI 131494800 Contact Us For Availability
50#
Lock-lid WCI 134101800 Contact Us For Availability
54
Dispenser-bleach WCI 5303208778 Contact Us For Availability
56
Screw-agitator, hwh shldr, 5/16-18 x 1.250 WCI 131468900 Contact Us For Availability
56
Screw-brkt top, pan hd locking, WCI 131243800 Contact Us For Availability
57
Spacer-agitator WCI 131339600 Contact Us For Availability
66
Cup/cap assy WCI 131624500 Contact Us For Availability
67
Cap Assembly WCI 131606210 Contact Us For Availability
68
Ring-drain hose WCI 131707800 Contact Us For Availability
× ![]()
