Model Whirlpool MW8900XS5 – Common Parts &amp; Diagrams

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

14 Ga. 150~c (White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

12 Ga. 150c~ (Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

14 Ga. 200c~ (Yellow) WPL 242832 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability

Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability

Bi-Level Cooking Rack WPL 832985 Contact Us For Availability

Built-in Kits (30``) WPL 832987 Contact Us For Availability

24`` Built-In Kit WPL 832989 Contact Us For Availability

27``built-in Kit WPL 832991 Contact Us For Availability

Wall Mount Kit WPL 832993 Contact Us For Availability

Cookbook WPL LIT311894 Contact Us For Availability

Tech Sheet WPL LIT3147213 Contact Us For Availability

Guide, Use & Care WPL LIT3148800 Contact Us For Availability

List, Repair Parts WPL LIT884401 Contact Us For Availability

1

Thermal Fuse WPL 313855 Contact Us For Availability

1

Bracket, Catch WPL 311354 Contact Us For Availability

2

Screw 8-32 x 3/8 (3) WPL 312713 Contact Us For Availability

2

Catch (2) WPL 311795 Contact Us For Availability

3

Seal, Foam WPL 313751 Contact Us For Availability

3

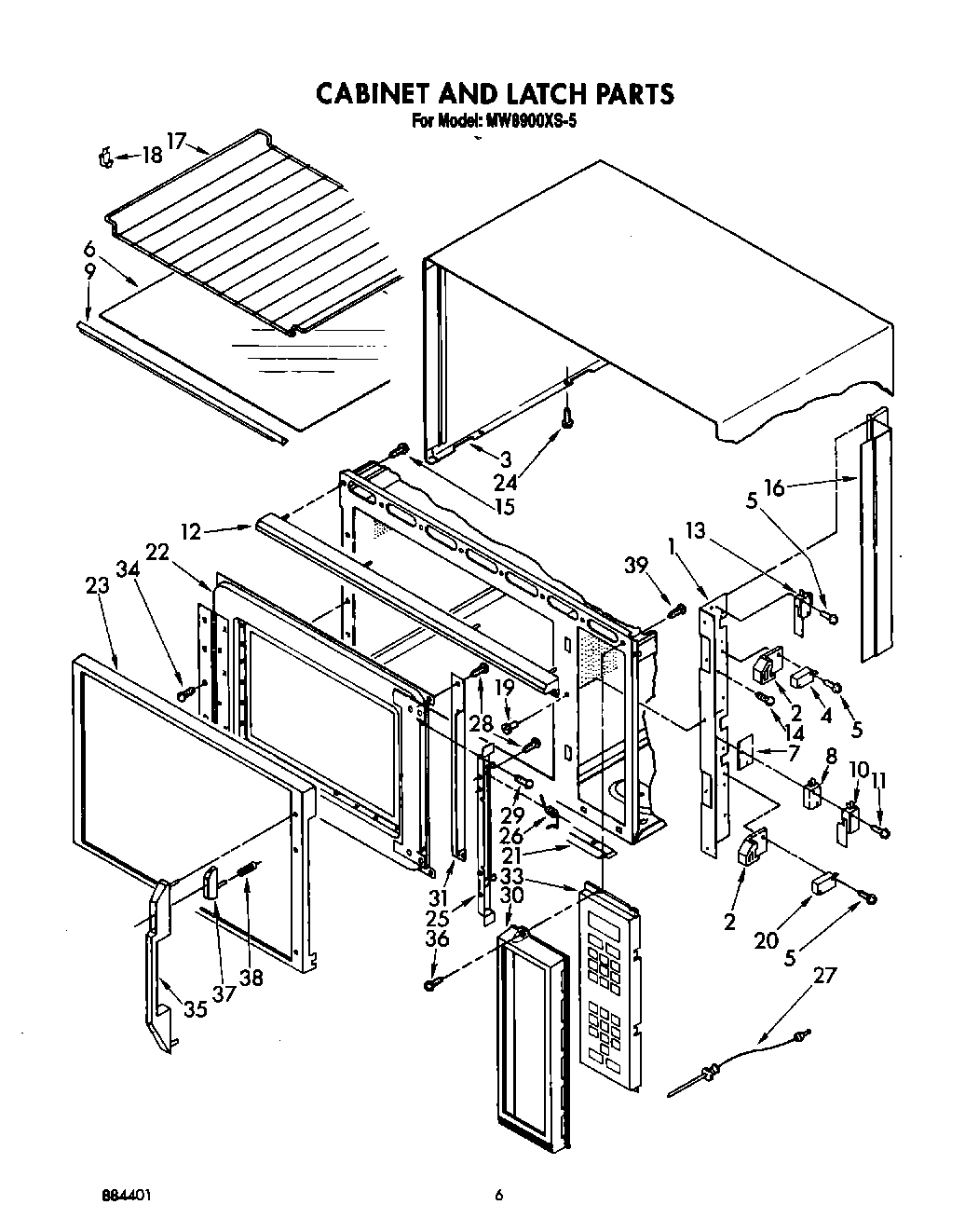

Cabinet WPL 313568 Contact Us For Availability

4

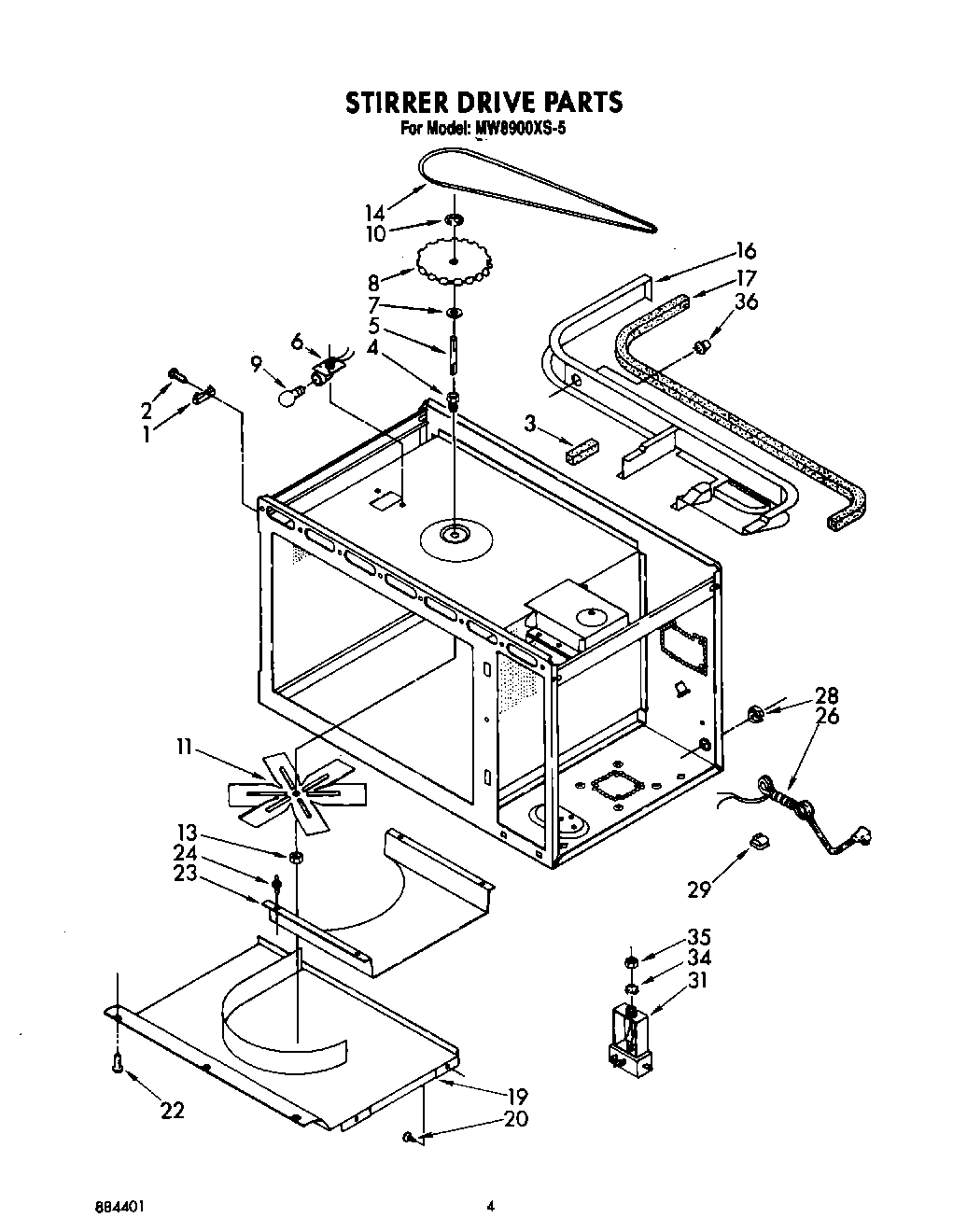

Bushing, Stirrer WPL 312023 Contact Us For Availability

5

Shaft, Stirrer WPL 312026 Contact Us For Availability

5

Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability

6

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

6

Socket WPL 330514 Contact Us For Availability

6

Shelf, Glass (Install W/Silastic WPL 313639 Contact Us For Availability

7

Washer, Stirrer WPL 312025 Contact Us For Availability

7

Insulator WPL 313126 Contact Us For Availability

8

Pulley, WPL 311923 Contact Us For Availability

8

(Alt.) WPL 313075 Contact Us For Availability

8

(Alt.) WPL 313123 Contact Us For Availability

8

Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability

9

WP3395618 Whirlpool Light Bulb Backorder WPL WP3395618 $26.21

9

Trim, Shelf (Front) WPL 313614 Contact Us For Availability

Fuse Holder WPL 313846 Contact Us For Availability

``E`` Ring WPL 311999 Contact Us For Availability

(Alt.) WPL 313076 Contact Us For Availability

(Alt.) WPL 313124 Contact Us For Availability

Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability

11

Stirrer Blade WPL 313595 Contact Us For Availability

11

screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability

12

Grille, Air WPL 3149307 Contact Us For Availability

13

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

13

Switch, Electronic WPL 313120 Contact Us For Availability

WP313646 Whirlpool Microwave Drive Belt Backorder WPL WP313646 $27.61

Fuse (15 Amp) WPL 661172 Contact Us For Availability

(Alt.) WPL 313887 Contact Us For Availability

Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability

15

Screw (3) WPL 3149443 Contact Us For Availability

16

Air Duct (Horizontal) WPL 313578 Contact Us For Availability

16

Baffle, Air WPL 3147217 Contact Us For Availability

16

shield WPL 311360 Contact Us For Availability

17

Seal, Air Duct WPL 313752 Contact Us For Availability

17

Seal, Foam WPL 313750 Contact Us For Availability

17

rack, wire WPL 313663 Contact Us For Availability

18

WP3149478 Whirlpool Microwave Support In Stock WPL WP3149478 $2.73

19

Motor WPL 313641 Contact Us For Availability

19

Cover, Stirrer WPL 313563 Contact Us For Availability

19

Rivet, Pop (6) WPL 311928 Contact Us For Availability

20

814037 Whirlpool Microwave Switch Backorder WPL 814037 $29.08

20

Pulley, Motor WPL 311922 Contact Us For Availability

20

Fastener, Cover (4) WPL 313740 Contact Us For Availability

21

Trim, Lower WPL 313598 Contact Us For Availability

22

screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability

22

Door, Inner WPL 3170444 Contact Us For Availability

23

Bracket, Motor WPL 313601 Contact Us For Availability

23

Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability

23

Frame, Door WPL 3170439 Contact Us For Availability

24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

24

Support (4) WPL 313739 Contact Us For Availability

25

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

25

Latch, Complete WPL 329066 Contact Us For Availability

Wheel, Blower WPL 3147223 Contact Us For Availability

(Alt.) WPL 313392 Contact Us For Availability

(Alt.) WPL 313393 Contact Us For Availability

Power, Cord WPL 661160 Contact Us For Availability

Spring, Torsion (2) WPL 311352 Contact Us For Availability

27

Probe, Temp WPL 313527 Contact Us For Availability

28

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

28

screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability

28

Strain Relief, Bushing WPL 311954 Contact Us For Availability

(Alt.) WPL 311992 Contact Us For Availability

(Alt.) WPL 311993 Contact Us For Availability

(Alt.) WPL 313034 Contact Us For Availability

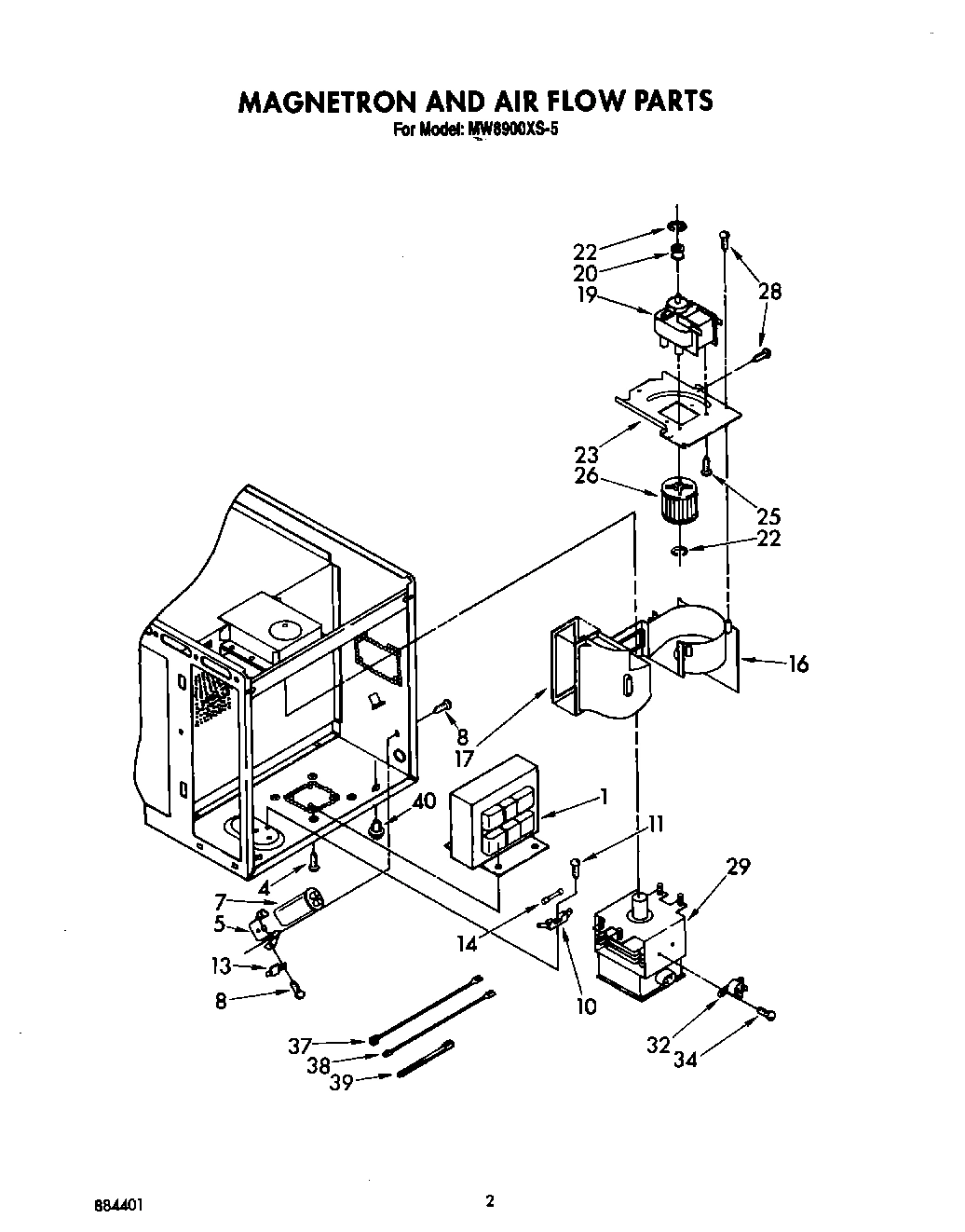

Magnetron WPL 660595 Contact Us For Availability

Clip, Wire (2) WPL 311311 Contact Us For Availability

Screw (2) WPL 313820 Contact Us For Availability

30

Frame, Control Panel WPL 3148073 Contact Us For Availability

31

Jack, Probe WPL 661209 Contact Us For Availability

31

End Cap WPL 3148296 Contact Us For Availability

32

(Alt.) WPL 312800 Contact Us For Availability

32

Thermal Protector WPL 661165 Contact Us For Availability

33

Module, Control WPL 3148252 Contact Us For Availability

34

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

34

Screw (2) WPL 312782 Contact Us For Availability

34

Washer WPL 313105 Contact Us For Availability

35

Handle, Door WPL 313610 Contact Us For Availability

35

Nut WPL 313104 Contact Us For Availability

36

Sensor, Gas WPL 3147060 Contact Us For Availability

37

313611 Whirlpool Microwave Door Button Backorder WPL 313611 $15.98

37

Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability

38

Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability

38

Spring, Compression WPL 310197 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Harness, Wiring (Connector (6)) WPL 308564 Contact Us For Availability

Harness, Wiring (Housing) WPL 308665 Contact Us For Availability

Screw (6) WPL 313818 Contact Us For Availability

Harness, Wiring (Control Panel) WPL 3147164 Contact Us For Availability

Harness, Wiring (Socket) WPL 3147218 Contact Us For Availability

Harness, Wiring (Connector (6)) WPL 310223 Contact Us For Availability

Harness, Wiring (Housing) WPL 311757 Contact Us For Availability

Harness, Wiring (Main, Electronic) WPL 3147072 Contact Us For Availability

Foot, Base (4) WPL 3147276 Contact Us For Availability
