Model Whirlpool MW865EXR0 – Common Parts & Diagrams

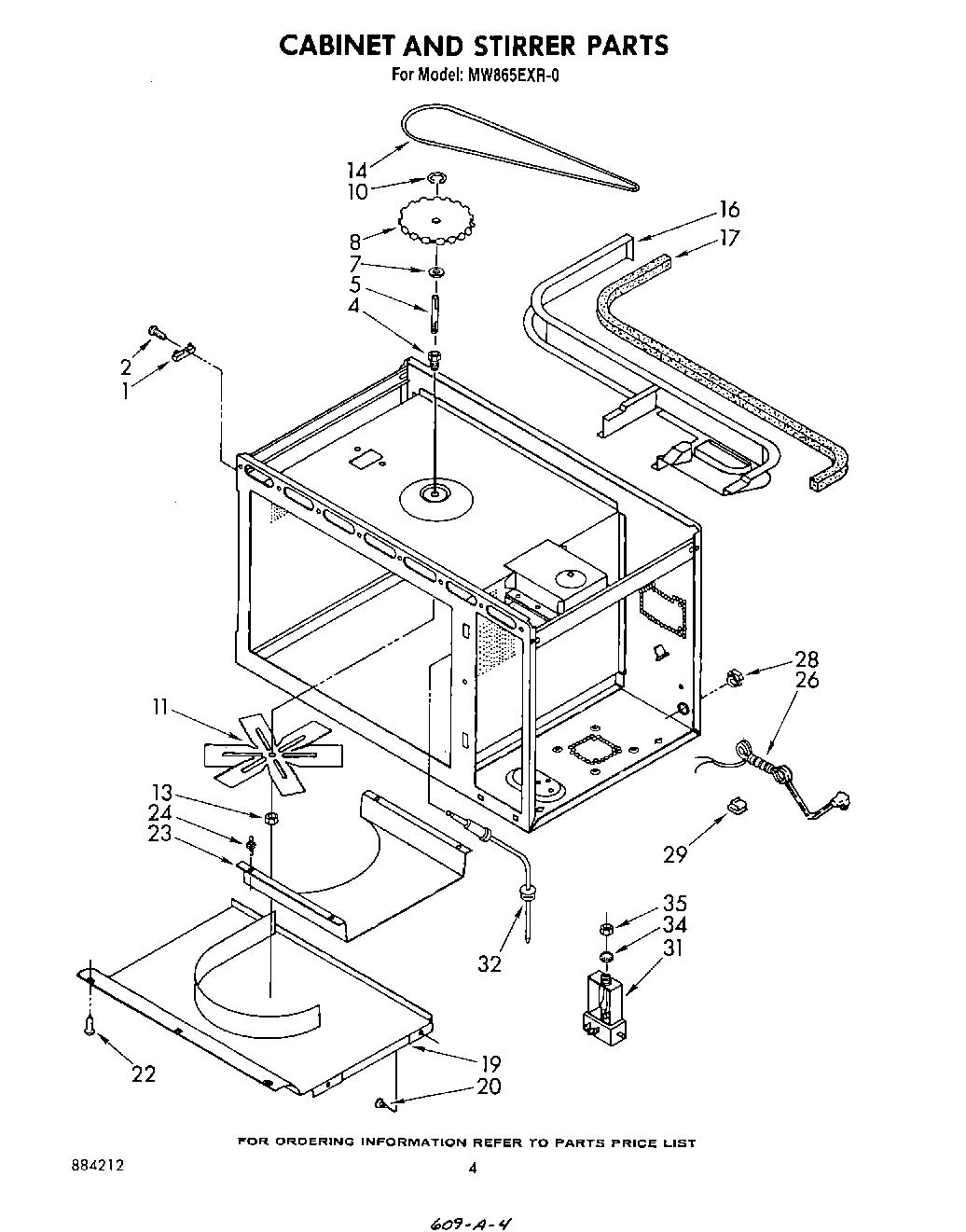

03 - CABINET AND STIRRER

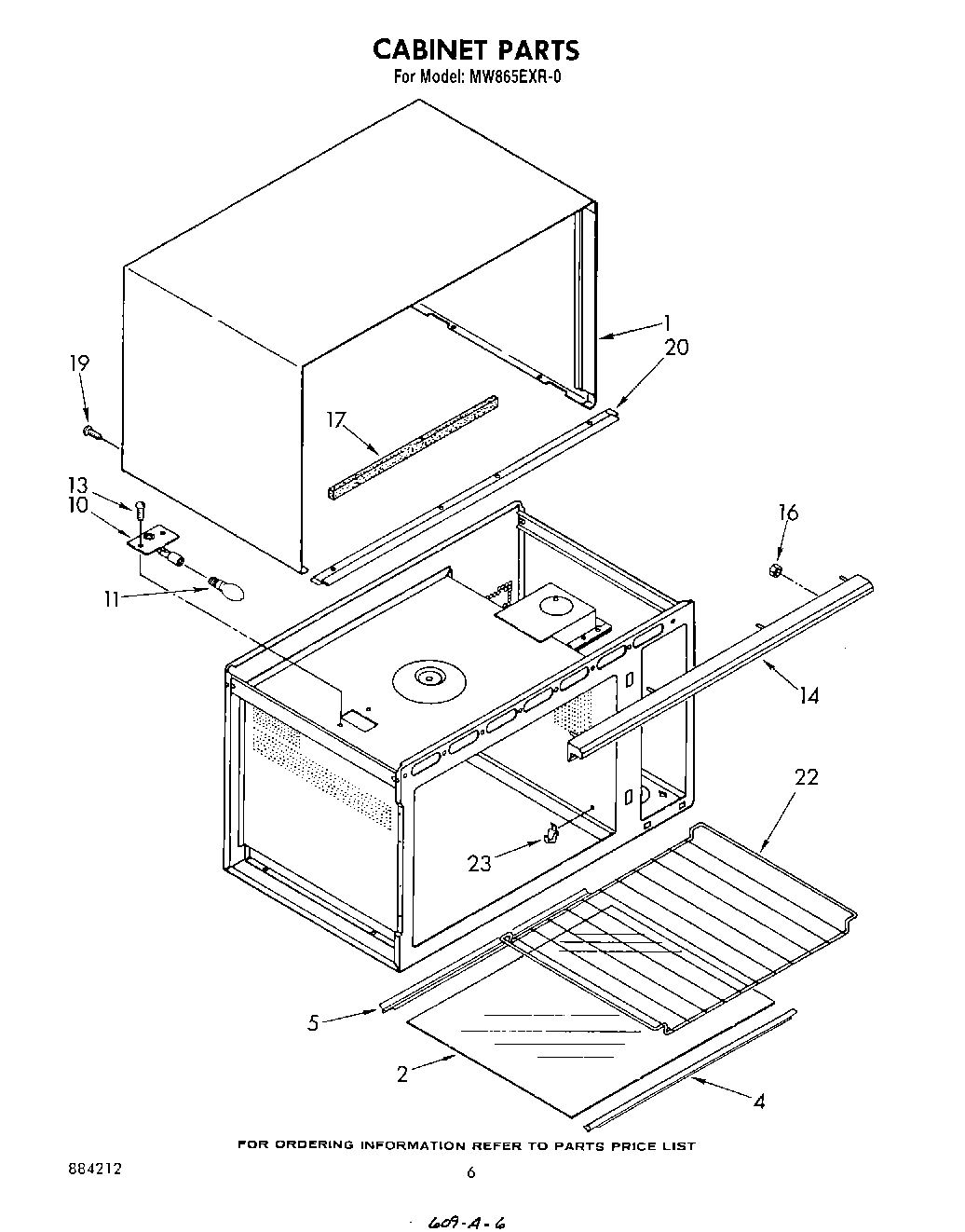

04 - CABINET

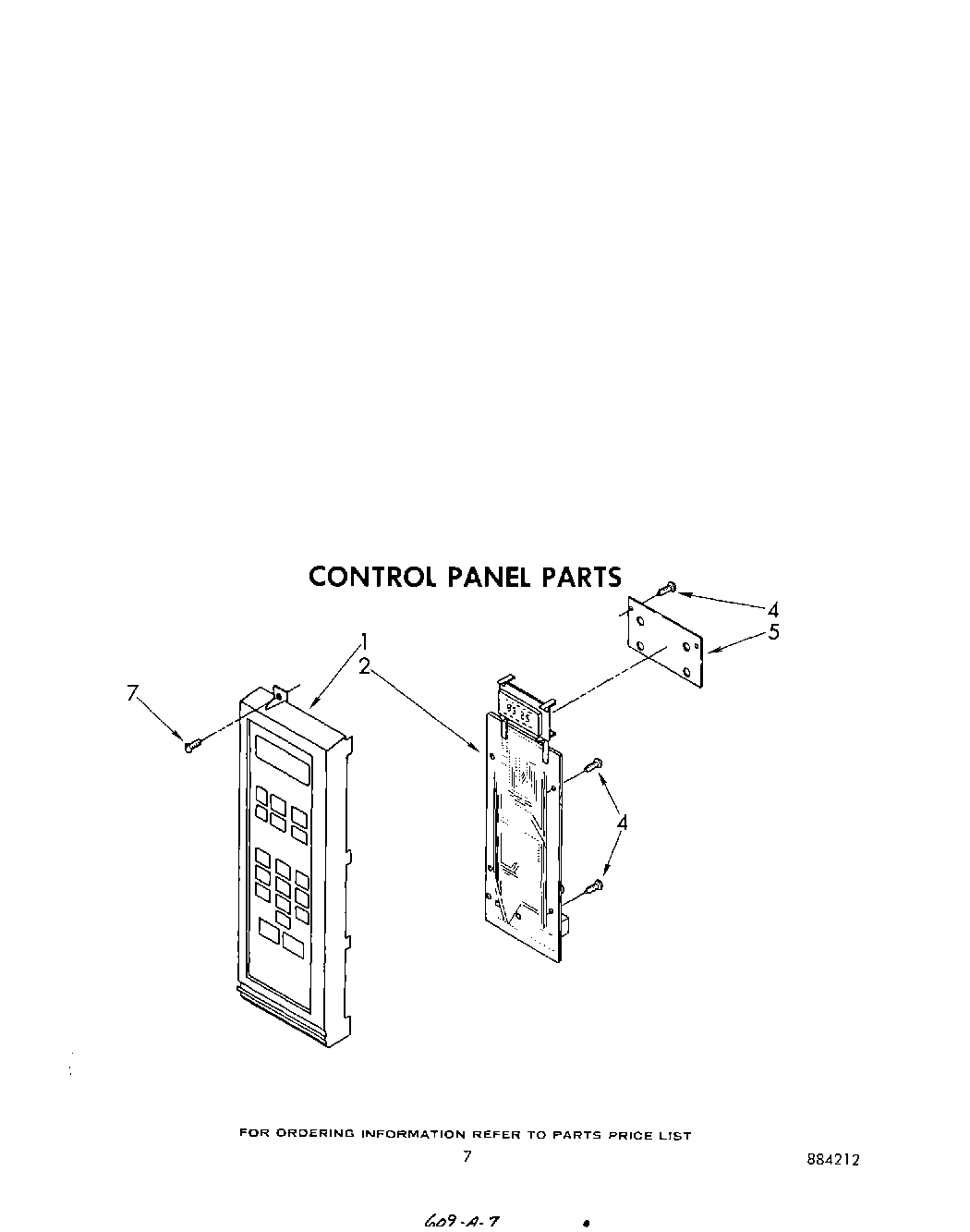

05 - CONTROL PANEL

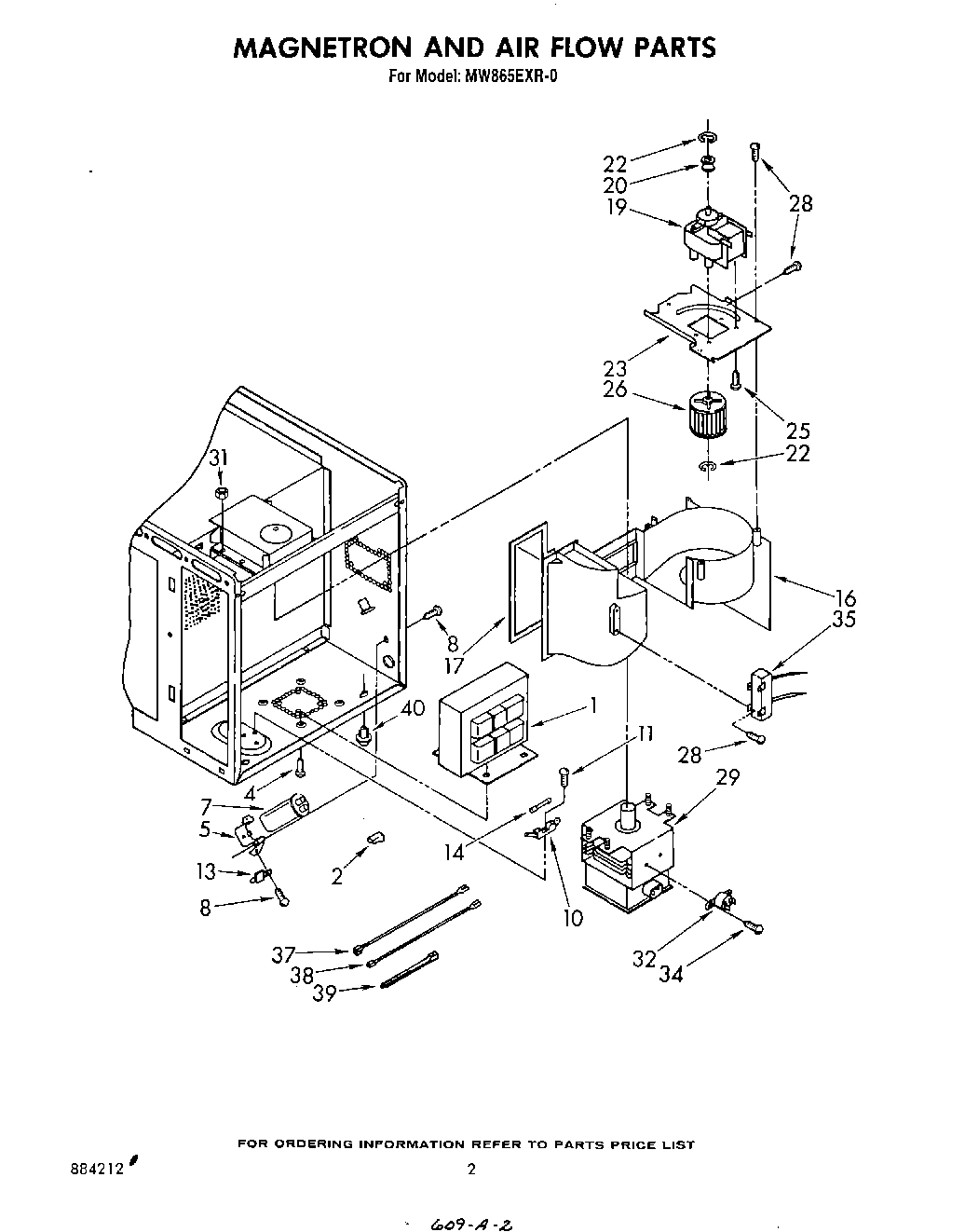

02 - MAGNETRON AND AIR FLOW

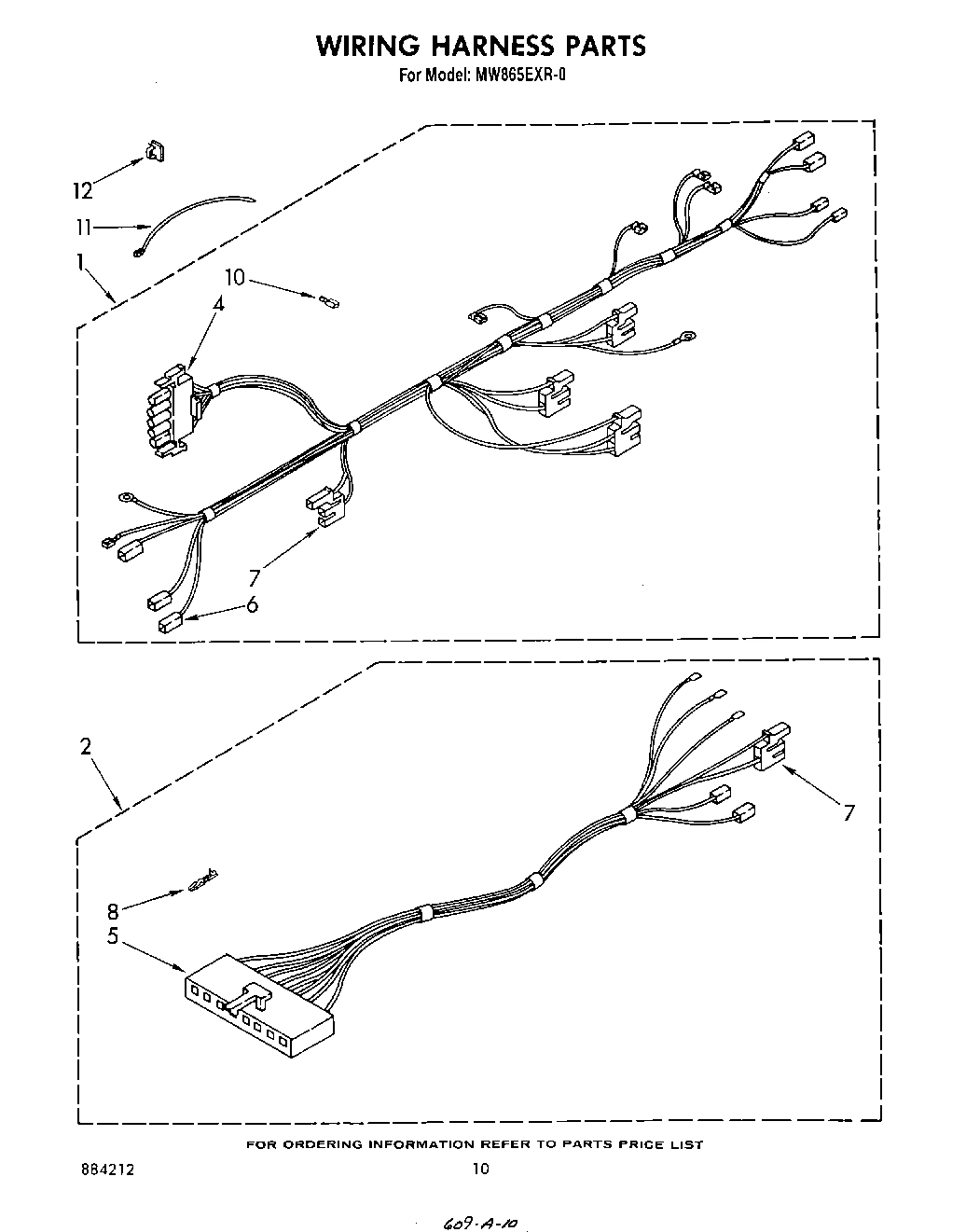

07 - WIRING HARNESS , LITERATURE AND OPTIONAL

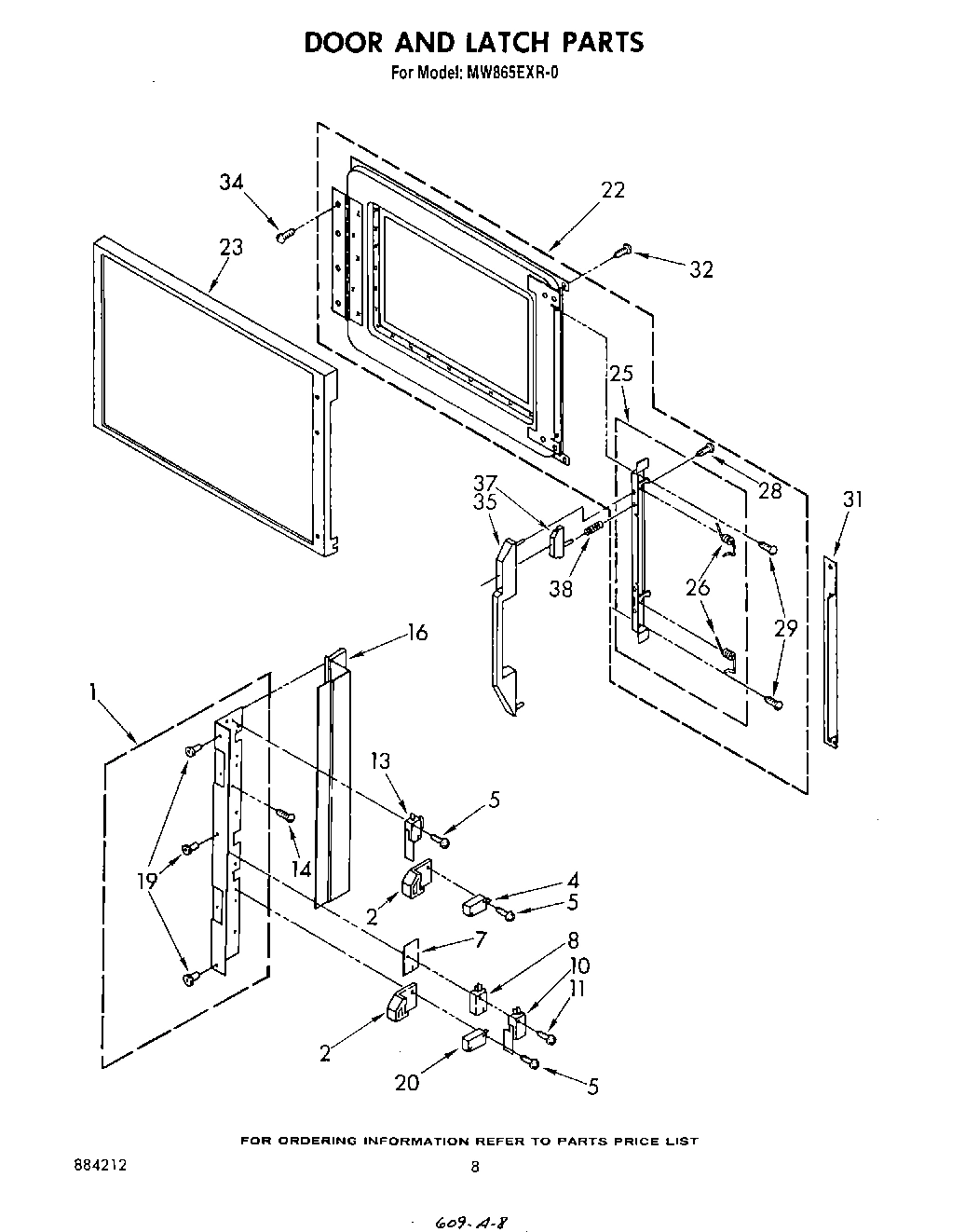

06 - DOOR AND LATCH
Common parts from model Whirlpool MW865EXR0
Cookbook WPL LIT311894 Contact Us For Availability
Tech Sheet WPL LIT313842 Contact Us For Availability
Guide, Use & Care WPL LIT314061 Contact Us For Availability
List, Repair Parts WPL LIT884212 Contact Us For Availability
1
Wrapper, Cabinet WPL 3147222 Contact Us For Availability
1
Frame, Control Panel WPL 330658 Contact Us For Availability
1
Transformer (Alt.) WPL 313671 Contact Us For Availability
1
Transformer (Alt.) WPL 313672 Contact Us For Availability
1
Transformer WPL 661166 Contact Us For Availability
1
Harness, Wiring Main WPL 313972 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
2
Shelf, Cavity (Install W/Silastic NO. 482338) WPL 313639 Contact Us For Availability
2
Microcomputer WPL 61791 Contact Us For Availability
2
Housing Receptacle WPL 312813 Contact Us For Availability
2
Harness, Wiring Control WPL 313342 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Screw (6) WPL 313818 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Block, Disconnect WPL 311574 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Shield, Display WPL 313640 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Housing, Connector WPL 308665 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
6
Housing, Connector WPL 307772 Contact Us For Availability
7
Screw 8-32 X 1/2 WPL 313679 Contact Us For Availability
7
capacitor (alt.) WPL 312631 Contact Us For Availability
7
Capacitor WPL 661004 Contact Us For Availability
7
Insulator Pad, Straight (5) WPL 310241 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
8
Screw 8-32 x 3/8 (3) WPL 312713 Contact Us For Availability
8
Receptacle WPL 308564 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313075 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313123 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
Socket, Complete WPL 330514 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313076 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Screw 10-32 WPL 313806 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
12
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
12
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
12
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
12
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
12
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
12
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
12
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
12
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
12
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
12
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
12
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
12
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
12
Clip, Wire WPL 313920 Contact Us For Availability
12
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
12
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
12
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
12
Bi-Level Cooking Rack WPL 832985 Contact Us For Availability
12
Built-in Kits (30``) WPL 832987 Contact Us For Availability
12
24`` Built-In Kit WPL 832989 Contact Us For Availability
12
27``built-in Kit WPL 832991 Contact Us For Availability
12
Wall Mount Kit WPL 832993 Contact Us For Availability
13
Rectifer, High Voltage (Alt.) WPL 313831 Contact Us For Availability
13
Rectifer, High Voltage (ALt.) WPL 313923 Contact Us For Availability
13
Rectifer, High Voltage WPL 661171 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Grille, Air WPL 314309 Contact Us For Availability
14
Fuse (15 Amp) (Alt.) WPL 313887 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
16
Baffle, Air WPL 313959 Contact Us For Availability
16
Nut (3) WPL 3147378 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
17
Seal, Foam WPL 313749 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
19
Motor WPL 313641 Contact Us For Availability
19
Rivet, Pop (6) WPL 311928 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
20
Trim, Wrapper Lower WPL 3147239 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
22
``E`` Ring (2) WPL 311999 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
rack, wire WPL 313663 Contact Us For Availability
22
Door, Inner WPL 330655 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
23
Frame, Door WPL 330556 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313392 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313393 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
26
Wheel, Blower WPL 3147179 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
28
screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
29
Magnetron (Alt.) WPL 311992 Contact Us For Availability
29
Magnetron (Alt.) WPL 311993 Contact Us For Availability
29
Magnetron (Alt.) WPL 313034 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
31
Jack, Probe WPL 313458 Contact Us For Availability
31
Flange Nut (4) WPL 310300 Contact Us For Availability
31
End Cap WPL 314192 Contact Us For Availability
32
Probe, Tempature (Alt.) WPL 313044 Contact Us For Availability
32
Probe, Tempature (Alt.) WPL 313527 Contact Us For Availability
32
Probe, Tempature WPL 661164 Contact Us For Availability
32
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
32
Screw 8-32 (4) WPL 313823 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
35
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
35
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
35
Reed Relay WPL 661005 Contact Us For Availability
35
Handle, Door WPL 314169 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
40
Foot, Base (4) WPL 3147276 Contact Us For Availability
× ![]()
