Model Whirlpool MW8550XS5 – Common Parts & Diagrams

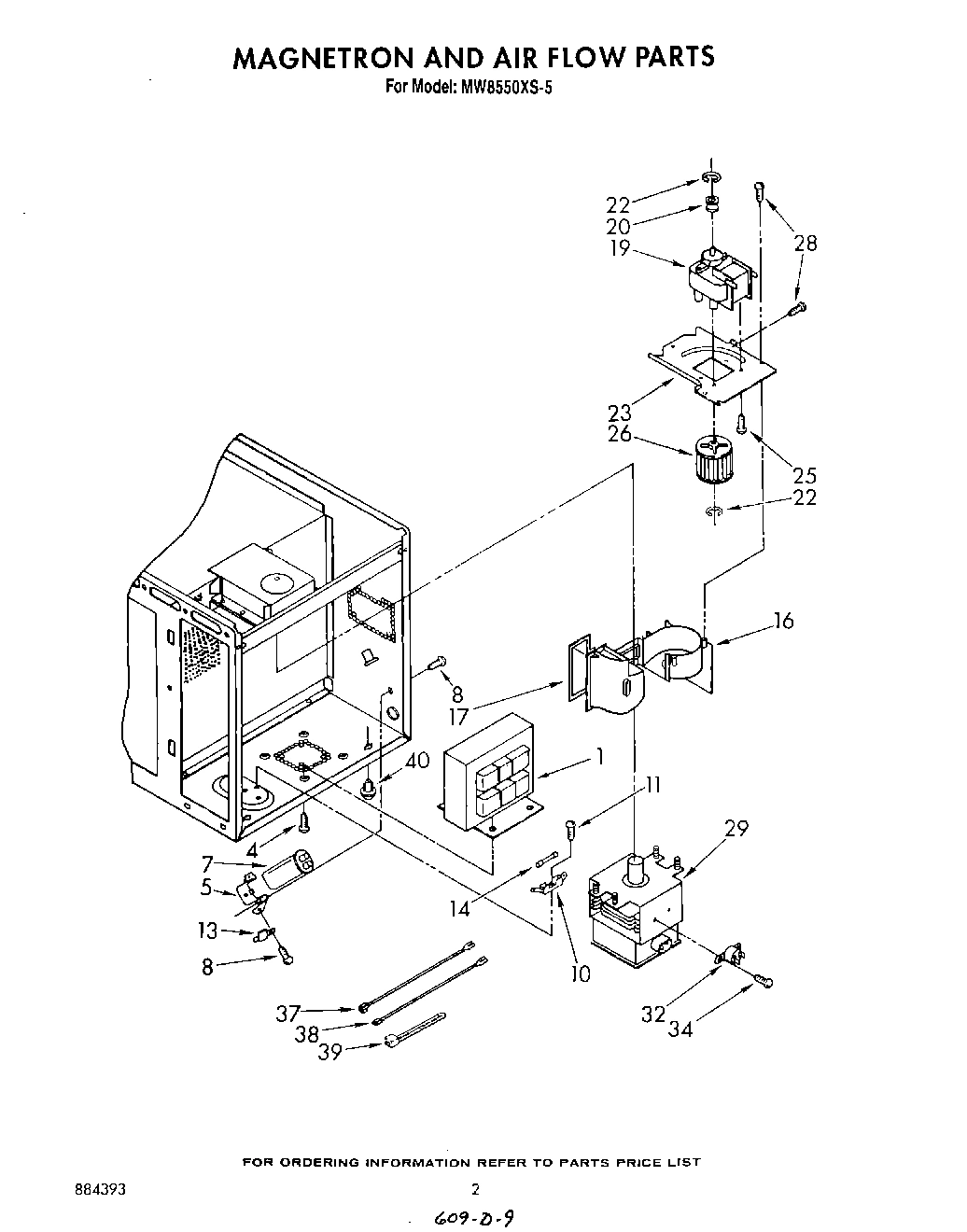

02 - SECTION

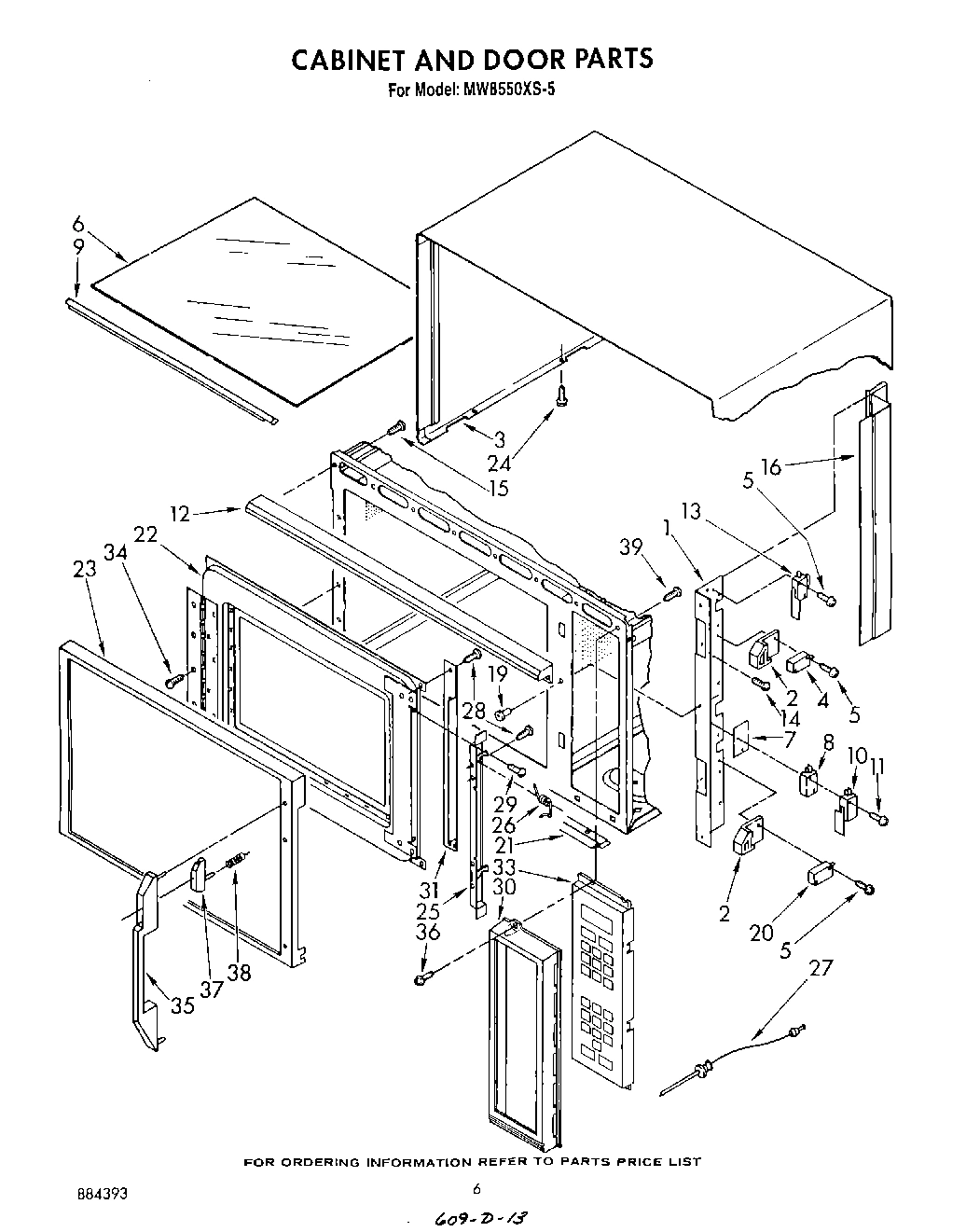

04 - SECTION
01 - SECTION
03 - SECTION
Common parts from model Whirlpool MW8550XS5
WPL LIT313145 WPL LIT313145 Contact Us For Availability
WPL LIT3147210 WPL LIT3147210 Contact Us For Availability
WPL LIT3148798 WPL LIT3148798 Contact Us For Availability
WPL LIT884393 WPL LIT884393 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Thermal Fuse WPL 313855 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
3
Cabinet WPL 313568 Contact Us For Availability
3
Socket, Light WPL 330514 Contact Us For Availability
4
Bushing, Stirrer WPL 312023 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Shaft, Stirrer WPL 312026 Contact Us For Availability
6
Shelf, Glass Install With: WPL 313639 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Washer, Stirrer WPL 312025 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
Pulley, WPL 311923 Contact Us For Availability
9
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
9
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
9
screw (2) WPL 312713 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
10
``E`` Ring WPL 311999 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
12
Grille, Air WPL 3149307 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
15
Screw (3) WPL 3149443 Contact Us For Availability
15
Fastener WPL 310423 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
16
Baffle, Air WPL 3147216 Contact Us For Availability
18
Seal, Foam WPL 313750 Contact Us For Availability
19
Rivet, Pop (6) WPL 311928 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
21
Trim, Cabinet Front WPL 313598 Contact Us For Availability
22
Door, Inner WPL 3170444 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
23
Frame, Door WPL 3170439 Contact Us For Availability
23
Plate, Tunning (Includes No. 24) WPL 313735 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
27
Probe, Temperature WPL 313527 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
30
Frame, Control WPL 3148073 Contact Us For Availability
30
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
30
Thermometer (Microwave Only) WPL 1409 Contact Us For Availability
30
Popper, Popcorn (Microwave Only) WPL 1493 Contact Us For Availability
30
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
30
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
30
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
30
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
30
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
30
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
30
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
30
Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Ratin WPL 242826 Contact Us For Availability
30
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
30
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
30
Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Ratin WPL 242829 Contact Us For Availability
30
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
30
Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Ratin WPL 242832 Contact Us For Availability
30
B WPL 242860 Contact Us For Availability
30
WPL 261890 WPL 261890 Contact Us For Availability
30
WPL 261891 WPL 261891 Contact Us For Availability
30
WPL 285365 WPL 285365 Contact Us For Availability
30
WPL 285366 WPL 285366 Contact Us For Availability
30
WPL 285367 WPL 285367 Contact Us For Availability
30
WPL 285368 WPL 285368 Contact Us For Availability
30
WPL 313786 WPL 313786 Contact Us For Availability
30
WPL 350806 WPL 350806 Contact Us For Availability
30
WPL 350941 WPL 350941 Contact Us For Availability
30
WPL 591014 WPL 591014 Contact Us For Availability
30
WPL 72112 WPL 72112 Contact Us For Availability
30
WPL 786020 WPL 786020 Contact Us For Availability
30
WPL 786032 WPL 786032 Contact Us For Availability
30
WPL 832985 WPL 832985 Contact Us For Availability
30
WPL 832987 WPL 832987 Contact Us For Availability
30
WPL 832989 WPL 832989 Contact Us For Availability
30
WPL 832991 WPL 832991 Contact Us For Availability
30
WPL 832993 WPL 832993 Contact Us For Availability
30
WPL 978849 WPL 978849 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
End Cap WPL 3148296 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
32
Screw 8-32 (4) WPL 313823 Contact Us For Availability
33
Module, Control WPL 3148255 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
35
Handle, Door WPL 313610 Contact Us For Availability
36
screw (2) WPL 313818 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
38
Harness, Wiring (Control Panel) WPL 3147161 Contact Us For Availability
40
Harness, Wiring Main WPL 3147072 Contact Us For Availability
40
Foot, Base (4) WPL 3147276 Contact Us For Availability
× ![]()
