Model Whirlpool MW8200XL2 – Common Parts & Diagrams

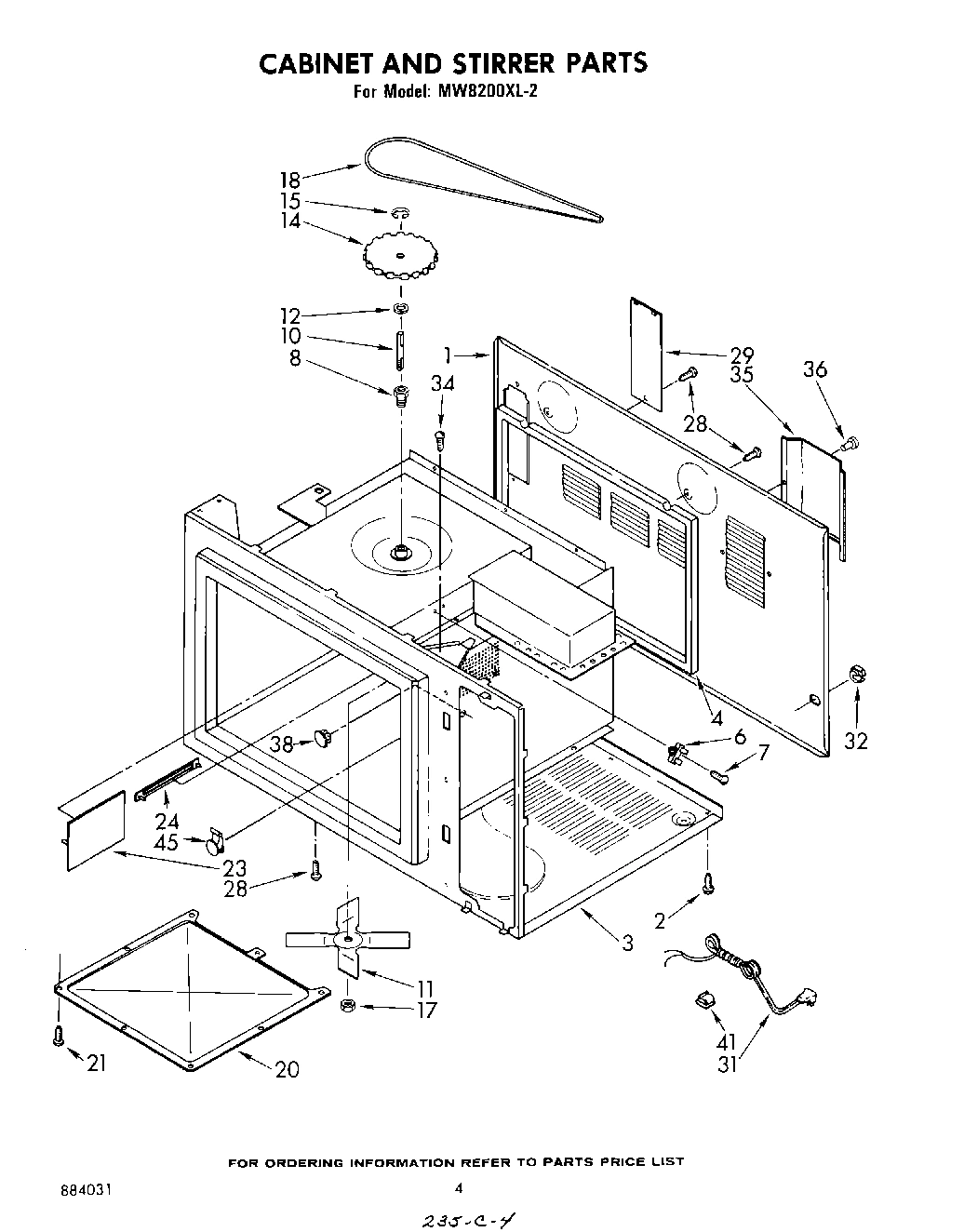

03 - CABINET AND STIRRER

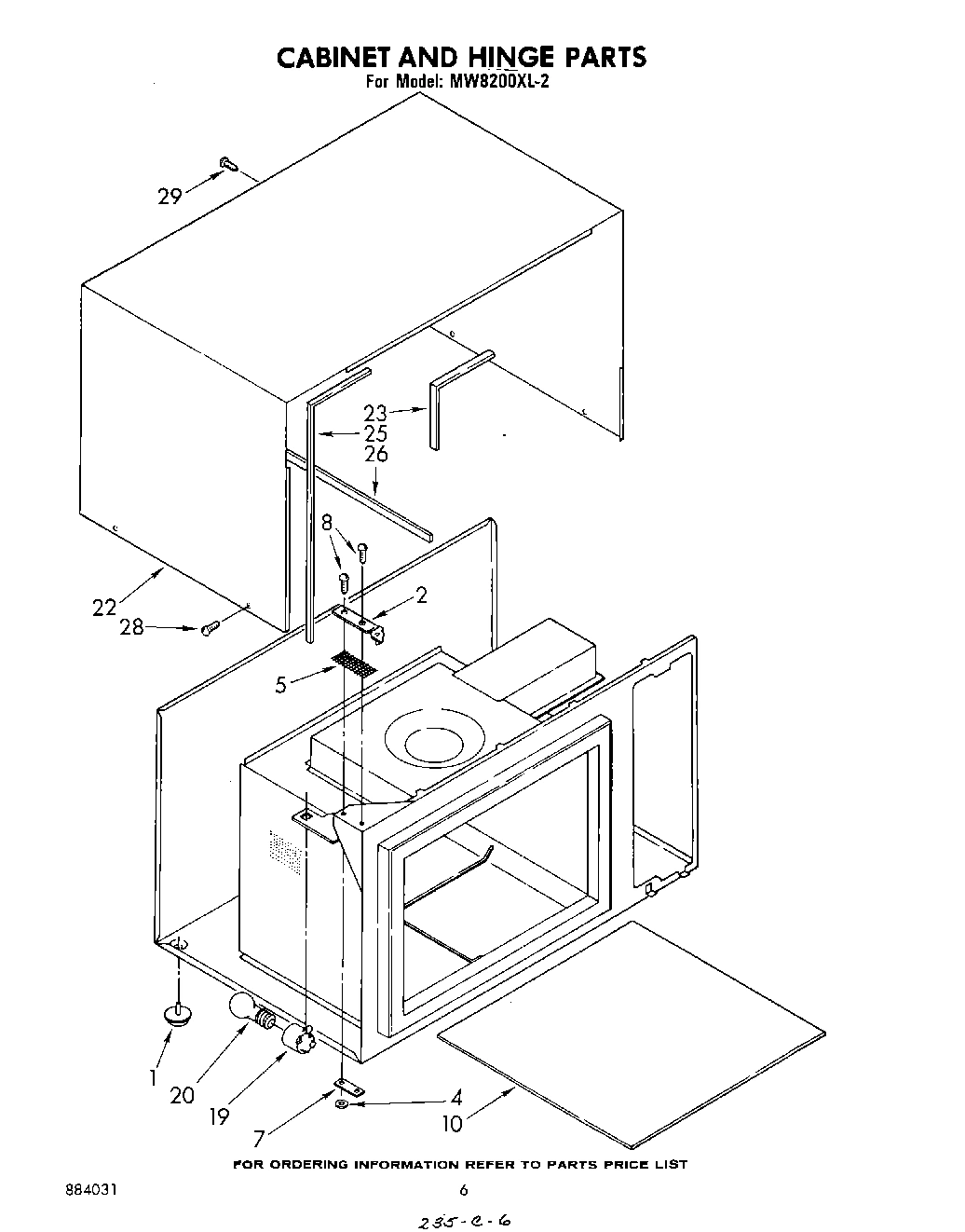

04 - CABINET AND HINGE

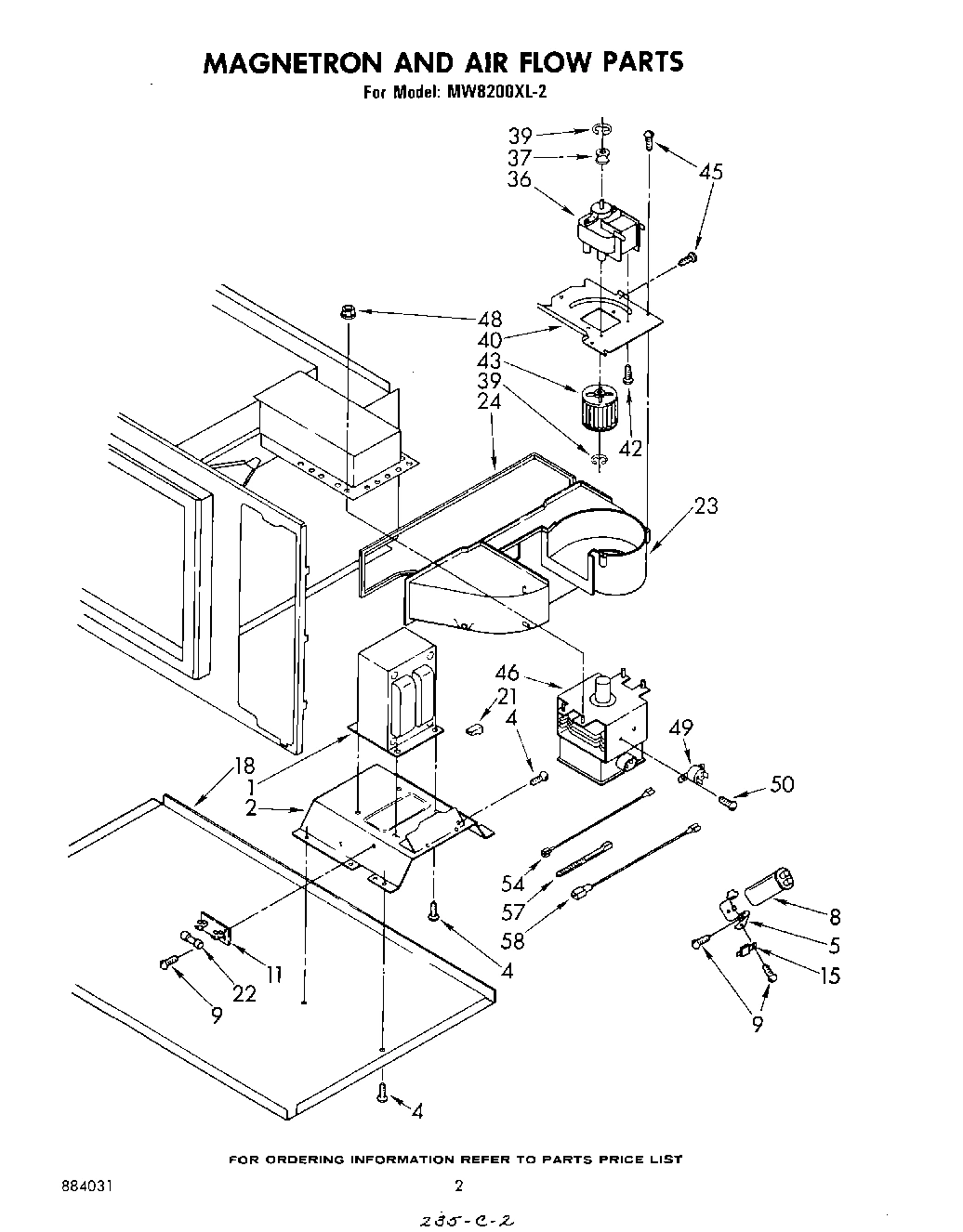

02 - MAGNETRON AND AIR FLOW

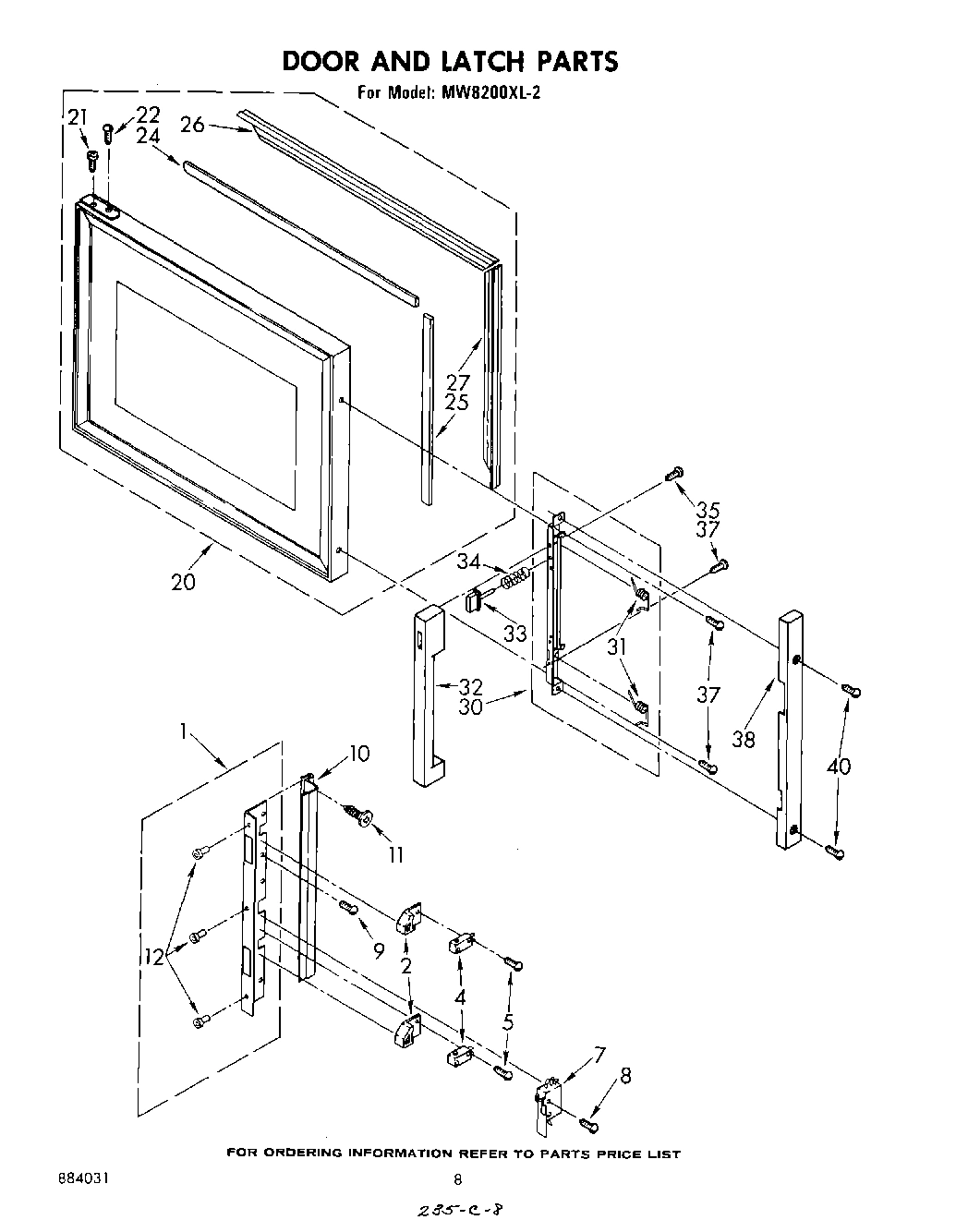

05 - DOOR AND LATCH

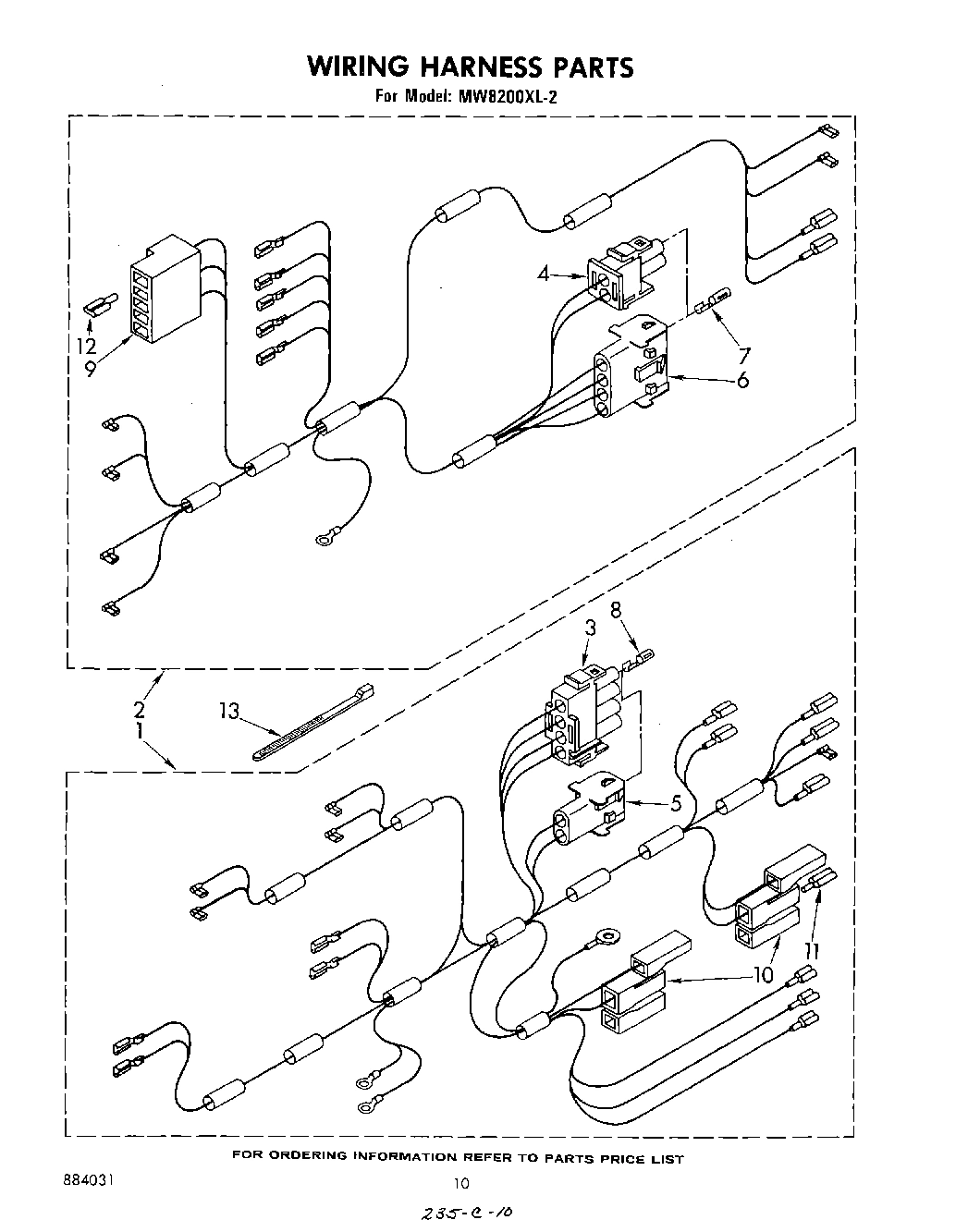

06 - WIRING HARNESS , LIT/OPTIONAL

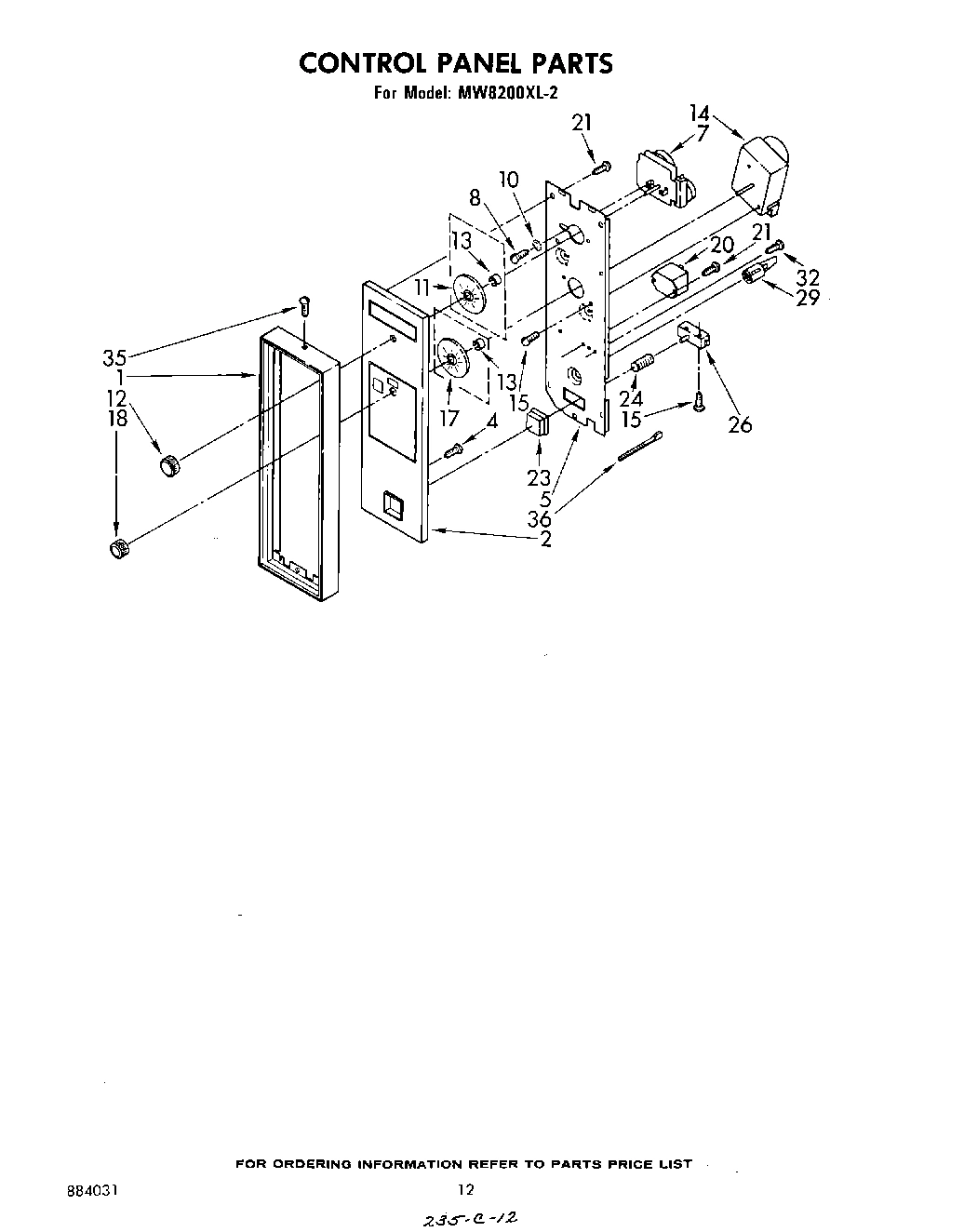

07 - CONTROL PANEL
Common parts from model Whirlpool MW8200XL2
1
Foot, Base (4) WPL 311942 Contact Us For Availability
1
Transformer (Alternate) WPL 311937 Contact Us For Availability
1
Transformer (Alternate) WPL 312644 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Harness, Wiring Main WPL 312637 Contact Us For Availability
1
Frame, Control Panel WPL 312588 Contact Us For Availability
2
Hinge Assembly (Top) WPL 329070 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 329071 Contact Us For Availability
2
Bracket, Transformer WPL 312645 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Harness, Wiring Control WPL 312624 Contact Us For Availability
2
Control Panel WPL 312094 Contact Us For Availability
3
Plug, Circuit (4 Terminal) WPL 310958 Contact Us For Availability
4
Screw, 10-32 x 1/2 Pan Head W/ Locking Nibs ( WPL 312185 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 311358 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Bracket, Support WPL 310163 Contact Us For Availability
6
Thermal Fuse (Includes Illus. 7) WPL 309279 Contact Us For Availability
6
Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Switch, Monitor/Oven Light WPL 311355 Contact Us For Availability
7
Pin, Male WPL 310222 Contact Us For Availability
7
Timer, Expanded Scale WPL 310185 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, No.10 x 32 Torx Recess W/Dri Lock (4) WPL 312742 Contact Us For Availability
8
Capacitor (Alternate) WPL 312631 Contact Us For Availability
8
Capacitor (Alternate) WPL 661004 Contact Us For Availability
8
Pin, Female WPL 310223 Contact Us For Availability
8
Screw, 6-32 x 1/4 Round Head Phillips (2) WPL 487384 Contact Us For Availability
9
Screw, 8-32 x 3/8 Pan Head W/ Locking Nibs (5 WPL 312713 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Block (3 Terminal) WPL 309764 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Shelf, Microwave (Alternate) WPL 309145 Contact Us For Availability
10
Shelf, Microwave (Alternate) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alternate (Install W/Silast WPL 312579 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Insulator Pod Straight (2) (Interlock Switch) WPL 310241 Contact Us For Availability
10
Lockwasher Dial, Timer WPL 138473 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Accordian Rivet (3) WPL 310423 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Dial, Timer (Alternate) WPL 312134 Contact Us For Availability
11
Dial, Timer (Alternate) WPL 312170 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Receptacle WPL 309765 Contact Us For Availability
12
Knob (Meal Timer) WPL 312716 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire (12 Ga. 150oc Red) WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire (14 Ga. 200oc Yellow) WPL 242832 Contact Us For Availability
13
Cookbook WPL 310847 Contact Us For Availability
13
Guide, Use & Care WPL 311876 Contact Us For Availability
13
Instructions, Installation WPL 312141 Contact Us For Availability
13
Tech Sheet WPL 312627 Contact Us For Availability
13
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
13
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
13
RCK811 30`` Wall Mount Grille Kit WPL 832763 Contact Us For Availability
13
RCK713 Wall Mount Bookcase WPL 832769 Contact Us For Availability
13
RCK803 30`` Built-In Kit WPL 832849 Contact Us For Availability
13
RCK805 25-3/4`` Built-In Kit WPL 832856 Contact Us For Availability
13
Storage Cabinet WPL 832873 Contact Us For Availability
13
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
13
RCK807 27`` Built-In Kit WPL 832950 Contact Us For Availability
13
List, Repair Parts WPL 884031 Contact Us For Availability
13
Ring, Compression WPL 310641 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Timer, Variable Power Control WPL 310186 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
Screw, No.6-32 x 7/8 Hex Washer Head Unslotte WPL 98106 Contact Us For Availability
17
Dial, V.P.C. (Alternate) WPL 312132 Contact Us For Availability
17
Dial, V.P.C. (Alternate) WPL 312168 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI119415A Contact Us For Availability
18
Knob (V.P.C. Timer) WPL 312714 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
20
Cover, Stirrer WPL 309441 Contact Us For Availability
20
Door WPL 329626 Contact Us For Availability
20
Relay, Power WPL 311508 Contact Us For Availability
21
Housing Receptacle WPL 307772 Contact Us For Availability
22
Wrapper, Cabinet (Includes Illus. 23, 25 & 26 WPL 328644 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Foam, Seal WPL 308292 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Button, Push To Start WPL 310141 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Spring, Compression WPL 310200 Contact Us For Availability
25
Foam, Seal WPL 308294 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
26
Foam, Seal WPL 308295 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Switch, Push WPL 310162 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
Screw, 10A x 1/2 Truss Head Philips Black (10 WPL 307748 Contact Us For Availability
29
Cover, Lamp WPL 307512 Contact Us For Availability
29
Screw, 10-32 x 1/2 (Ground) Serrated Roll Loc WPL 258857 Contact Us For Availability
29
Indicator, Light WPL 312175 Contact Us For Availability
30
Latch Assembly WPL 329063 Contact Us For Availability
31
Power Cord (Alternate) WPL 311955 Contact Us For Availability
31
Power Cord (Alternate) WPL 311960 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Strain Relief, Bushing WPL 311954 Contact Us For Availability
32
Handle, Door WPL 311887 Contact Us For Availability
32
Screw, No.10-32 x 3/8 Tr Head Tapping (Ground WPL 342043 Contact Us For Availability
33
Button, Door Handle WPL 311889 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
Shield, Louver (Includes Illus. 36) WPL 312000 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Rivet (2) WPL 307848 Contact Us For Availability
36
Motor (Alternate) WPL 311998 Contact Us For Availability
36
Motor (Alternate) WPL 312478 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Plug WPL 309960 Contact Us For Availability
38
End Cap WPL 311886 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
45
Hole Plug (4) WPL 312214 Contact Us For Availability
45
screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability
46
Magnetron (Alternate) WPL 311992 Contact Us For Availability
46
Magnetron (Alternate) WPL 311993 Contact Us For Availability
46
Magnetron (Alternate) WPL 311994 Contact Us For Availability
48
Flange Nut (4) WPL 310300 Contact Us For Availability
49
Thermal Fuse WPL 307564 Contact Us For Availability
50
Screw (2) WPL 312782 Contact Us For Availability
54
Jumper, High Voltage Red 6-3/4 (3) WPL 312009 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability
× ![]()
