Model Whirlpool MW8100XR0 – Common Parts & Diagrams
03 - CABINET AND STIRRER
06 - DOOR AND LATCH

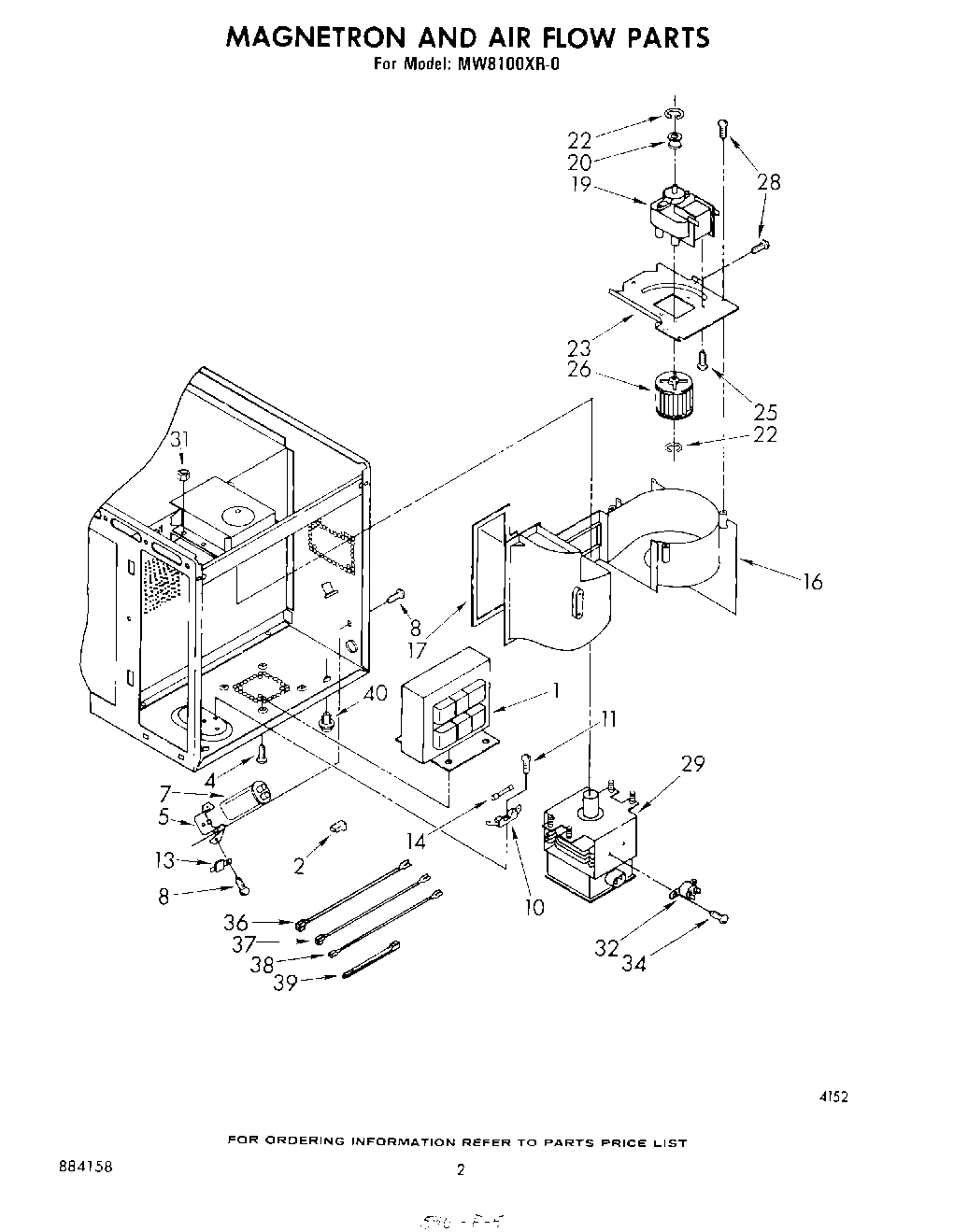

02 - MAGNETRON AND AIR FLOW

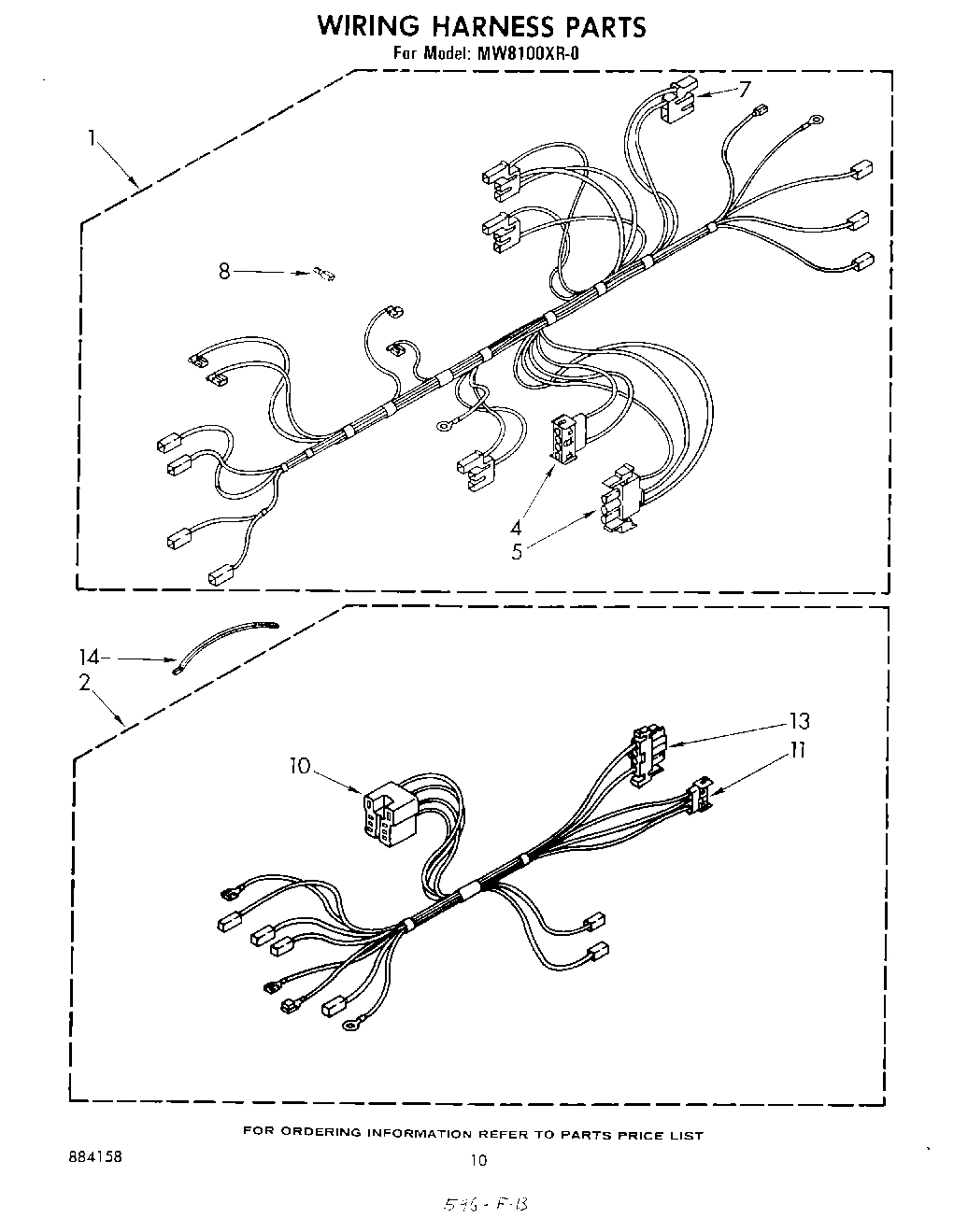

07 - WIRING HARNESS , LITERATURE AND OPTIONAL

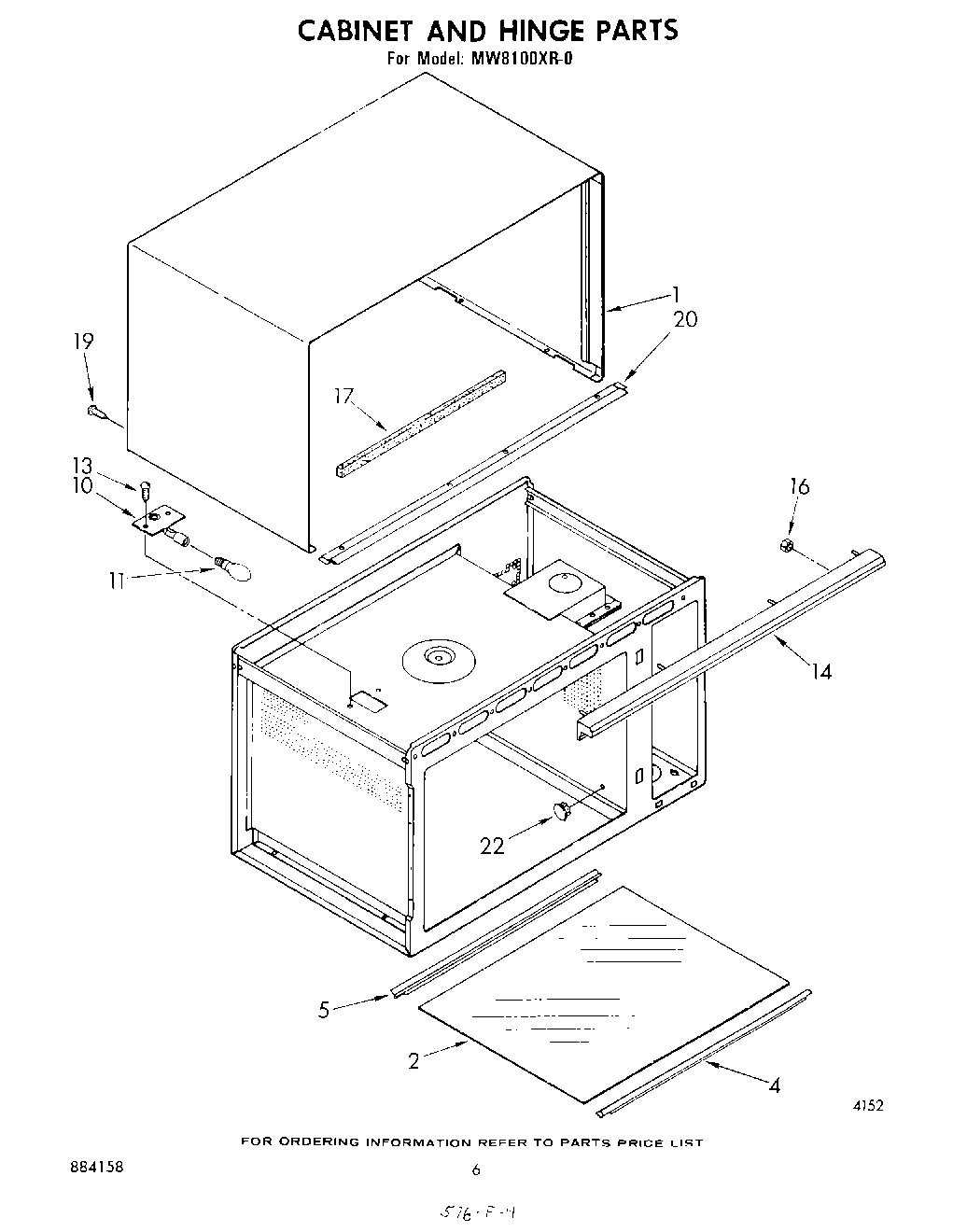

04 - CABINET AND HINGE

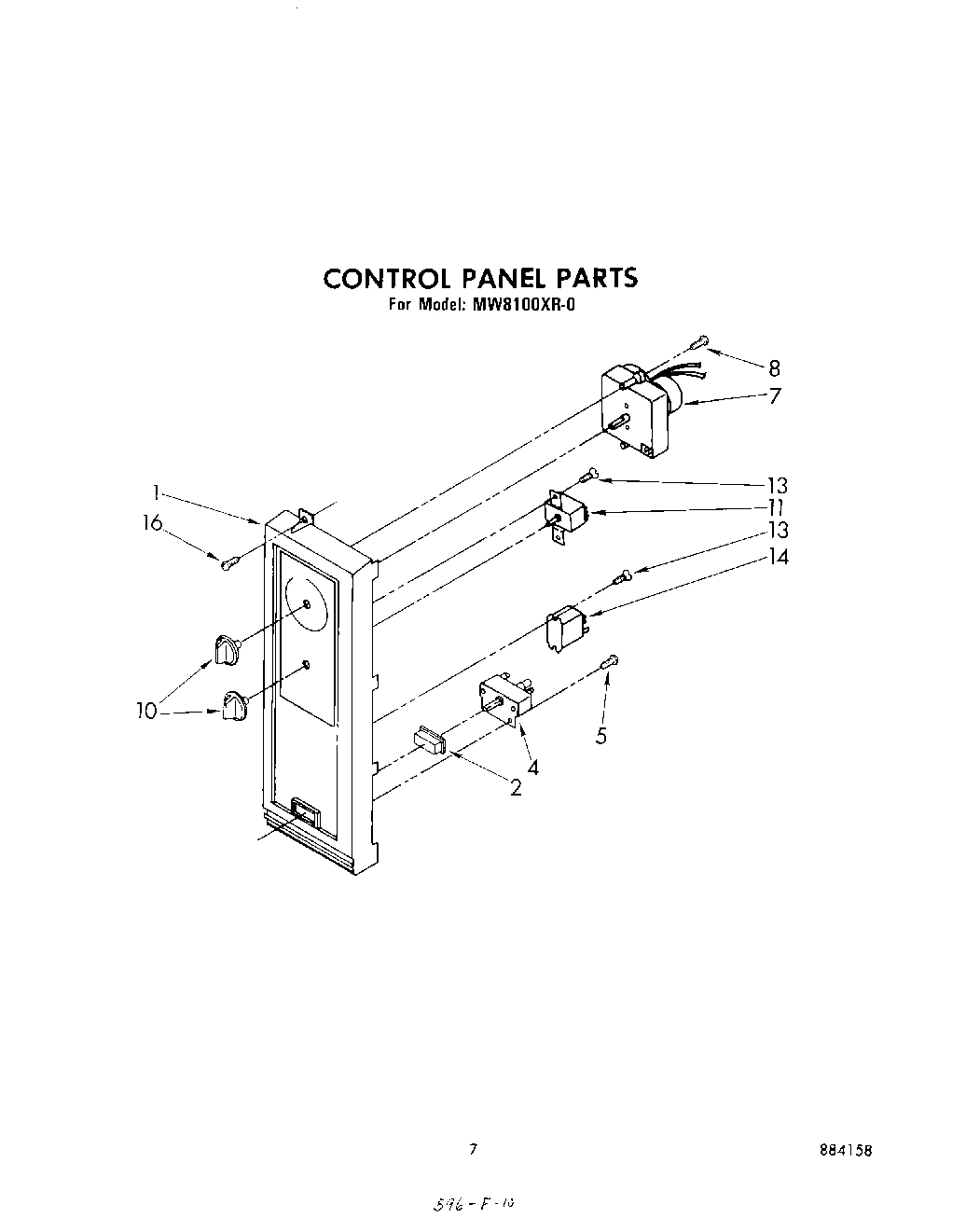

05 - CONTROL PANEL
Common parts from model Whirlpool MW8100XR0
Cookbook WPL LIT309887 Contact Us For Availability
Tech Sheet WPL LIT313617 Contact Us For Availability
Guide, Use & Care WPL LIT313664 Contact Us For Availability
List, Repair Parts WPL LIT884158 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Transformer (Alt.) WPL 313671 Contact Us For Availability
1
Transformer (Alt.) WPL 313672 Contact Us For Availability
1
Transformer WPL 661166 Contact Us For Availability
1
Harness, Wiring (Main) WPL 313645 Contact Us For Availability
1
Wrapper, Cabinet WPL 313568 Contact Us For Availability
1
Frame, Control Panel WPL 330462 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Housing Receptacle WPL 312813 Contact Us For Availability
2
Harness, Wiring (Control) WPL 313690 Contact Us For Availability
2
Shelf, Cavity (Install W/Silastic NO. 482338) WPL 313639 Contact Us For Availability
2
Button, Start WPL 313661 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Block, Disconnect WPL 310959 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Switch, Start WPL 313817 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Screw 8-32 (2) WPL 313823 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Housing, Connector WPL 311150 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Capacitor WPL 312631 Contact Us For Availability
7
Insulator Pad, Straight (5) WPL 310241 Contact Us For Availability
7
Timer, Linear WPL 313606 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313075 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313123 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
Screw (2) WPL 313819 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313076 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
10
Housing, Connector WPL 60687 Contact Us For Availability
10
Socket, Complete WPL 330449 Contact Us For Availability
10
Knob, Timer (2) WPL 313743 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
11
Screw 10-32 WPL 313806 Contact Us For Availability
11
Block, Disconnect WPL 309105 Contact Us For Availability
11
Switch, Rotary WPL 313692 Contact Us For Availability
13
Screw, 8-32 x 3/8 (2) WPL 312713 Contact Us For Availability
13
Rectifer, High Voltage (Alt.) WPL 313831 Contact Us For Availability
13
Rectifer, High Voltage WPL 661171 Contact Us For Availability
13
Block, Disconnect WPL 310957 Contact Us For Availability
13
screw (2) WPL 313818 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
14
Fuse (15 Amp) (Alt.) WPL 313887 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
14
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
14
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
14
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
14
Bi-Level Cooking Rack WPL 832985 Contact Us For Availability
14
Built-in Kits (30``) WPL 832987 Contact Us For Availability
14
24`` Built-In Kit WPL 832989 Contact Us For Availability
14
27``built-in Kit WPL 832991 Contact Us For Availability
14
Wall Mount Kit WPL 832993 Contact Us For Availability
14
Grille, Air WPL 313603 Contact Us For Availability
14
Relay, Power (Alt.) WPL 310371 Contact Us For Availability
14
Relay, Power (Alt.) WPL 310373 Contact Us For Availability
14
Relay, Power WPL 660548 Contact Us For Availability
16
Baffle, Air WPL 313599 Contact Us For Availability
16
Shield WPL 311359 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
Nut (3) WPL 98788 Contact Us For Availability
17
Seal, Foam WPL 313751 Contact Us For Availability
17
Accordian Rivet.(2) WPL 310423 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
19
Rivet, Pop (6) WPL 311928 Contact Us For Availability
19
Motor WPL 313641 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
20
Trim, Wrapper Lower WPL 313598 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
Door, Inner WPL 330451 Contact Us For Availability
22
``E`` Ring (2) WPL 311999 Contact Us For Availability
22
Plug, Hole (4) WPL 313786 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
23
Frame, Door WPL 330452 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313392 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313393 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
Wheel, Blower WPL 313787 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
28
screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
29
Magnetron (Alt.) WPL 311992 Contact Us For Availability
29
Magnetron (Alt.) WPL 311993 Contact Us For Availability
29
Magnetron (Alt.) WPL 313034 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
31
End Cap WPL 313649 Contact Us For Availability
31
Flange Nut (4) WPL 310300 Contact Us For Availability
32
Thermal Protector WPL 312800 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
35
Handle, Door WPL 313610 Contact Us For Availability
36
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
37
Jumper, High Voltage Black 13-15/16`` WPL 312793 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
40
Foot, Base (4) WPL 313744 Contact Us For Availability
× ![]()
