Model Whirlpool MW8100XP0 – Common Parts & Diagrams
02 - MAGNETRON AND AIR FLOW
04 - CABINET AND HINGE

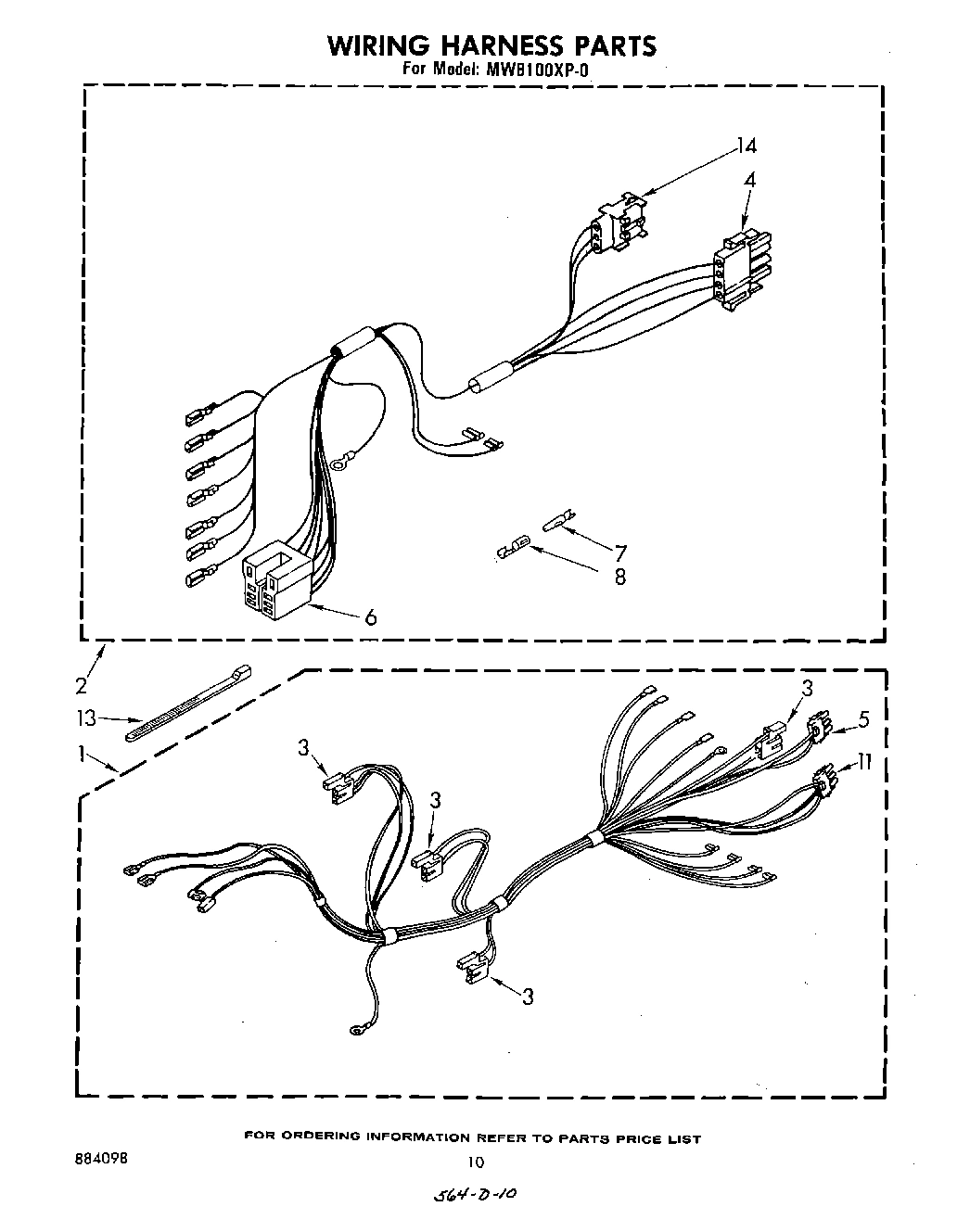

06 - WIRING HARNESS , LIT/OPTIONAL

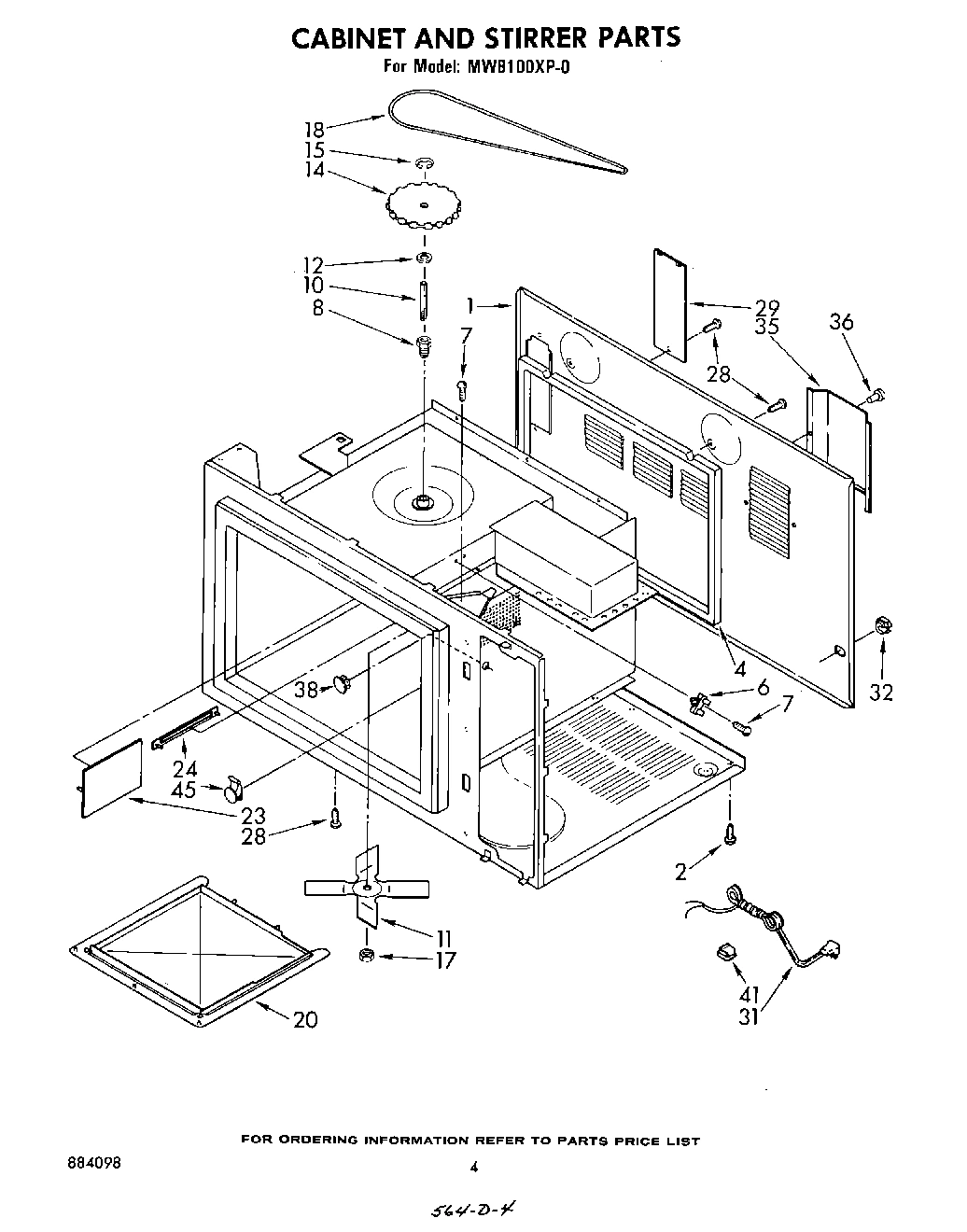

03 - CABINET AND STIRRER

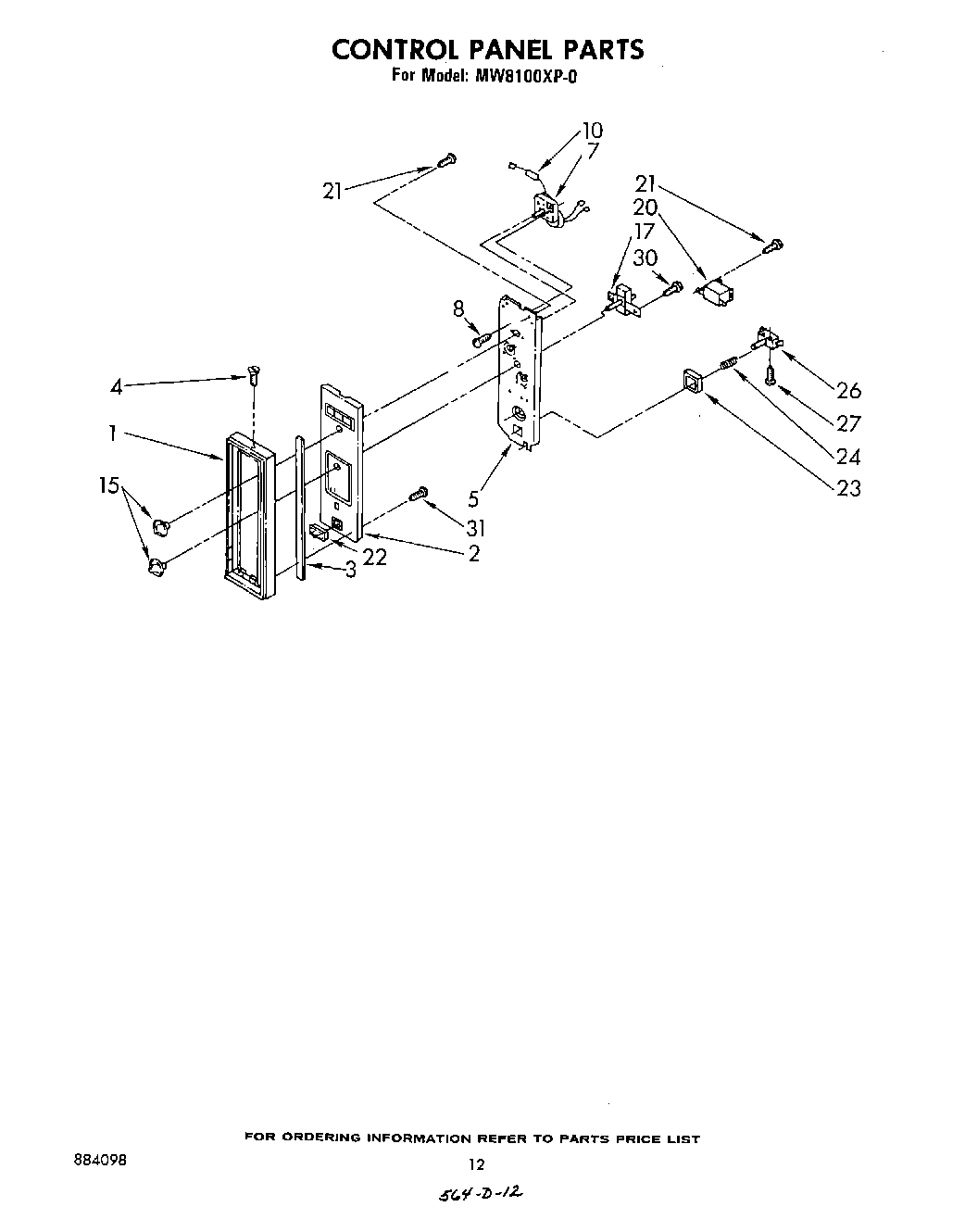

07 - CONTROL PANEL

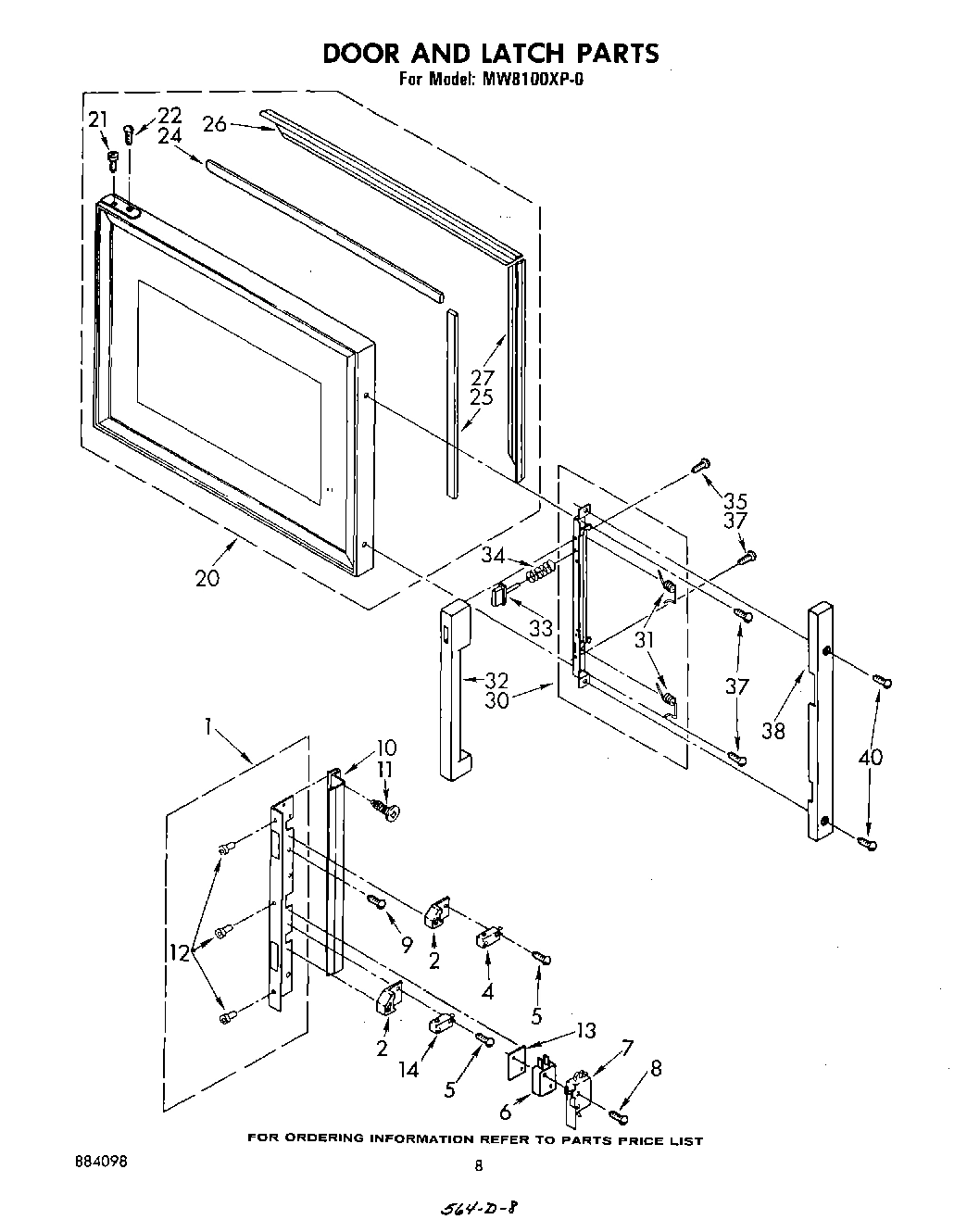

05 - DOOR AND LATCH
Common parts from model Whirlpool MW8100XP0
Cookbook WPL LIT309887 Contact Us For Availability
Guide, Use & Care WPL LIT312867 Contact Us For Availability
Tech Sheet WPL LIT313088 Contact Us For Availability
List, Repair Parts WPL LIT884098 Contact Us For Availability
1
Harness, Wiring Main WPL 313031 Contact Us For Availability
1
Back, Cabinet WPL 312639 Contact Us For Availability
1
Frame, Control Panel WPL 313115 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
Harness, Wiring Control WPL 313082 Contact Us For Availability
2
Screw, 10A x 1/2 Pan Head With Locking Nibs ( WPL 312185 Contact Us For Availability
2
Panel, Control WPL 313009 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
3
Housing, Connector WPL 310241 Contact Us For Availability
3
Seal (2) WPL 308300 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
4
Seal, Cavity Back WPL 312818 Contact Us For Availability
4
Screw, 8-18 x 7/8 WPL 309170 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Bracket, Support WPL 313059 Contact Us For Availability
5
Screw, 4-40 x 3/4 (4) WPL 312717 Contact Us For Availability
6
Plug, Circuit (4 Terminal) WPL 60687 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
6
Switch, Monitor/Oven Light 313075 (Alt.) 3131 WPL 661144 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Pin, Male WPL 310222 Contact Us For Availability
7
Timer, Linear WPL 313018 Contact Us For Availability
7
Switch, Monitor/Oven Light 313076 (Alt.) 3131 WPL 661145 Contact Us For Availability
8
Capacitor WPL 312632 Contact Us For Availability
8
Screw, No.10 x 32 Torx Recess W/Dri Lock (4) WPL 312742 Contact Us For Availability
8
Pin, Female WPL 310223 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability
8
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
10
Shelf, Microwave 311058 (Alt.) 312579 (Alt.) WPL 660561 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Resistor and Terminal Assembly WPL 328710 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Block, Disconnect WPL 311150 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Accordian Rivet.(2) WPL 310423 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
13
Insulator WPL 313126 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire (14 Ga. 150oc White) WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire (12 Ga. 150oc Red) WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire (14 Ga. 200oc Yellow) WPL 242832 Contact Us For Availability
14
Receptacle WPL 309105 Contact Us For Availability
14
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
14
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
14
RCK710 Wall Mount Kit WPL 832763 Contact Us For Availability
14
RCK713 Wall Mount Cookbook Case WPL 832769 Contact Us For Availability
14
RCK803 30`` Built-In Kit WPL 832849 Contact Us For Availability
14
RCK805 25-3/4`` Built-In Kit WPL 832856 Contact Us For Availability
14
Storage Cabinet WPL 832873 Contact Us For Availability
14
RCK811 Vent Grille & Filler Kit WPL 832875 Contact Us For Availability
14
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
14
RCK807 27`` Built-In Kit WPL 832950 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Knob, Timer (2) WPL 313048 Contact Us For Availability
17
Switch (Cook, Defrost) WPL 313017 Contact Us For Availability
18
Base, Chassis (Includes Illus. No. 19) WPL 313050 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Foot, Base (4) WPL 311942 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
20
Stirrer Cover WPL 313074 Contact Us For Availability
20
Relay, Power 310371 (Alt.) 310373 (Alt.) WPL 660548 Contact Us For Availability
20
Door WPL 329627 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Screw, 6-32 (7) WPL 313036 Contact Us For Availability
22
Wrapper, Cabinet (Includes Illus. 23, 25 & 26 WPL 328644 Contact Us For Availability
22
Bezel, Start Button WPL 313081 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Foam, Seal WPL 308292 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Button, Push-to-Start WPL 313080 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Spring, Compression WPL 310201 Contact Us For Availability
24
Seal, Top & Bottom (2) 311342 (Alt.) 311634 ( WPL 660574 Contact Us For Availability
25
Foam, Seal WPL 308294 Contact Us For Availability
25
Seal, Side (2) 311343 (Alt.) 311635 (Alt.) WPL 660575 Contact Us For Availability
26
Foam, Seal WPL 308295 Contact Us For Availability
26
Switch, Push WPL 310162 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
Screw (2) WPL 98106 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
Screw, 10A x 1/2 Truss Head Phillips Black (1 WPL 307748 Contact Us For Availability
29
Screw, 10-32 x 1/2 (Ground) Serrated Roll Loc WPL 258857 Contact Us For Availability
29
Cover, Lamp WPL 307512 Contact Us For Availability
30
Screw, 8-32 x 3/8 (2) WPL 312713 Contact Us For Availability
30
Latch Assembly WPL 329063 Contact Us For Availability
31
Power Cord 313127 (Alt.) 313128 (Alt.) WPL 661151 Contact Us For Availability
31
Screw, 8-32 x 1/2 (3) WPL 312248 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Strain Relief, Bushing WPL 311954 Contact Us For Availability
32
Handle, Door WPL 311887 Contact Us For Availability
33
Button, Door Handle WPL 311889 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
Shield, Louver (Includes Illus. 36) WPL 312000 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Motor 311998 (Alt.) 312478 (Alt.) WPL 661000 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Plug WPL 313114 Contact Us For Availability
38
End Cap WPL 311886 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
41
Clip, Power Cord WPL 311311 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
45
Screw, 11-16 x 1/2 (5) WPL 346893 Contact Us For Availability
45
Hole Plug (4) WPL 312214 Contact Us For Availability
46
Magnetron 311992 (Alt.) 311993 (Alt.) 311994 WPL 660595 Contact Us For Availability
48
Flange Nut (4) WPL 310300 Contact Us For Availability
49
Thermal Fuse WPL 312800 Contact Us For Availability
50
Screw (2) WPL 312782 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
55
Jumper, High Voltage (Black 6-3/4``) WPL 312793 Contact Us For Availability
56
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 313113 Contact Us For Availability
× ![]()
