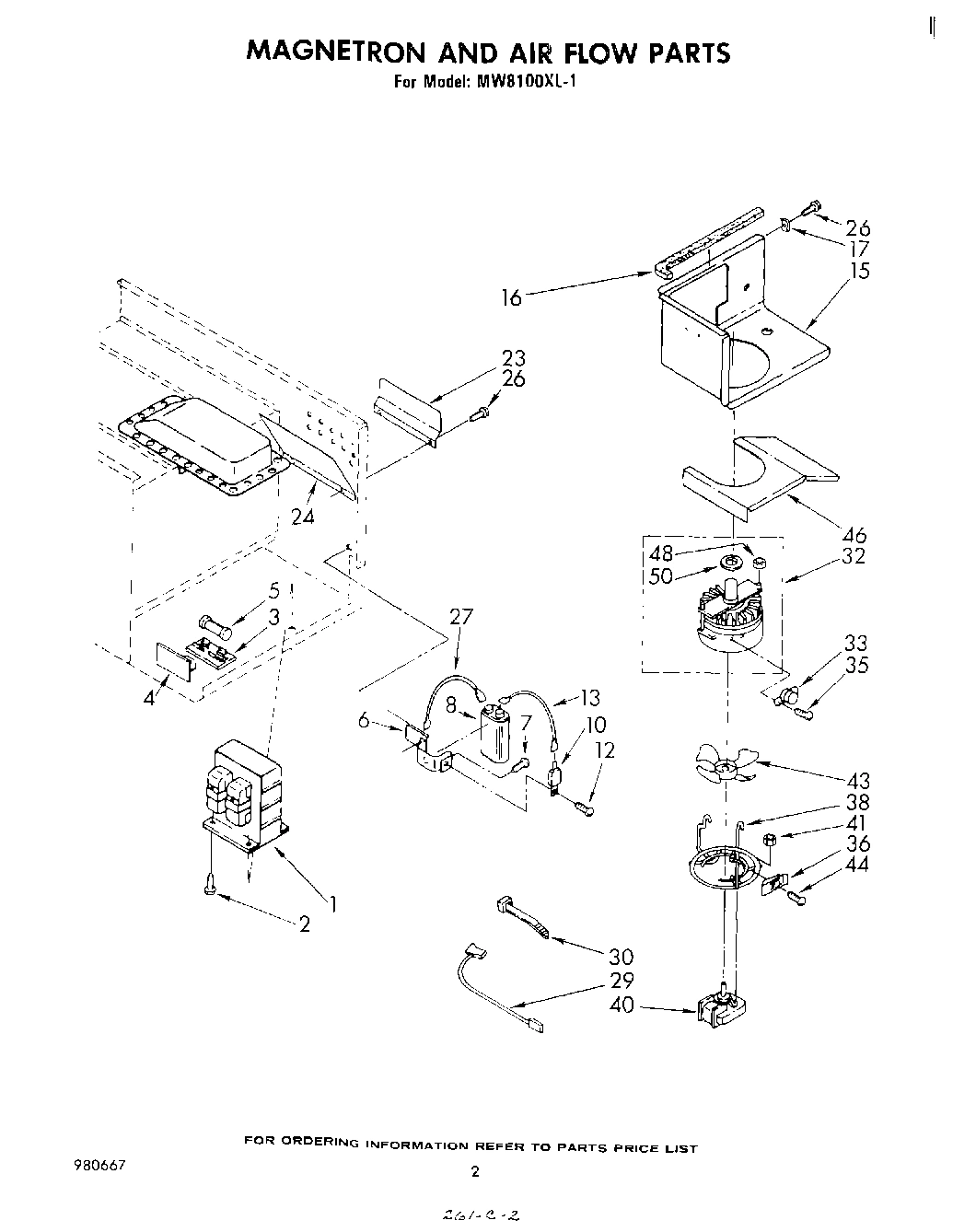

02 - MAGNETRON AND AIR FLOW

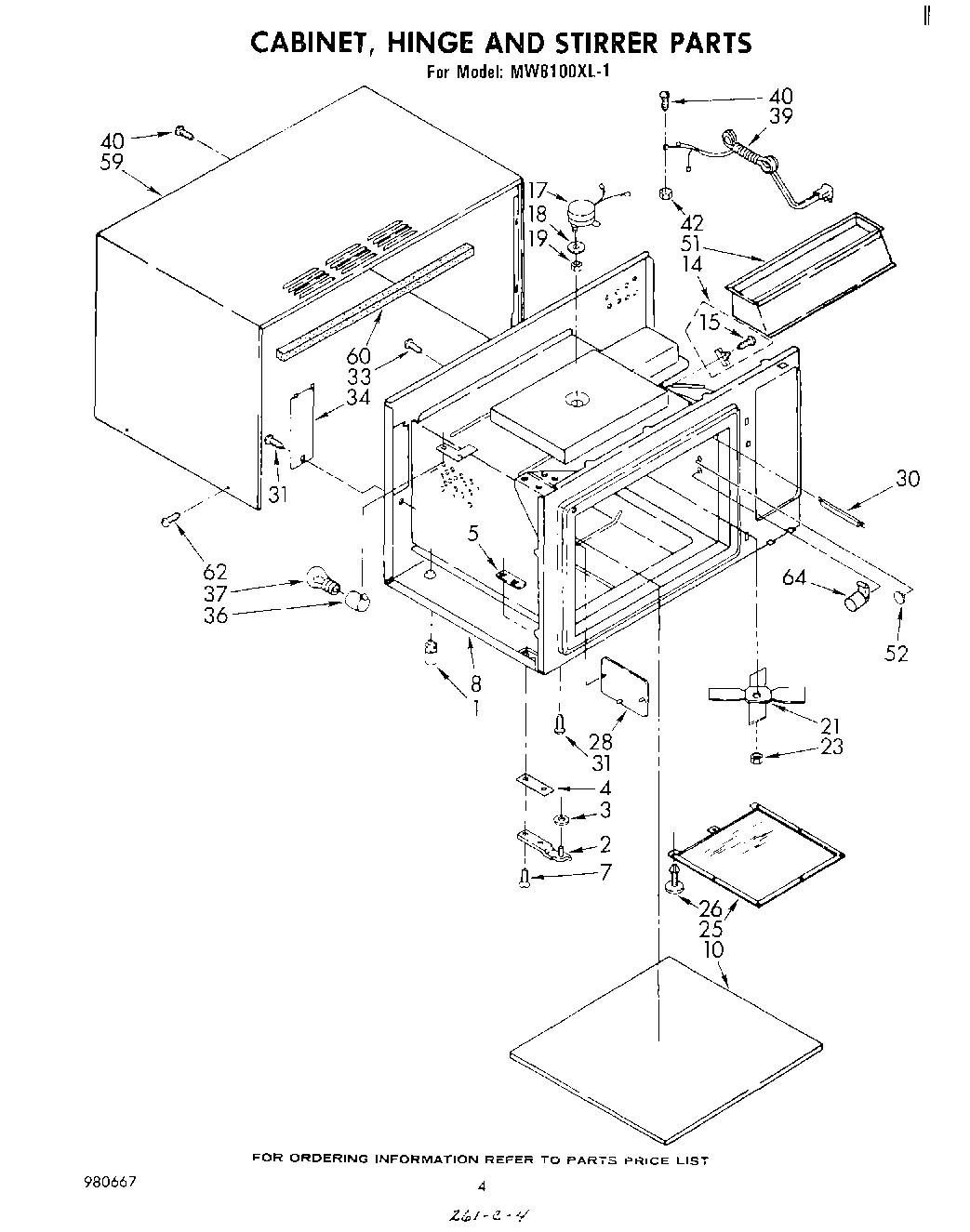

03 - CABINET, HINGE AND STIRRER
Common parts from model Whirlpool MW8100XL1
1
Frame, Control Panel WPL 312138 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Transformer WPL 307676 Contact Us For Availability
1
Foot, Mounting (4) WPL 307540 Contact Us For Availability
2
Panel, Control WPL 312093 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
2
hinge door (top) WPL 329070 Contact Us For Availability
2
hinge door (bottom) WPL 329071 Contact Us For Availability
3
Block, Fuse WPL 309795 Contact Us For Availability
3
Washer WPL 312147 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
4
Shield, Fuse WPL 310391 Contact Us For Availability
4
Hinge Shim WPL 311991 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Bracket, Support WPL 310163 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 311358 Contact Us For Availability
5
Plate, Nut (2) WPL 312092 Contact Us For Availability
6
Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability
6
Bracket, Capacitor WPL 308572 Contact Us For Availability
7
Pin, Male WPL 310222 Contact Us For Availability
7
Timer, Linear WPL 312300 Contact Us For Availability
7
Switch, Monitor/Oven Light WPL 311355 Contact Us For Availability
7
Screw, 10 x 32 (2) WPL 311912 Contact Us For Availability
8
Pin, Female WPL 310223 Contact Us For Availability
8
Screw, 8 x 1/4 (4) WPL 254225 Contact Us For Availability
8
Screw, 6-32 x 7/8 Hex Washer Head Unslotted T WPL 98106 Contact Us For Availability
8
Capacitor (Includes 329163 Resistor, 2 Watt 1 WPL 311723 Contact Us For Availability
8
Capacitor (Includes 329163 Resistor, 2 Watt 1 WPL 311724 Contact Us For Availability
8
Cavity & Base Assembly (Not Serviceable) WPL ARI119407A Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
10
Insulator Pod Straight (2) (Interlock Switch) WPL 310241 Contact Us For Availability
10
Resistor and Terminal Assembly WPL 328710 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Rectifier, High Voltage WPL 832836 Contact Us For Availability
10
Base, Ceramic (Alternate) WPL 309145 Contact Us For Availability
10
Base, Ceramic (Alternate (Install W/ Silastic WPL 311058 Contact Us For Availability
11
Dial, Timer (Alternate) WPL 312321 Contact Us For Availability
11
Dial, Timer (Alternate) WPL 312324 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 310629 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
13
Instructions, Installation WPL 307843 Contact Us For Availability
13
Cookbook WPL 309887 Contact Us For Availability
13
Guide, Use & Care WPL 312333 Contact Us For Availability
13
Tech Sheet (Service Information) WPL 312336 Contact Us For Availability
13
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
13
RCK710 Wall Mount Kit WPL 832763 Contact Us For Availability
13
RCK713 Wall Mount Bookcase WPL 832769 Contact Us For Availability
13
RCK803 30`` Built-In Kit WPL 832849 Contact Us For Availability
13
RCK805 25-3/4`` Built-In Kit WPL 832856 Contact Us For Availability
13
Storage Cabinet WPL 832873 Contact Us For Availability
13
RCK811 30`` Wall Mount Grille Kit WPL 832875 Contact Us For Availability
13
RCK807 27`` Built-In Kit WPL 832950 Contact Us For Availability
13
List, Repair Parts WPL 980667 Contact Us For Availability
13
Jumper, High Voltage WPL 311466 Contact Us For Availability
14
Ring, Compression WPL 310641 Contact Us For Availability
14
Thermal Fuse WPL 309279 Contact Us For Availability
15
Knob, Timer WPL 312205 Contact Us For Availability
15
Duct, Cooling Air WPL 307529 Contact Us For Availability
17
Switch, Cook Defrost WPL 310137 Contact Us For Availability
17
Clip (2) WPL 338177 Contact Us For Availability
17
Motor, Stirrer (Alternate) WPL 310950 Contact Us For Availability
17
motor, stirrer (alternate) WPL 311515 Contact Us For Availability
18
Knob, Cook WPL 312203 Contact Us For Availability
18
Washer, Internal Lock WPL 311245 Contact Us For Availability
19
Nut WPL 309768 Contact Us For Availability
20
Relay, Power WPL 311508 Contact Us For Availability
20
Door WPL 329621 Contact Us For Availability
21
Stirrer Blade WPL 309976 Contact Us For Availability
23
Button, Push To Start WPL 310141 Contact Us For Availability
23
Deflector, Exhaust WPL 308219 Contact Us For Availability
23
Nut, 1/4-20 WPL 307555 Contact Us For Availability
24
Spring, Compression WPL 310200 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Deflector, Air WPL 307635 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Cover, Stirrer WPL 309441 Contact Us For Availability
26
Switch, Push WPL 310162 Contact Us For Availability
26
Fastener (8) WPL 310423 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
Jumper, High Voltage WPL 311467 Contact Us For Availability
28
Cover WPL 307516 Contact Us For Availability
29
Light, Indicator WPL 312175 Contact Us For Availability
29
Wire, High Voltage (2) WPL 309084 Contact Us For Availability
30
Screw WPL 342043 Contact Us For Availability
30
Latch Assembly WPL 329063 Contact Us For Availability
30
Cover, Rivet WPL 309437 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
screw, 10a X 3/8 (4) WPL 254217 Contact Us For Availability
32
Handle, Door WPL 311887 Contact Us For Availability
32
Magnetron (Alternate) WPL 311461 Contact Us For Availability
32
magnetron (alternate) WPL 311505 Contact Us For Availability
33
Spring, Compression WPL 310197 Contact Us For Availability
33
Thermostat WPL 307564 Contact Us For Availability
34
Button, Door Handle WPL 311889 Contact Us For Availability
34
Cover, Lamp WPL 307512 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Fastener, Speed Nut (3) WPL 308845 Contact Us For Availability
36
Socket, Snap-In WPL 307519 Contact Us For Availability
38
End Cap WPL 311886 Contact Us For Availability
38
Mount, Motor (Fan) WPL 311905 Contact Us For Availability
39
Cord, Power (Alternate) WPL 310900 Contact Us For Availability
39
cord, power (alternate) WPL 311543 Contact Us For Availability
40
Screw, 8-32 x 5/16 Thread Form Truss Head (2) WPL 310210 Contact Us For Availability
40
Screw, 10-32 x 1/2 (Ground) WPL 258857 Contact Us For Availability
40
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
40
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
41
Nut (2) WPL 311136 Contact Us For Availability
42
Screw, 10-32 (Ground/Base) WPL 309487 Contact Us For Availability
43
Blade, Fan WPL 307535 Contact Us For Availability
46
Shield, Magnetron WPL 310419 Contact Us For Availability
48
Nut, 5mm Flange (2) WPL 310300 Contact Us For Availability
50
gasket, magnetron WPL 311718 Contact Us For Availability
51
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
52
Plug WPL 309960 Contact Us For Availability
59
Wrapper, Cabinet (Includes Illus. 60) WPL 328645 Contact Us For Availability
60
seal, foam (3/8 x 1/2 x 10``) WPL 308292 Contact Us For Availability
60
Seal, Foam (1/8 x 1/4 x 20``) WPL 308294 Contact Us For Availability
60
Seal, Foam (1/8 x 1/2 x 15-1/4``) WPL 308295 Contact Us For Availability
62
Screw, 10A x 1/2 Black (10) WPL 307748 Contact Us For Availability
64
Plug, Hole (4) WPL 312214 Contact Us For Availability
× ![]()
