Model Whirlpool MW7400XW0 – Common Parts & Diagrams
03 - DOOR , LIT/OPTIONAL
04 - MAGNETRON AND AIR FLOW

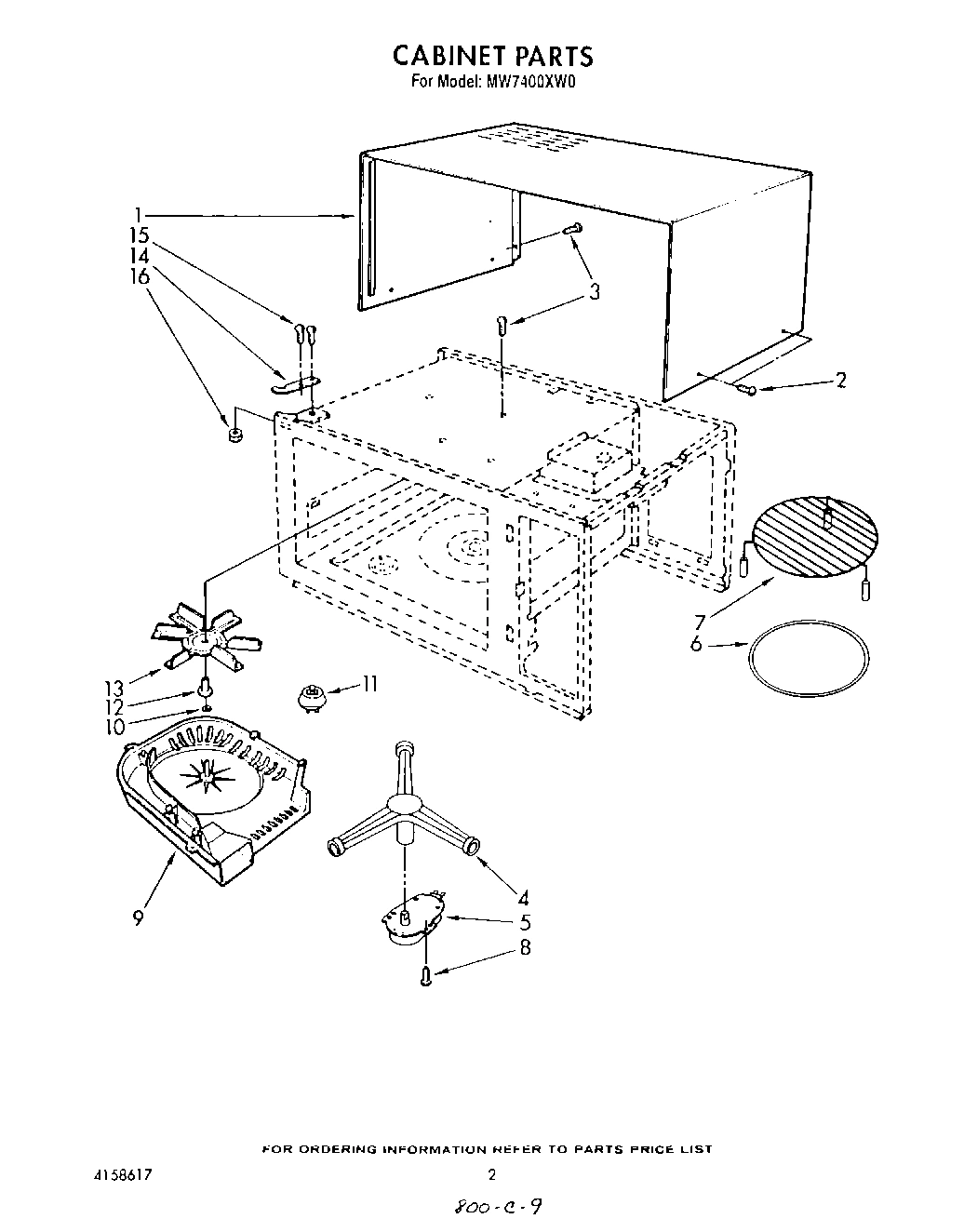

02 - CABINET

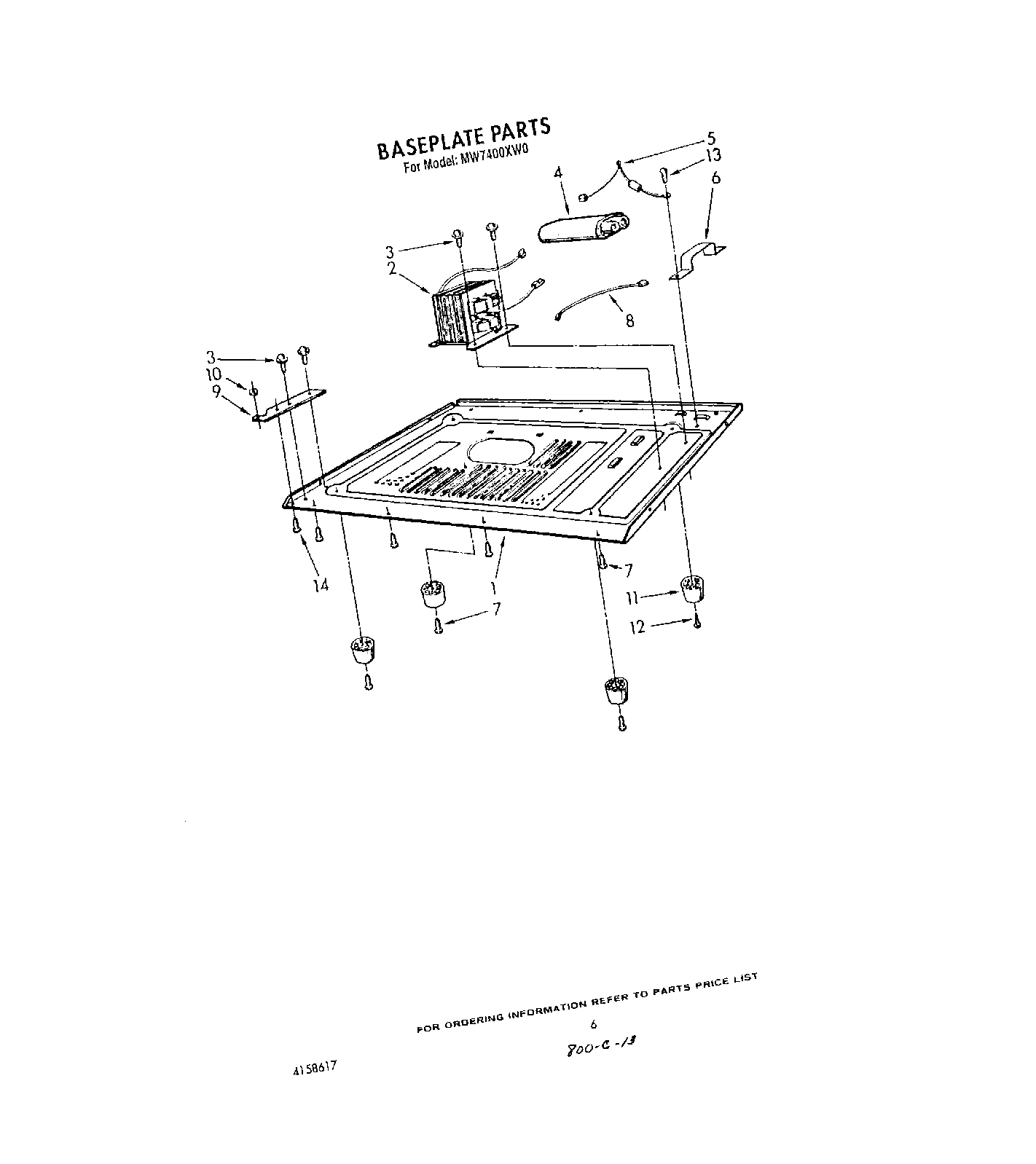

05 - BASE PLATE

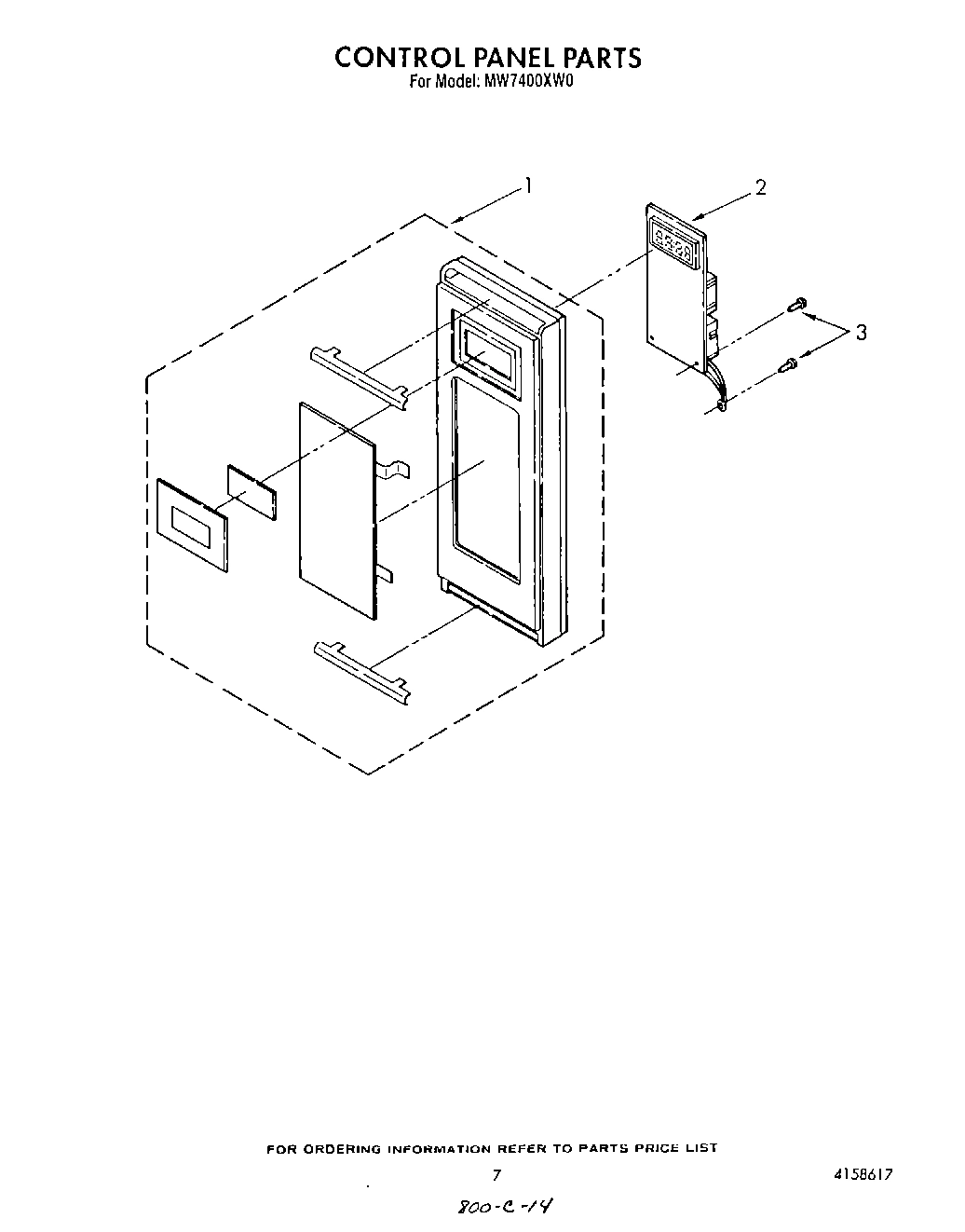

06 - CONTROL PANEL
Common parts from model Whirlpool MW7400XW0
Guide, Use And Care WPL LIT4158518 Contact Us For Availability
Buy Guide WPL LIT4158528 Contact Us For Availability
Cook Book WPL LIT4158530 Contact Us For Availability
Tech Sheet WPL LIT4158534 Contact Us For Availability
Defrost Guide WPL LIT4158546 Contact Us For Availability
Repair Parts List WPL LIT4158617 Contact Us For Availability
1
Door, Complete WPL 4158634 Contact Us For Availability
1
Magnetron WPL 4158473 Contact Us For Availability
1
Cabinet Wrapper WPL 4158639 Contact Us For Availability
1
Baseplate WPL 4158619 Contact Us For Availability
1
Control Panel WPL 4158662 Contact Us For Availability
2
Handle, Complete WPL 815047 Contact Us For Availability
2
Thermostat WPL 4158474 Contact Us For Availability
2
Screw No.4x12mm (4) WPL 4158084 Contact Us For Availability
2
Transformer WPL 4158637 Contact Us For Availability
2
Microcomputer WPL 4158633 Contact Us For Availability
3
Handle, Inlay Component of 815047 WPL 4158654 Contact Us For Availability
3
Screw No.3x8mm (4) WPL 4158082 Contact Us For Availability
3
Screw 4 x 10 (2) WPL 4158076 Contact Us For Availability
3
Screw No.5x12mm (4) WPL 4158192 Contact Us For Availability
4
Baseless Lamp WPL 4158586 Contact Us For Availability
4
Turntable Shaft WPL 4158626 Contact Us For Availability
4
Capacitor WPL 4158621 Contact Us For Availability
5
Nut, Magnetron WPL 4158403 Contact Us For Availability
5
Motor, Turntable WPL 4158601 Contact Us For Availability
5
H.V. Cable WPL 4158467 Contact Us For Availability
6
Tie, Cable WPL 4158564 Contact Us For Availability
6
Glass Tray WPL 4158641 Contact Us For Availability
6
Bracket, Capacitor WPL 4158622 Contact Us For Availability
7
Bracket, Fan WPL 4158475 Contact Us For Availability
7
Rack, Cooking WPL 4158642 Contact Us For Availability
8
Motor, Fan WPL 4158476 Contact Us For Availability
8
Wire Harness WPL 4158468 Contact Us For Availability
9
Screw No.4x28mm (2) WPL 4158189 Contact Us For Availability
9
Stirrer Cover WPL 4158458 Contact Us For Availability
9
Hinge Plate, Lower WPL 4158469 Contact Us For Availability
10
Fan WPL 4158389 Contact Us For Availability
10
Washer, Sliding WPL 4158905 Contact Us For Availability
10
Washer, Hinge WPL 4339331 Contact Us For Availability
11
E-Ring WPL 4158477 Contact Us For Availability
11
Roller, Table (3) WPL 4158627 Contact Us For Availability
11
Leg (4) WPL 4158620 Contact Us For Availability
12
Screw No.4x16mm (4) WPL 4158472 Contact Us For Availability
12
Holder, Fuse WPL 4158615 Contact Us For Availability
12
Bushing, Stirrer Fan WPL 4158623 Contact Us For Availability
13
Fuse WPL 4158636 Contact Us For Availability
13
Screw WPL 4158079 Contact Us For Availability
13
Stirrer Blade WPL 4158462 Contact Us For Availability
14
Hinge, Upper WPL 4158463 Contact Us For Availability
14
Screw, Machine (1) WPL 4158194 Contact Us For Availability
15
Seal, Foam WPL 4158478 Contact Us For Availability
16
Air Duct, Lower WPL 4158479 Contact Us For Availability
16
Nut, M5 (2) WPL 4158053 Contact Us For Availability
17
Power Cord WPL 4158673 Contact Us For Availability
20
Wiring Harness WPL 4158640 Contact Us For Availability
21
Air Duct, Center WPL 4158483 Contact Us For Availability
22
Air Duct, Upper WPL 4158635 Contact Us For Availability
23
Thermostat, Oven WPL 4158562 Contact Us For Availability
24
Latch, Upper WPL 4158392 Contact Us For Availability
26
Latch, Lower WPL 4158391 Contact Us For Availability
29
Micro Switch (Secondary) WPL 4158197 Contact Us For Availability
30
Lever, Switch WPL 4158390 Contact Us For Availability
31
Rod, Release WPL 4158070 Contact Us For Availability
32
Screw No.3x16mm (2) WPL 4158187 Contact Us For Availability
33
Screw No.3x30mm (1) WPL 4158208 Contact Us For Availability
34
Nut, Hex WPL 4158212 Contact Us For Availability
35
Washer WPL 4158213 Contact Us For Availability
36
Spacer WPL 4339376 Contact Us For Availability
38
Screw (5) WPL 4158307 Contact Us For Availability
× ![]()
