Model Whirlpool MW5571 – Common Parts & Diagrams

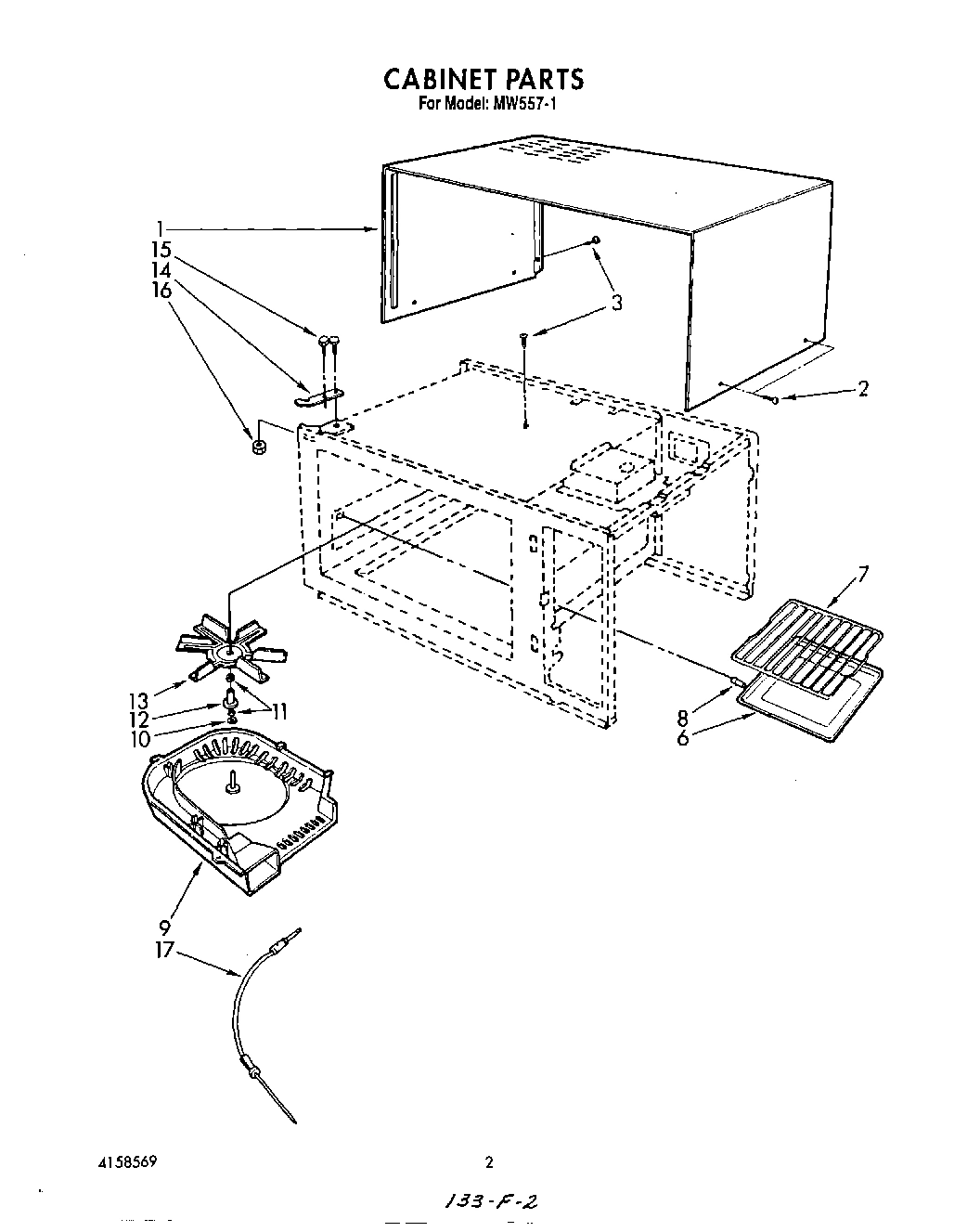

02 - CABINET

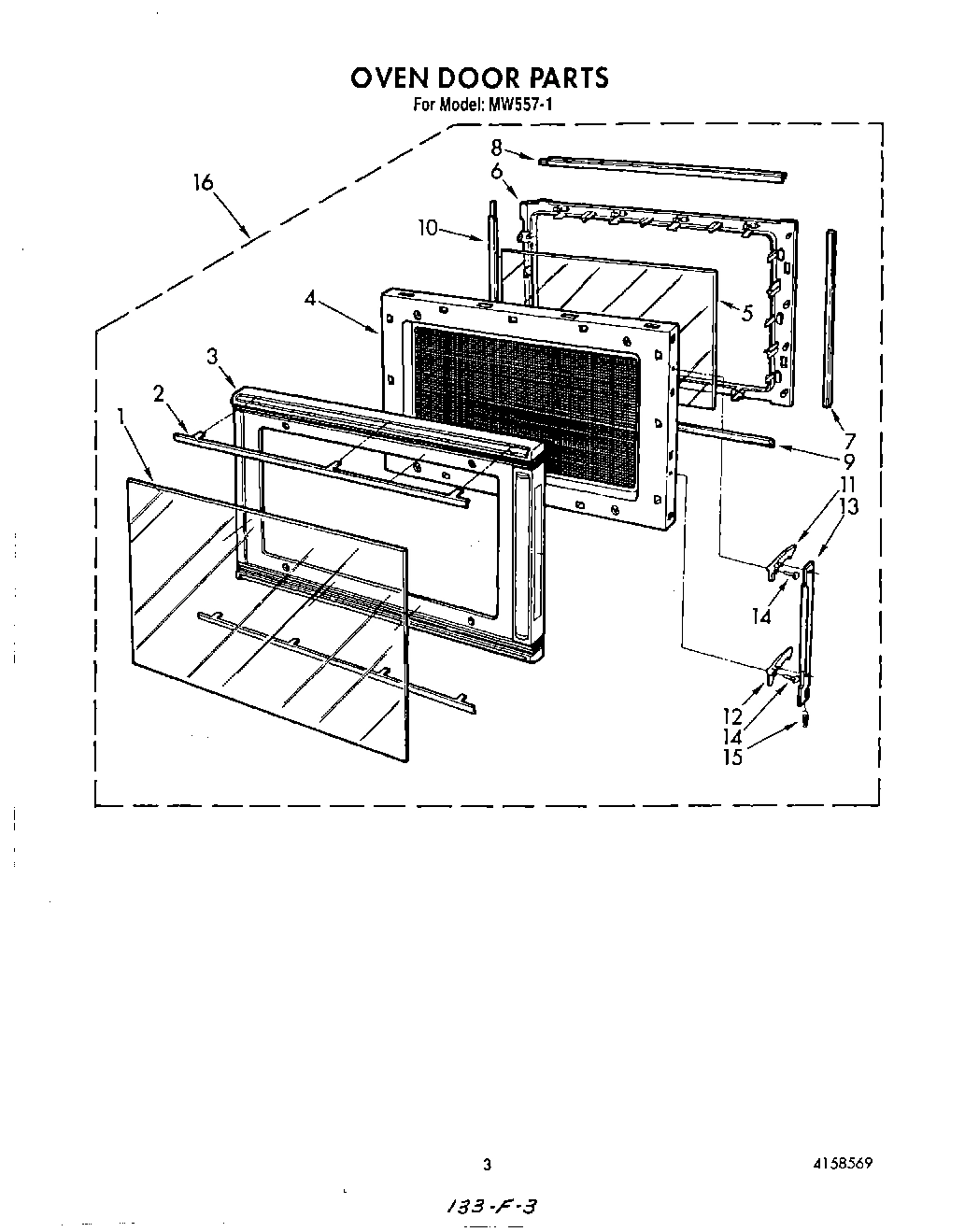

03 - OVEN DOOR

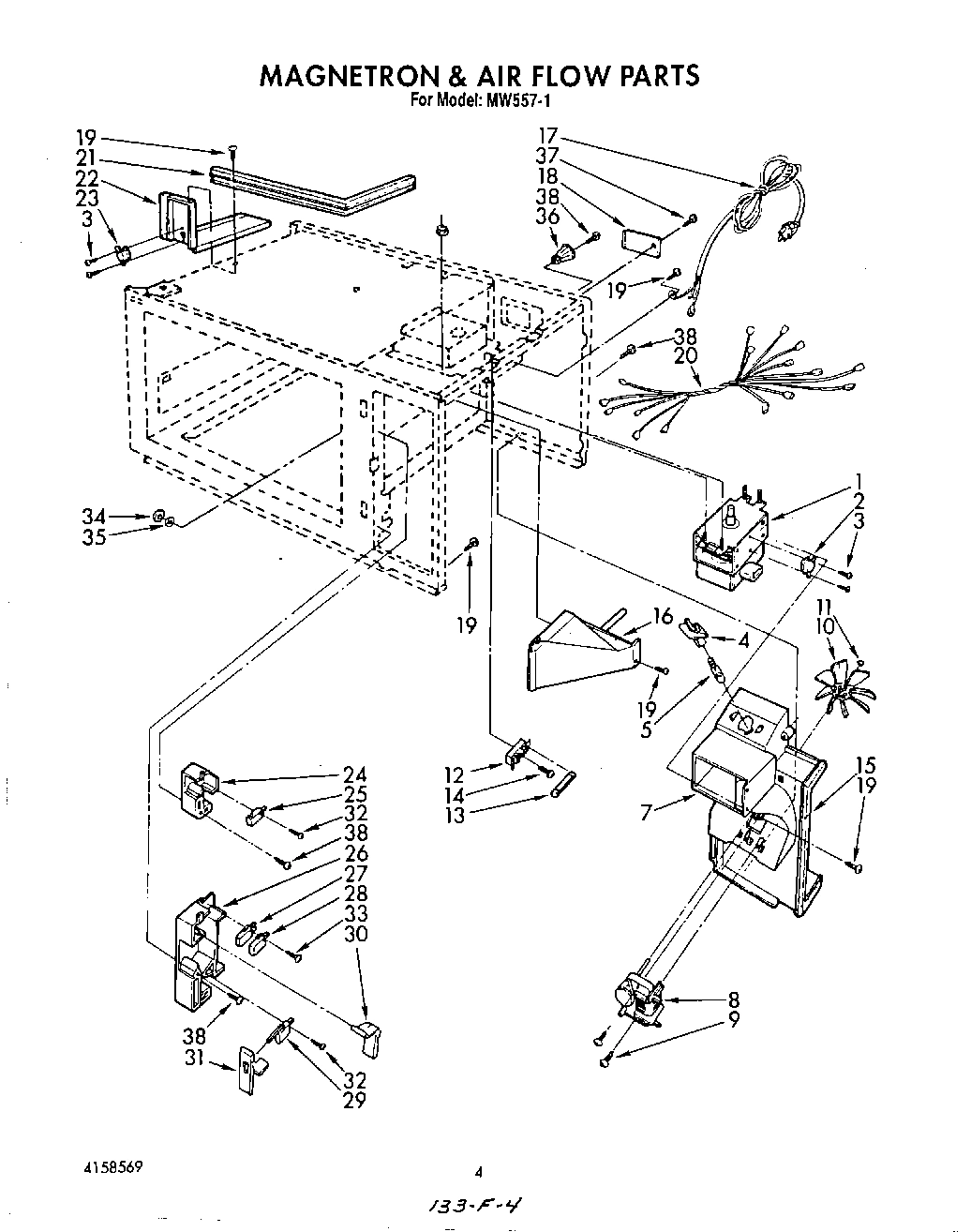

04 - MAGNETRON AND AIRFLOW

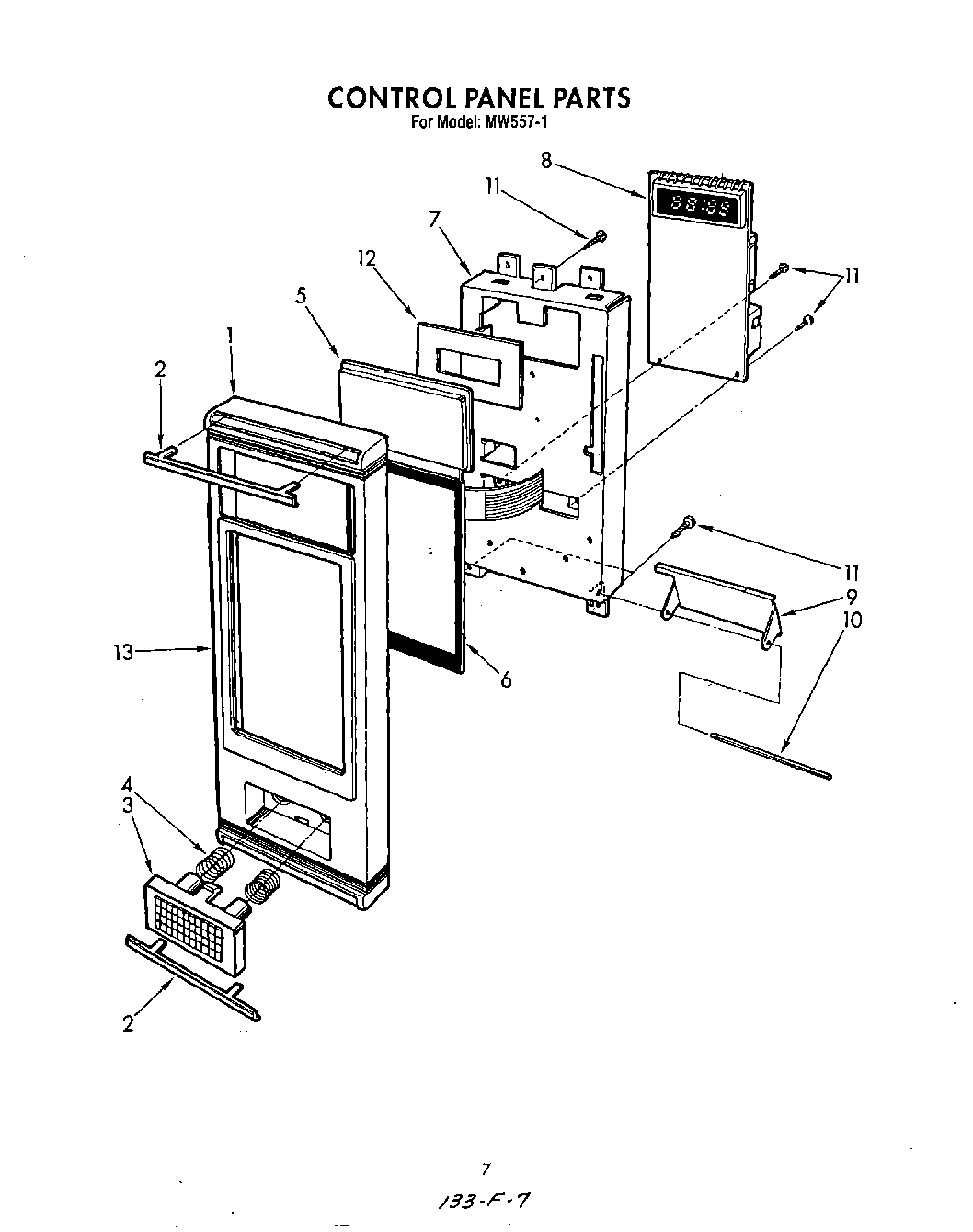

06 - CONTROL PANEL

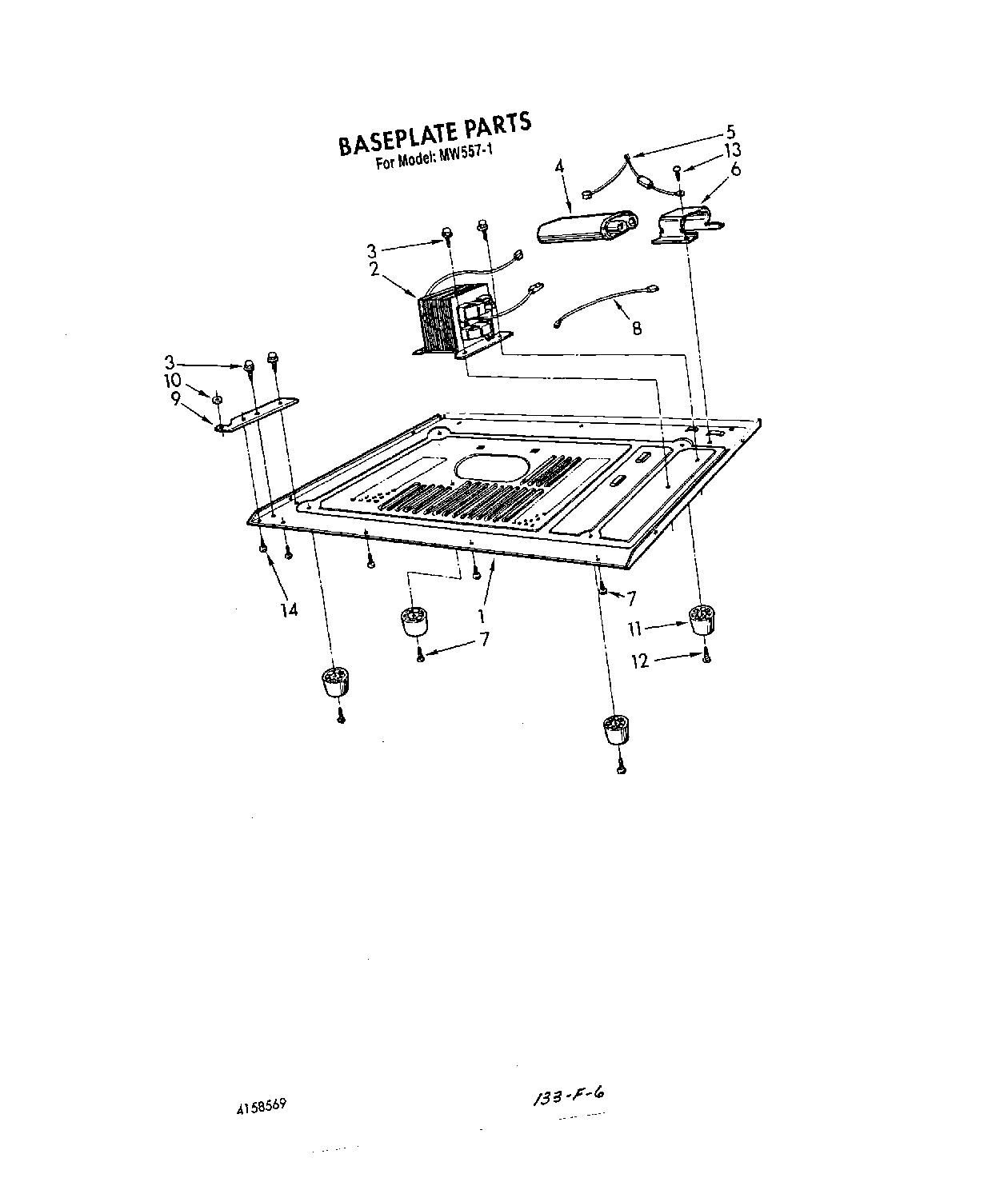

05 - BASE PLATE
Common parts from model Whirlpool MW5571
1
Cabinet Wrapper WPL 4158453 Contact Us For Availability
1
Front Screen WPL 4158492 Contact Us For Availability
1
Magnetron WPL 4158473 Contact Us For Availability
1
Control Panel WPL 4158441 Contact Us For Availability
1
Baseplate WPL 4158464 Contact Us For Availability
2
Screw No.4x12mm (4) WPL 4158084 Contact Us For Availability
2
Trim (2) WPL 4158493 Contact Us For Availability
2
Thermostat WPL 4158474 Contact Us For Availability
2
Trim (2) WPL 4158442 Contact Us For Availability
2
Transformer WPL 4158465 Contact Us For Availability
3
Screw No.5x12mm (4) WPL 4158192 Contact Us For Availability
3
Door Panel WPL 4158494 Contact Us For Availability
3
Screw No.3x8mm (4) WPL 4158082 Contact Us For Availability
3
Button, Release WPL 4158443 Contact Us For Availability
4
Door Frame Asm. WPL 4158495 Contact Us For Availability
4
Socket, Lamp WPL 4158097 Contact Us For Availability
4
Spring, Release (2) WPL 4339383 Contact Us For Availability
4
Capacitor WPL 4158466 Contact Us For Availability
5
Seal, Tape WPL 4158496 Contact Us For Availability
5
Oven Lamp 120V 20W WPL 4158098 Contact Us For Availability
5
Window, Digitron WPL 4158445 Contact Us For Availability
5
Wire Harness WPL 4158467 Contact Us For Availability
6
Glass Tray WPL 4339271 Contact Us For Availability
6
Panel, Inner WPL 4158497 Contact Us For Availability
6
Panel, Touch WPL 4158446 Contact Us For Availability
6
Bracket, Capacitor WPL 4158043 Contact Us For Availability
7
Screw No.4x10mm (8) WPL 4158076 Contact Us For Availability
7
Shelf, Metal WPL 4339283 Contact Us For Availability
7
Trim, Latch WPL 4158498 Contact Us For Availability
7
Bracket, Fan WPL 4158475 Contact Us For Availability
7
Bracket WPL 4158447 Contact Us For Availability
8
Support, Rack (4) WPL 4339330 Contact Us For Availability
8
Trim, Upper WPL 4158499 Contact Us For Availability
8
Motor, Fan WPL 4158476 Contact Us For Availability
8
Microcomputer WPL 4158448 Contact Us For Availability
8
Wire Harness WPL 4158468 Contact Us For Availability
9
Stirrer Cover WPL 4158458 Contact Us For Availability
9
Trim, Lower WPL 4158500 Contact Us For Availability
9
Screw No.4x28mm (2) WPL 4158189 Contact Us For Availability
9
Lever, Release WPL 4158449 Contact Us For Availability
9
Hinge Plate, Lower WPL 4158469 Contact Us For Availability
10
Washer, Sliding WPL 4158459 Contact Us For Availability
10
Trim, Hinge WPL 4158501 Contact Us For Availability
10
Fan WPL 4158389 Contact Us For Availability
10
Pin, Release Lever WPL 4158450 Contact Us For Availability
10
Washer, Hinge WPL 4339331 Contact Us For Availability
11
Bushing, Shaft (2) WPL 4158460 Contact Us For Availability
11
Latch, Upper WPL 4158502 Contact Us For Availability
11
E-Ring WPL 4158477 Contact Us For Availability
11
Leg (4) WPL 4158471 Contact Us For Availability
12
Bushing, Stirrer Fan WPL 4158461 Contact Us For Availability
12
Latch, Lower WPL 4158503 Contact Us For Availability
12
Holder, Fuse WPL 4158059 Contact Us For Availability
12
Screw No.4x16mm (4) WPL 4158472 Contact Us For Availability
12
Shield WPL 4158451 Contact Us For Availability
13
Stirrer Blade WPL 4158462 Contact Us For Availability
13
Lever, Latch WPL 4158504 Contact Us For Availability
13
Fuse WPL 4158161 Contact Us For Availability
13
Screw WPL 4158079 Contact Us For Availability
13
Nameplate WPL 4158452 Contact Us For Availability
14
Hinge, Upper WPL 4158463 Contact Us For Availability
14
Pin, Latch (2) WPL 4158505 Contact Us For Availability
14
Screw, Machine (1) WPL 4158194 Contact Us For Availability
15
Spring, Latch WPL 4158506 Contact Us For Availability
15
Seal, Foam WPL 4158478 Contact Us For Availability
16
Nut, M5 (2) WPL 4158053 Contact Us For Availability
16
Door, Complete WPL 4158490 Contact Us For Availability
16
Air Duct, Lower WPL 4158479 Contact Us For Availability
17
Temperature Probe WPL 4158371 Contact Us For Availability
17
Repair Parts List WPL 4158569 Contact Us For Availability
17
Installation Instructions WPL 4158570 Contact Us For Availability
17
Cook Book WPL 4339391 Contact Us For Availability
17
Power Cord Asm WPL 4158480 Contact Us For Availability
18
Cover, Lamp WPL 4158481 Contact Us For Availability
20
Wire Assembly WPL 4158482 Contact Us For Availability
21
Air Duct, Center WPL 4158483 Contact Us For Availability
22
Air Duct, Upper WPL 4158484 Contact Us For Availability
23
Thermostat, Oven WPL 4158485 Contact Us For Availability
24
Latch, Upper WPL 4158064 Contact Us For Availability
26
Latch, Lower WPL 4158066 Contact Us For Availability
29
Micro Switch, Secondary WPL 4158100 Contact Us For Availability
30
Lever, Switch WPL 4158488 Contact Us For Availability
31
Rod, Release WPL 4158070 Contact Us For Availability
32
Screw No.3x16mm (2) WPL 4158187 Contact Us For Availability
33
Screw No.3x30mm (1) WPL 4158208 Contact Us For Availability
34
Nut, Hex WPL 4158212 Contact Us For Availability
35
Washer WPL 4158213 Contact Us For Availability
36
Spacer WPL 4339376 Contact Us For Availability
38
Screw (5) WPL 4158307 Contact Us For Availability
× ![]()
