Model Whirlpool MW3601XS0 – Common Parts &amp; Diagrams

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Under The Cabinet Mounting Kit WPL 4158000 Contact Us For Availability

Wall Mount Kit WPL 4158015 Contact Us For Availability

Built-In Kit WPL 4158017 Contact Us For Availability

Bi-Level Rack Kit WPL 4158019 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability

Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability

Chart, Autoset WPL LIT3147330 Contact Us For Availability

Guide, Use & Care WPL LIT4158023 Contact Us For Availability

Cookbook WPL LIT4158034 Contact Us For Availability

List, Repair Parts WPL LIT4158338 Contact Us For Availability

1

Latch, Upper WPL 4158152 Contact Us For Availability

1

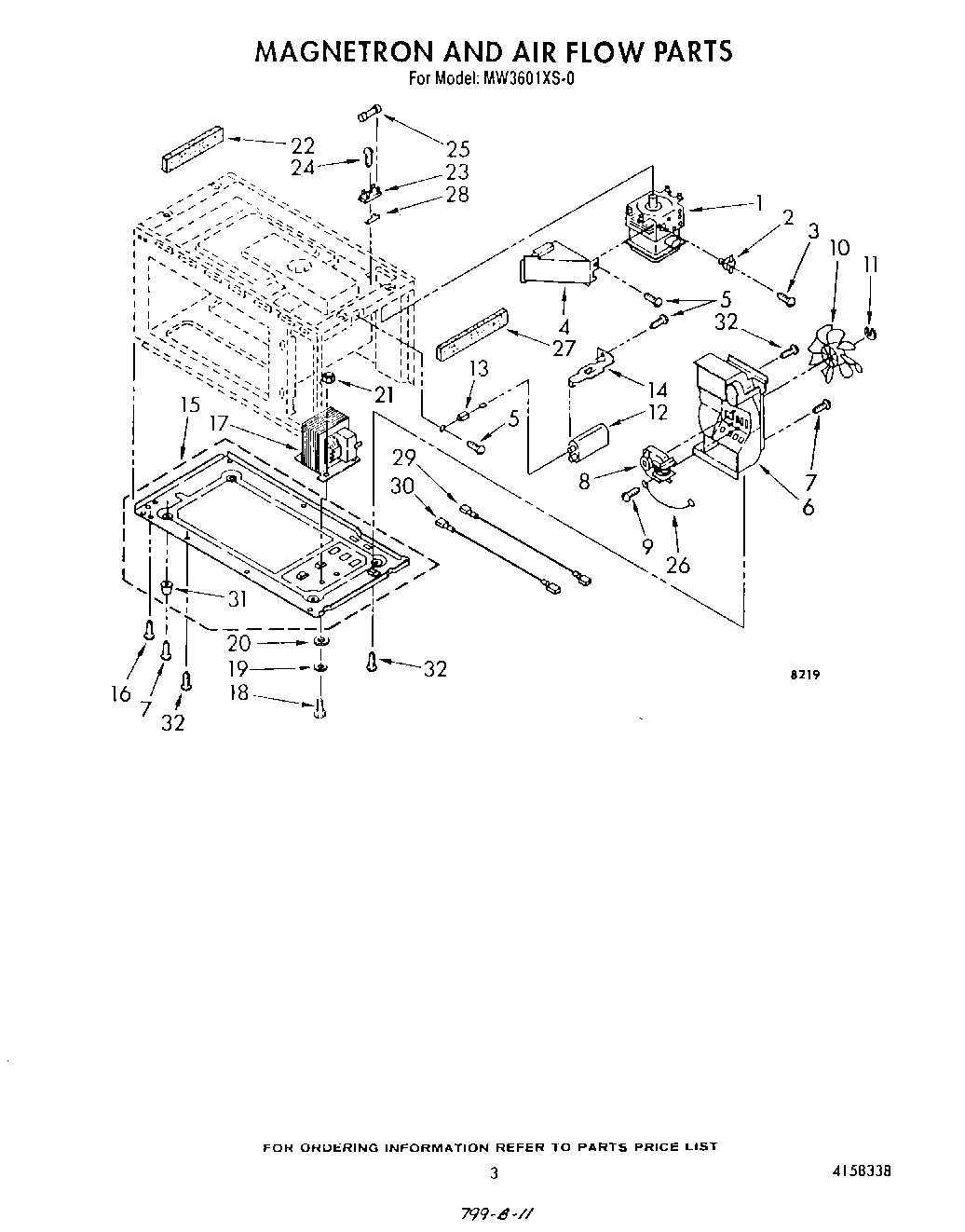

Magnetron WPL 4158143 Contact Us For Availability

1

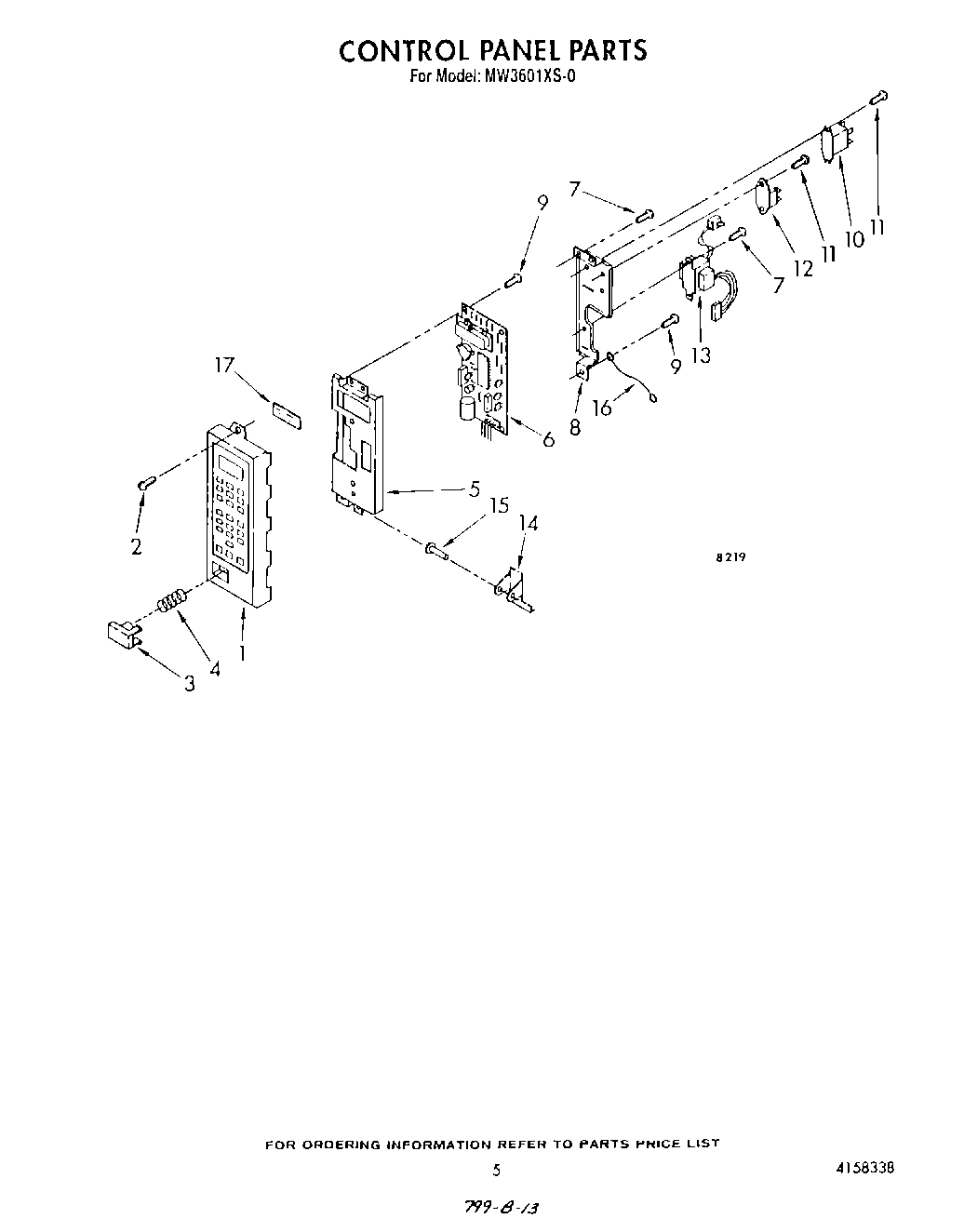

Frame, Control Panel WPL 4158339 Contact Us For Availability

1

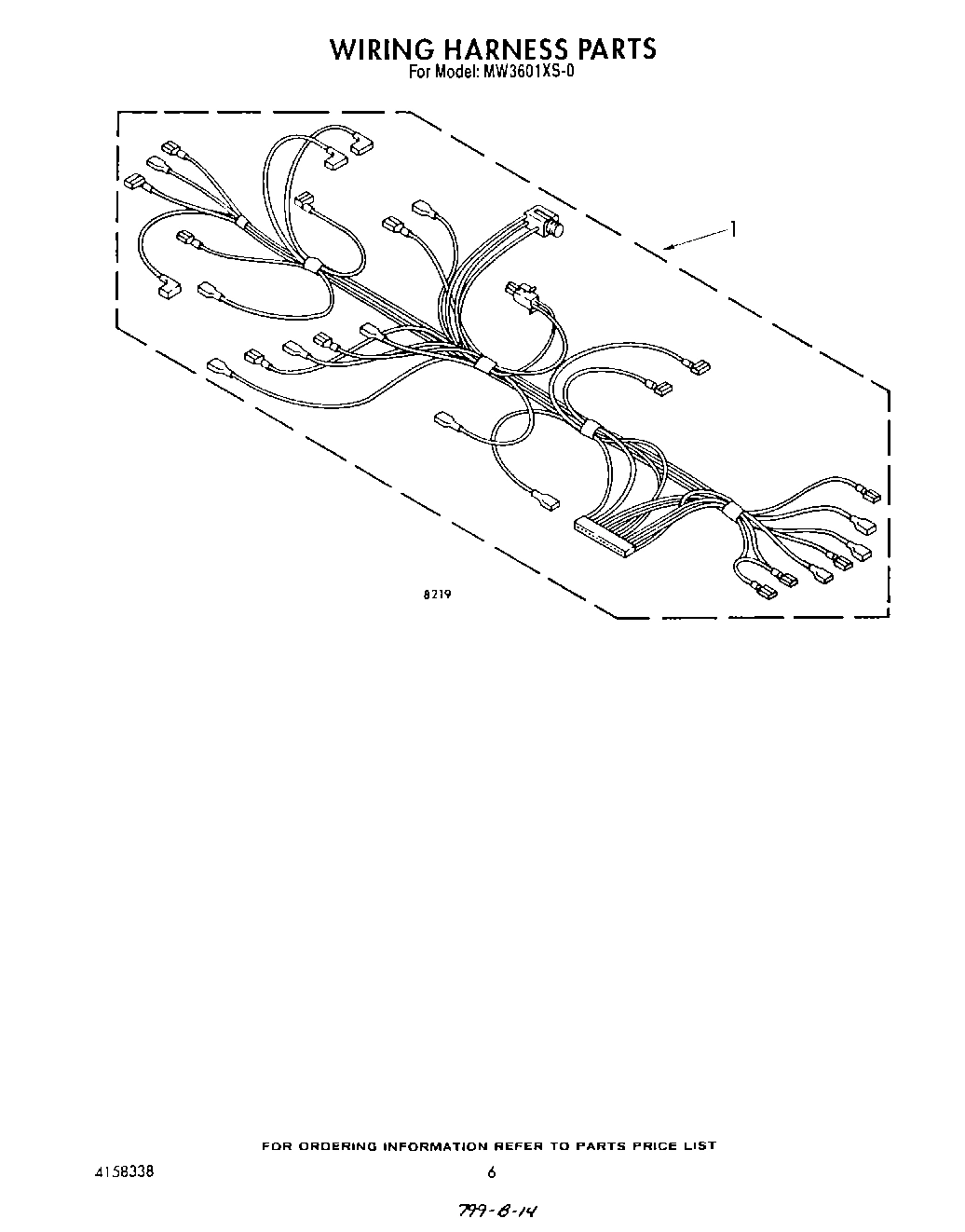

Harness, Wiring (Main) WPL 4158218 Contact Us For Availability

2

Thermal Protector WPL 4158144 Contact Us For Availability

2

Screw, 4 x 10mm WPL 4158188 Contact Us For Availability

3

Interlock, Switch Kit (Both switches must be WPL 4158243 Contact Us For Availability

3

Button, Push To Start WPL 4158334 Contact Us For Availability

4

Spring, Button WPL 4158178 Contact Us For Availability

4

Screw, 3 x 16 mm (2) WPL 4158187 Contact Us For Availability

4

Duct, Air WPL 4158146 Contact Us For Availability

5

Grille, Vent WPL 4158330 Contact Us For Availability

5

Latch, Lower WPL 4158154 Contact Us For Availability

5

Bracket, Control WPL 4158200 Contact Us For Availability

6

Screw, 4 x 10 mm WPL 4158336 Contact Us For Availability

6

Rod, Release WPL 4158155 Contact Us For Availability

6

Cover, Fan WPL 4158147 Contact Us For Availability

6

Microcomputer WPL 4158217 Contact Us For Availability

7

Cover, Stirrer WPL 4158141 Contact Us For Availability

7

Screw, 4 x 12 mm WPL 4158190 Contact Us For Availability

7

Screw, 3 x 6 mm WPL 4158186 Contact Us For Availability

8

Rivet (3) WPL 4158047 Contact Us For Availability

8

Hinge Plate, Lower WPL 4158160 Contact Us For Availability

8

Motor, Fan WPL 4158148 Contact Us For Availability

8

Heat Sink WPL 4158201 Contact Us For Availability

9

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

9

Shelf, Cavity WPL 4158142 Contact Us For Availability

9

Screw, 4 x 28 mm (3) WPL 4158189 Contact Us For Availability

Clip, Wire WPL 4158145 Contact Us For Availability

Screw, 5 x 12 mm (2) WPL 4158192 Contact Us For Availability

Fan WPL 4158149 Contact Us For Availability

Relay WPL 4158202 Contact Us For Availability

Fuse, Thermal WPL 4158049 Contact Us For Availability

Screw, 4 x 16 mm WPL 4158074 Contact Us For Availability

Washer WPL 4158117 Contact Us For Availability

E-Ring WPL 4158063 Contact Us For Availability

4392027 Whirlpool Microwave Primary Switch In Stock WPL 4392027 $70.68

Strain Relief WPL 4158092 Contact Us For Availability

Capacitor WPL 4158150 Contact Us For Availability

Triac WPL 4158104 Contact Us For Availability

Cord, Power WPL 4158162 Contact Us For Availability

Switch, Secondary WPL 4158197 Contact Us For Availability

Diode WPL 4158045 Contact Us For Availability

Transformer WPL 4158130 Contact Us For Availability

14

Screw, 3 x 30 mm WPL 4158208 Contact Us For Availability

14

Bracket, Capacitor WPL 4158151 Contact Us For Availability

14

Lever, Release WPL 4158203 Contact Us For Availability

Wrapper, Cabinet WPL 4158329 Contact Us For Availability

Door, Complete WPL 4158331 Contact Us For Availability

Plate, Base (Includes Illus. No. 31) WPL 4158157 Contact Us For Availability

Pin, Lever WPL 4158204 Contact Us For Availability

16

Foam WPL 4158170 Contact Us For Availability

16

Screw, 4 x 10 mm WPL 4158194 Contact Us For Availability

16

Wire Lead WPL 4158205 Contact Us For Availability

17

Hinge Plate, Upper WPL 4158139 Contact Us For Availability

17

Transformer WPL 4158158 Contact Us For Availability

17

Window WPL 4158302 Contact Us For Availability

18

Plug, Hole (4) WPL 4158335 Contact Us For Availability

18

Screw, 5 x 16 mm (2) WPL 4158081 Contact Us For Availability

19

WP3149478 Whirlpool Microwave Support In Stock WPL WP3149478 $2.73

19

Washer (2) WPL 4158087 Contact Us For Availability

20

Rack WPL 4158137 Contact Us For Availability

20

Washer (2) WPL 4158207 Contact Us For Availability

21

Probe, Temperture WPL 4158211 Contact Us For Availability

21

Nut (2) WPL 4158053 Contact Us For Availability

22

Nut (2) WPL 4158212 Contact Us For Availability

22

Foam, Duct (2) WPL 4158159 Contact Us For Availability

23

Washer WPL 4158213 Contact Us For Availability

23

Holder, Fuse WPL 4158059 Contact Us For Availability

24

Blade, Stirrer WPL 4158168 Contact Us For Availability

24

Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability

25

Foam WPL 4158171 Contact Us For Availability

25

Fuse WPL 4158161 Contact Us For Availability

26

Foam, Cabinet WPL 4158172 Contact Us For Availability

26

Lead, High Voltage WPL 4158214 Contact Us For Availability

27

Foam, Cabinet WPL 4158173 Contact Us For Availability

27

Foam, Fan Cover WPL 4158167 Contact Us For Availability

28

Foam, Cabinet WPL 4158174 Contact Us For Availability

28

Plate, Discharge WPL 4158126 Contact Us For Availability

29

Jack, Temperature Probe (See Page 6) WPL ARI119400A Contact Us For Availability

29

Lead, High Voltage WPL 4158184 Contact Us For Availability

30

Shaft, Blade WPL 4158263 Contact Us For Availability

30

Lead, High Voltage WPL 4158185 Contact Us For Availability

31

Bushing (2) WPL 4158251 Contact Us For Availability

31

Foot (4) WPL 4158042 Contact Us For Availability

32

Washer WPL 4158252 Contact Us For Availability

32

Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability

33

E-Ring WPL 4158253 Contact Us For Availability
