Model Whirlpool MW3500XW0 – Common Parts & Diagrams

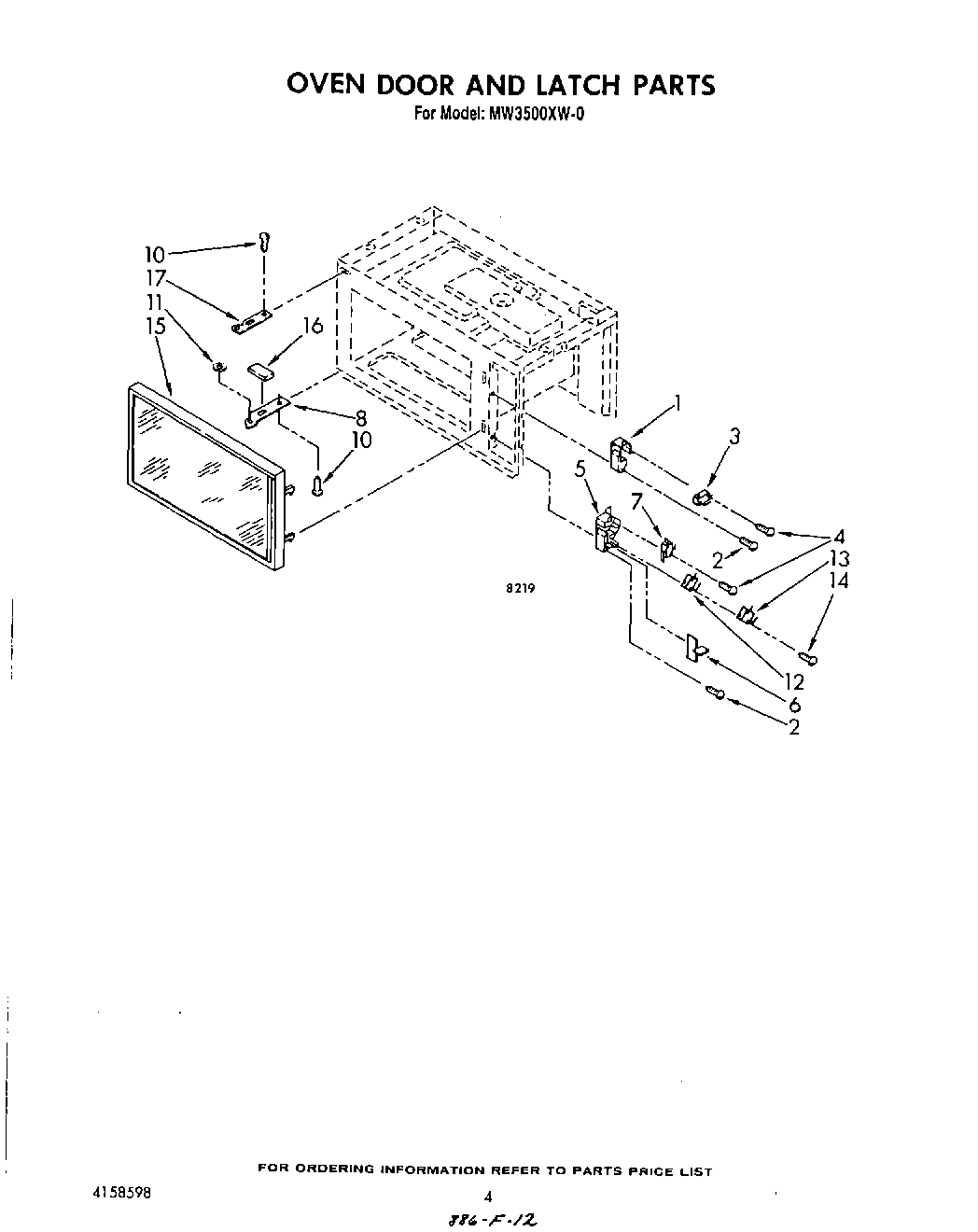

04 - OVEN DOOR AND LATCH

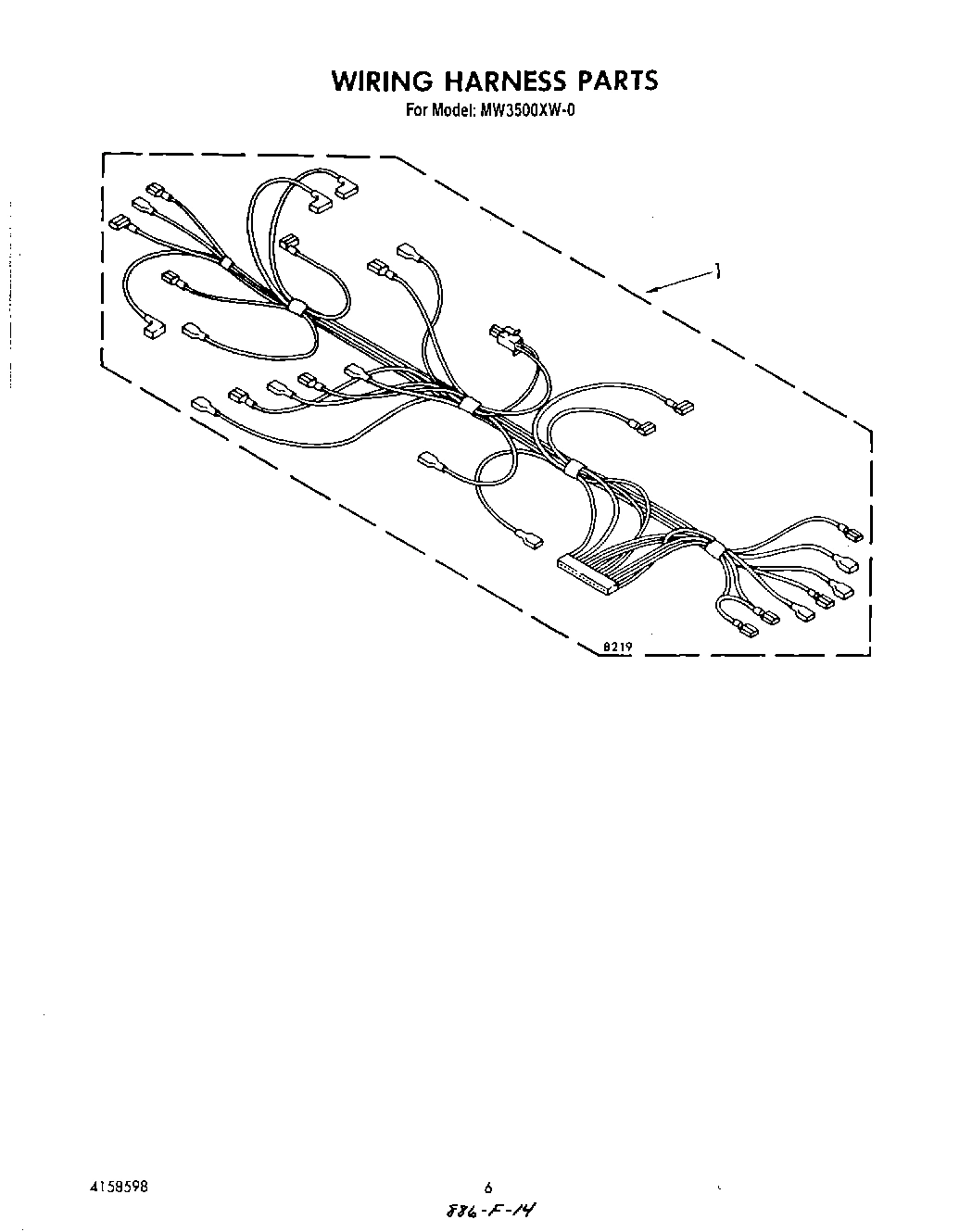

06 - WIRING HARNESS , LIT/OPTIONAL

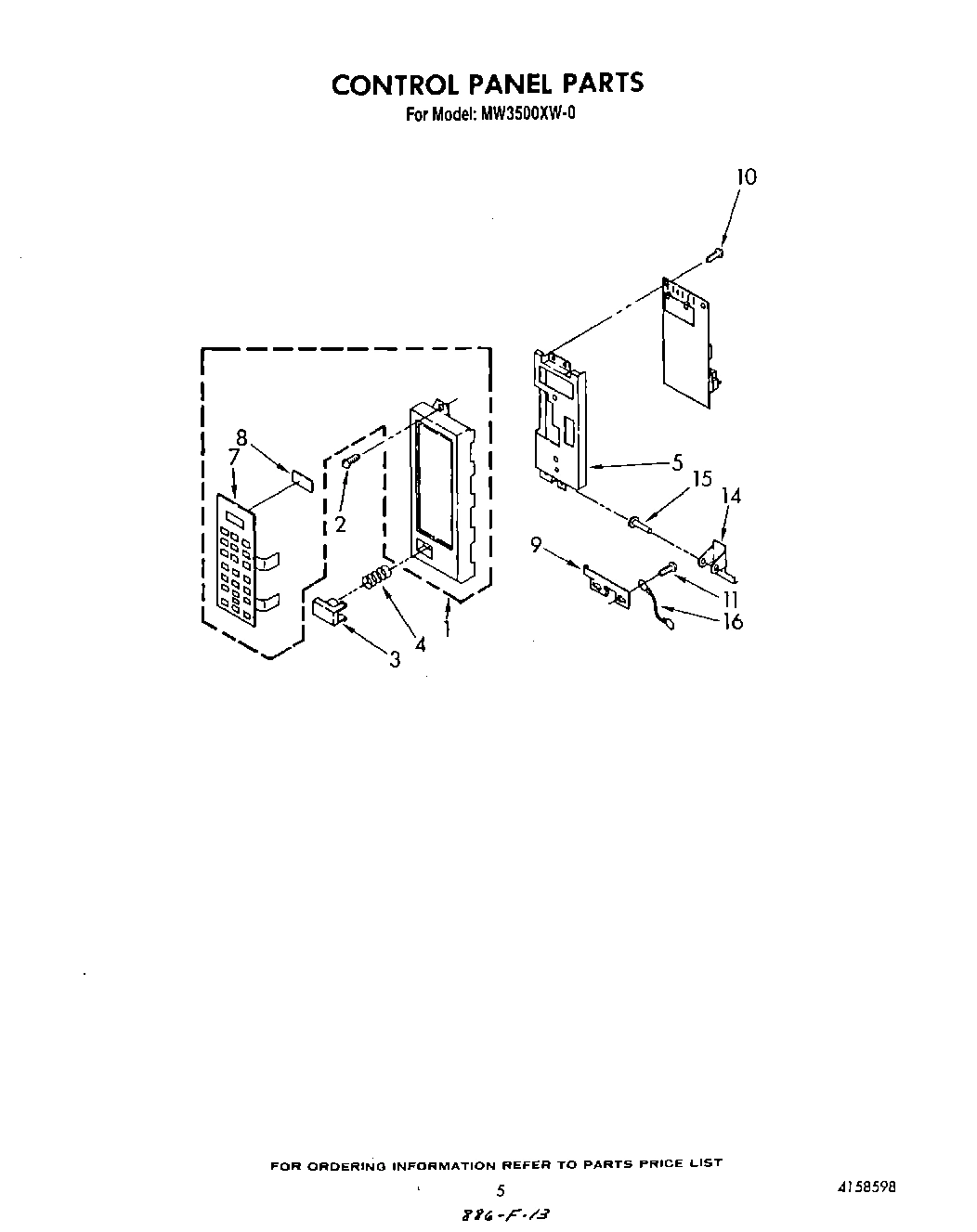

05 - CONTROL PANEL

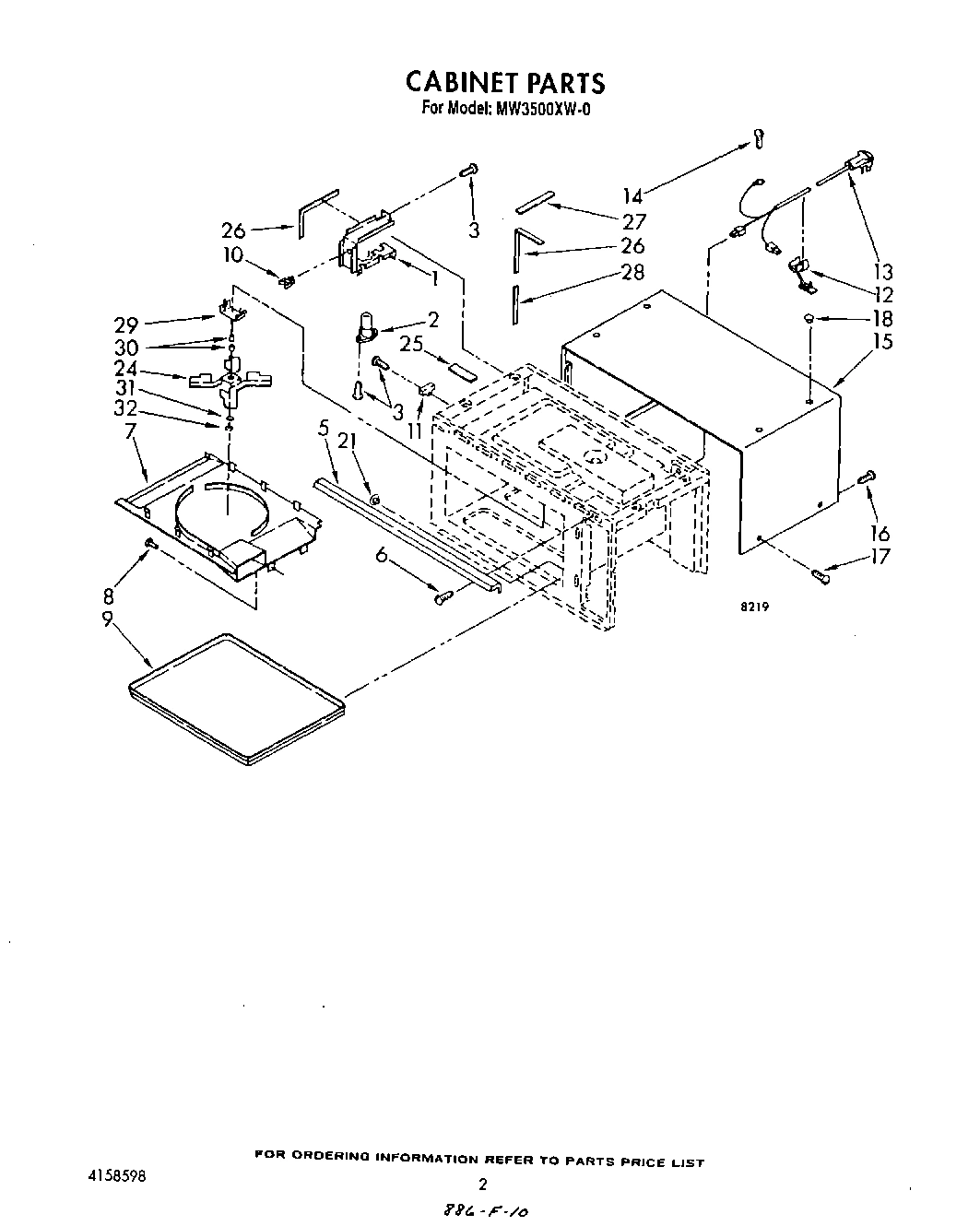

02 - CABINET

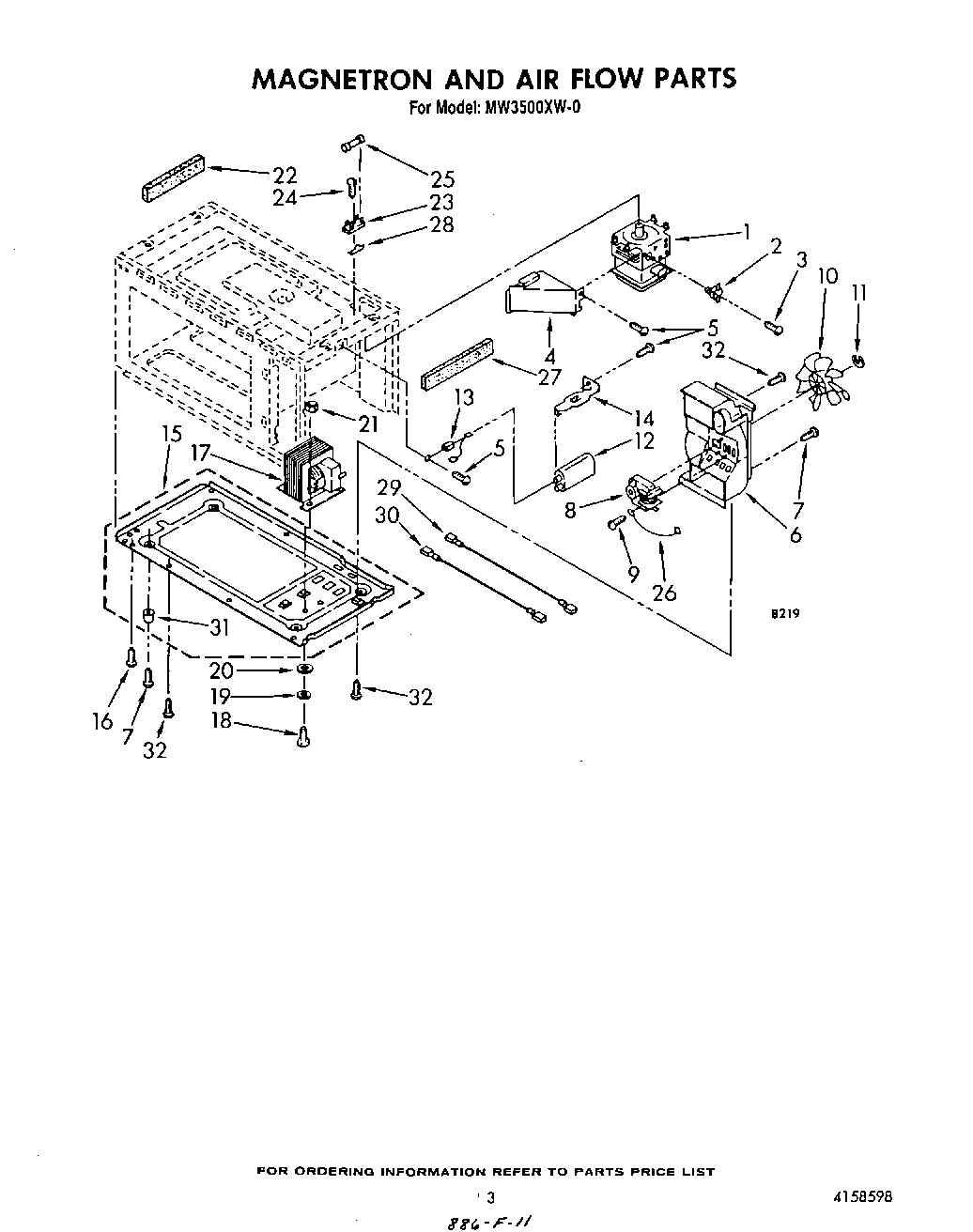

03 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool MW3500XW0
Chart, Autoset WPL LIT3147330 Contact Us For Availability
Cookbook WPL LIT4158034 Contact Us For Availability
Guide, Use & Care WPL LIT4158516 Contact Us For Availability
Tech Sheet WPL LIT4158532 Contact Us For Availability
List, Repair Parts WPL LIT4158598 Contact Us For Availability
1
Under The Cabinet Mounting Kit WPL 4158000 Contact Us For Availability
1
Wall Mount Kit WPL 4158015 Contact Us For Availability
1
Built-In Kit WPL 4158017 Contact Us For Availability
1
Bi-Level Rack Kit WPL 4158019 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158605 Contact Us For Availability
1
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
1
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
1
Control Panel (Includes Illustration 7 & 8) WPL 4158667 Contact Us For Availability
1
Bracket, Light WPL 4158138 Contact Us For Availability
1
Magnetron WPL 4158589 Contact Us For Availability
2
Base Less Light WPL 4158586 Contact Us For Availability
2
Thermostat WPL 4158397 Contact Us For Availability
3
Button, Push To Start WPL 4158177 Contact Us For Availability
3
Screw, 3 x 16 mm (2) WPL 4158186 Contact Us For Availability
4
Spring, Button WPL 4158178 Contact Us For Availability
4
Duct, Air WPL 4158146 Contact Us For Availability
5
Bracket, Control WPL 4158200 Contact Us For Availability
5
Grille, Vent WPL 4158140 Contact Us For Availability
6
Rod, Release WPL 4158155 Contact Us For Availability
6
Screw, 4 x 10mm WPL 4158188 Contact Us For Availability
6
Microcomputer WPL 4158604 Contact Us For Availability
6
Cover, Fan WPL 4158147 Contact Us For Availability
7
Touch Panel (Not Serviceable) WPL ARI119386A Contact Us For Availability
7
Cover, Stirrer WPL 4158141 Contact Us For Availability
7
Screw, 4 x 12 mm WPL 4158190 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158160 Contact Us For Availability
8
Digitron Window (Not Serviceable) WPL ARI119387A Contact Us For Availability
8
Rivet (3) WPL 4339374 Contact Us For Availability
8
Motor, Fan WPL 4158148 Contact Us For Availability
9
Base Bracket WPL 4158603 Contact Us For Availability
9
Shelf, Cavity WPL 4158596 Contact Us For Availability
9
Screw, 4 x 28 mm (3) WPL 4158189 Contact Us For Availability
10
Screw, 5 x 12 mm (2) WPL 4158192 Contact Us For Availability
10
Clip, Wire WPL 4158145 Contact Us For Availability
10
Fan WPL 4158149 Contact Us For Availability
11
Washer WPL 4158117 Contact Us For Availability
11
Fuse, Thermal WPL 4158562 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
12
Strain Relief WPL 4158092 Contact Us For Availability
12
Capacitor WPL 4158593 Contact Us For Availability
13
Switch, Secondary WPL 4158197 Contact Us For Availability
13
Cord, Power WPL 4158162 Contact Us For Availability
13
Diode Cable WPL 4158595 Contact Us For Availability
14
Screw, 3 x 30 mm WPL 4158208 Contact Us For Availability
14
Lever, Release WPL 4158203 Contact Us For Availability
14
Screw, 4 x 16 mm WPL 4158074 Contact Us For Availability
14
Bracket, Capacitor WPL 4158594 Contact Us For Availability
15
Door, Complete WPL 4158591 Contact Us For Availability
15
Pin, Lever WPL 4158204 Contact Us For Availability
15
Wrapper, Cabinet WPL 4158163 Contact Us For Availability
15
Plate, Base (Includes Illus. No. 31) WPL 4158157 Contact Us For Availability
16
Foam WPL 4158170 Contact Us For Availability
16
Wire Lead WPL 4158205 Contact Us For Availability
16
Screw, 4 x 10 mm WPL 4158194 Contact Us For Availability
17
Hinge Plate, Upper WPL 4158139 Contact Us For Availability
17
Screw, 4 x 12 (4) WPL 4158084 Contact Us For Availability
17
Transformer WPL 4158592 Contact Us For Availability
18
Plug, Hole (4) WPL 4158164 Contact Us For Availability
18
Screw, 5 x 16 mm (2) WPL 4158081 Contact Us For Availability
19
Washer (2) WPL 4158087 Contact Us For Availability
20
Washer (2) WPL 4158207 Contact Us For Availability
21
Plug, Hole (4) WPL 4158597 Contact Us For Availability
21
Nut (2) WPL 4158053 Contact Us For Availability
22
Foam, Duct (2) WPL 4158159 Contact Us For Availability
23
Holder, Fuse WPL 4158581 Contact Us For Availability
24
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
24
Blade, Stirrer WPL 4158587 Contact Us For Availability
25
Foam WPL 4158171 Contact Us For Availability
25
Fuse WPL 4158378 Contact Us For Availability
26
Foam, Cabinet WPL 4158172 Contact Us For Availability
26
Wire, Lead WPL 4157169 Contact Us For Availability
27
Foam, Cabinet WPL 4158173 Contact Us For Availability
27
Foam, Fan Cover WPL 4158167 Contact Us For Availability
28
Foam, Cabinet WPL 4158174 Contact Us For Availability
28
Plate, Discharge WPL 4158126 Contact Us For Availability
29
Shaft, Blade WPL 4158263 Contact Us For Availability
29
Lead, High Voltage WPL 4158184 Contact Us For Availability
30
Bushing (2) WPL 4158360 Contact Us For Availability
30
Lead, High Voltage WPL 4158185 Contact Us For Availability
31
Washer WPL 4158252 Contact Us For Availability
31
Foot (4) WPL 4339375 Contact Us For Availability
32
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
32
Lock Washer WPL 4158588 Contact Us For Availability
× ![]()
