Model Whirlpool MW3500XP2 – Common Parts & Diagrams
02 - MAGNETRON AND AIRFLOW
04 - DOOR AND LATCH , WIRING HARNESS

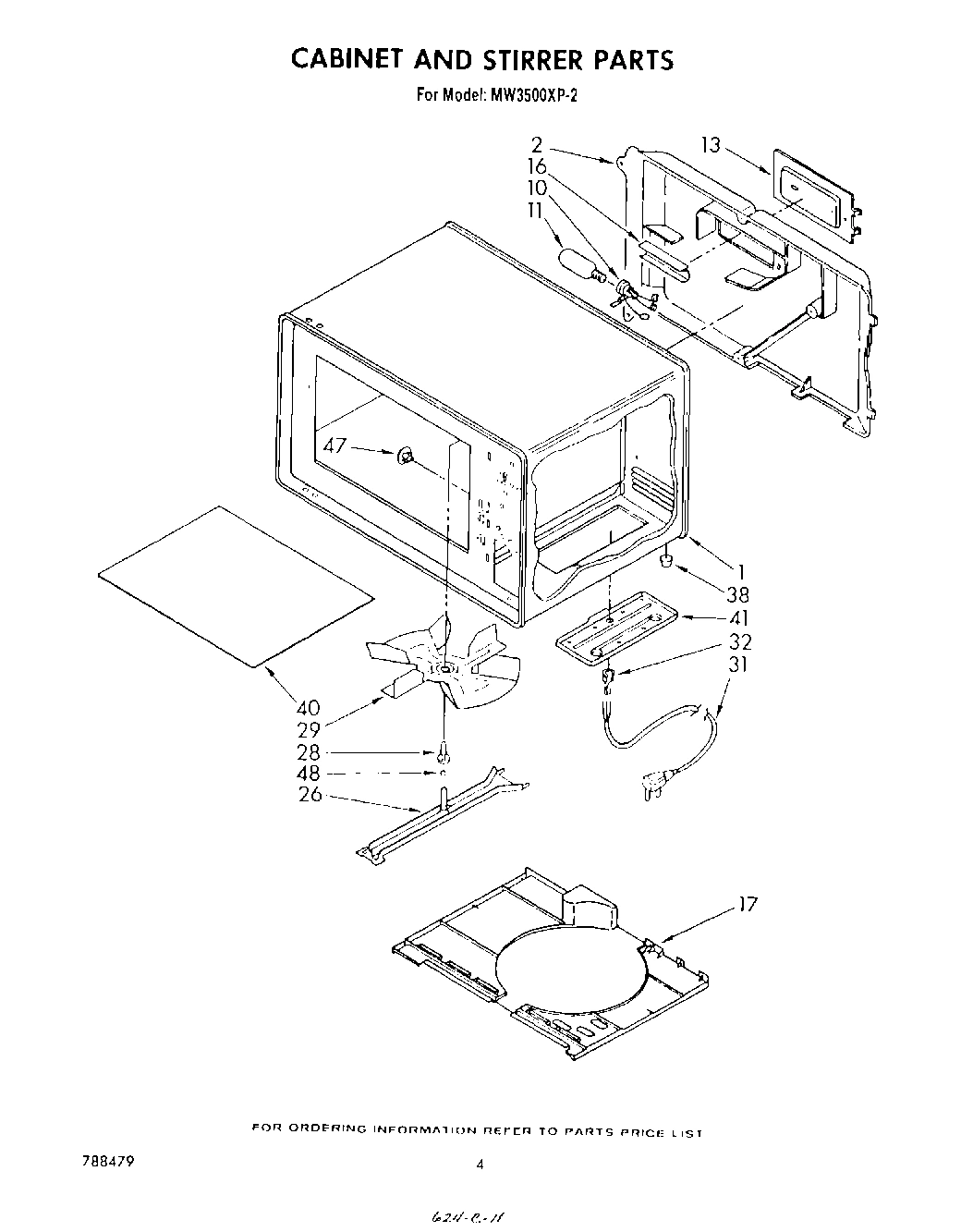

03 - CABINET AND STIRRER

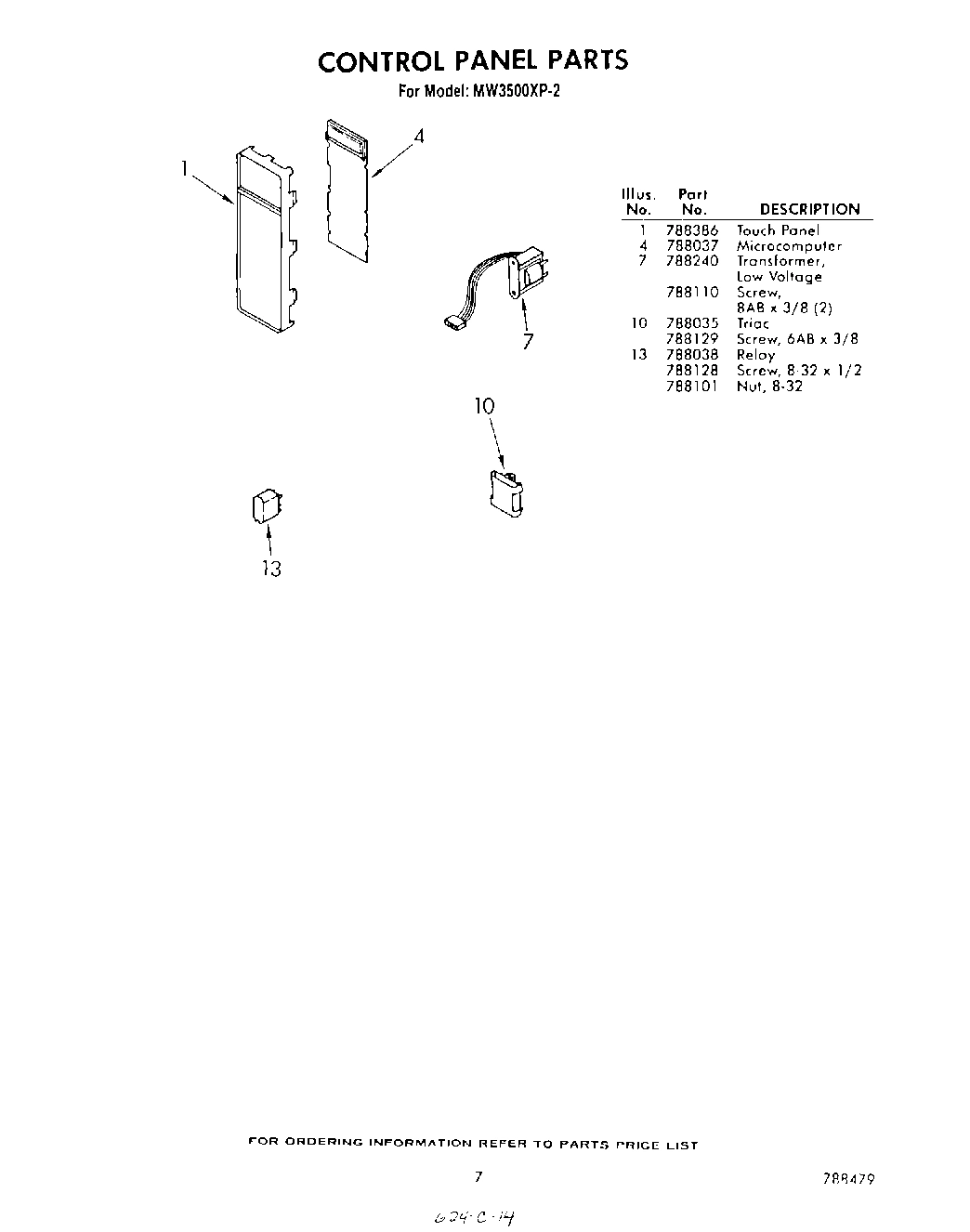

05 - CONTROL PANEL , LITERATURE AND OPTIONAL
Common parts from model Whirlpool MW3500XP2
Guide, Use & Care WPL LIT788278 Contact Us For Availability
Cookbook WPL LIT788283 Contact Us For Availability
List, Repair Parts WPL LIT788479 Contact Us For Availability
1
Switch, Interlock WPL 788023 Contact Us For Availability
1
Harness, Wiring (Complete) WPL 788451 Contact Us For Availability
1
Cabinet, Complete (Not Serviceable) WPL ARI119383A Contact Us For Availability
1
Touch Panel WPL 788386 Contact Us For Availability
2
High Voltage Lead Kit (Magnetron) WPL 788042 Contact Us For Availability
2
Door, Complete (Includes Illus. 4) WPL 788382 Contact Us For Availability
2
Cover, Rear WPL 788365 Contact Us For Availability
3
Clip, Switch Mounting (2) WPL 788102 Contact Us For Availability
4
Handle (Includes Inlay) WPL 788315 Contact Us For Availability
4
Microcomputer WPL 788037 Contact Us For Availability
5
Bracket, Capacitor WPL 788311 Contact Us For Availability
5
Pin, Handle Mounting WPL 788105 Contact Us For Availability
7
Hinge (Upper) WPL 788299 Contact Us For Availability
7
Screw (2) WPL 788300 Contact Us For Availability
7
Transformer, Low Voltage WPL 788240 Contact Us For Availability
8
Nut, 4-40 WPL 788099 Contact Us For Availability
8
Screw, 4-40 x 1/4 WPL 788112 Contact Us For Availability
8
Holder, Fuse WPL 788324 Contact Us For Availability
10
Washer, Wave (Upper Hinge Pin) WPL 788106 Contact Us For Availability
10
Socket, Lamp WPL 788342 Contact Us For Availability
10
Triac WPL 788035 Contact Us For Availability
10
Screw, 6AB x 3/8 WPL 788129 Contact Us For Availability
11
Hinge (Lower) WPL 788301 Contact Us For Availability
11
Screw (2) WPL 788302 Contact Us For Availability
11
Lamp (15W) WPL 788341 Contact Us For Availability
13
Fuse (15 Amp) WPL 788133 Contact Us For Availability
13
Plate, Cover WPL 788340 Contact Us For Availability
13
Relay WPL 788038 Contact Us For Availability
13
Screw, 8-32 x 1/2 WPL 788128 Contact Us For Availability
13
MK100 Under-The-Cabinet Mounting Kit WPL 788262 Contact Us For Availability
13
Wall Mount Kit WPL 788273 Contact Us For Availability
13
Driver, Torx (T-20) WPL 788290 Contact Us For Availability
14
Washer, Nylon (Lower Hinge Pin) WPL 788123 Contact Us For Availability
16
Nut (4) WPL 788104 Contact Us For Availability
16
Magnetron (Includes Illus. No.17) WPL 788312 Contact Us For Availability
16
Screw WPL 788314 Contact Us For Availability
16
Plate, Nut WPL 788298 Contact Us For Availability
16
Reflector WPL 788343 Contact Us For Availability
17
Gasket, Magnetron WPL 788056 Contact Us For Availability
17
Cover, Stirrer WPL 788366 Contact Us For Availability
19
Thermal Protector, Magnetron WPL 788067 Contact Us For Availability
21
Cover, Capacitor WPL 788339 Contact Us For Availability
25
Nut WPL 788021 Contact Us For Availability
25
Washer WPL 788120 Contact Us For Availability
25
Motor, Blower (Includes Illus. 34) WPL 788323 Contact Us For Availability
26
Bracket, Blower WPL 788372 Contact Us For Availability
26
Rivet WPL 788094 Contact Us For Availability
26
Support Bar, Stirrer WPL 788295 Contact Us For Availability
28
Insert, Stirrer (Includes Illus. NO. 48) WPL 788293 Contact Us For Availability
29
Wheel, Blower (Includes Illus. NO. 34) WPL 788373 Contact Us For Availability
29
Blade, Stirrer WPL 788292 Contact Us For Availability
31
Screw, 8-18 x 1/2 (2) WPL 788121 Contact Us For Availability
31
Housing, Blower (Includes Illus. 34) WPL 788374 Contact Us For Availability
31
Washer, No.8 WPL 788096 Contact Us For Availability
31
Washer WPL 788097 Contact Us For Availability
31
Screw, 8-32 x 3/8 WPL 788111 Contact Us For Availability
31
Cord, Power WPL 788329 Contact Us For Availability
31
Clamp WPL 788330 Contact Us For Availability
32
Relief, Strain WPL 788380 Contact Us For Availability
34
E-Ring, Blower Wheel WPL 788028 Contact Us For Availability
37
Screw, 10-32 x 3/8 (4) WPL 788117 Contact Us For Availability
37
Transformer WPL 788161 Contact Us For Availability
38
Foot (4) WPL 788303 Contact Us For Availability
38
Rivet (4) WPL 788304 Contact Us For Availability
40
Cover, Lead WPL 788368 Contact Us For Availability
40
Shelf (Order Sealant Part No. 482338 For Inst WPL 788364 Contact Us For Availability
41
Clip (4) WPL 788328 Contact Us For Availability
41
Panel, Access (Includes Illus. 38) WPL 788449 Contact Us For Availability
42
Air Duct, Front WPL 788376 Contact Us For Availability
43
Air Duct, Rear WPL 788375 Contact Us For Availability
47
Plug, Hole WPL 788065 Contact Us For Availability
48
Bearing, Stirrer WPL 788294 Contact Us For Availability
× ![]()
