Model Whirlpool MW3200XS0 – Common Parts & Diagrams

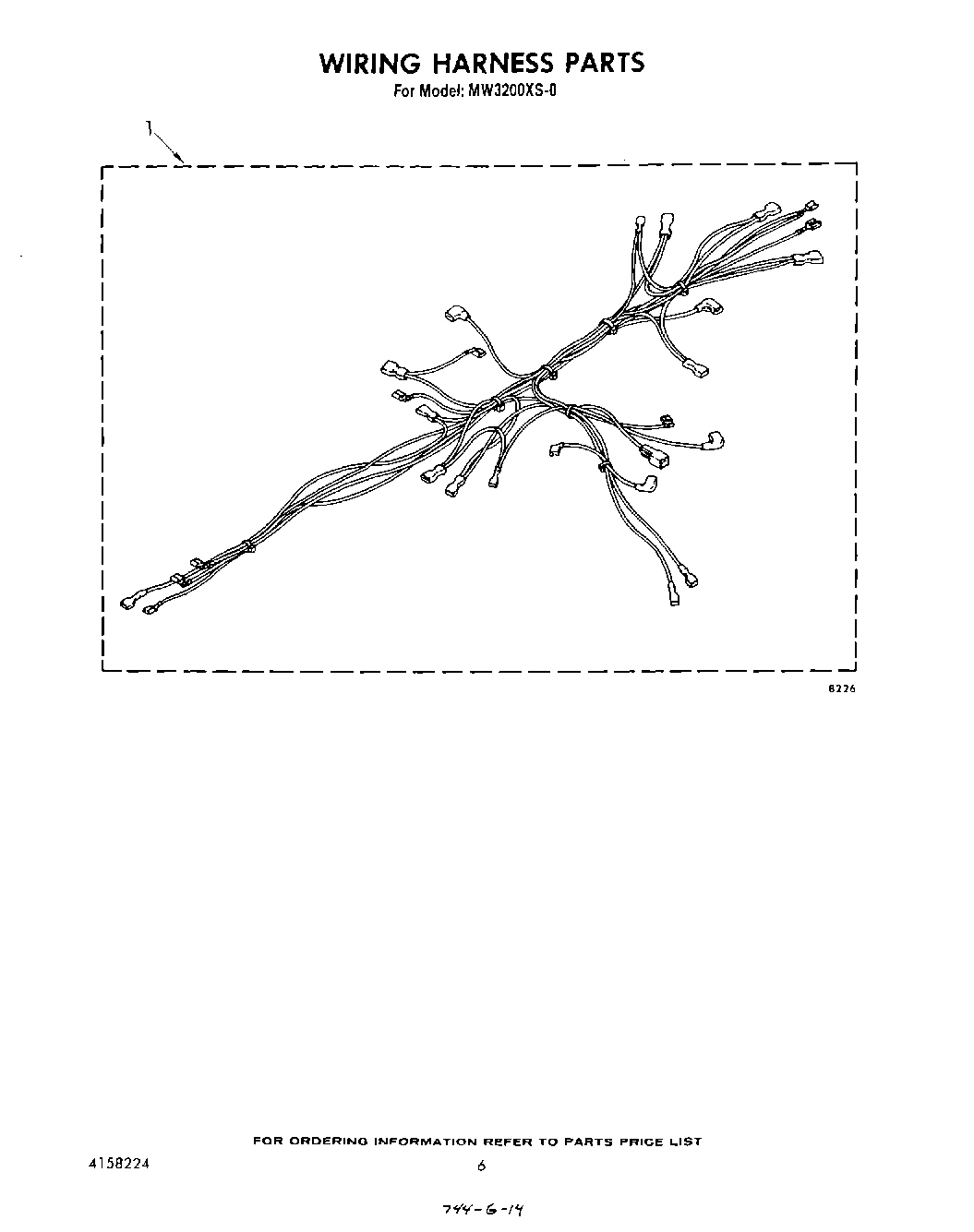

06 - WIRING HARNESS , LIT/OPTIONAL

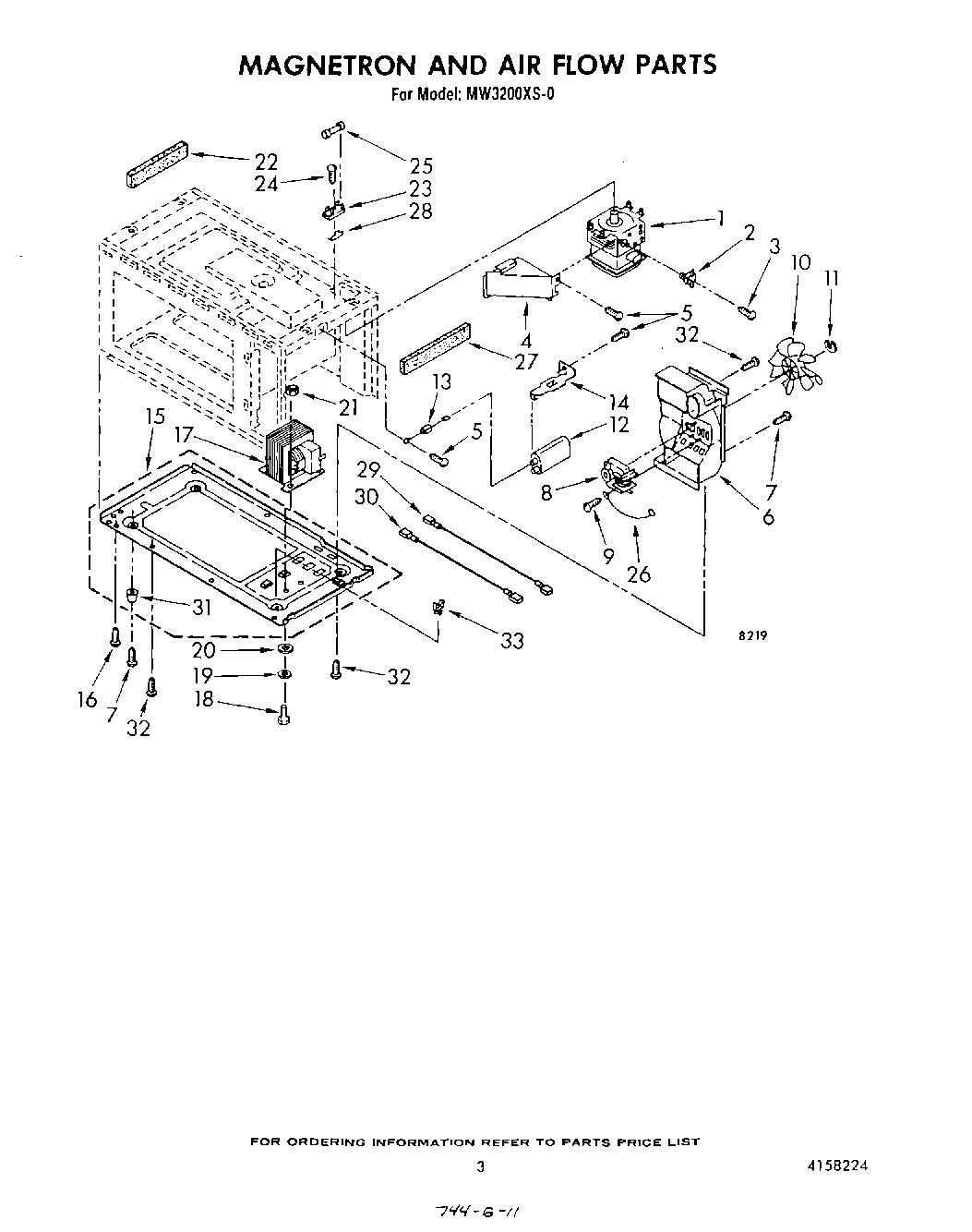

03 - MAGNETRON AND AIRFLOW

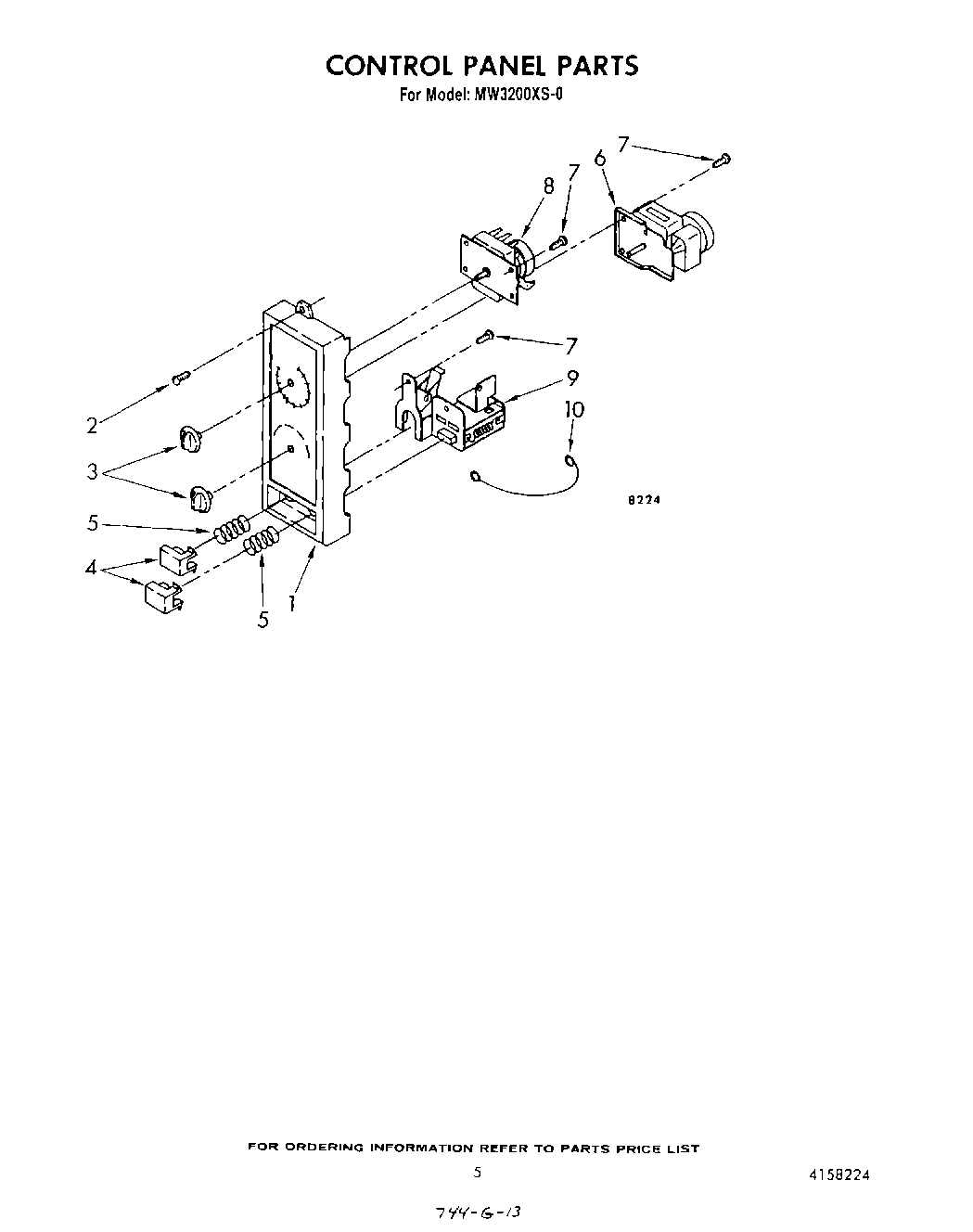

05 - CONTROL PANEL

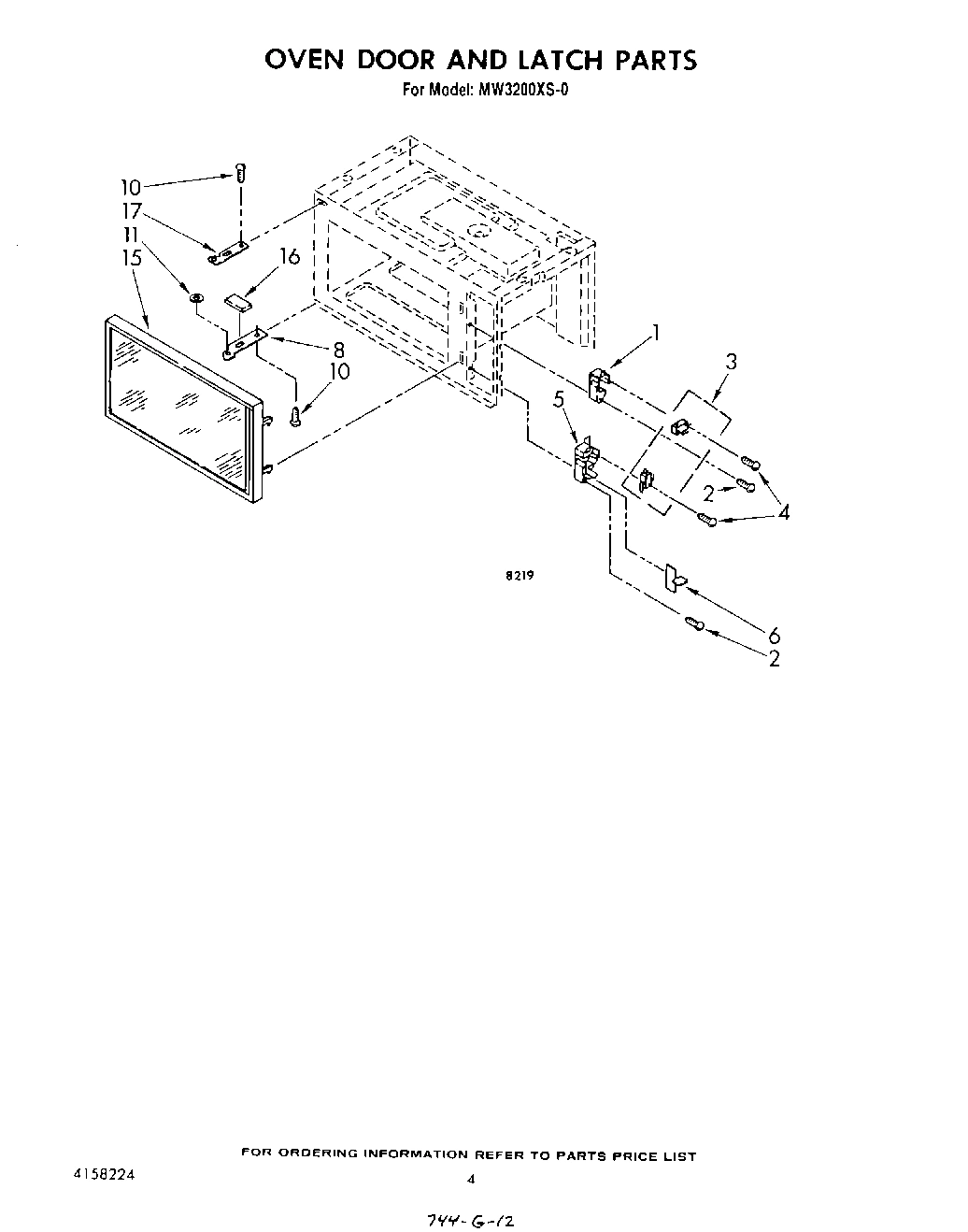

04 - OVEN DOOR AND LATCH

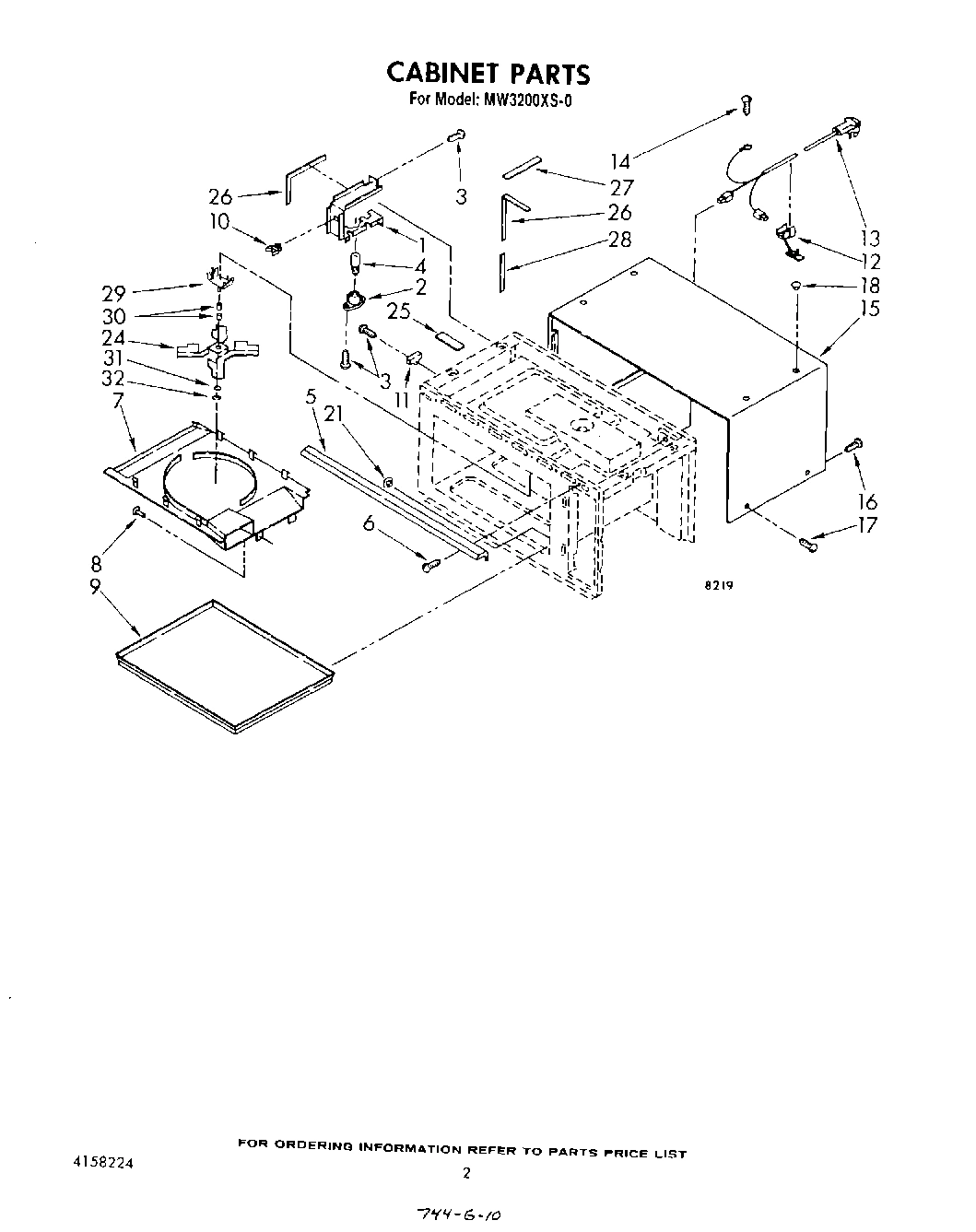

02 - CABINET
Common parts from model Whirlpool MW3200XS0
1
Wall Mount Kit WPL 4158015 Contact Us For Availability
1
Built-In Kit WPL 4158017 Contact Us For Availability
1
Bi-Level Rack Kit WPL 4158019 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158183 Contact Us For Availability
1
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
1
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
1
Magnetron WPL 4158143 Contact Us For Availability
1
Frame, Control Panel WPL 4158176 Contact Us For Availability
1
Latch, Upper WPL 4158152 Contact Us For Availability
1
Bracket, Light WPL 4158138 Contact Us For Availability
2
Thermal Protector WPL 4158144 Contact Us For Availability
2
Screw, 4 x 12 mm WPL 4158190 Contact Us For Availability
2
Socket, Lamp WPL 4158097 Contact Us For Availability
3
Screw, 3 x 16 mm (2) WPL 4158186 Contact Us For Availability
3
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
3
Knob WPL 4158114 Contact Us For Availability
3
Interlock, Switch Kit (Both switches must be WPL 4158244 Contact Us For Availability
4
Duct, Air WPL 4158146 Contact Us For Availability
4
Button WPL 4158177 Contact Us For Availability
4
Screw, 3 x 16 mm (2) WPL 4158187 Contact Us For Availability
4
Bulb WPL 4158098 Contact Us For Availability
5
Spring WPL 4158178 Contact Us For Availability
5
Latch, Lower WPL 4158154 Contact Us For Availability
5
Grille, Vent WPL 4158140 Contact Us For Availability
6
Cover, Fan WPL 4158147 Contact Us For Availability
6
Screw, 4 x 10mm WPL 4158188 Contact Us For Availability
6
Variable Power Control WPL 4158179 Contact Us For Availability
6
Rod, Release WPL 4158155 Contact Us For Availability
7
Cover, Stirrer WPL 4158141 Contact Us For Availability
8
Motor, Fan WPL 4158148 Contact Us For Availability
8
Timer, Minute WPL 4158180 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158160 Contact Us For Availability
8
Rivet (3) WPL 4158047 Contact Us For Availability
9
Screw, 4 x 28 mm (3) WPL 4158189 Contact Us For Availability
9
Switch, Start WPL 4158181 Contact Us For Availability
9
Shelf, Cavity WPL 4158142 Contact Us For Availability
10
Fan WPL 4158149 Contact Us For Availability
10
Wire, Ground WPL 4158182 Contact Us For Availability
10
Screw, 5 x 12 mm (2) WPL 4158192 Contact Us For Availability
10
Clip, Wire WPL 4158145 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
11
Washer WPL 4158117 Contact Us For Availability
11
Fuse, Thermal WPL 4158049 Contact Us For Availability
12
Capacitor WPL 4158150 Contact Us For Availability
12
Strain Relief WPL 4158092 Contact Us For Availability
13
Diode WPL 4158045 Contact Us For Availability
13
Cord, Power WPL 4158162 Contact Us For Availability
14
Bracket, Capacitor WPL 4158151 Contact Us For Availability
14
Screw, 4 x 16 mm WPL 4158074 Contact Us For Availability
15
Plate, Base (Includes Illus. No. 31) WPL 4158157 Contact Us For Availability
15
Door, Complete WPL 4158175 Contact Us For Availability
15
Wrapper, Cabinet WPL 4158163 Contact Us For Availability
16
Screw, 4 x 10 mm WPL 4158194 Contact Us For Availability
16
Foam WPL 4158170 Contact Us For Availability
17
Transformer WPL 4158158 Contact Us For Availability
17
Hinge Plate, Upper WPL 4158139 Contact Us For Availability
17
Screw, 4 x 12 (4) WPL 4158084 Contact Us For Availability
18
Screw, 5 x 16 mm (2) WPL 4158081 Contact Us For Availability
18
Plug, Hole (4) WPL 4158164 Contact Us For Availability
19
Washer (2) WPL 4158087 Contact Us For Availability
20
Washer (2) WPL 4158191 Contact Us For Availability
21
Nut (2) WPL 4158053 Contact Us For Availability
21
Plug, Hole (4) WPL 4158165 Contact Us For Availability
22
Foam, Duct WPL 4158159 Contact Us For Availability
23
Holder, Fuse WPL 4158059 Contact Us For Availability
24
Blade, Stirrer WPL 4158168 Contact Us For Availability
25
Fuse WPL 4158161 Contact Us For Availability
25
Foam WPL 4158171 Contact Us For Availability
26
Lead, High Voltage WPL 4158205 Contact Us For Availability
26
Foam, Cabinet WPL 4158172 Contact Us For Availability
27
Foam, Fan Cover WPL 4158167 Contact Us For Availability
27
Foam, Cabinet WPL 4158173 Contact Us For Availability
28
Plate, Discharge WPL 4158126 Contact Us For Availability
28
Foam, Cabinet WPL 4158174 Contact Us For Availability
29
Lead, High Voltage WPL 4158184 Contact Us For Availability
29
Shaft, Blade WPL 4158263 Contact Us For Availability
30
Lead, High Voltage WPL 4158185 Contact Us For Availability
30
Bushing (2) WPL 4158251 Contact Us For Availability
31
Foot (4) WPL 4158042 Contact Us For Availability
31
Washer WPL 4158252 Contact Us For Availability
32
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
32
E-Ring WPL 4158253 Contact Us For Availability
33
Clip, Wire WPL 4158166 Contact Us For Availability
× ![]()
