Model Whirlpool MW3200XM1 – Common Parts & Diagrams
05 - CONTROL , LITERATURE AND OPTIONAL
02 - MAGNETRON AND AIRFLOW

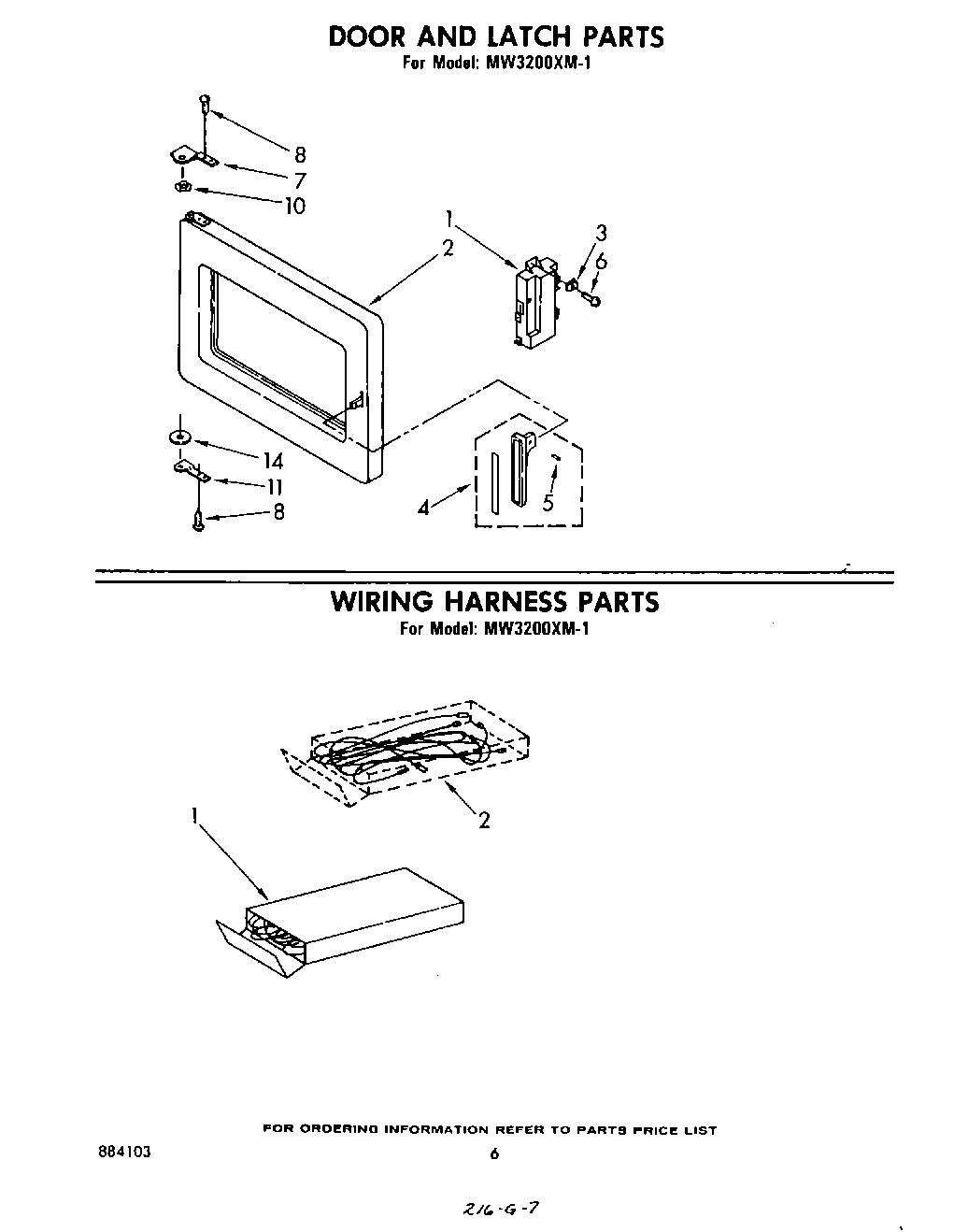

04 - DOOR AND LATCH , WIRING HARNESS

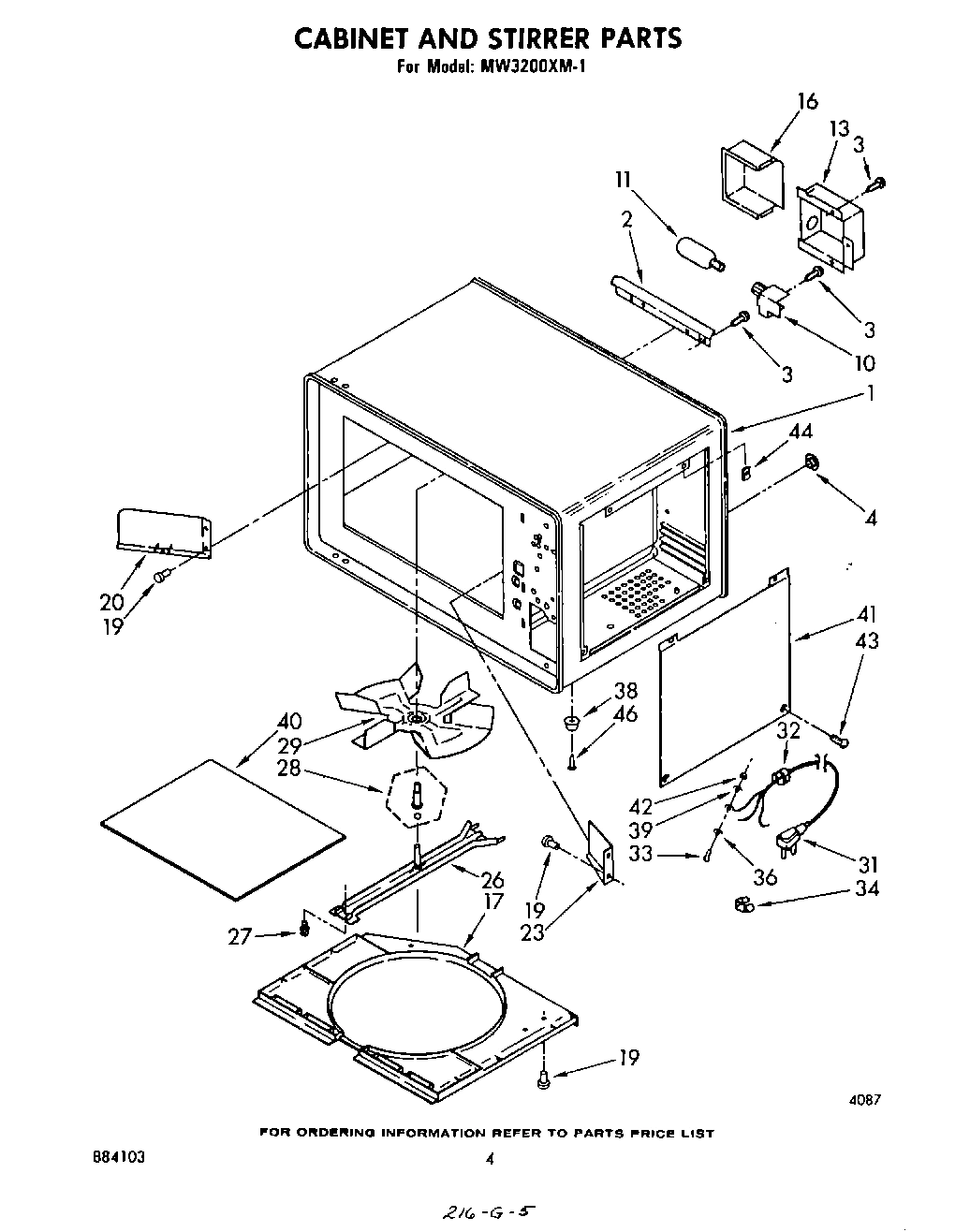

03 - CABINET AND STIRRER
Common parts from model Whirlpool MW3200XM1
1
Cavity Assembly (Not Serviceable) WPL ARI119368A Contact Us For Availability
1
Module, Interlock Switch WPL 788023 Contact Us For Availability
1
Complete Wiring Harness WPL 788074 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI119369A Contact Us For Availability
2
Protector, Thermal WPL 788040 Contact Us For Availability
2
High Voltage Lead Kit (Magnetron) WPL 788042 Contact Us For Availability
2
Door, Complete (Includes Illus. 4 And Crows F WPL 788069 Contact Us For Availability
2
Wire Cover WPL 788051 Contact Us For Availability
3
Clip, Switch Mounting (2) WPL 788102 Contact Us For Availability
4
Timer (25 Minute) WPL 788033 Contact Us For Availability
4
Capacitor WPL 788022 Contact Us For Availability
4
Handle (Include Inlay) WPL 788031 Contact Us For Availability
4
Plug, Hole WPL 788065 Contact Us For Availability
5
Screw, 3mm x 6mm Phillips Pan Head (3) WPL 788107 Contact Us For Availability
5
Bracket, Capacitor Mounting WPL 788052 Contact Us For Availability
5
Pin, Handle Mounting WPL 788105 Contact Us For Availability
6
Bushing, Large WPL 788090 Contact Us For Availability
7
Variable Power Selector WPL 788034 Contact Us For Availability
7
Hinge (Upper) WPL 788061 Contact Us For Availability
8
Screw, 6-32 x 1/2 Slotted Hex Washer Head (2) WPL 788124 Contact Us For Availability
8
Holder, Fuse WPL 788082 Contact Us For Availability
8
Screw, 8-32 x 1/4 WPL 788122 Contact Us For Availability
9
Bushing, Small WPL 788091 Contact Us For Availability
10
Resistor, Surge WPL 788075 Contact Us For Availability
10
Screw, 4-40 x 1/4 Phillips Pan Head WPL 788112 Contact Us For Availability
10
Washer, Wave (Upper Hinge Pin) WPL 788106 Contact Us For Availability
10
Lamp Socket & Bracket WPL 788077 Contact Us For Availability
11
Bracket, Surge Resistor WPL 788076 Contact Us For Availability
11
Nut, 4-40 WPL 788099 Contact Us For Availability
11
Hinge (Lower) WPL 788060 Contact Us For Availability
11
Lamp WPL 788030 Contact Us For Availability
13
Screw, 8-32 x 3/8 Phillips Pan Head WPL 788113 Contact Us For Availability
13
Fuse (15 Amp) WPL 788133 Contact Us For Availability
13
Cover, Component WPL 788078 Contact Us For Availability
14
RCK304 24`` Built-In Kit (For Use With Built- WPL 788002 Contact Us For Availability
14
RCK310 Wall Mount Kit WPL 788004 Contact Us For Availability
14
Guide, Use & Care WPL 788008 Contact Us For Availability
14
Instructions, Installation WPL 788010 Contact Us For Availability
14
Cookbook WPL 788016 Contact Us For Availability
14
Guide, Cooking WPL 788018 Contact Us For Availability
14
RCK304-1 24`` Built-In Kit (For Built-In Oven WPL 788135 Contact Us For Availability
14
List, Repair Parts WPL 884103 Contact Us For Availability
14
Diode WPL 788244 Contact Us For Availability
14
Washer, Nylon (Lower Hinge Pin) WPL 788123 Contact Us For Availability
16
Magnetron (Includes Illus. No.17) WPL 788025 Contact Us For Availability
16
Cover, Light WPL 788029 Contact Us For Availability
17
Gasket, Magnetron WPL 788056 Contact Us For Availability
17
Cover, Stirrer WPL 788046 Contact Us For Availability
19
Thermal Protector, Magnetron WPL 788067 Contact Us For Availability
19
Rivet (5) WPL 788093 Contact Us For Availability
20
Support, Magnetron WPL 788054 Contact Us For Availability
20
Baffle, Left Air WPL 788050 Contact Us For Availability
22
Screw, 6-32 x 1/4 Phillips Pan Head WPL 788118 Contact Us For Availability
23
Baffle, Right Air WPL 788045 Contact Us For Availability
24
Nut, 5mm (4) WPL 788104 Contact Us For Availability
25
Motor, Blower WPL 788026 Contact Us For Availability
26
Bracket, Blower WPL 788057 Contact Us For Availability
26
Support Bar, Stirrer WPL 788047 Contact Us For Availability
27
Foil Tape WPL 788064 Contact Us For Availability
27
Rivet WPL 788094 Contact Us For Availability
28
Insert, Stirrer (Includes Bearing) WPL 788048 Contact Us For Availability
29
Wheel, Blower WPL 788058 Contact Us For Availability
29
Blade, Stirrer WPL 788049 Contact Us For Availability
31
Housing, Blower WPL 788027 Contact Us For Availability
31
Cord, Power WPL 788063 Contact Us For Availability
32
Screw, 8-18 x 1/2 Hi-Lo (6) WPL 788121 Contact Us For Availability
32
Relief, Strain WPL 788095 Contact Us For Availability
33
Washer No.8 (4) WPL 788120 Contact Us For Availability
33
Screw, 8-32 x 3/8 (Grounding) WPL 788111 Contact Us For Availability
34
E-Ring, Blower Wheel WPL 788028 Contact Us For Availability
34
Clip, Wire WPL 788100 Contact Us For Availability
35
Duct, Blower WPL 788059 Contact Us For Availability
36
Washer, No.8 WPL 788096 Contact Us For Availability
37
Transformer WPL 788024 Contact Us For Availability
38
Bolt, 10-32 x 1-3/8 (2) WPL 788103 Contact Us For Availability
38
Foot (4) WPL 788044 Contact Us For Availability
39
Lockwasher, No.8 WPL 788097 Contact Us For Availability
40
Support, Transformer WPL 788053 Contact Us For Availability
40
Shelf (Order Sealant Part No. 482338 For Inst WPL 788043 Contact Us For Availability
41
S\cr\ew, 10-32 x 3/8 Hex Washer Head (4) WPL 788117 Contact Us For Availability
41
Panel, Access WPL 788071 Contact Us For Availability
43
Baffle, Exhaust WPL 788062 Contact Us For Availability
44
Rivet (2) WPL 788108 Contact Us For Availability
44
Clip, Access Panel (2) WPL 788089 Contact Us For Availability
46
Duct, Cavity WPL 788055 Contact Us For Availability
46
Rivet (4) WPL 788092 Contact Us For Availability
× ![]()
