Model Whirlpool MW3000XM0 – Common Parts & Diagrams
02 - MAGNETRON AND AIR FLOW
04 - DOOR AND LATCH , WIRING HARNESS

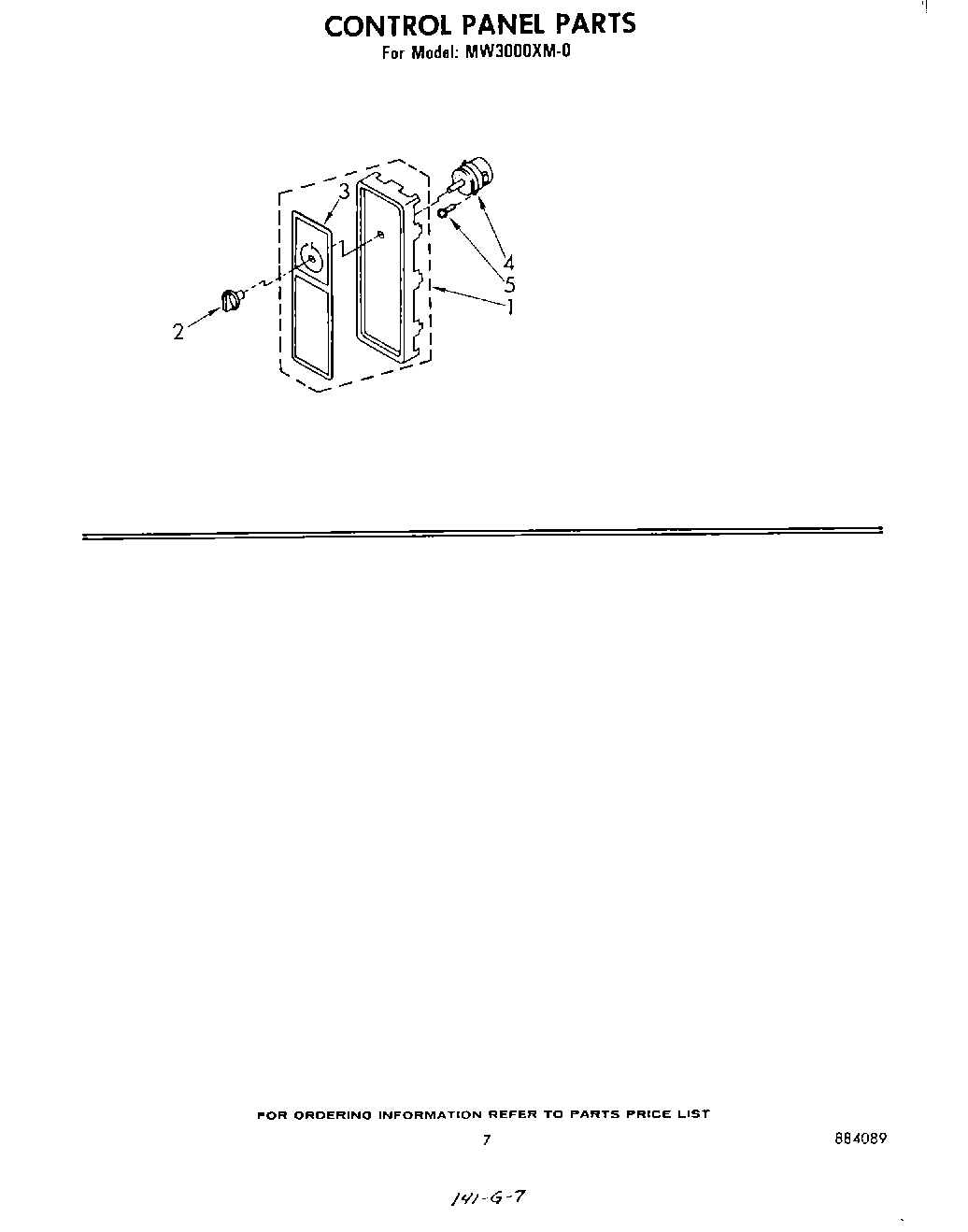

05 - CONTROL PANEL , LITERATURE AND OPTIONAL

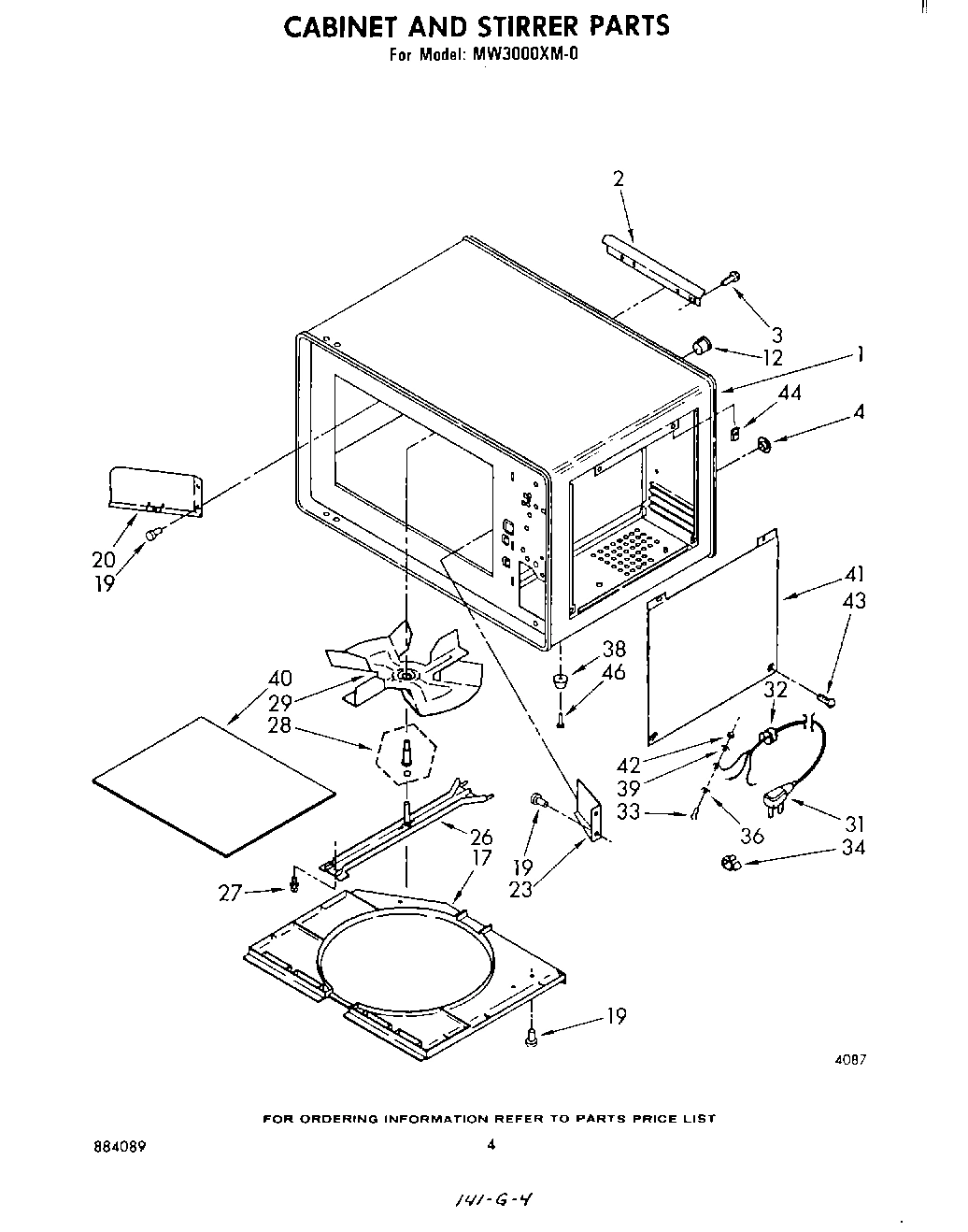

03 - CABINET AND STIRRER
Common parts from model Whirlpool MW3000XM0
1
Module, Interlock Switch WPL 788023 Contact Us For Availability
1
Complete Wiring Harness WPL 788068 Contact Us For Availability
1
Decorative Panel Assembly (Includes Inlay) WPL 788284 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI119357A Contact Us For Availability
2
Protector, Thermal WPL 788040 Contact Us For Availability
2
High Voltage Lead Kit (Magnetron) WPL 788042 Contact Us For Availability
2
Door Assembly (Includes Illus. 4 And Crows Fo WPL 788069 Contact Us For Availability
2
Knob, Timer WPL 788073 Contact Us For Availability
2
Wire Cover WPL 788051 Contact Us For Availability
3
Clip, Switch Mounting (2) WPL 788102 Contact Us For Availability
3
Inlay WPL 788072 Contact Us For Availability
4
Capacitor WPL 788022 Contact Us For Availability
4
Handle Assembly (Include Inlay) WPL 788031 Contact Us For Availability
4
Timer (15 Minute) WPL 788032 Contact Us For Availability
4
Plug, Hole WPL 788065 Contact Us For Availability
5
Bracket, Capacitor Mounting WPL 788052 Contact Us For Availability
5
Pin, Handle Mounting WPL 788105 Contact Us For Availability
5
RCK304 24`` Built-In Kit WPL 788002 Contact Us For Availability
5
RCK310 Wall Mount Kit WPL 788004 Contact Us For Availability
5
Guide, Use & Care WPL 788007 Contact Us For Availability
5
Instructions, Installation WPL 788010 Contact Us For Availability
5
Cookbook WPL 788016 Contact Us For Availability
5
Guide, Cooking WPL 788017 Contact Us For Availability
5
Screw, 6-32 x 1/4 Slotted Hex Washer Head (2) WPL 788125 Contact Us For Availability
5
List, Repair Parts WPL 884089 Contact Us For Availability
6
Bushing, Large WPL 788090 Contact Us For Availability
7
Hinge Assembly (Upper) WPL 788061 Contact Us For Availability
8
Holder, Fuse WPL 788082 Contact Us For Availability
8
Screw, 8-32 x 1/4 WPL 788122 Contact Us For Availability
9
Bushing, Small WPL 788091 Contact Us For Availability
10
Screw, 4-40 x 1/4 Phillips Pan Head WPL 788112 Contact Us For Availability
10
Washer, Wave (Upper Hinge Pin) WPL 788106 Contact Us For Availability
11
Nut, 4-40 WPL 788099 Contact Us For Availability
11
Hinge Assembly (Lower) WPL 788060 Contact Us For Availability
12
Plug Button WPL 788088 Contact Us For Availability
13
Fuse (15 Amp) WPL 788133 Contact Us For Availability
14
Diode WPL 788260 Contact Us For Availability
14
Washer, Nylon (Lower Hinge Pin) WPL 788123 Contact Us For Availability
15
Screw, 8-32 x 3/8 Phillips Pan Head WPL 788113 Contact Us For Availability
16
Magnetron (Includes Gasket) WPL 788025 Contact Us For Availability
17
Gasket, Magnetron WPL 788056 Contact Us For Availability
17
Cover, Stirrer WPL 788046 Contact Us For Availability
18
Lockwasher No.8 WPL 788114 Contact Us For Availability
19
Thermal Protector, Magnetron WPL 788067 Contact Us For Availability
19
Rivet (5) WPL 788093 Contact Us For Availability
20
Support, Magnetron WPL 788054 Contact Us For Availability
20
Baffle, Left Air WPL 788050 Contact Us For Availability
22
Screw, 6-32 x 1/4 Phillips Pan Head WPL 788118 Contact Us For Availability
23
Baffle, Right Air WPL 788045 Contact Us For Availability
24
Nut, 5mm (4) WPL 788104 Contact Us For Availability
25
Motor, Blower WPL 788026 Contact Us For Availability
26
Bracket, Blower WPL 788057 Contact Us For Availability
26
Support Bar, Stirrer WPL 788047 Contact Us For Availability
27
Foil Tape WPL 788064 Contact Us For Availability
27
Rivet WPL 788094 Contact Us For Availability
28
Insert, Stirrer (Includes Bearing) WPL 788048 Contact Us For Availability
29
Wheel, Blower WPL 788058 Contact Us For Availability
29
Blade, Stirrer WPL 788049 Contact Us For Availability
31
Housing, Blower WPL 788027 Contact Us For Availability
31
Cord, Power WPL 788063 Contact Us For Availability
32
Screw, 8-18 x 1/2 Hi-Lo (6) WPL 788121 Contact Us For Availability
32
Relief, Strain WPL 788095 Contact Us For Availability
33
Washer No.8 (4) WPL 788120 Contact Us For Availability
33
Screw, 8-32 x 3/8 (Grounding) WPL 788111 Contact Us For Availability
34
E-Ring, Blower Wheel WPL 788028 Contact Us For Availability
34
Clip, Wire WPL 788100 Contact Us For Availability
35
Duct, Blower WPL 788059 Contact Us For Availability
36
Washer, No.8 WPL 788096 Contact Us For Availability
37
Transformer WPL 788024 Contact Us For Availability
38
Bolt, 10-32 x 1-3/8 (2) WPL 788103 Contact Us For Availability
38
Foot (4) WPL 788044 Contact Us For Availability
39
Lockwasher, No.8 WPL 788097 Contact Us For Availability
40
Support, Transformer WPL 788053 Contact Us For Availability
40
Shelf (Order Sealant Part No. 482338 For Inst WPL 788043 Contact Us For Availability
41
S\cr\ew, 10-32 x 3/8 Hex Washer Head (4) WPL 788117 Contact Us For Availability
41
Panel, Access WPL 788071 Contact Us For Availability
43
Baffle, Exhaust WPL 788062 Contact Us For Availability
44
Rivet (2) WPL 788108 Contact Us For Availability
44
Clip, Access Panel (2) WPL 788089 Contact Us For Availability
46
Duct, Cavity WPL 788055 Contact Us For Availability
46
Rivet (4) WPL 788092 Contact Us For Availability
× ![]()
