Model Whirlpool MW1501XS1 – Common Parts & Diagrams

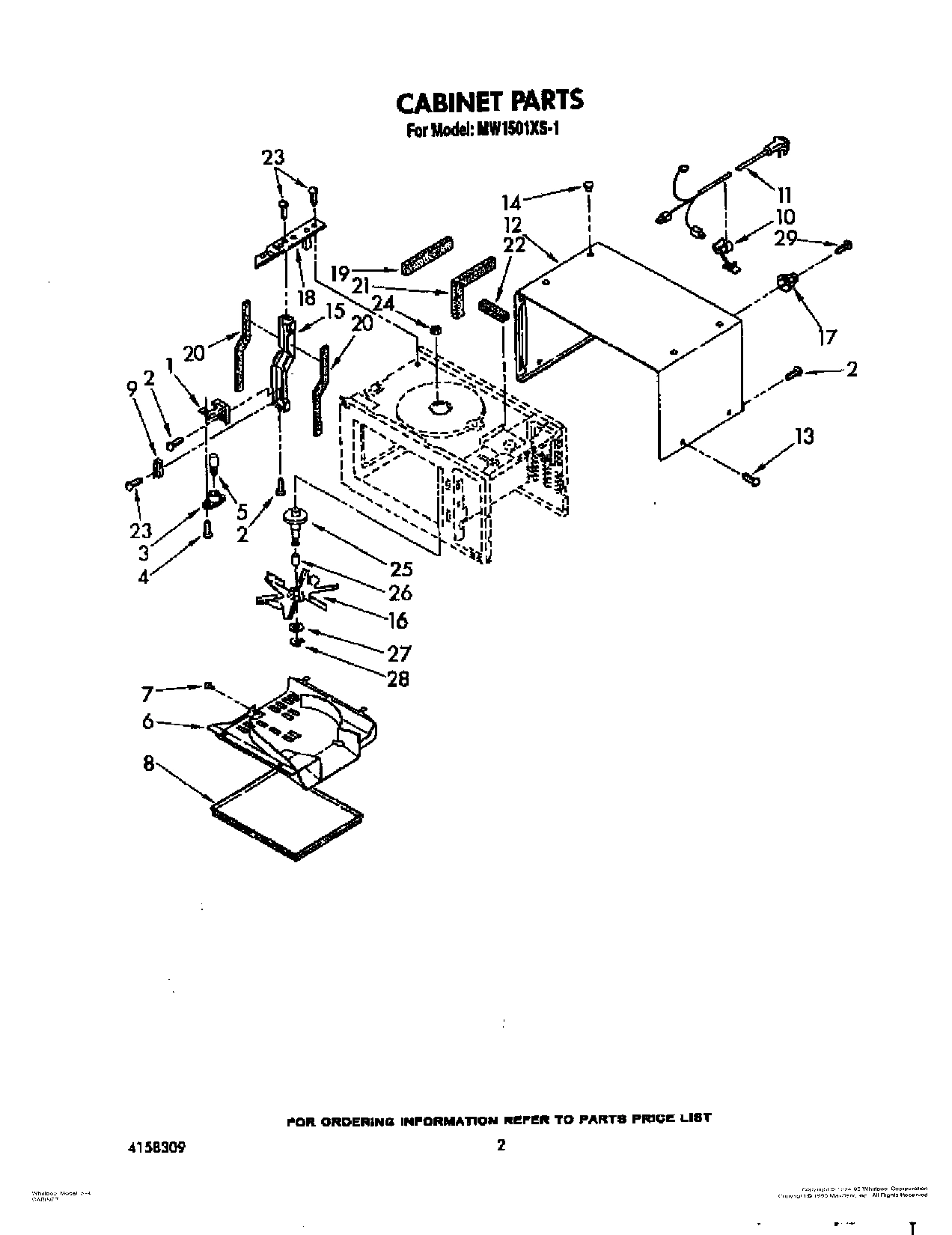

02 - CABINET

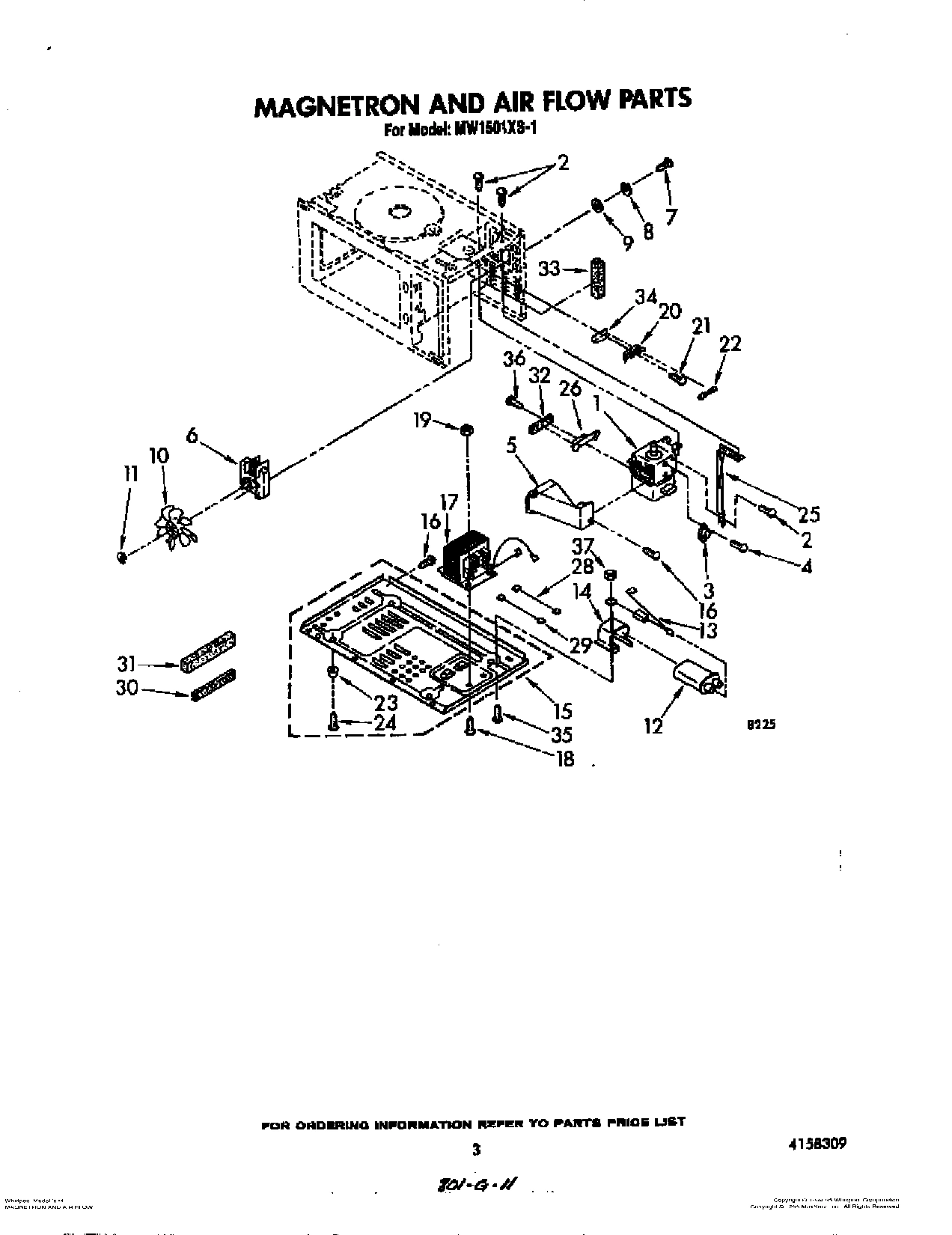

03 - MAGNETRON AND AIR FLOW

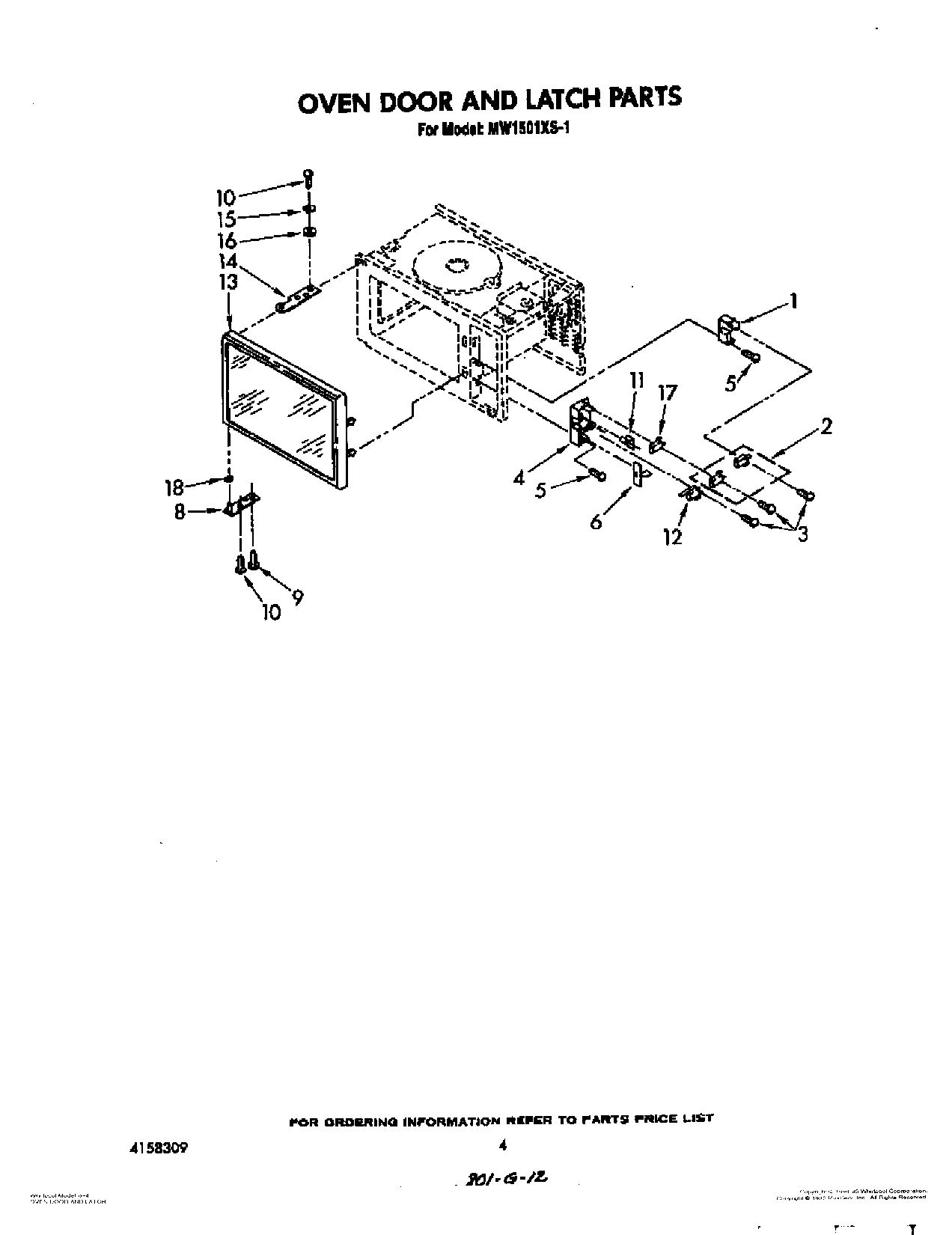

04 - OVEN DOOR AND LATCH

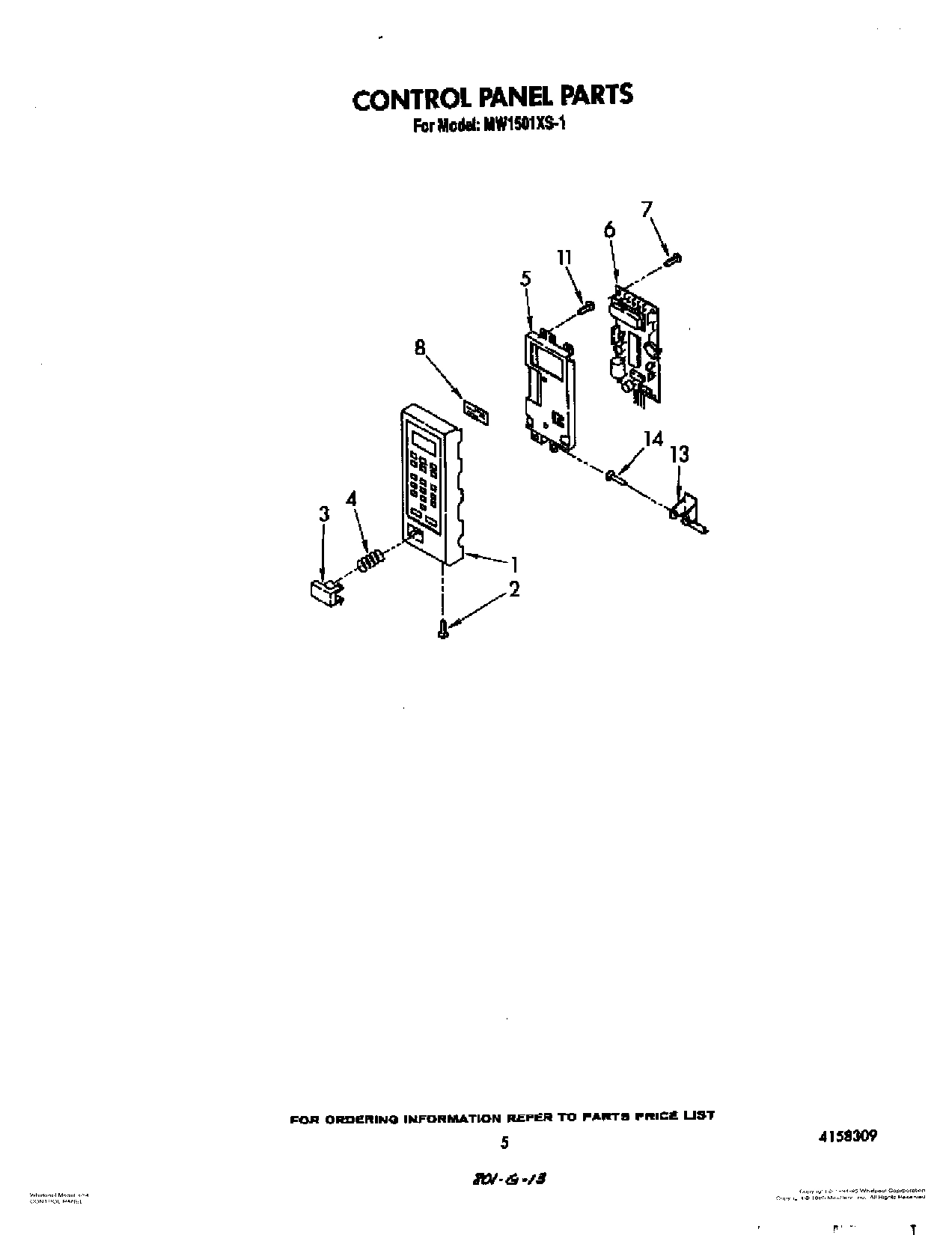

05 - CONTROL PANEL

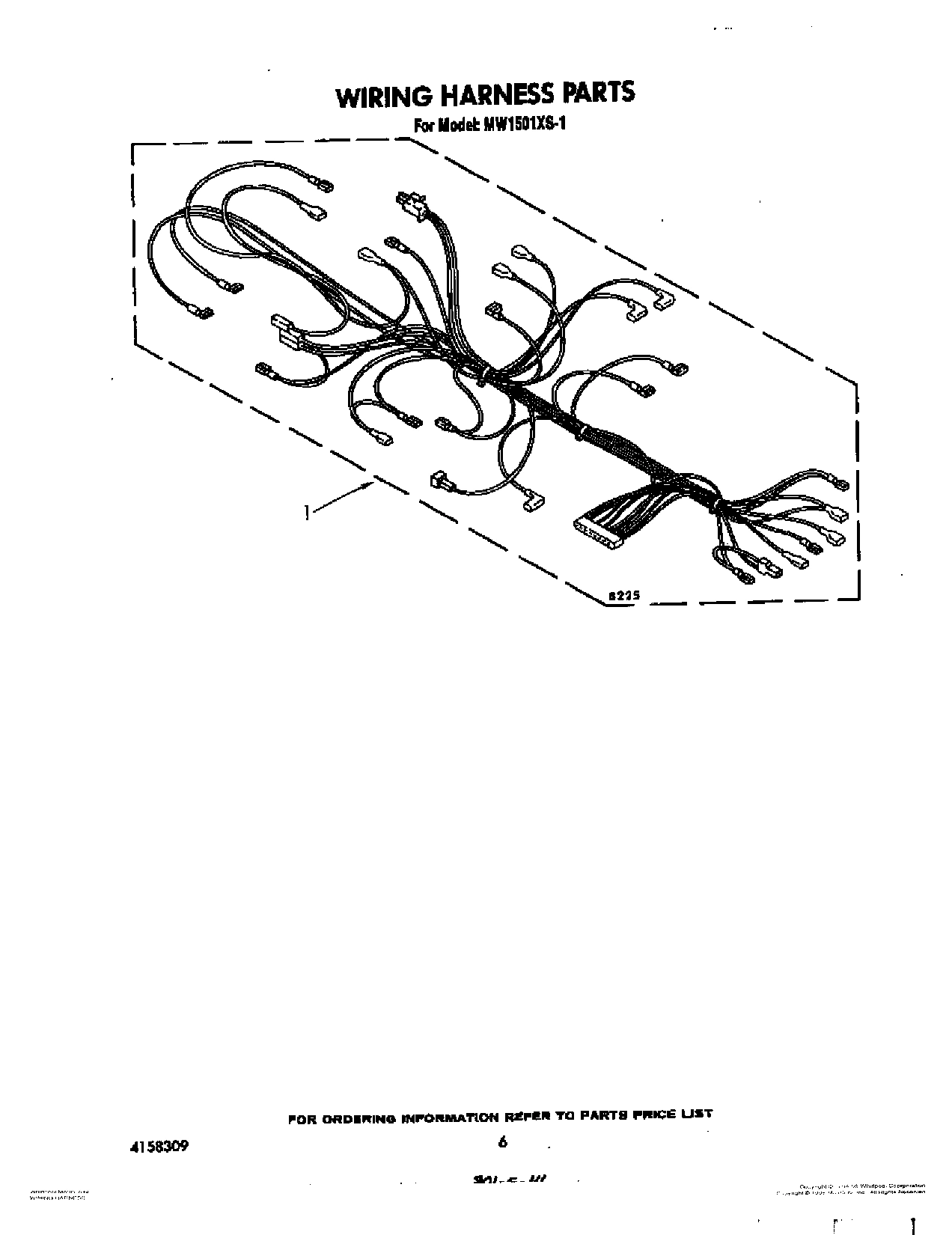

06 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool MW1501XS1
Cookbook WPL LIT4158012 Contact Us For Availability
Guide, Use & Care WPL LIT4158254 Contact Us For Availability
List, Repair Parts WPL LIT4158309 Contact Us For Availability
1
Magnetron WPL 4158054 Contact Us For Availability
1
Latch, Upper WPL 4158064 Contact Us For Availability
1
Frame, Control Panel WPL 4158305 Contact Us For Availability
1
Under The Cabinet Mounting Kit WPL 4158000 Contact Us For Availability
1
Wall Mount Kit WPL 4158002 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158306 Contact Us For Availability
1
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
1
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
2
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
2
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
2
Interlock, Switch Kit (Both switches must be WPL 4158135 Contact Us For Availability
3
Thermal Protector WPL 4158055 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
3
Button, Push To Start WPL 4158300 Contact Us For Availability
4
Latch, Lower WPL 4158066 Contact Us For Availability
4
Spring, Button WPL 4158110 Contact Us For Availability
5
Bulb WPL 4158098 Contact Us For Availability
5
Duct, Air WPL 4158058 Contact Us For Availability
5
Bracket, Control WPL 4158278 Contact Us For Availability
6
Cover, Stirrer WPL 4158046 Contact Us For Availability
6
Motor, Fan WPL 4158061 Contact Us For Availability
6
Rod, Release WPL 4158070 Contact Us For Availability
6
Microcomputer WPL 4158276 Contact Us For Availability
7
Rivet (3) WPL 4158047 Contact Us For Availability
7
Screw, 3 x 8 mm WPL 4158082 Contact Us For Availability
7
Screw, 4 x 10 mm WPL 4158077 Contact Us For Availability
8
Shelf, Cavity WPL 4158287 Contact Us For Availability
8
Washer WPL 4158088 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158040 Contact Us For Availability
8
Window WPL 4158302 Contact Us For Availability
9
Fuse, Thermal WPL 4158049 Contact Us For Availability
9
Washer WPL 4158085 Contact Us For Availability
9
Screw WPL 4158083 Contact Us For Availability
10
Strain Relief WPL 4158092 Contact Us For Availability
10
Fan WPL 4158062 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
11
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
11
Cord, Power WPL 4158091 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
11
Switch WPL 4158068 Contact Us For Availability
12
Wrapper, Cabinet WPL 4158282 Contact Us For Availability
12
Capacitor (Alt.) WPL 4158280 Contact Us For Availability
12
Capacitor (Alt.) WPL 4158289 Contact Us For Availability
12
Capacitor WPL 4158290 Contact Us For Availability
12
Swith, Secondary WPL 4158100 Contact Us For Availability
13
Diode WPL 4158298 Contact Us For Availability
13
Door, Complete WPL 4158288 Contact Us For Availability
13
Lever, Release WPL 4158112 Contact Us For Availability
14
Plug, Hole WPL 4158285 Contact Us For Availability
14
Bracket, Capacitor WPL 4158043 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158051 Contact Us For Availability
14
Pin, Lever WPL 4158113 Contact Us For Availability
15
Air Guide WPL 4158286 Contact Us For Availability
15
Plate, Base (Includes Illus. No. 23) WPL 4158037 Contact Us For Availability
15
Washer WPL 4158086 Contact Us For Availability
16
Blade, Stirrer WPL 4158048 Contact Us For Availability
16
Washer WPL 4158087 Contact Us For Availability
17
Spacer WPL 4158281 Contact Us For Availability
17
Transformer WPL 4158279 Contact Us For Availability
18
Bracket WPL 4158050 Contact Us For Availability
18
Screw, 5 x 12mm WPL 4158103 Contact Us For Availability
18
Washer WPL 4158117 Contact Us For Availability
19
Seal, Foam WPL 4158228 Contact Us For Availability
19
Nut WPL 4158053 Contact Us For Availability
20
Seal, Foam WPL 4158230 Contact Us For Availability
20
Holder, Fuse WPL 4158059 Contact Us For Availability
21
Seal, Foam WPL 4158297 Contact Us For Availability
21
Screw, 4 x 10 mm WPL 4158072 Contact Us For Availability
22
Seal, Foam WPL 4158118 Contact Us For Availability
22
Fuse WPL 4158060 Contact Us For Availability
23
Foot (4) WPL 4158042 Contact Us For Availability
25
Mounting Axle WPL 4158250 Contact Us For Availability
25
Cover WPL 4158284 Contact Us For Availability
26
Bushing WPL 4158251 Contact Us For Availability
26
Bracket, Magnetron WPL 4158283 Contact Us For Availability
27
Washer WPL 4158252 Contact Us For Availability
28
Retainer WPL 4158253 Contact Us For Availability
28
Lead, High Voltage WPL 4158122 Contact Us For Availability
29
Screw, 4 X 12 mm WPL 4158307 Contact Us For Availability
29
Lead, High Voltage WPL 4158123 Contact Us For Availability
30
Seal, Foam WPL 4158039 Contact Us For Availability
31
Seal, Foam WPL 4158041 Contact Us For Availability
32
Seal, Foam WPL 4158057 Contact Us For Availability
33
Seal, Foam WPL 4158119 Contact Us For Availability
34
Plate, Discharge WPL 4158126 Contact Us For Availability
35
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
36
Screw, 4 x 6 mm WPL 4158074 Contact Us For Availability
37
Nut WPL 4158233 Contact Us For Availability
× ![]()
